Auxbeam 6 gang light controller flush mount
IP Report
Print Profile(1)

0.12mm layer, 3 walls, 15% infill
Designer
2.3 h
1 plate
Open in Bambu Studio
Boost
15
46
0
0
24
9
Released
Description

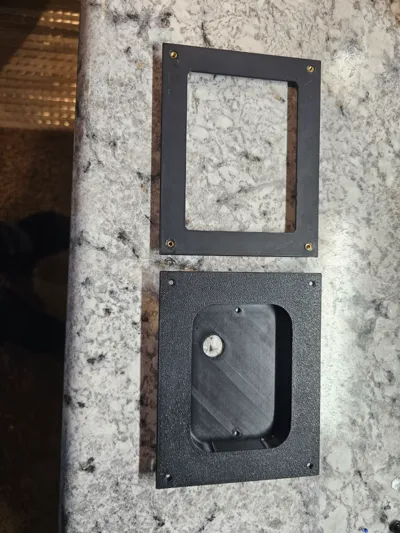

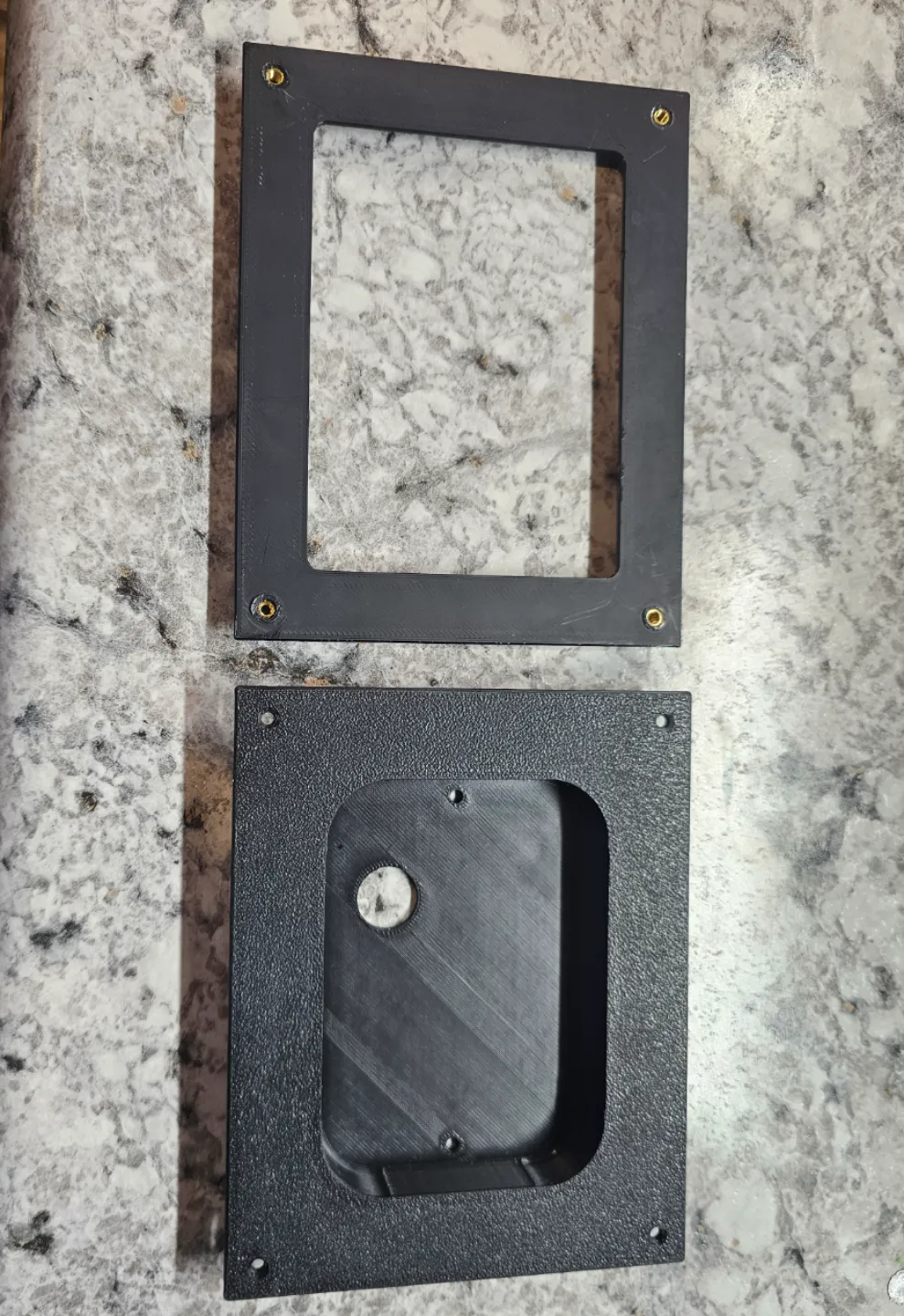

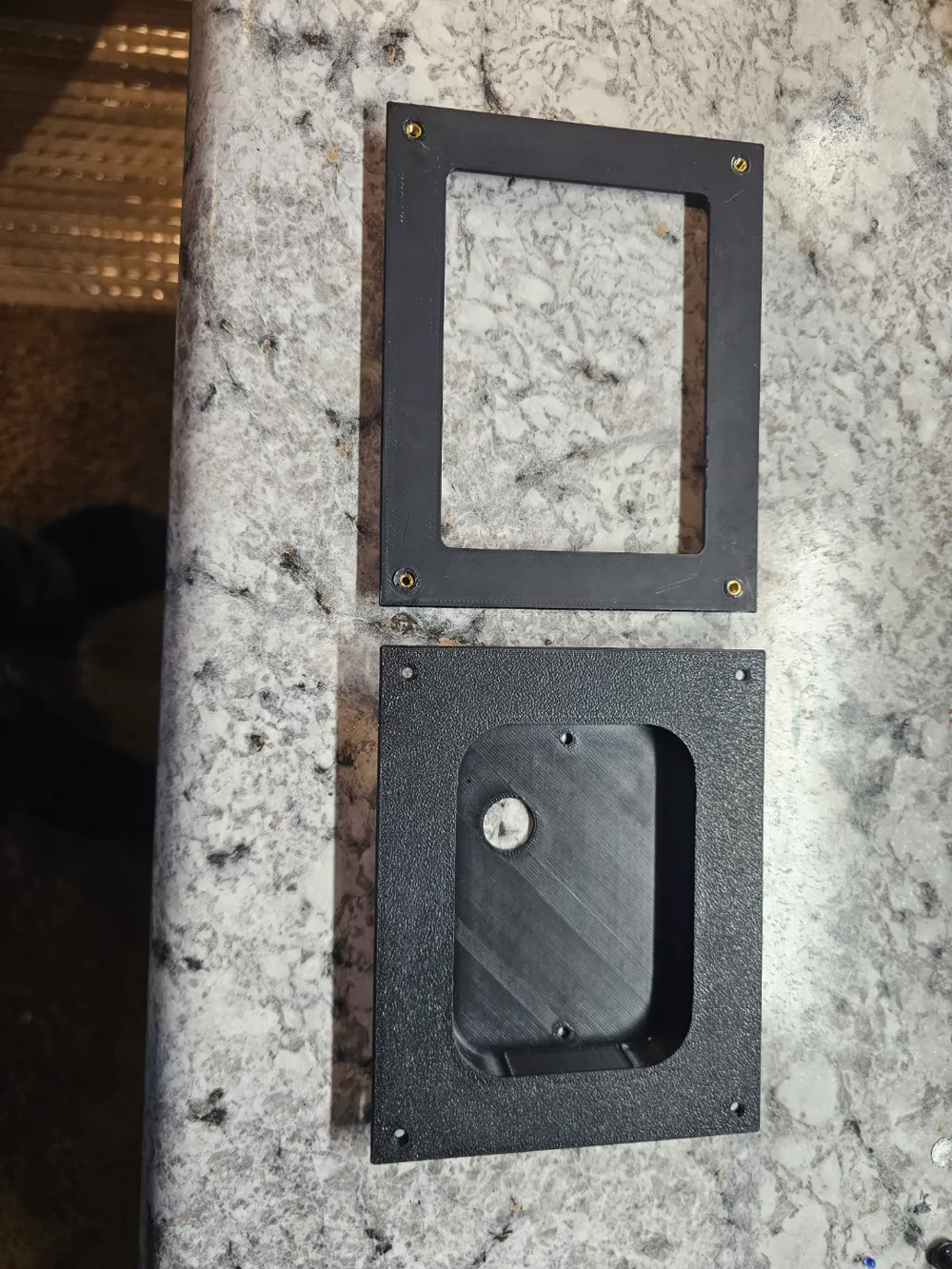

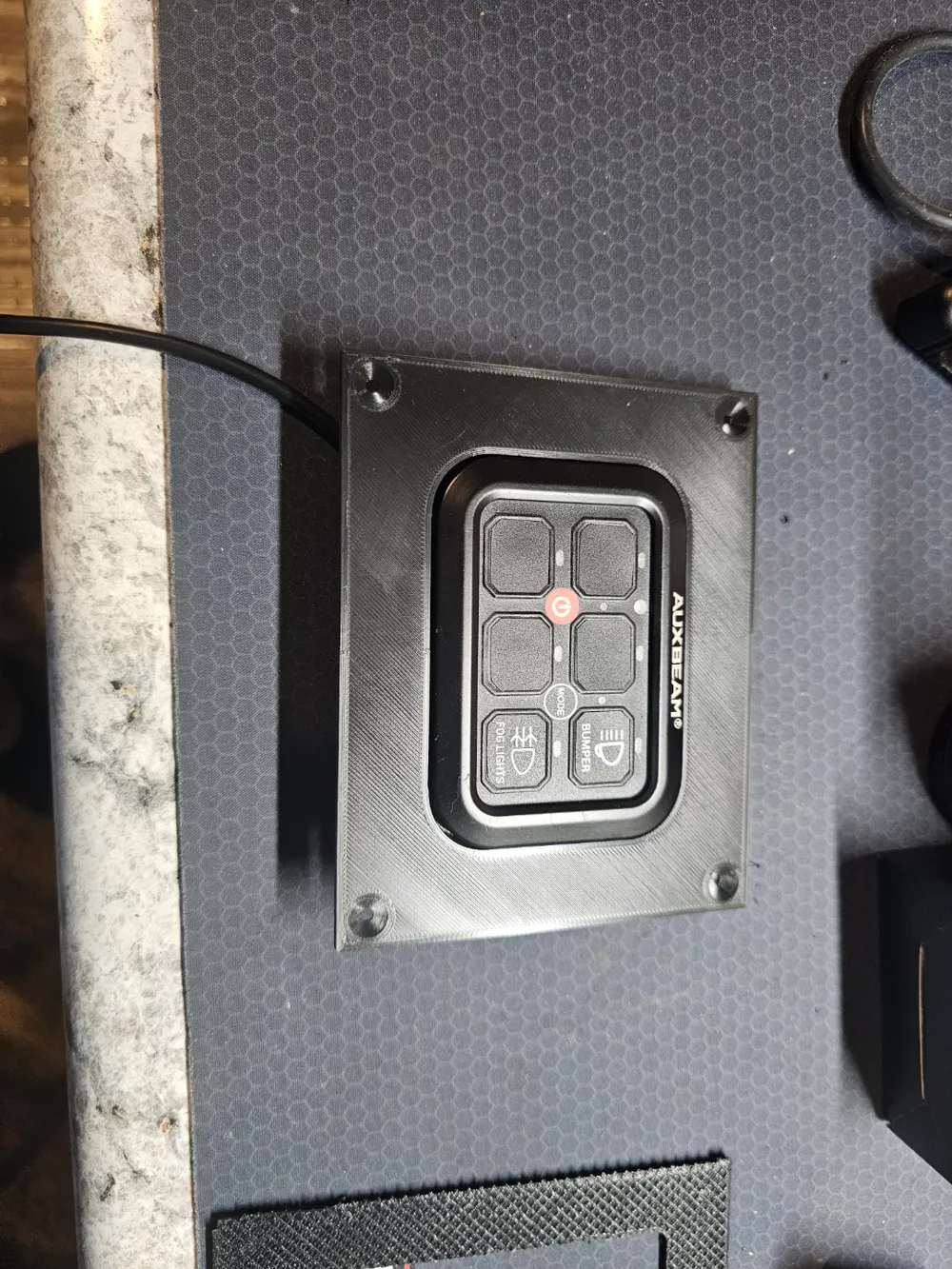

I wanted to mount my aux beam switch panel flush into the headliner of my truck so i created this. it has a backplate to install m3 threaded inserts in and glue to the back side of headliner for easy removal if you need access. Use m3 x 20 countersink screws for face plate and m3 x 12mm to attach controller. Model was separated into 2 pieces that will be glued together so it can be printed without support.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
