Simple SMD / SMT tray generator
Print Profile(0)
Description
Boost Me (for free)
If my model helped you in your work - boost me

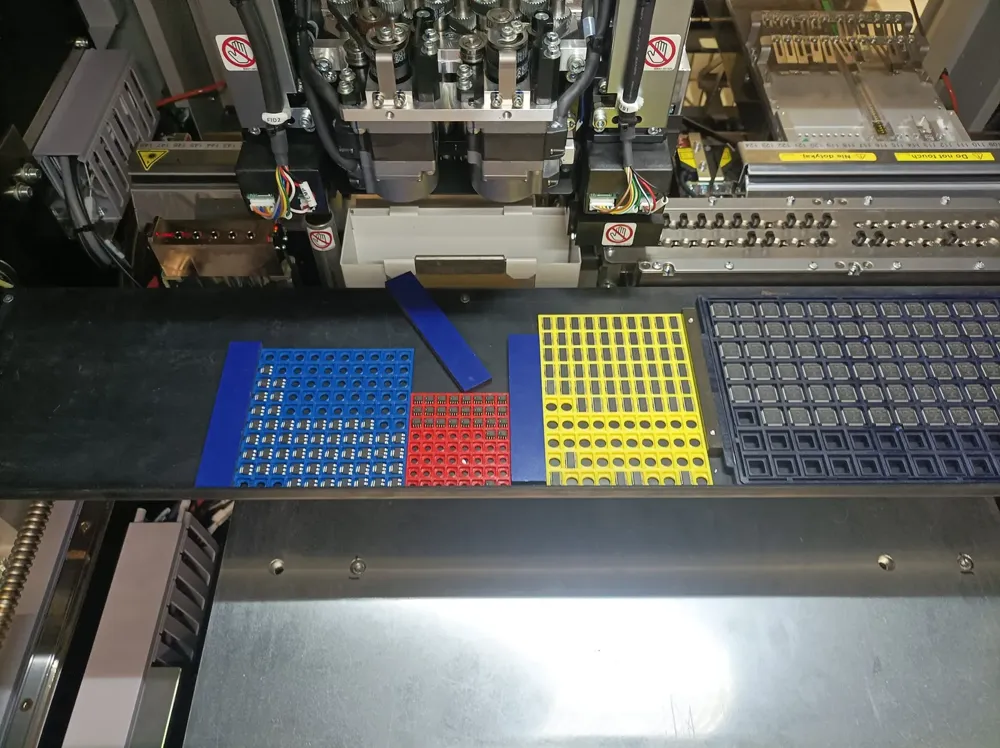

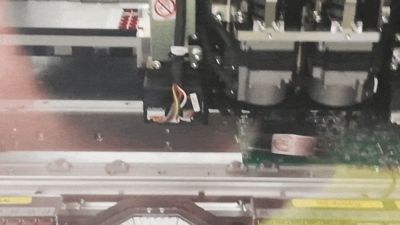

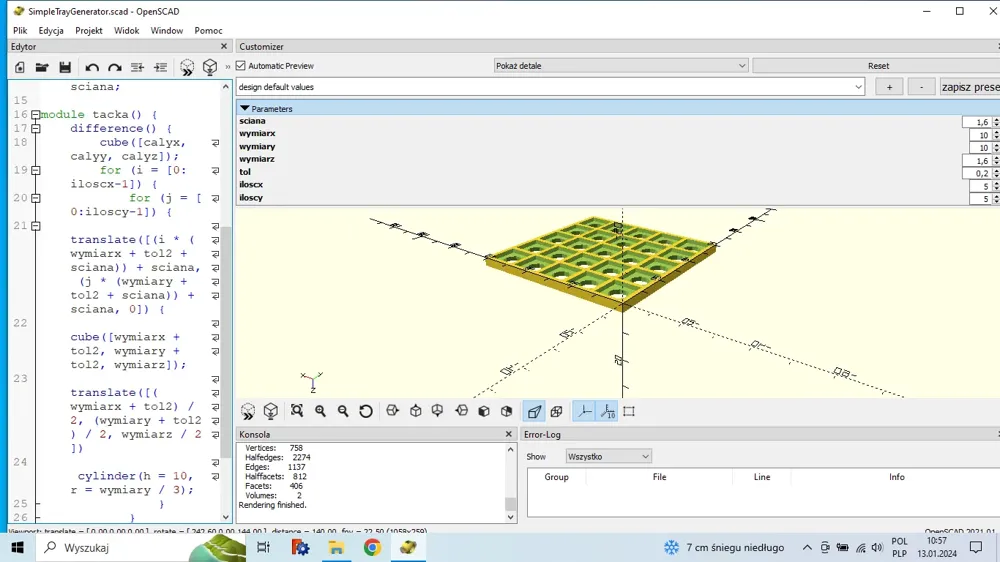

The generator was created because the machine it operates on sometimes lacks the appropriate feeder. Customizable in OpenSCAD.

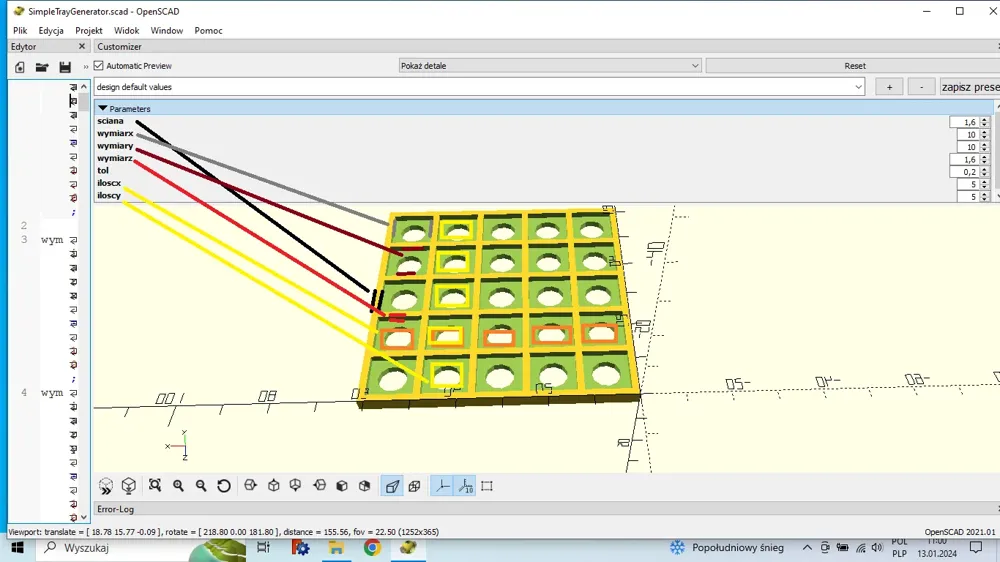

Description of parameters in OpenSCAD:
sciana = wall
wymiarx = component/pocket width
wymiary = component/pocket length
wymiarz = component/pocket height
tol = tolerance in the dimensions of the component to avoid interference with walls
iloscx = number of elements in the X-axis
iloscy = number of elements in the Y-axis
