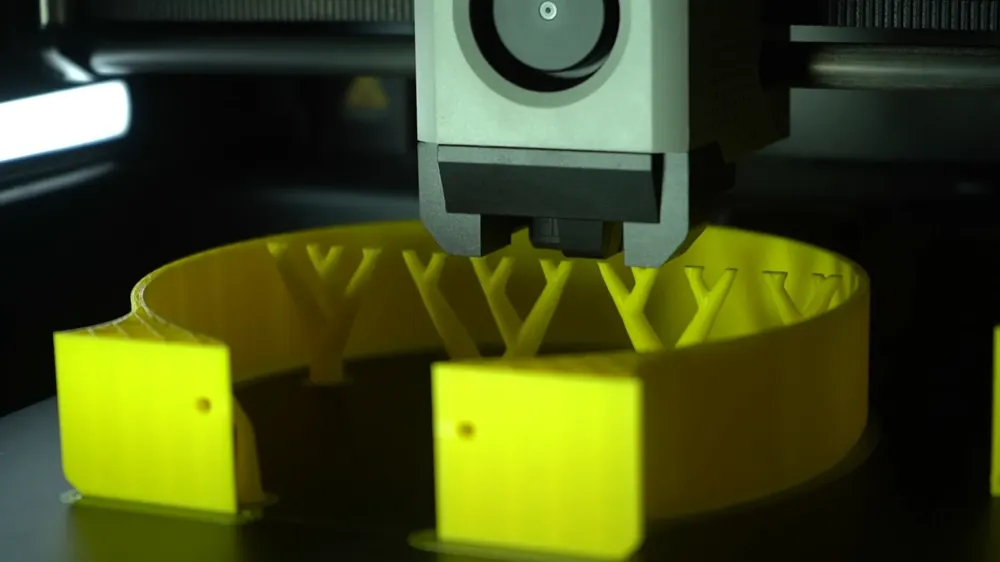

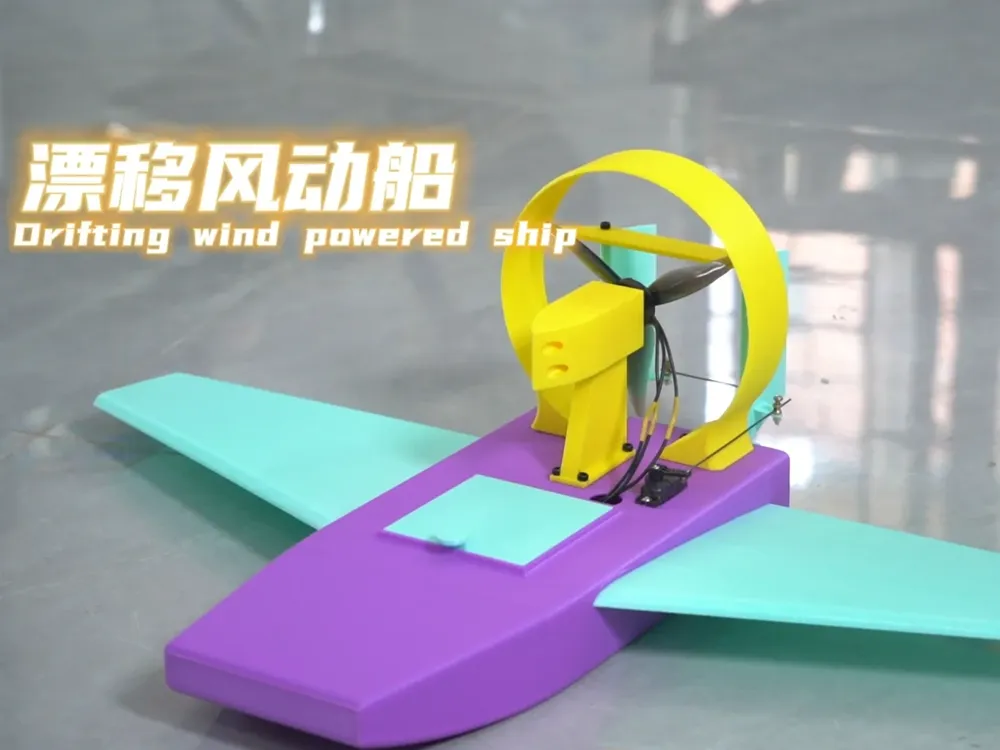

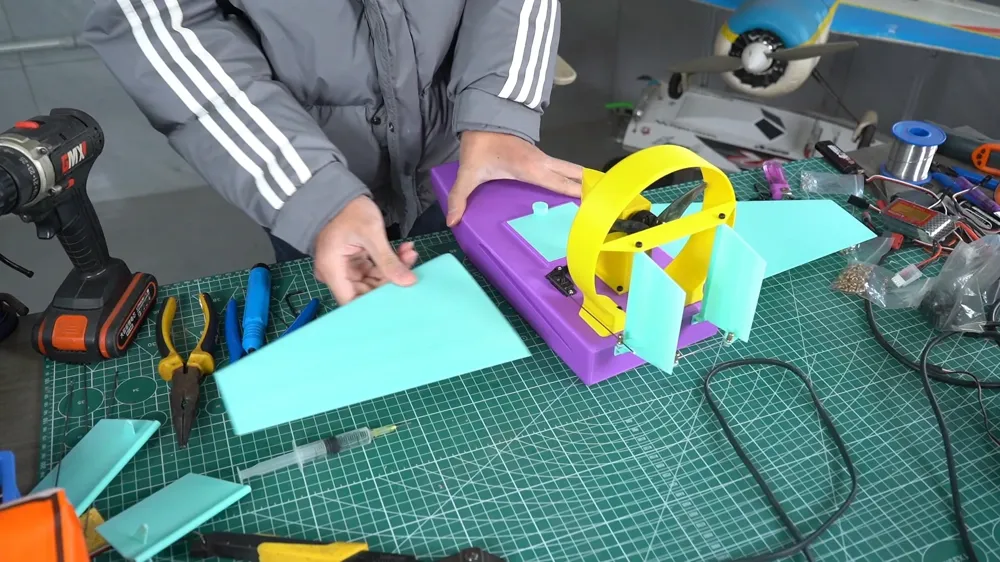

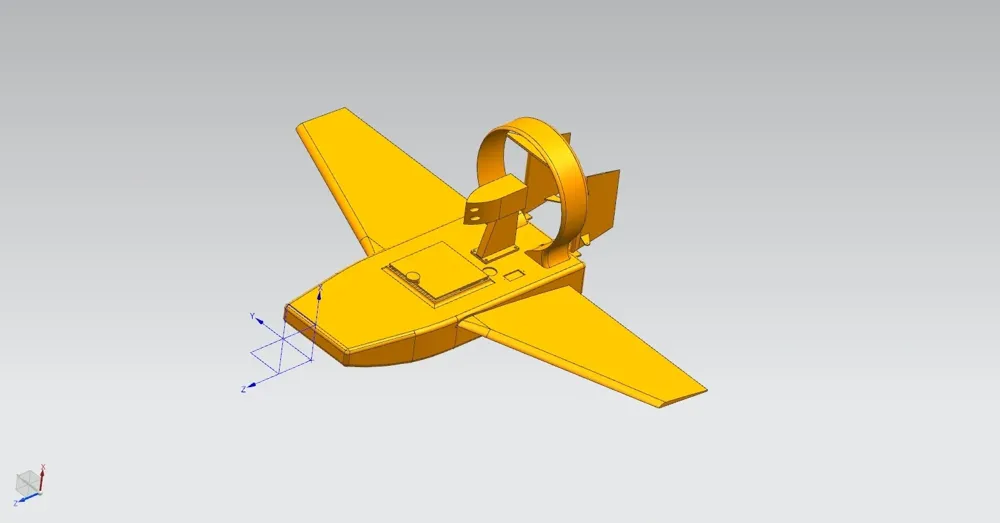

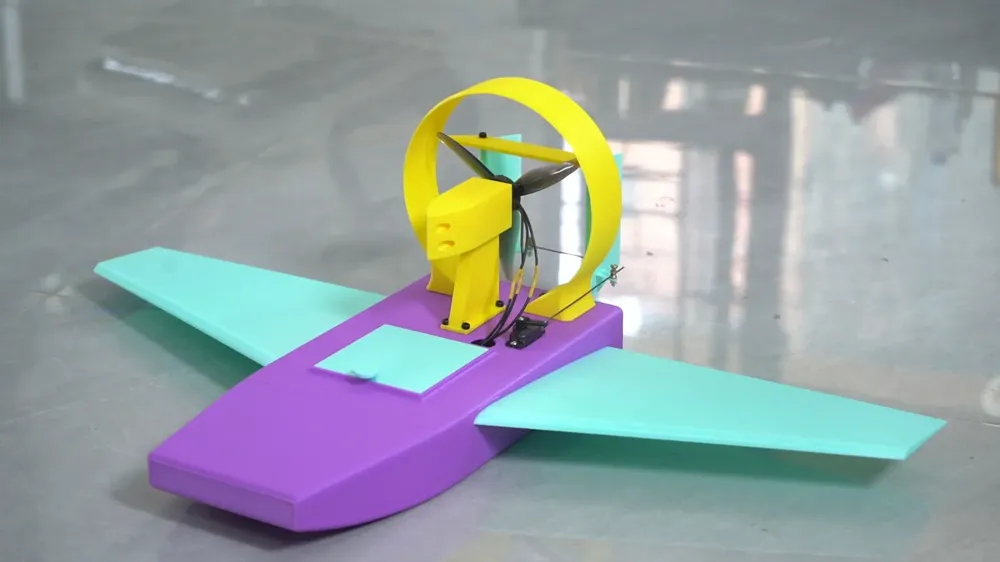

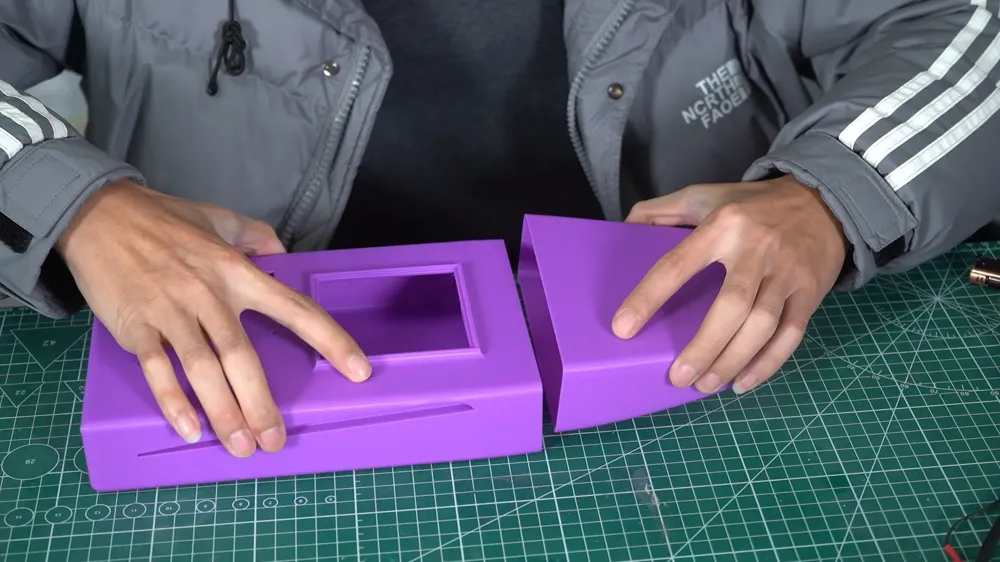

This is a hydrofoil-capable airboat, assembled with minimal parts! Extremely cost-effective and remarkably simple to construct! The body is designed for split printing, measuring 41cm long, 63cm wide, and 20cm high—a showstopper wherever you take it! A 2mm wall thickness ensures resilience against collisions, allowing for worry-free operation. Note that assembly requires adhesive to secure connecting parts; the electronics can be affixed using hot glue, 3M nano tape, or double-sided Velcro. The print profile is pre-configured for one-click printing!
The following materials are required:
Filament: PLA Basic (Purple*1 Yellow*1 Green*1)
Electronic Speed Controller: 30A brushless ESC *1
Motor: 2204*2300kv outrunner brushless motor *1
Servo: 9g metal or plastic servo *1
Propeller: 5-inch three-blade propeller *1
Wire: 1.2MM diameter steel wire, length as needed
Rudder Connector: Alternatively, bend the wire into a “Z” shape to connect the rudder
Transmitter and Receiver: Optional 4-channel transmitter *1
Battery: 11.1v (3s LiPo battery) *1
Charger: B3 or LiPo battery charger *1
3D printed parts adhesive *1
Motor extension cables: 20AWG (30cm cut into 3 sections to connect to the ESC)
Screws: (M3*12MM*4 for mounting motor mount), (M3*16MM*4 for mounting motor), (M3*6MM*8 for mounting rudder and rudder support)
