AXIAL JEEP RENEGADE CJ-7 - Heckstoßstange
Print Profile(1)
Description
To enhance the look of the Axial SCX10 III JEEP RENEGADE CJ-7 body, I have designed several add-on parts which you can find here on Makerworld.
******
This is a rear bumper designed after the original, but offers the possibility of mounting a tow hitch.
I have designed two versions:
- SMALL version: 23mm deep
- LARGE version: 25mm deep

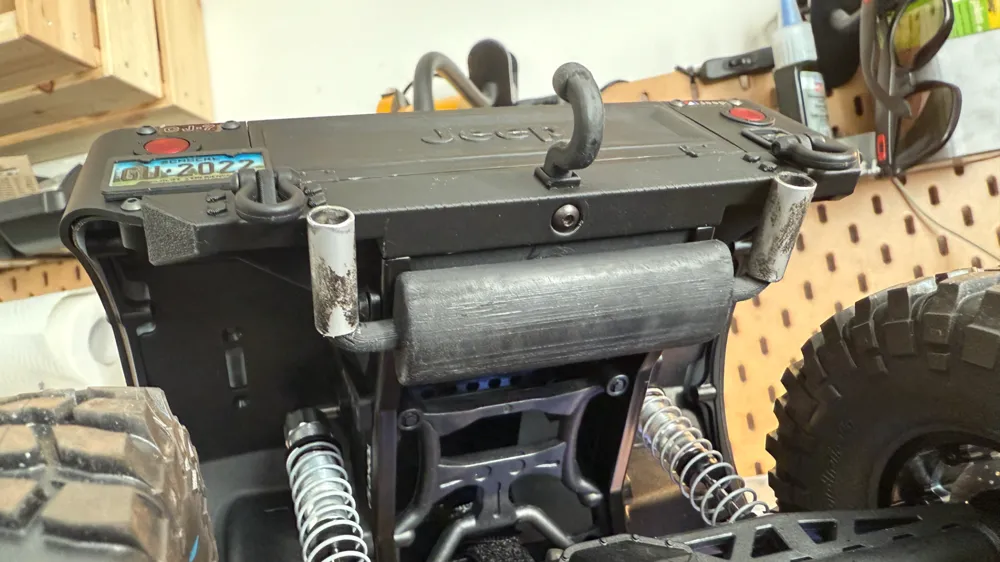

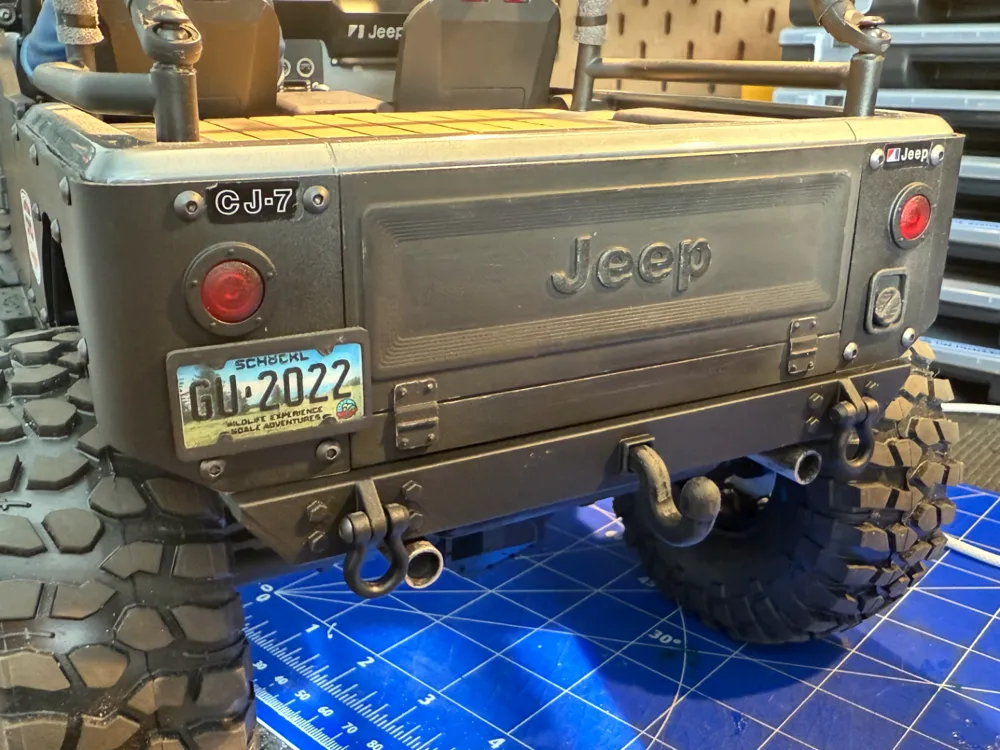

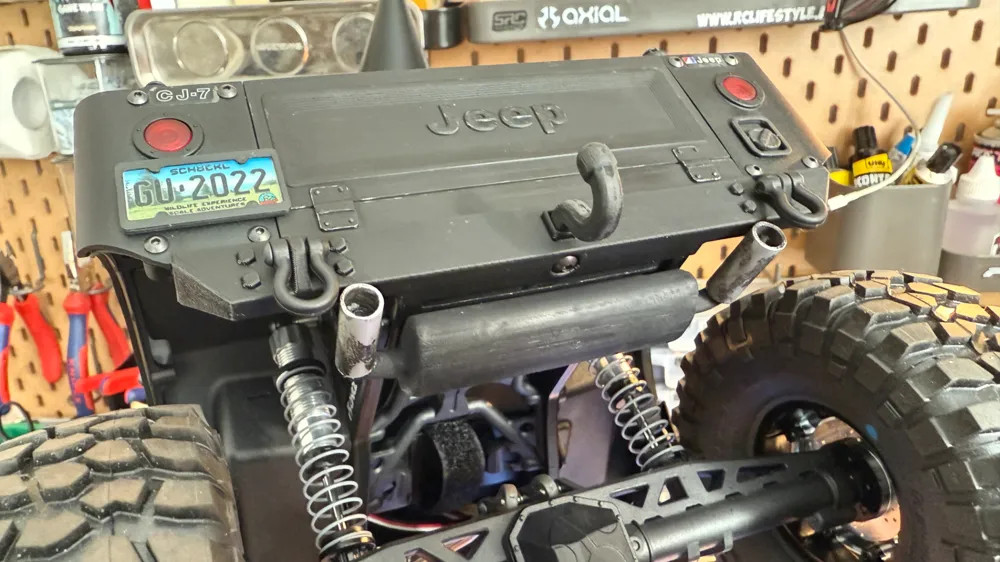

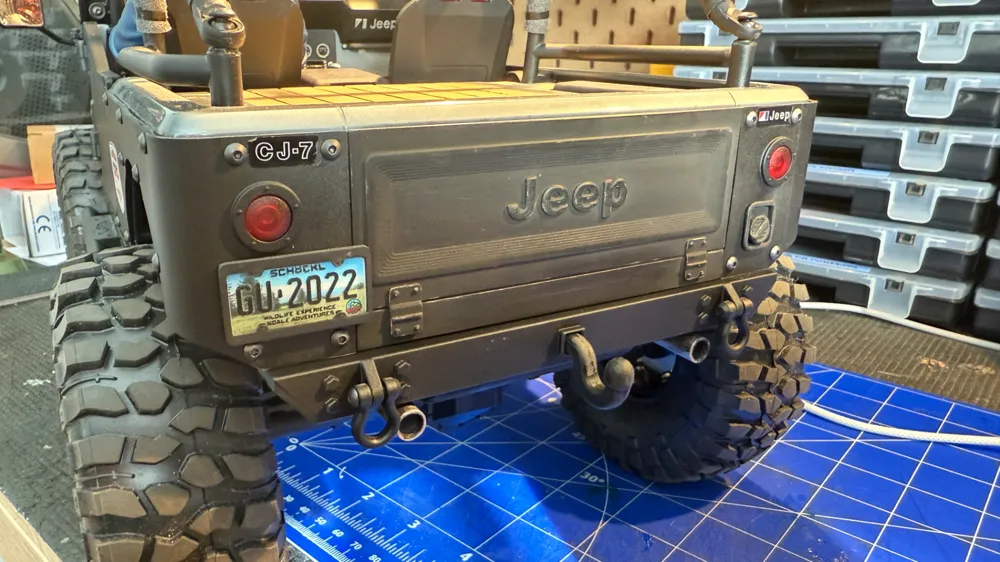

The original version is 20mm deep. I prefer it when the bumper stands out slightly from the body. The photos show the SMALL version.
ASSEMBLY:

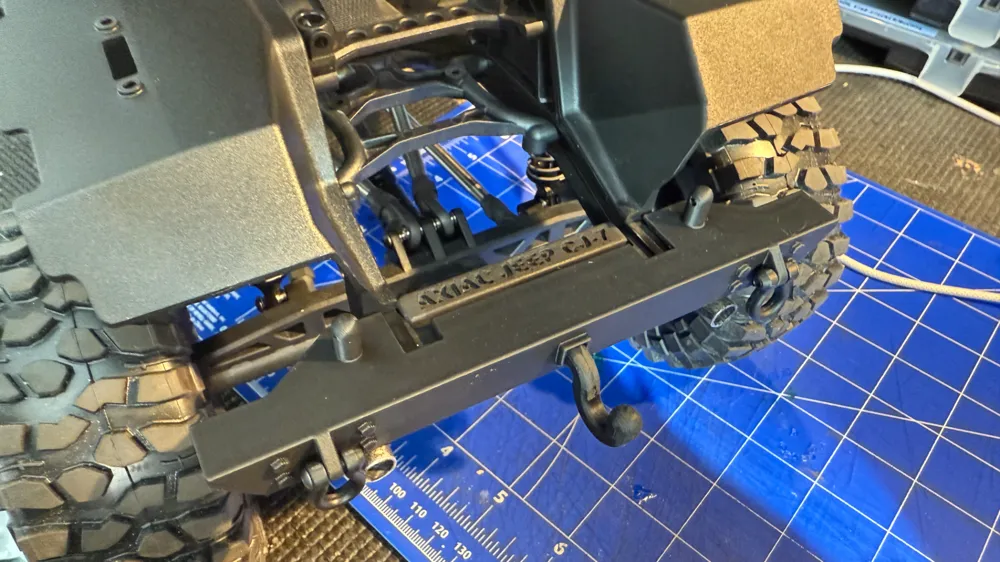

The mount for the chassis frame from the original rear bumper is simply unscrewed and mounted onto the new bumper. The same screws are used.
To secure the tow hitch, an M3 thread must be cut into the bumper from below.
WARNING: Do not cut too deep, otherwise it will protrude at the top! Then you can fix the tow hitch with an M3x10 countersunk screw.
Lightly enlarge the two holes where the tow hooks are fixed, so that the screw runs through more easily.
PRINT INFORMATION:
To achieve maximum stability of the bumper and tow hitch, print with 100% infill and at the angle already loaded in the file. After printing, some minor sanding work is required on the tow hitch to smooth the surfaces.
I wish you good luck with printing and then much fun with your upgrade for the CJ-7
A LIKE and a BOOST would be greatly appreciated :)
