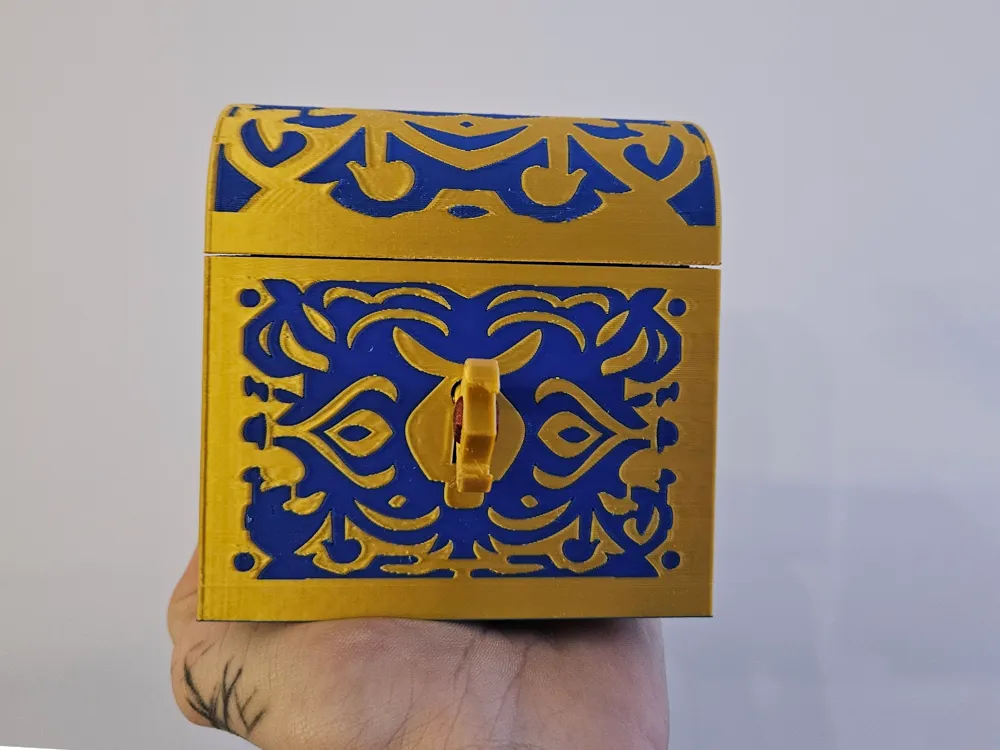

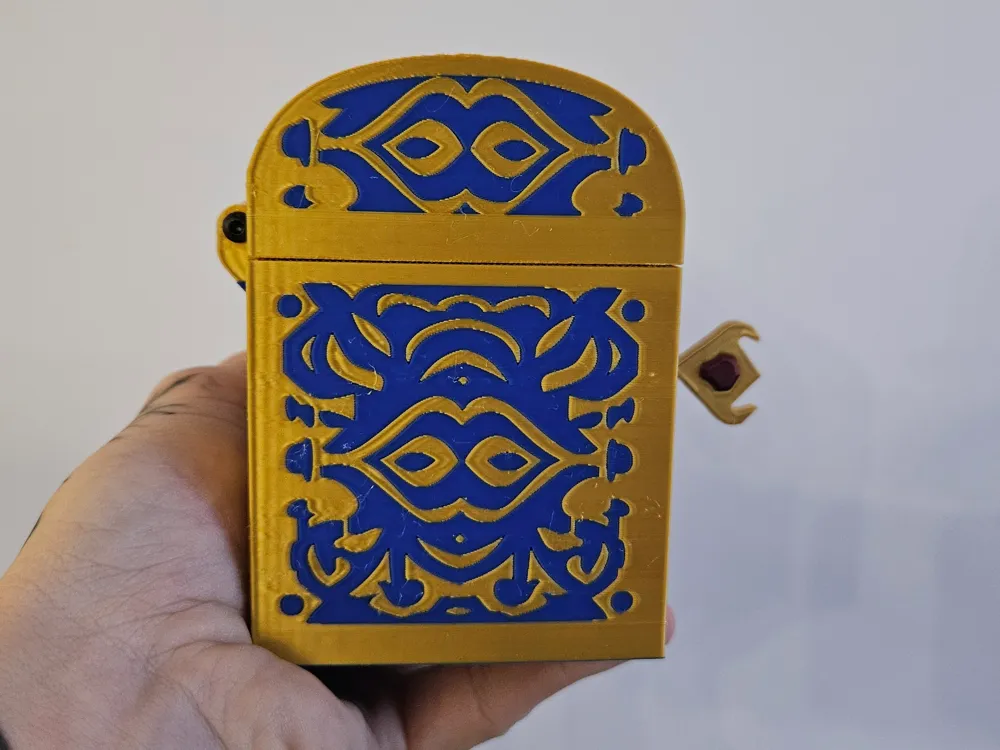

Lockable Big Chest Cartridges Holder

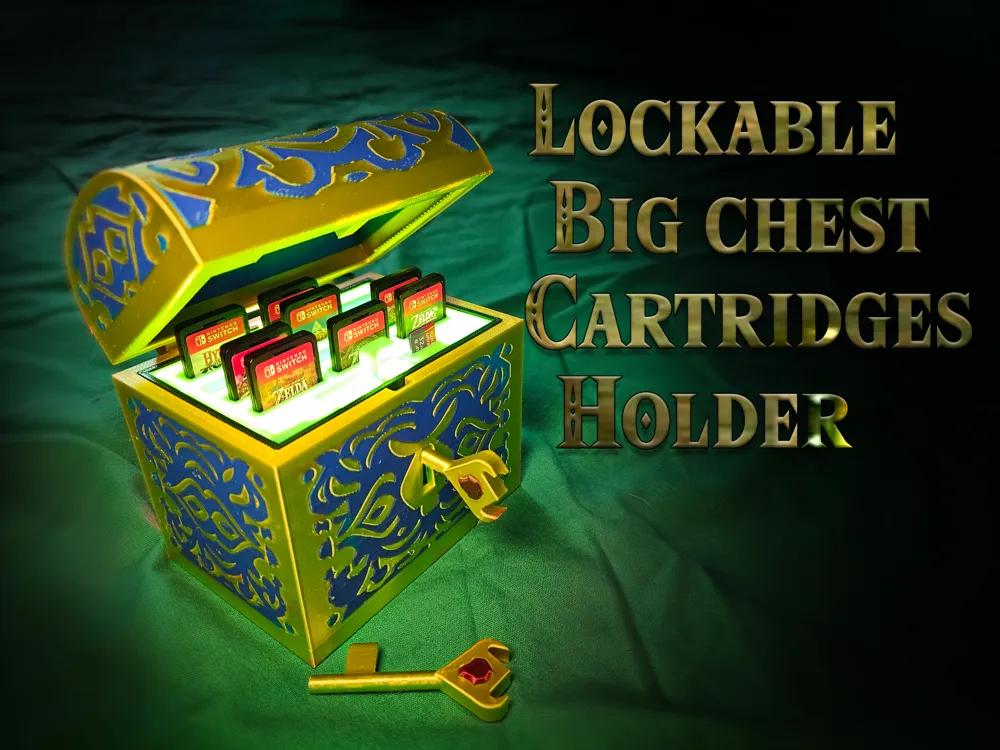

A Big Chest to Store Game Cartridges!

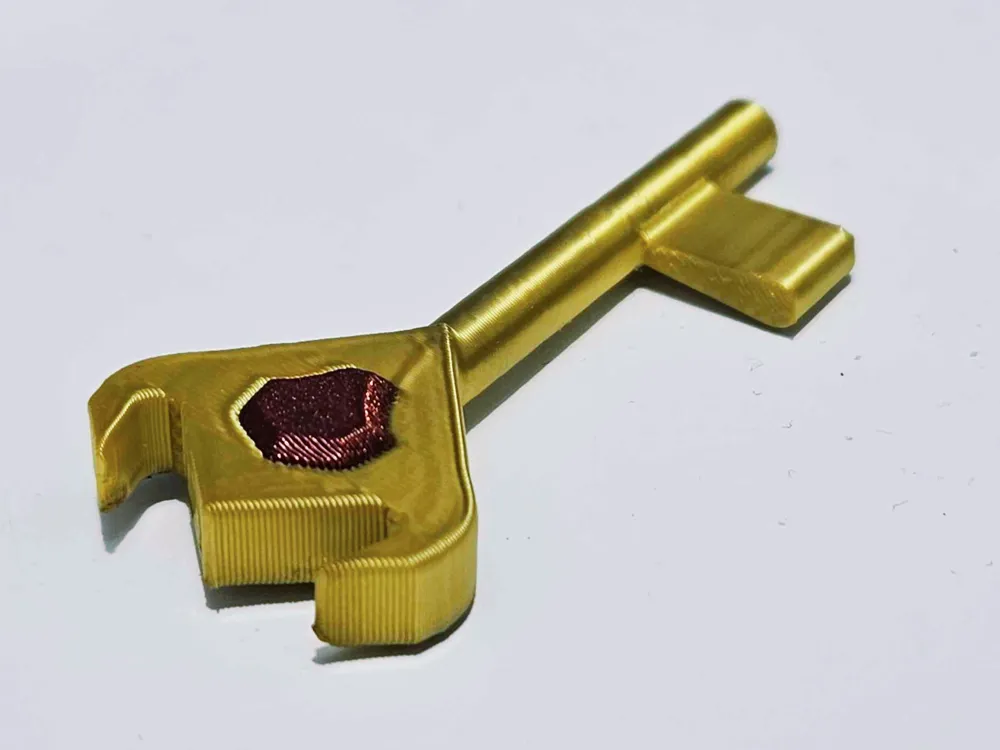

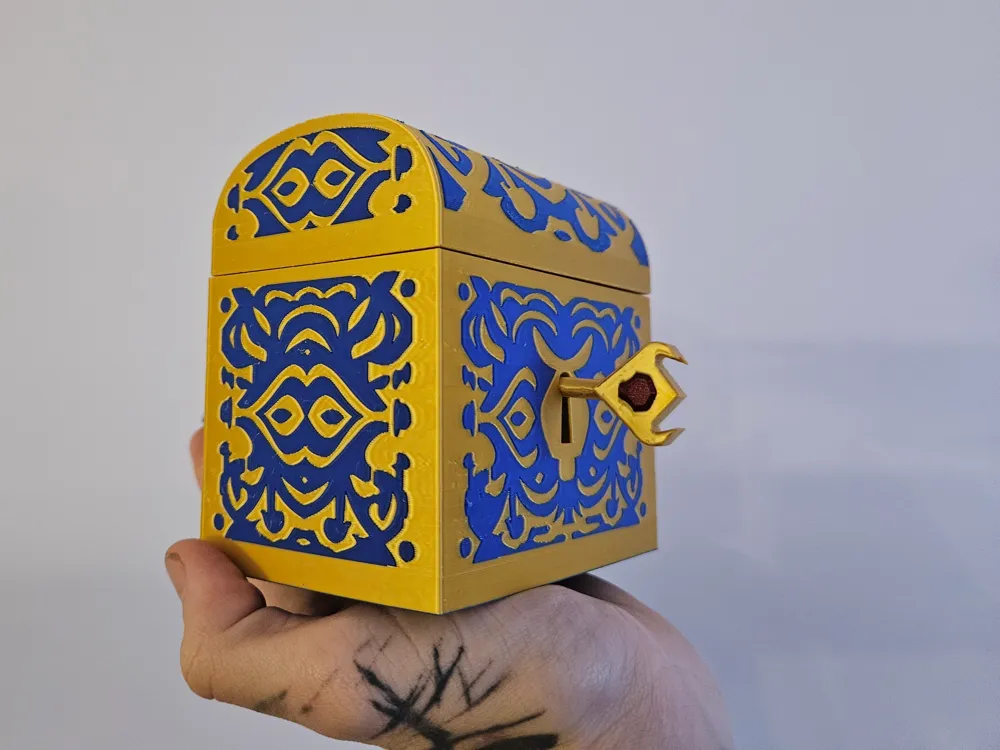

Lockable with a Big Key and featuring a green glowing light when opened! Keep away those you dont want to play your favorites games!

Can hold up to 12 cartridges as well as a micro sd card.

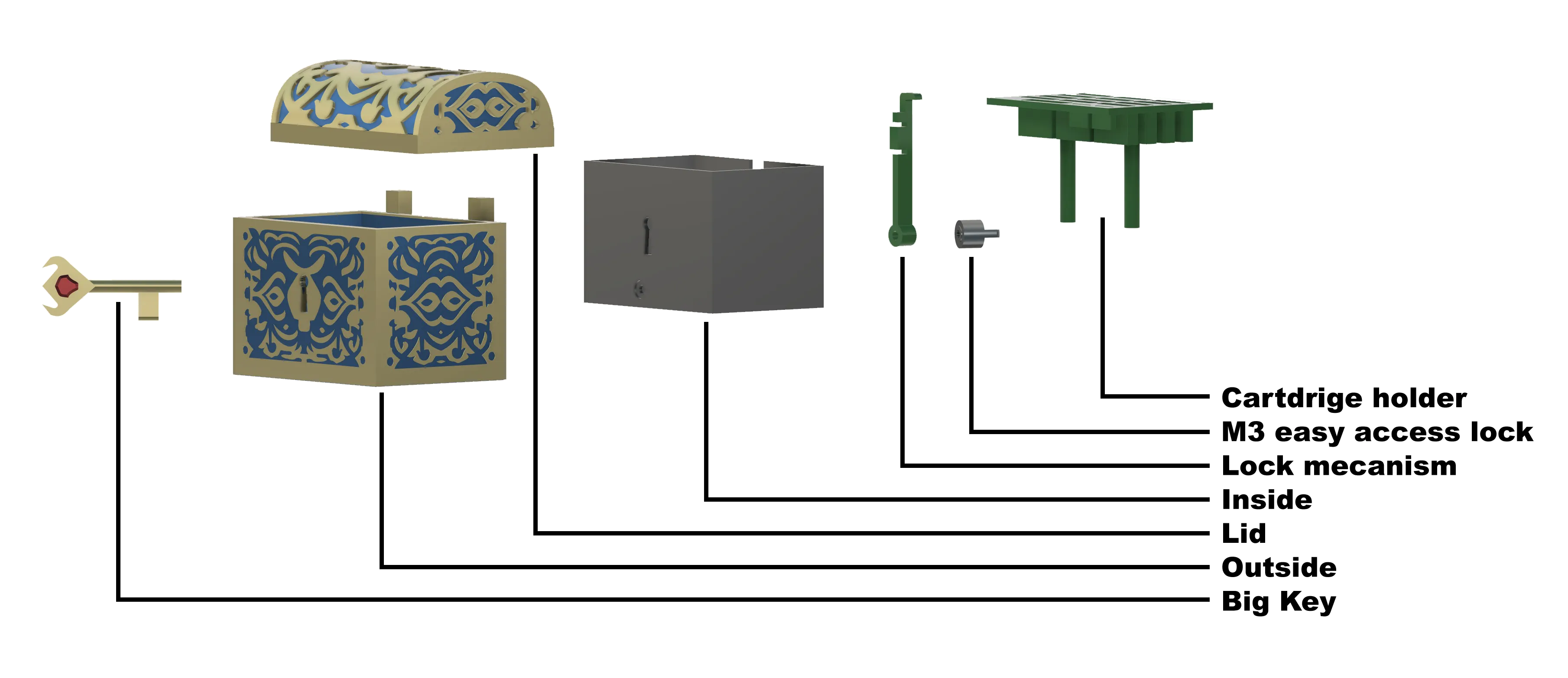

Assembly:

1. Install the elastic band into the hook of the "Lock Mechanism".
2. Insert the "Lock Mechanism" into the "Inside" part.
3. Use the "M3 easy access lock" and a 16mm M3 screw to assemble the mechanism (alternatively, you can use a standard M3 nut, but assembly will be slightly harder).
   *⚠️ Note: Do not overtighten. Leave some slack to allow the mechanism to move. Test the mechanism to ensure it works!*

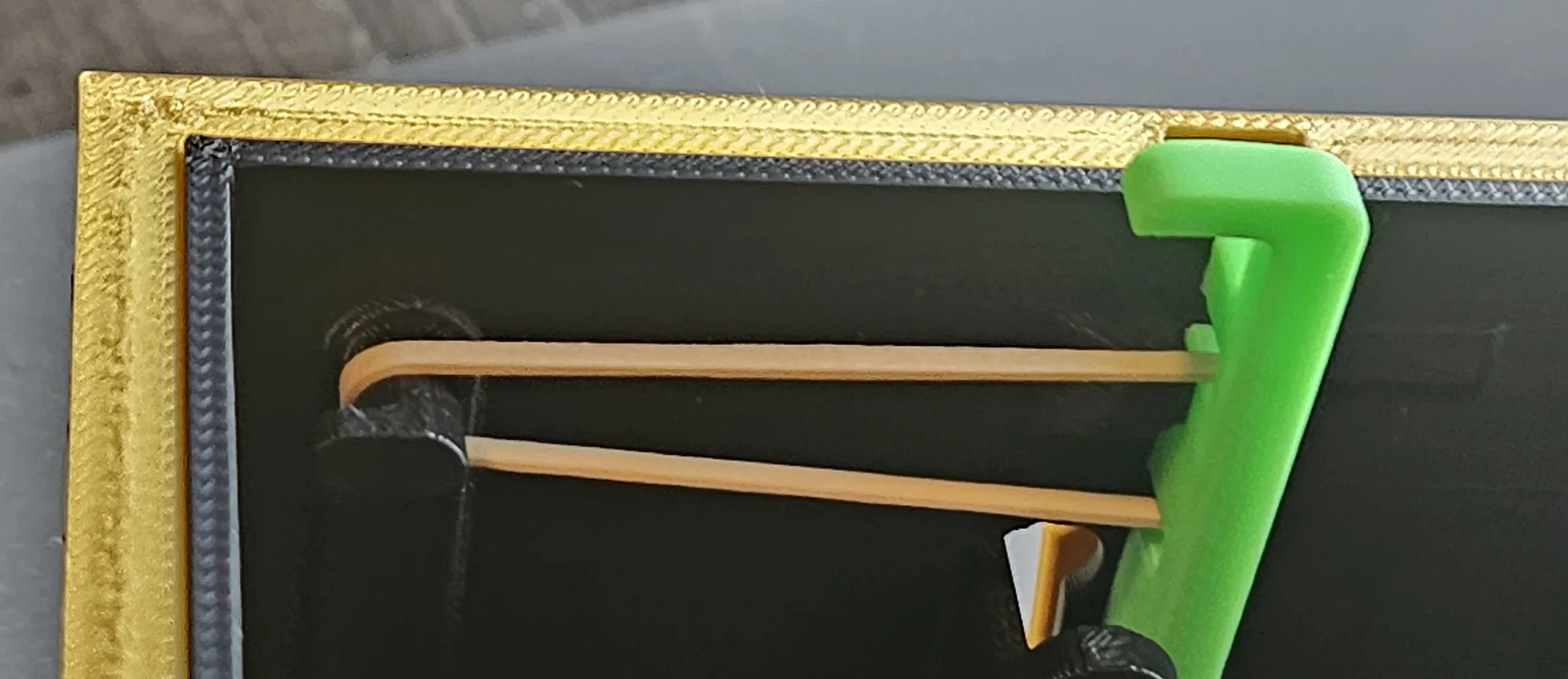

4. Attach the rubber band to the hook of the "Inside" part. The result should look like this:

5. Slide the assembled "Inside" part into the "Outside" shell.
6. Insert the LEDs inside: you can loop the strip around once and cut the excess or make multiple loops as needed; if you can, try to orient some leds facing up. Secure the wire with hot glue.

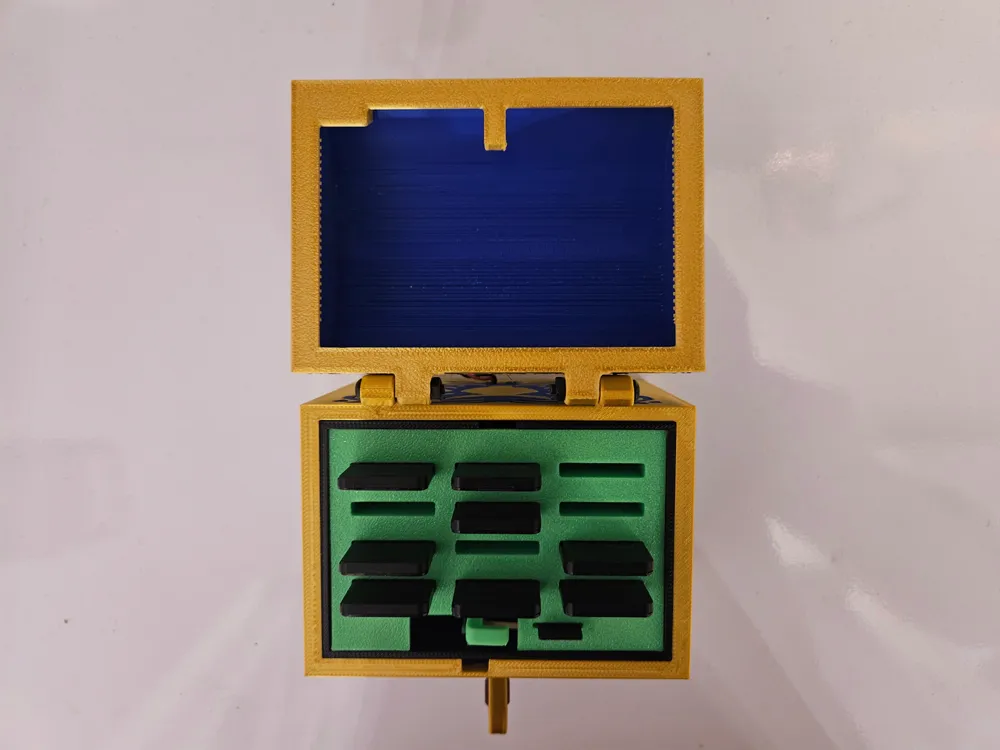

7. Insert the "Cartridge Holder" into the assembly.
8. Secure the assembly using two 20mm M3 screws through the two holes underneath.
9. Attach the "Lid" with two 20mm M3 screws and nuts. Tighten according to the lid resistance you prefer.

Hardware Needed:

- 4 x 20mm M3
- 1 x 16mm M3 (⚠️ Important: This M3 screw MUST be button head; otherwise, it WILL NOT FIT)
- LED Strip

- 2 x M3 nuts
- Rubber Band: ~15mm in diameter
- Hot glue
