Emergency stop mount to 2040 profile cnc router 3d
Print Profile(1)
Description

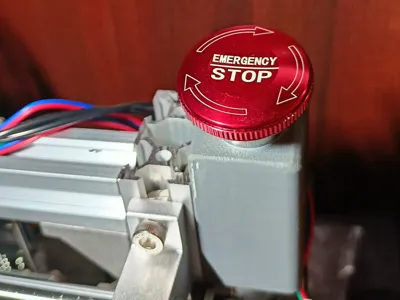

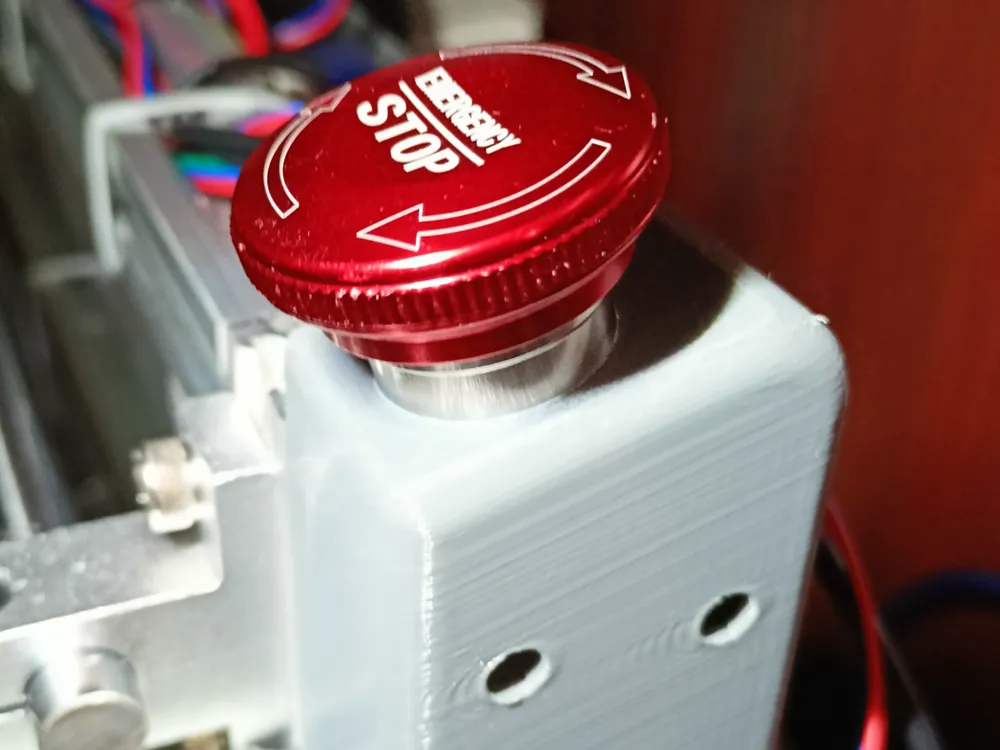

Mounting with a housing for a 16mm switch.
To this housing, you can mount any 16mm switch to a V-slot 2040 profile using two M5 screws. Ideal for a safety switch in CNC machines.
Print instructions:
Use PETG or ABS material with a fill density of more than 70-90%. Ensure supports are placed on the surface of the table.
Assembly steps:
- Insert the M5 screws first.
- Then, insert the wired switch with a mounting diameter of 16mm.
- There is enough space in the housing to hide a fuse if needed.
IMPORTANT:
Mount in a visible and safe location!
Emergency Stop https://s.click.aliexpress.com/e/_EuJO5Ag
