TTRPG Dice & Mini Vault - Fully Customizable

Update V2 2024-Jan-23:  Special Thanks to those who provided feedback.  I've uploaded a revised version of the Dial Chassis to all Designer-Created Print Profiles.  Based on user feedback, the vault was coming loose too easily.  This new part is compatible with all existing prints and should hold better.  Thanks so much for the feedback!  I've also uploaded a new .stl file.

PLEASE NOTE:  I am only responsible for my own print profiles.  The A1 Mini Profile is probably using the old chassis, unless otherwise noted so please print with caution or download the raw files directly (which have been updated).

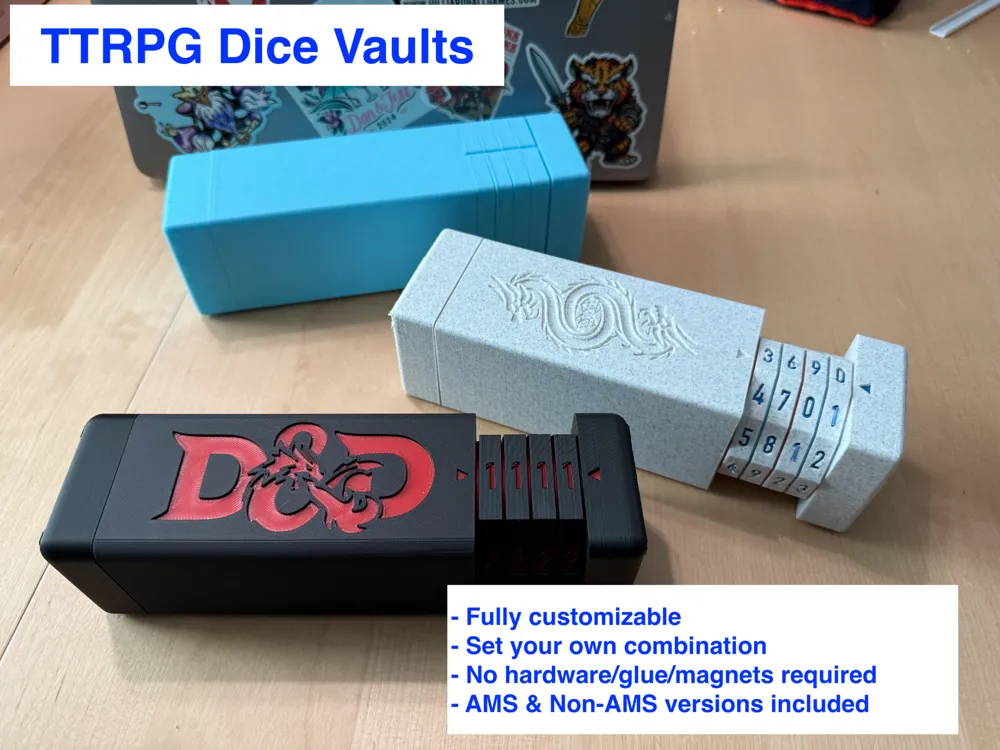

Fully Customizable TTRPG Dice & Mini Vault

Thanks for checking out my model!

Features:

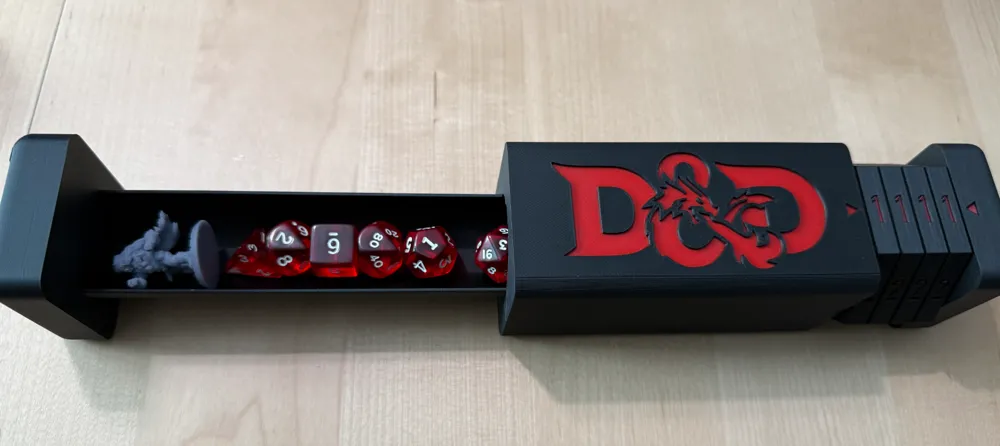

This model features a vault and fully functional 4-character combination dial-lock which can be used to store dice, minis, or other TTRPG accessories.

The model uses minimal supports and assembles easily with no hardware or glue required.  It can be disassembled and reassembled with ease.

Print Profiles:

This model includes 3 plates for the external parts:

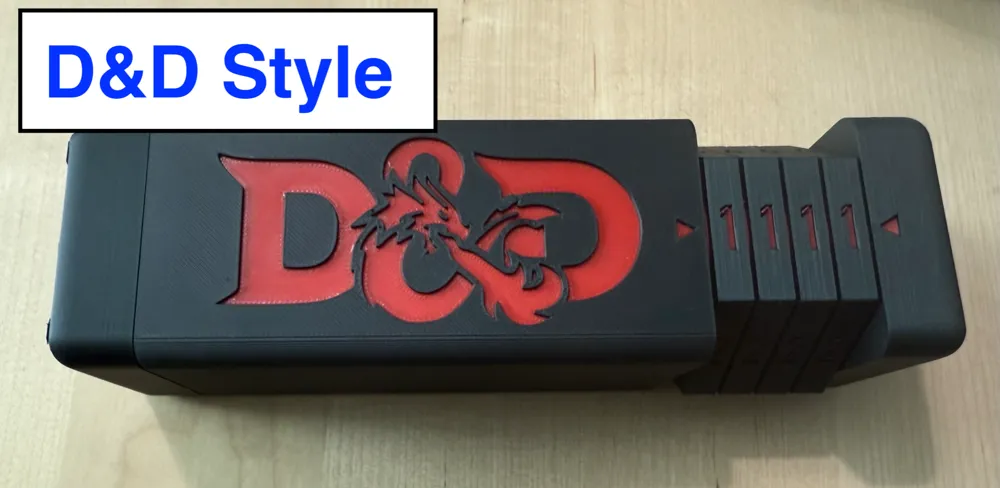

1. D&D Style (AMS Required) - This is a 2-color print that includes the D&D logo on the top and can be printed single-color without an AMS.

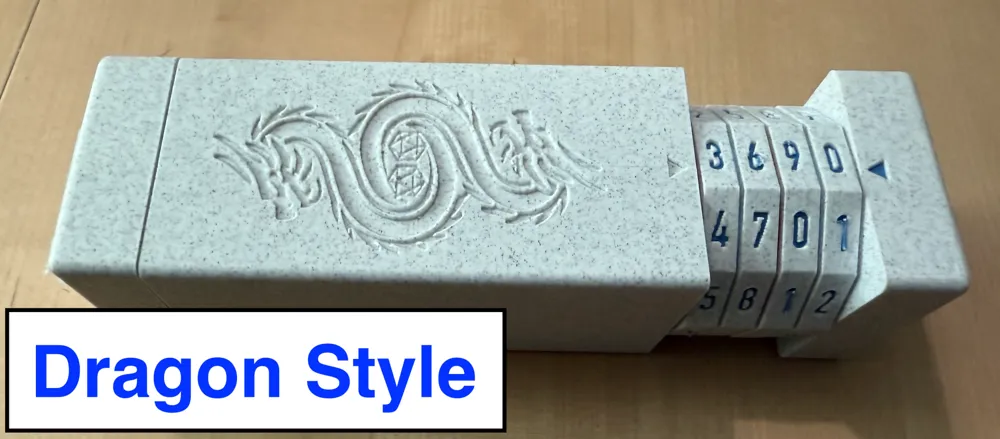

2. Dragon Style - This is a monochrome print of the outer shell parts with a dragon inscribed on the outside (dragon art is owned by me).

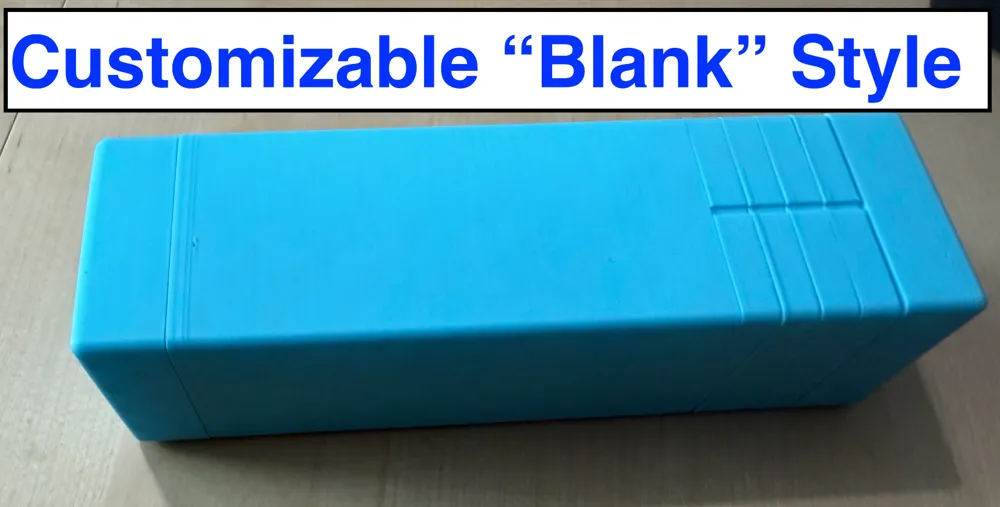

3. Blank Style - Feel free to emboss this with whatever you choose!

This model also includes 7 plates for the combination dials:

1. 10-Sided Numeric - Narrow Script (Dark Green) - Includes Numbers 0-9.
2. 10-Sided Alphabetic - Narrow Script (Dark Blue) - Includes 10 letters for creating alphabetic codes.
3. 10-Sided Numeric - Gothic Script (Light Green) - Includes Numbers 0-9. Gothic Script can be difficult to read
4. 10-Sided Alphabetic - Gothic Script (Light Blue) - Includes 10 letters for creating alpha codes.  Please note, the letters are kind of hard to read.
5. 6-Sided Numeric (Yellow) - Includes Numbers 1-6.
6. 4-Sided Interlocking (Red) - This is for use as a locking vault that does NOT use a combination.  The 4 squares lock together and quickly rotate from “locked” to “unlocked”.
7. 6-Sided Multi-Color (Black/Red | AMS Required) - Includes Numbers 1-6 and uses multi-color printing
8. 10-Sided Blank (Purple) - fully customizable, can be written on with a marker after printing, great for runic languages or other symbols
9. 6-Sided Blank (Orange)

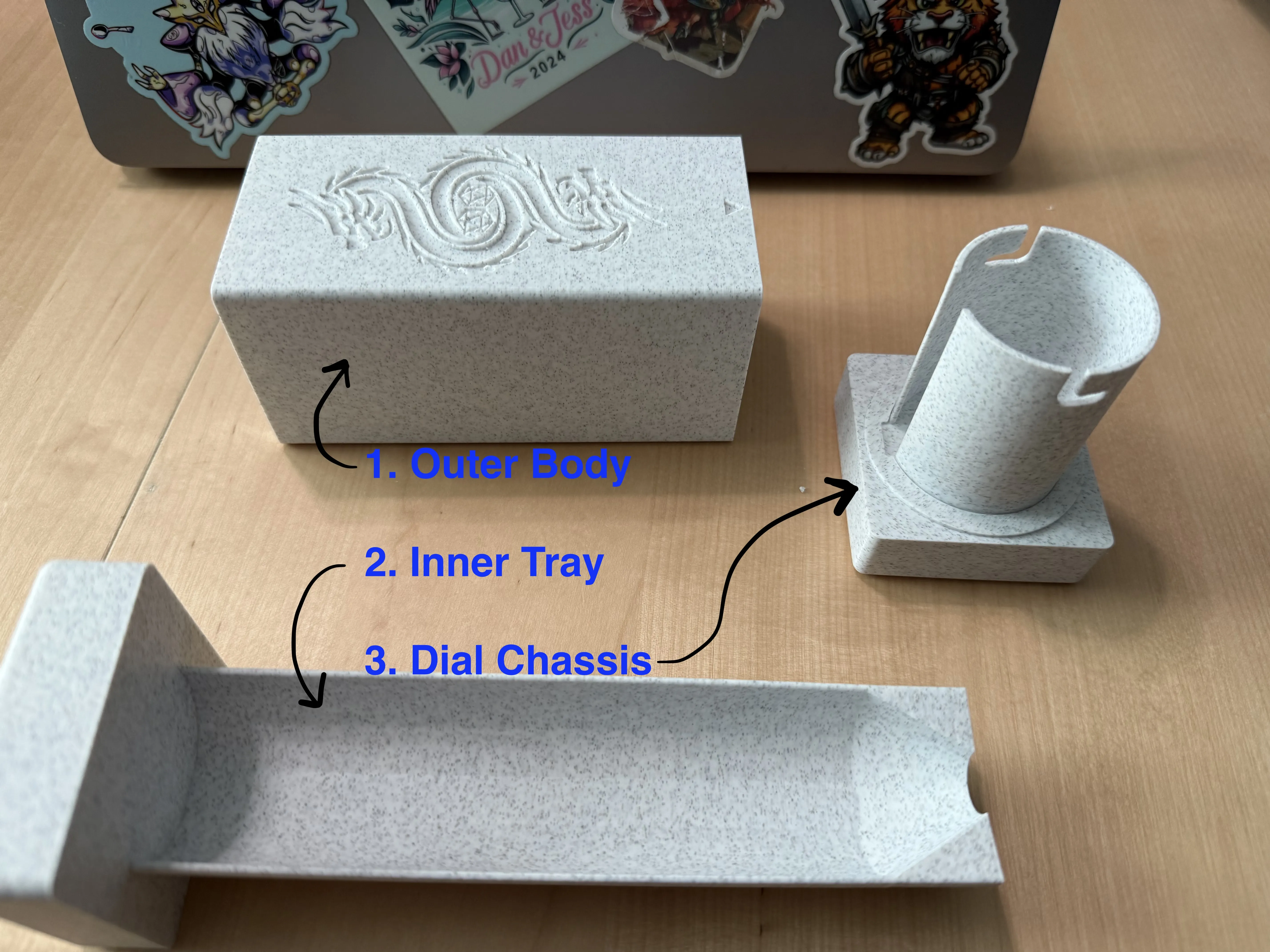

Assembly Instructions

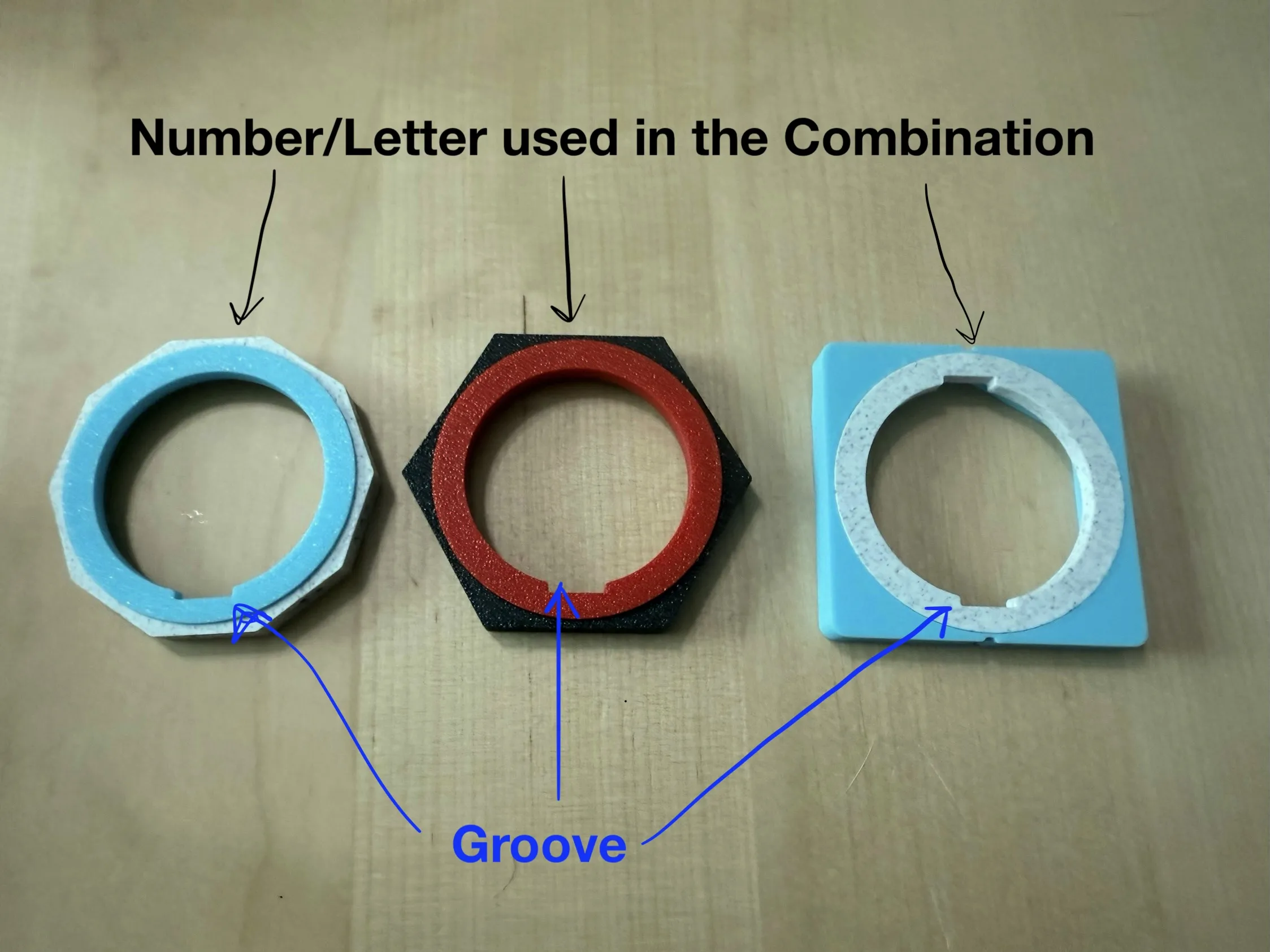

1. Assemble each of the 4 dials of the combination as shown below by snapping the Inner Ring into the Outer Ring x 4.  NOTE: THE GROOVE/CHANNEL SHOULD BE OPPOSITE THE NUMBER/LETTER YOU WANT IN THE COMBINATION.  See below

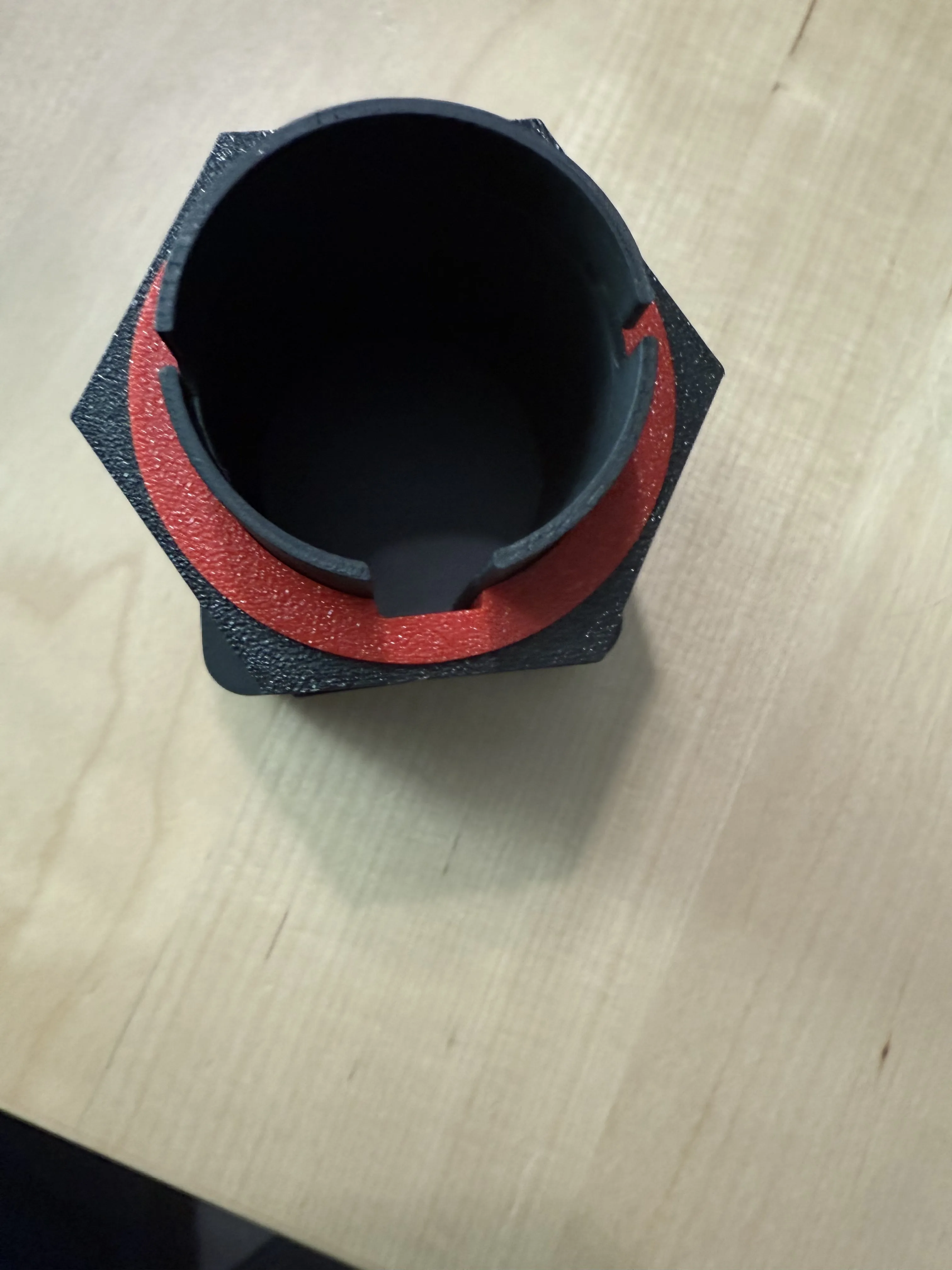

2. Slide the 4 rings onto the Dial Chassis, aligning the groove with the channel in the bottom of the chassis (see below):



3. Insert the Dial Chassis into the Outer Body and rotate anti-clockwize until it clicks (about 20 degrees)
4. Slide the Inner Tray into the assembled Dial Chassis + Outer Body

5. Enoy!








   This project was modeled by me in Fusion 360.  Comments and Criticism are welcome!
