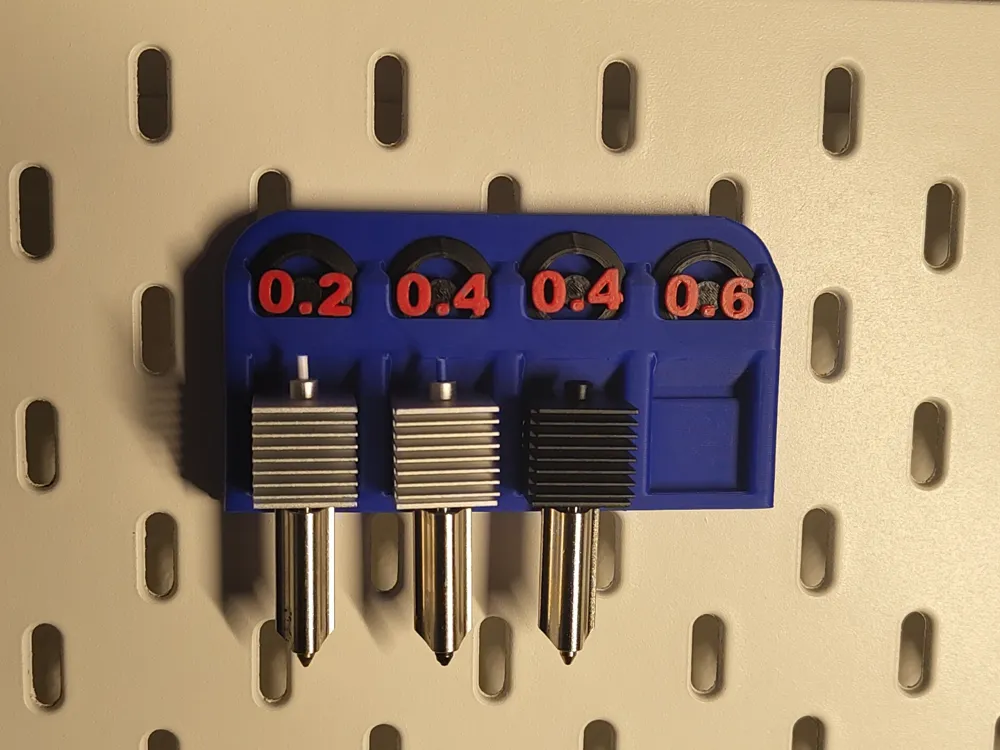

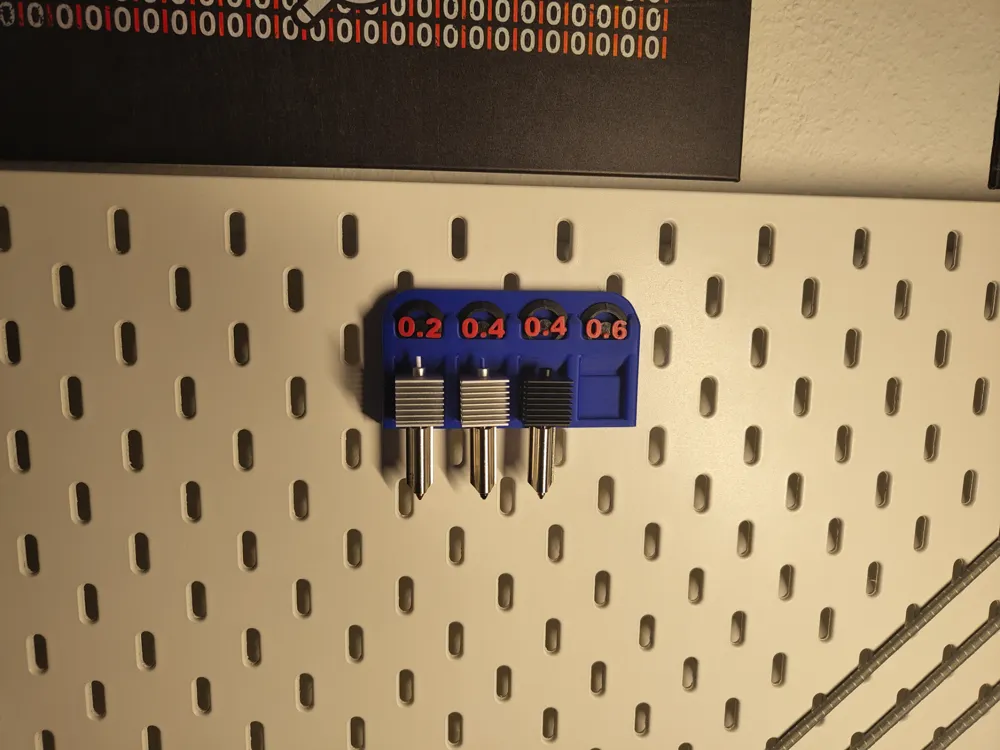

This is a magnetic nozzle holder for the Ikea Skadis system
It comprises a backplate and the holder itself, which slides into the backplate from above

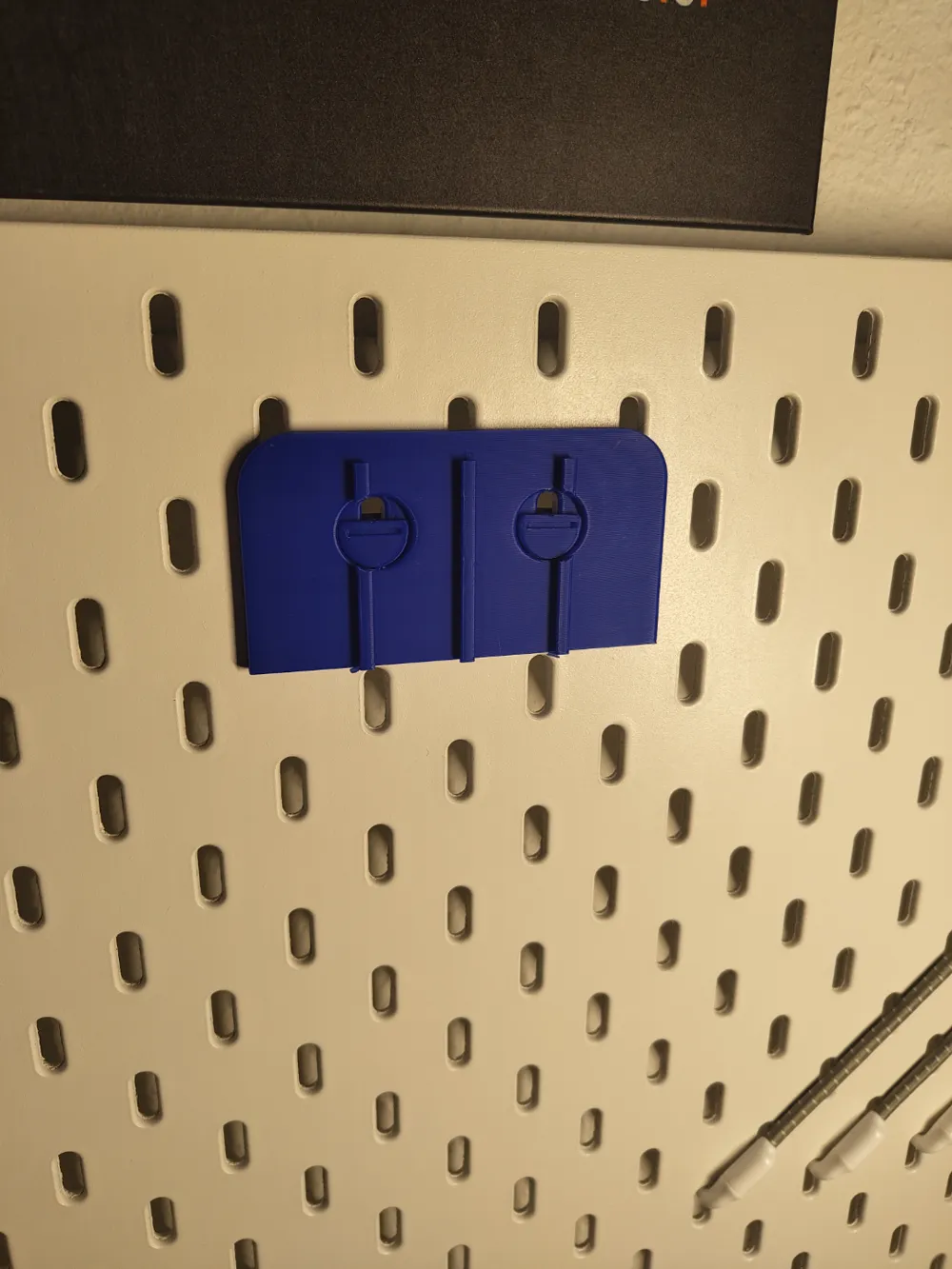

The backplate is secured to the Skadis wall by two pins rotated 90°
However, I have also created an adhesive version
Four magnets are inserted into the holder from behind. These should have a diameter of 6mm and a height of 2.8mm
The holes for the magnets are deliberately oversized in diameter to allow you to rotate the magnets later if the polarity should not match a new nozzle
For magnet installation, I recommend inserting the four nozzles, then placing the magnets in from behind, and then sliding the holder onto the backplate. This prevents any magnets from falling out
For marking, I used the extruder status discs from JAV-3D. You can find them at the following link:
https://makerworld.com/en/models/229128#profileId-246621
