Handle for kitchen utensil with quick release

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill, 0.2fuzzy mode
0.2mm layer, 2 walls, 15% infill, 0.2fuzzy mode
Designer
1.2 h
1 plate
5.0(1)

Open in Bambu Studio
Boost
5
7
1
0
13
7
Released

Description

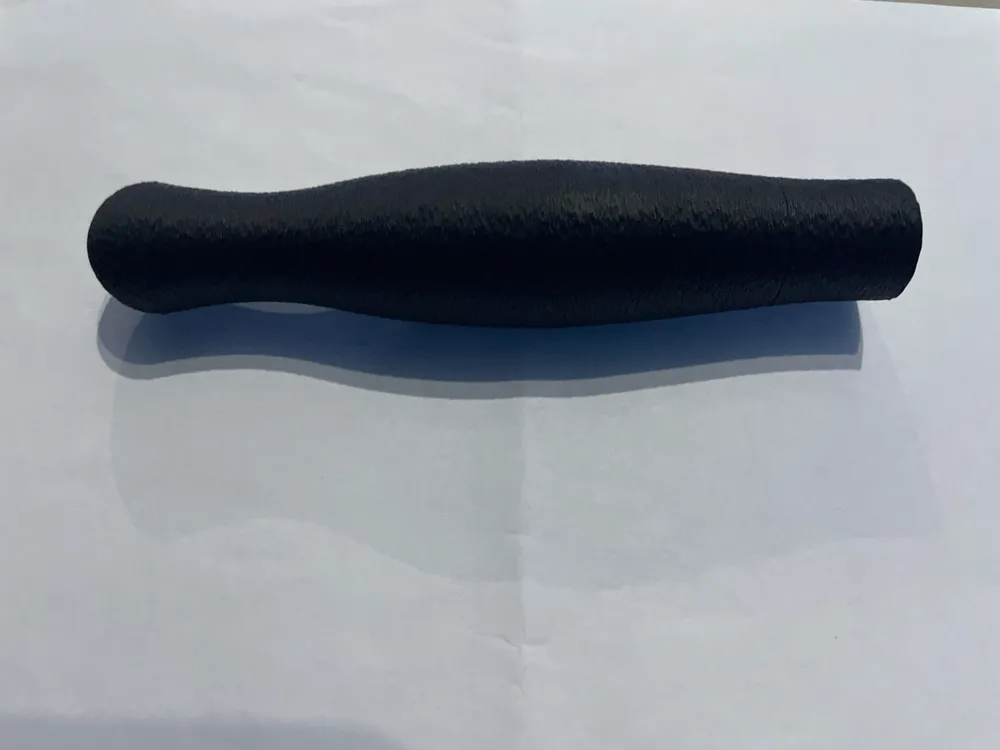

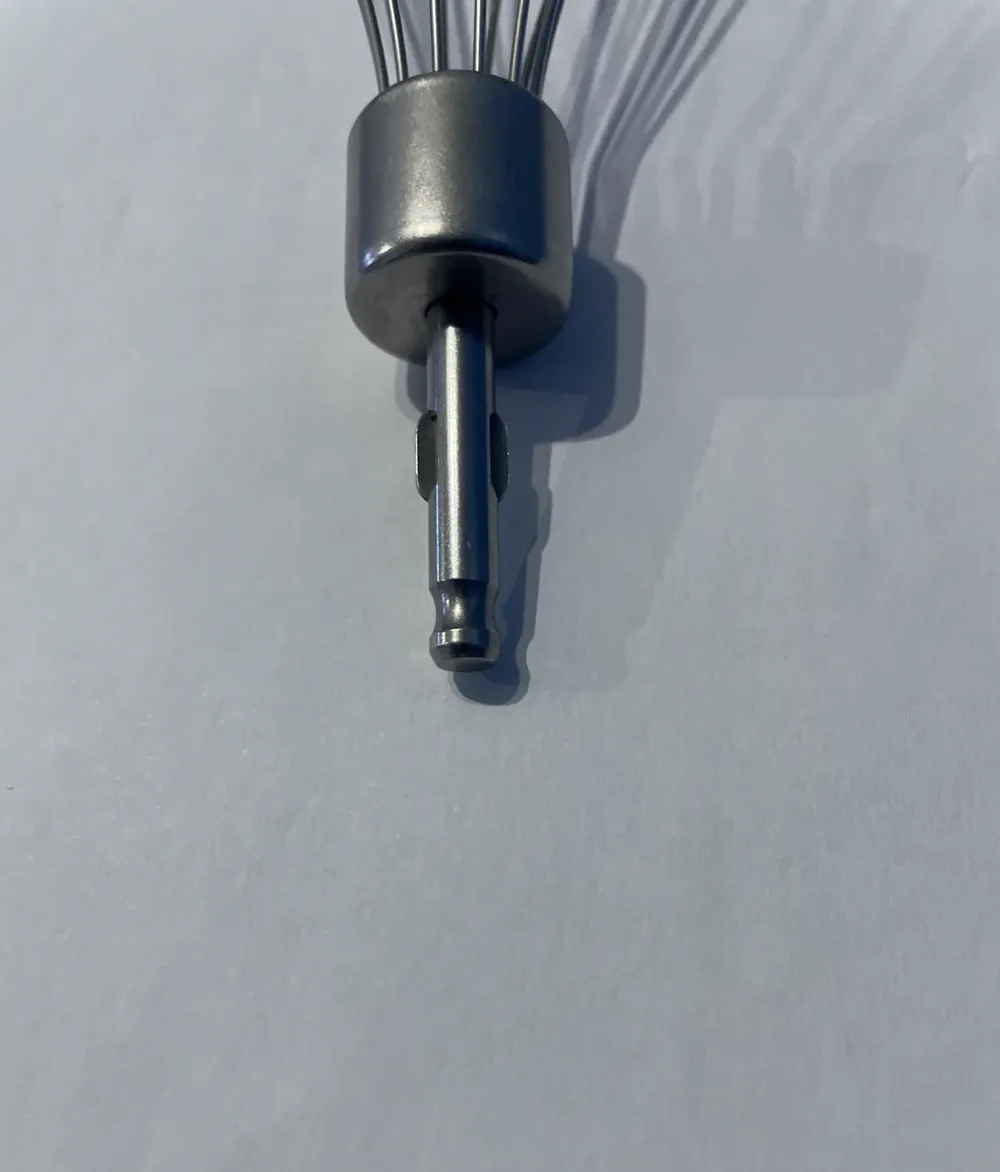

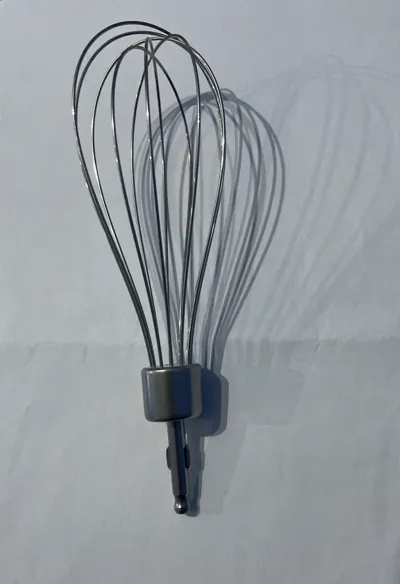

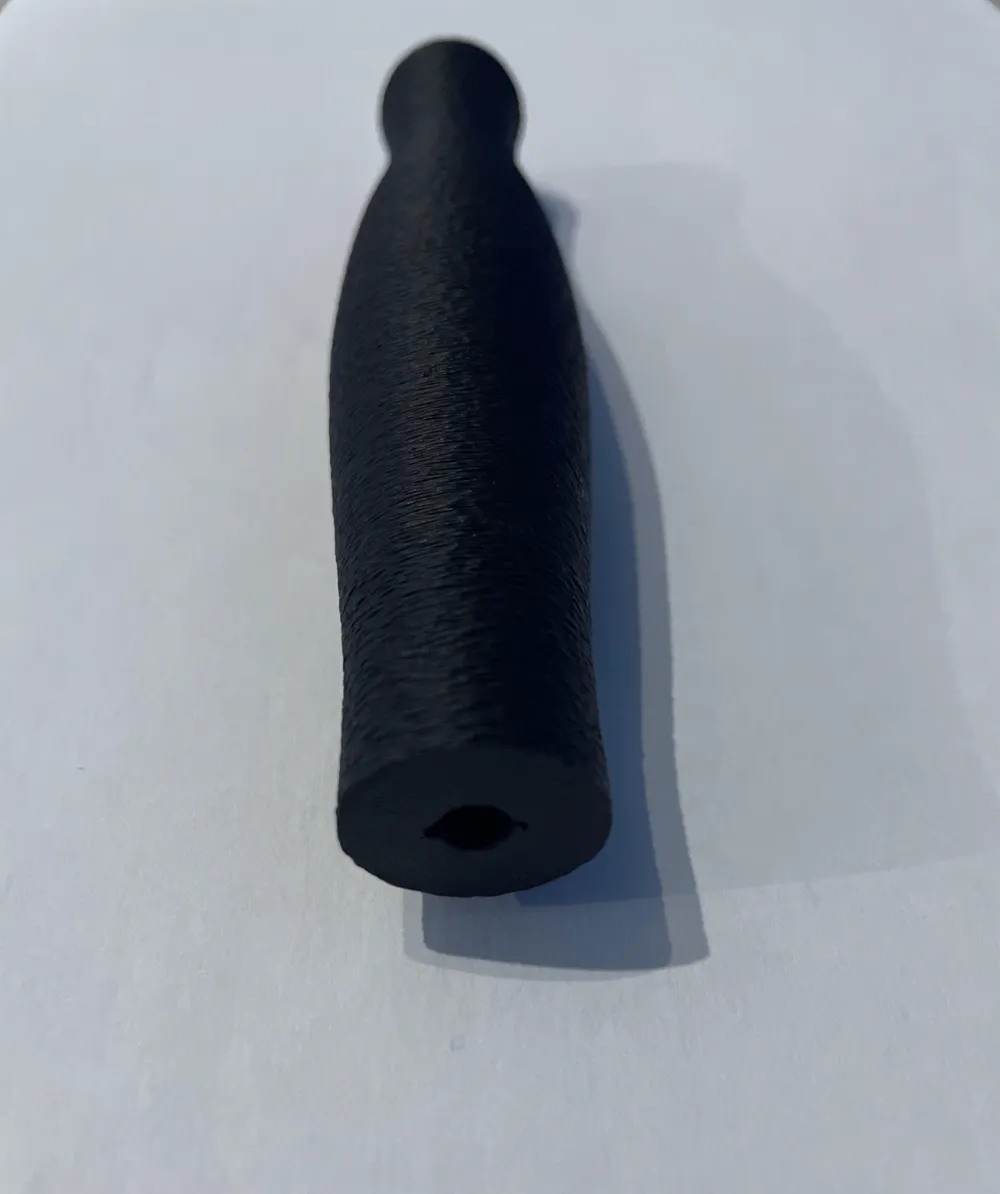

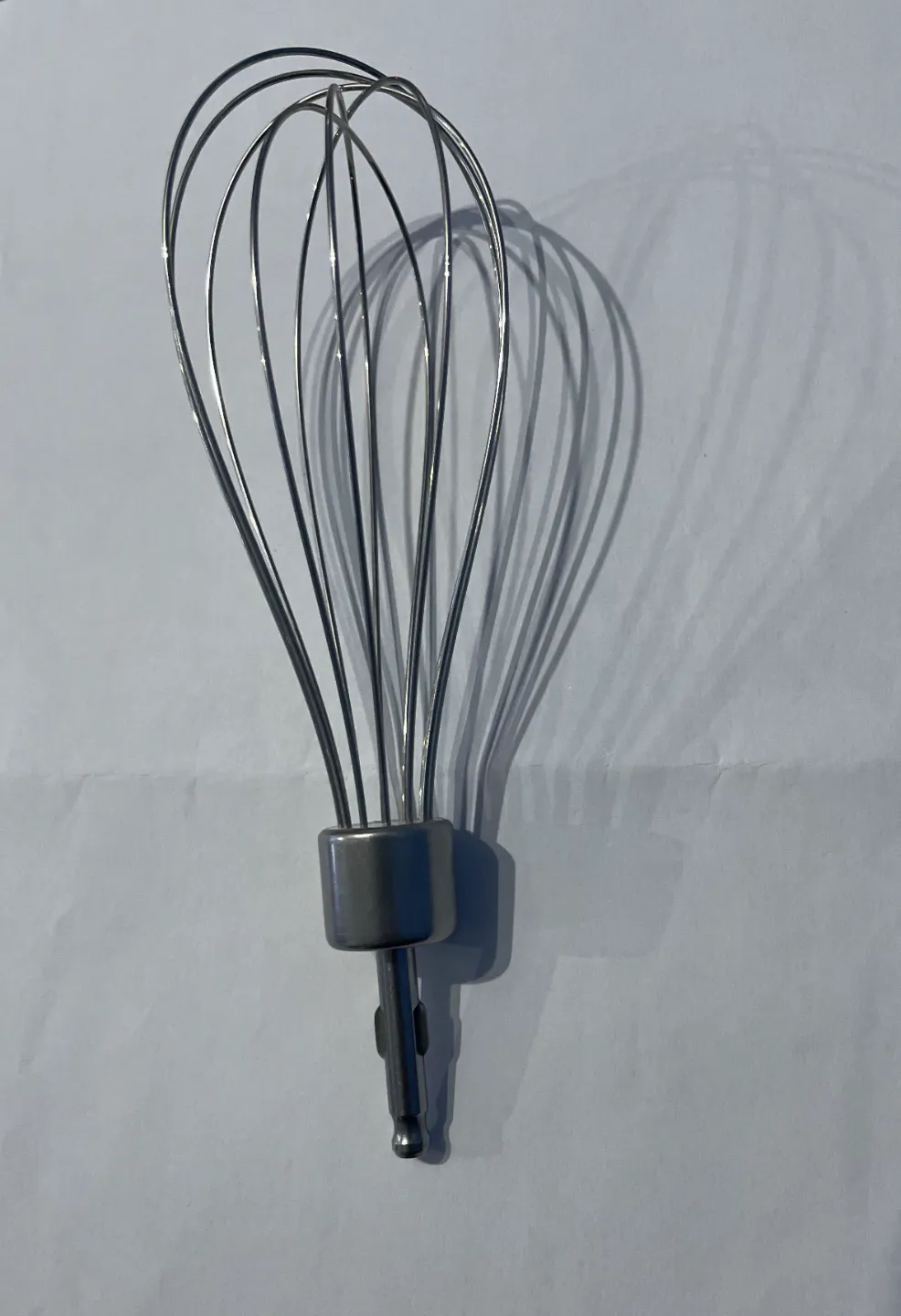

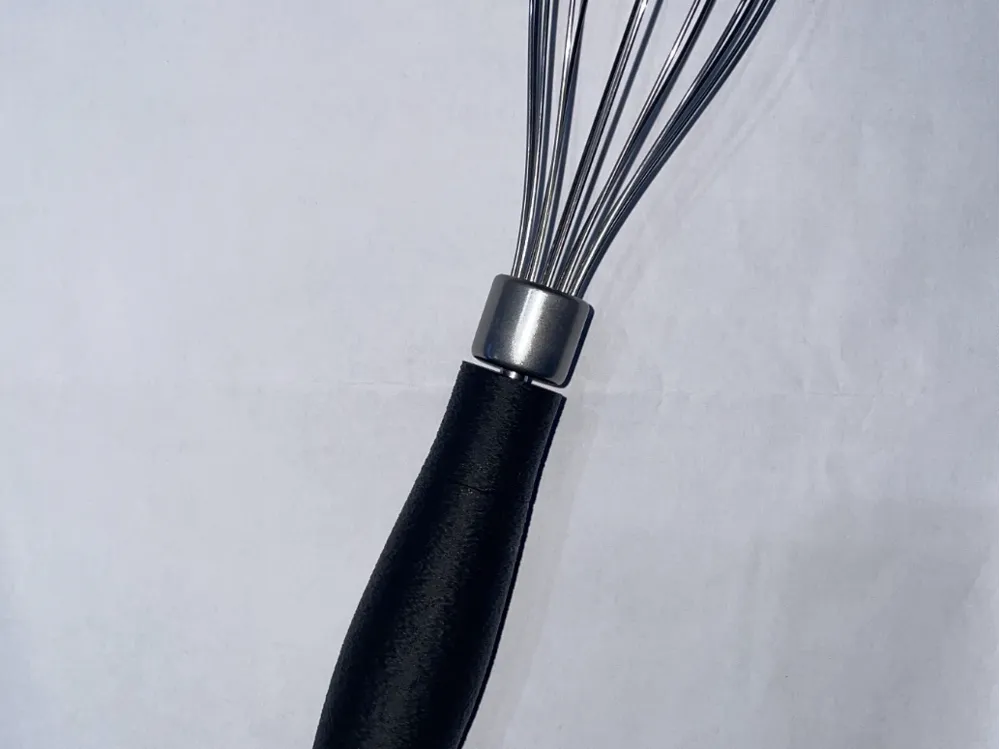

I created this handle for the most common standard kitchen utensils, as long as they have a quick coupling. It is very simple, just insert the tang of the tool into the hole at the top of the handle and once the depth is reached, rotate briefly until it stops; the spring inside will ensure that the tool does't return to its initial position.

in the print profile, the handle is divided horizontally into two parts, to allow you to insert the spring with the cap on top. When everything is ready, you just need to assemble everything using the connection pins and a few drops of glue.
