Scribing Template - Hettich Sensys 8645i

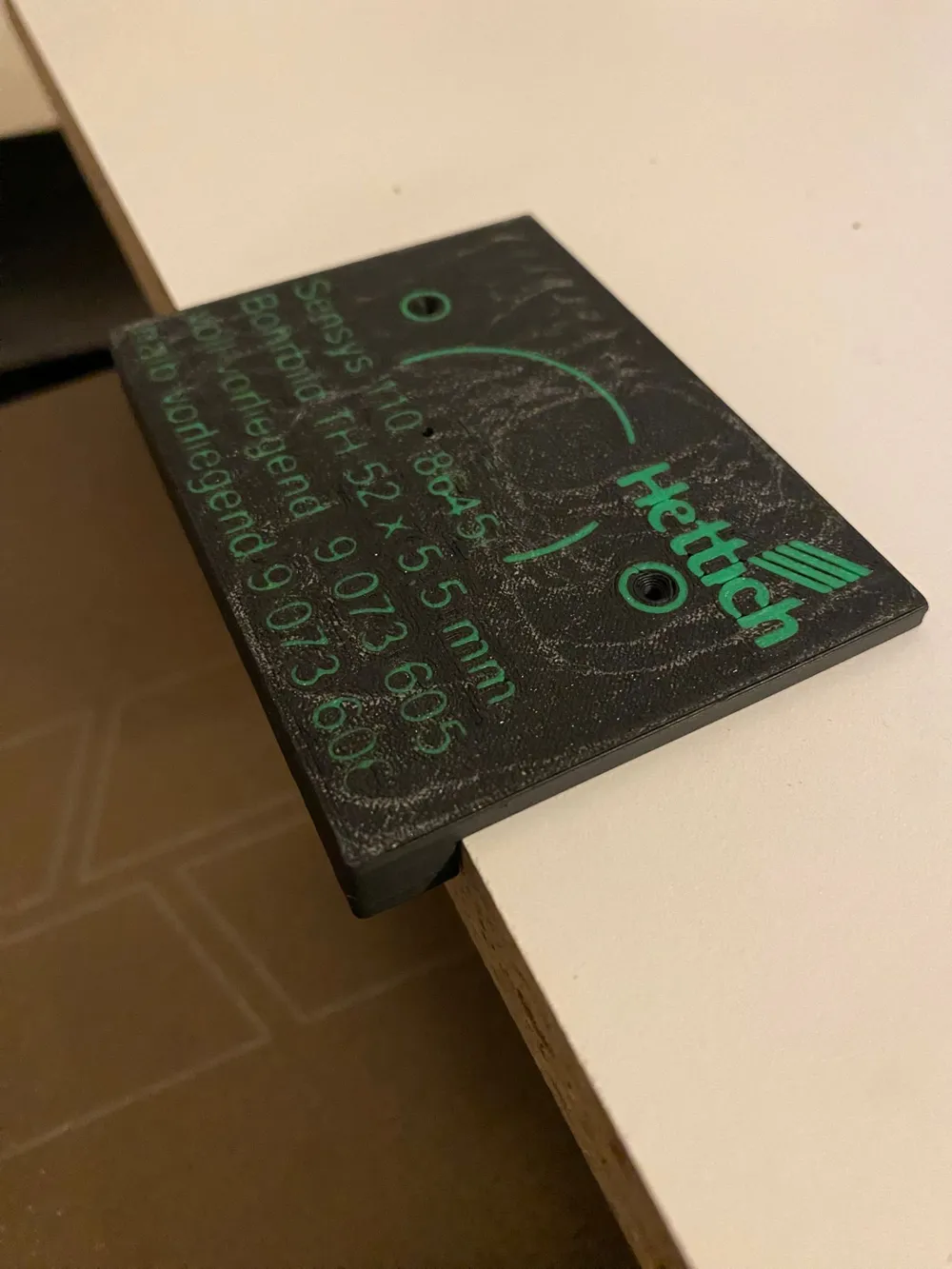

This is a template for scribing the two lateral holes or screw positions of a Hettich concealed hinge:

Hettich Sensys 110°

for screwing

fully inset (Art. No. 9 073 605)

half inset (Art. No. 9 073 606)

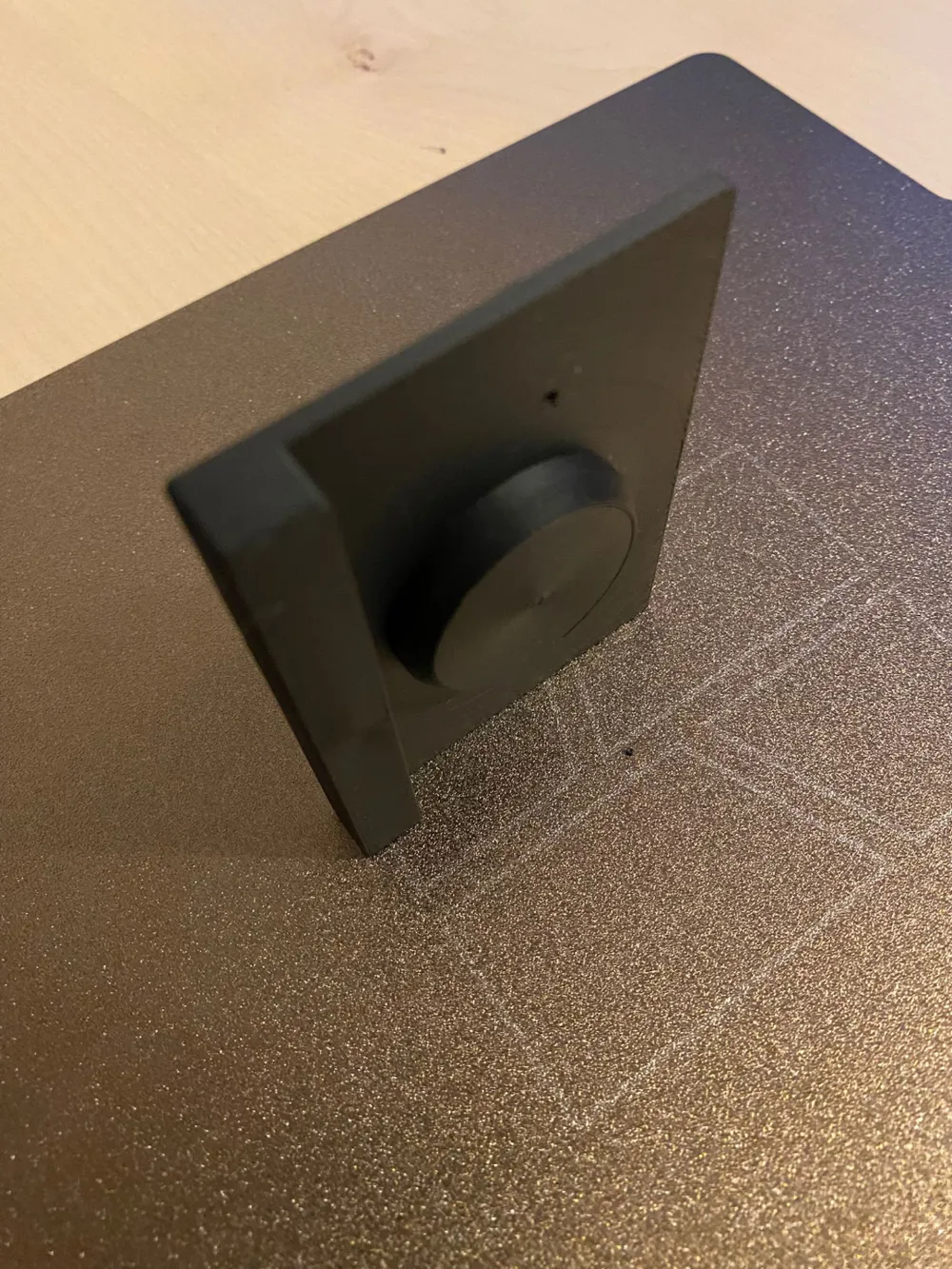

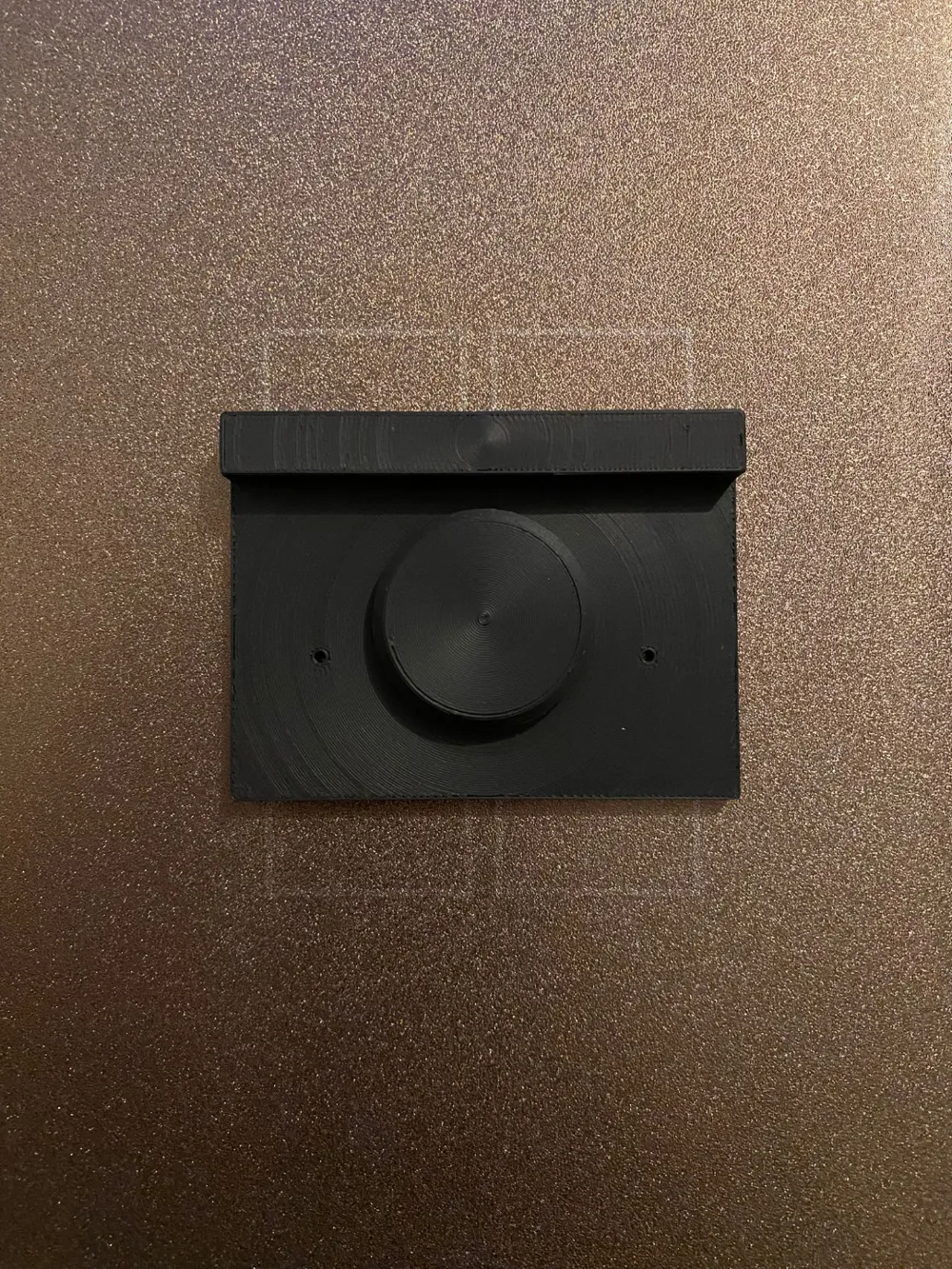

The template is inserted into the 35 mm diameter hole already centered.

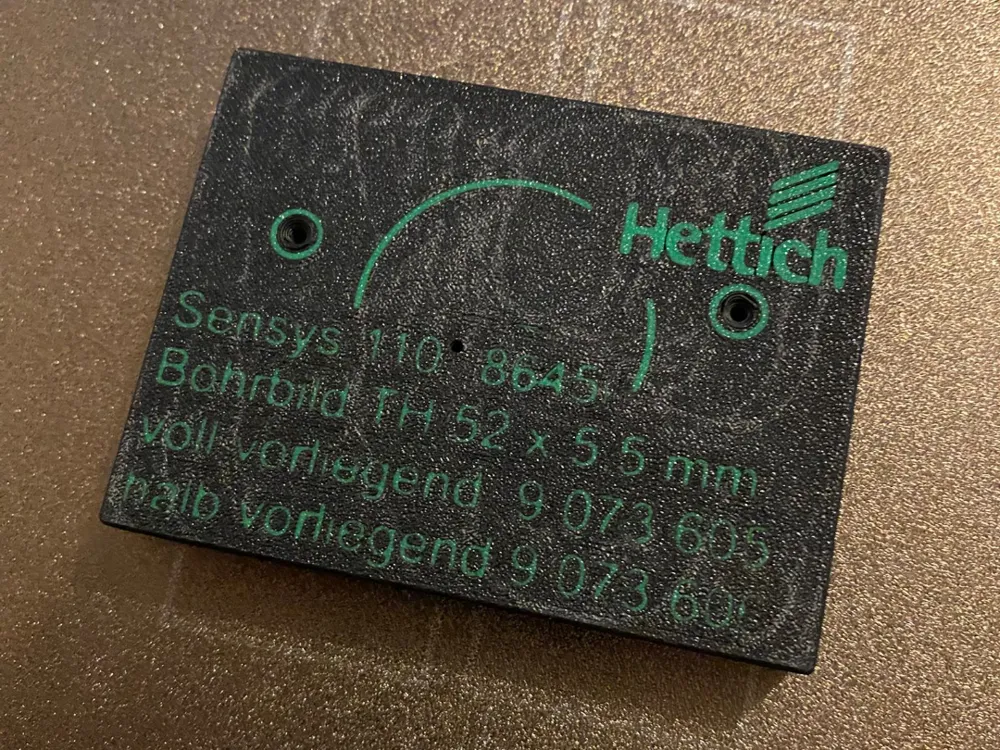

In the two 2 mm holes, a marking can be made with a 2 mm drill bit or a pencil.

Printed in two colors with the AMS, for labeling.
