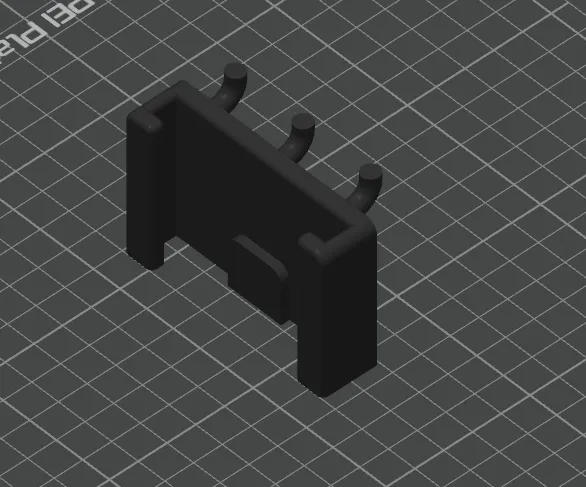

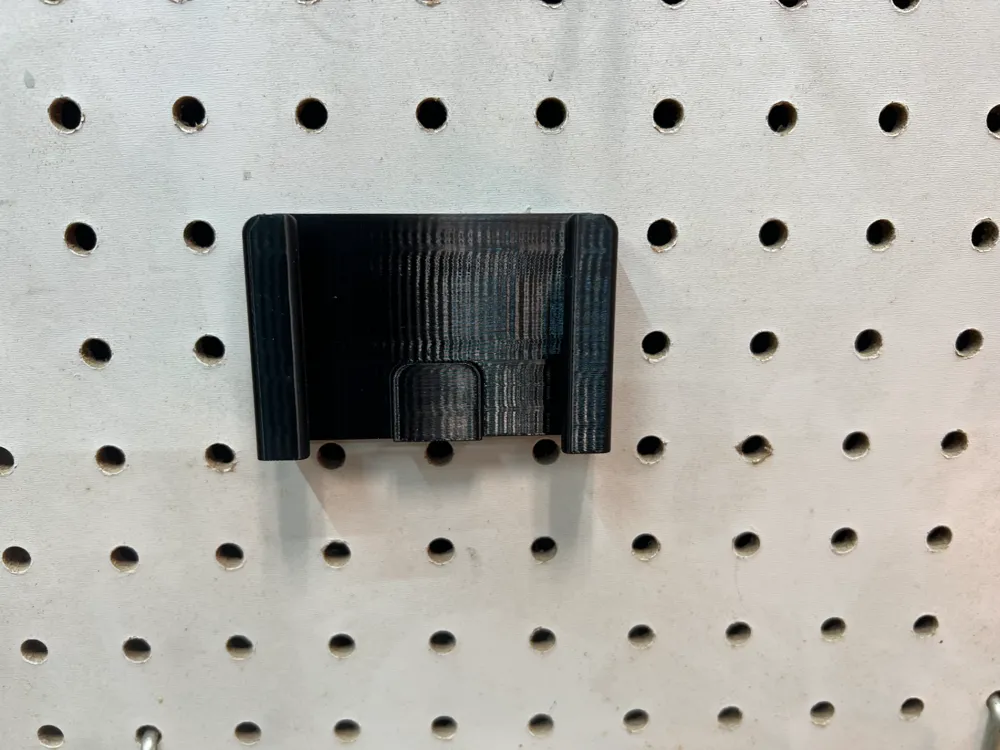

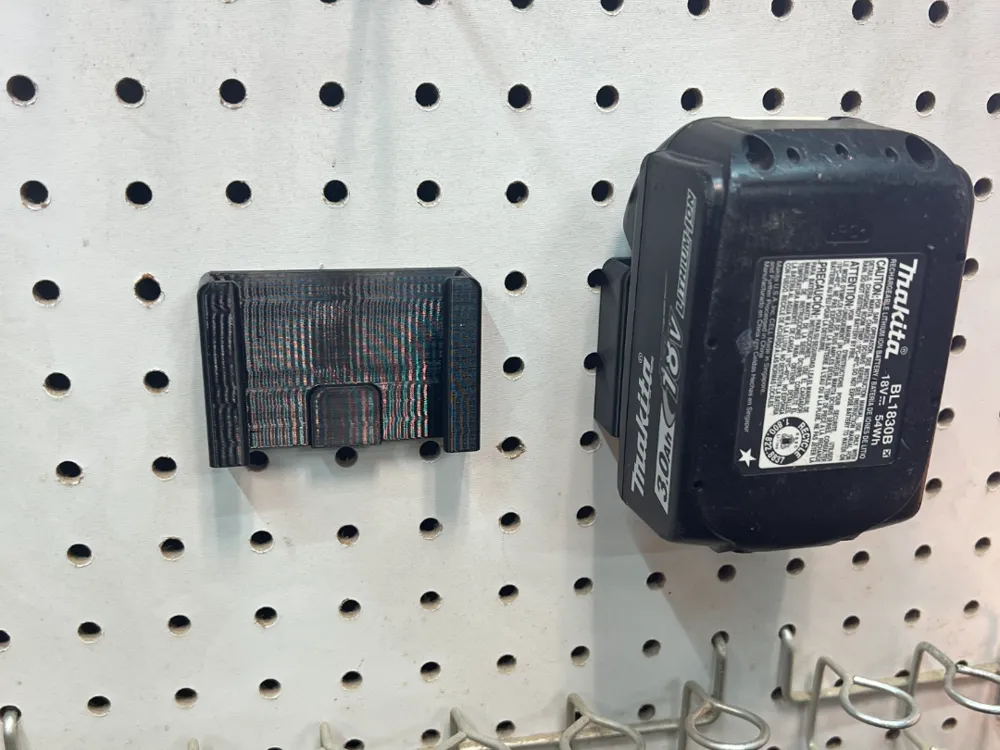

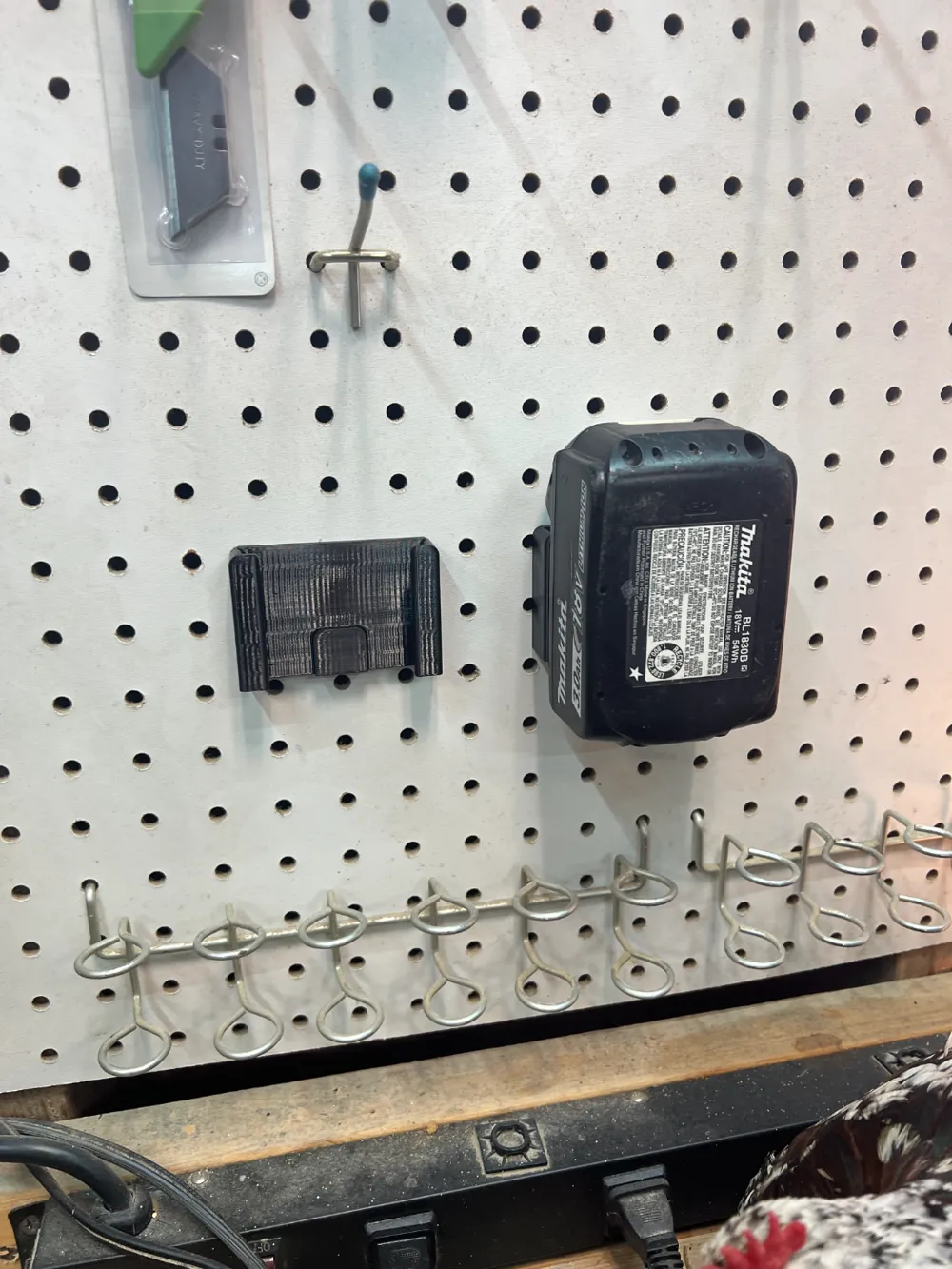

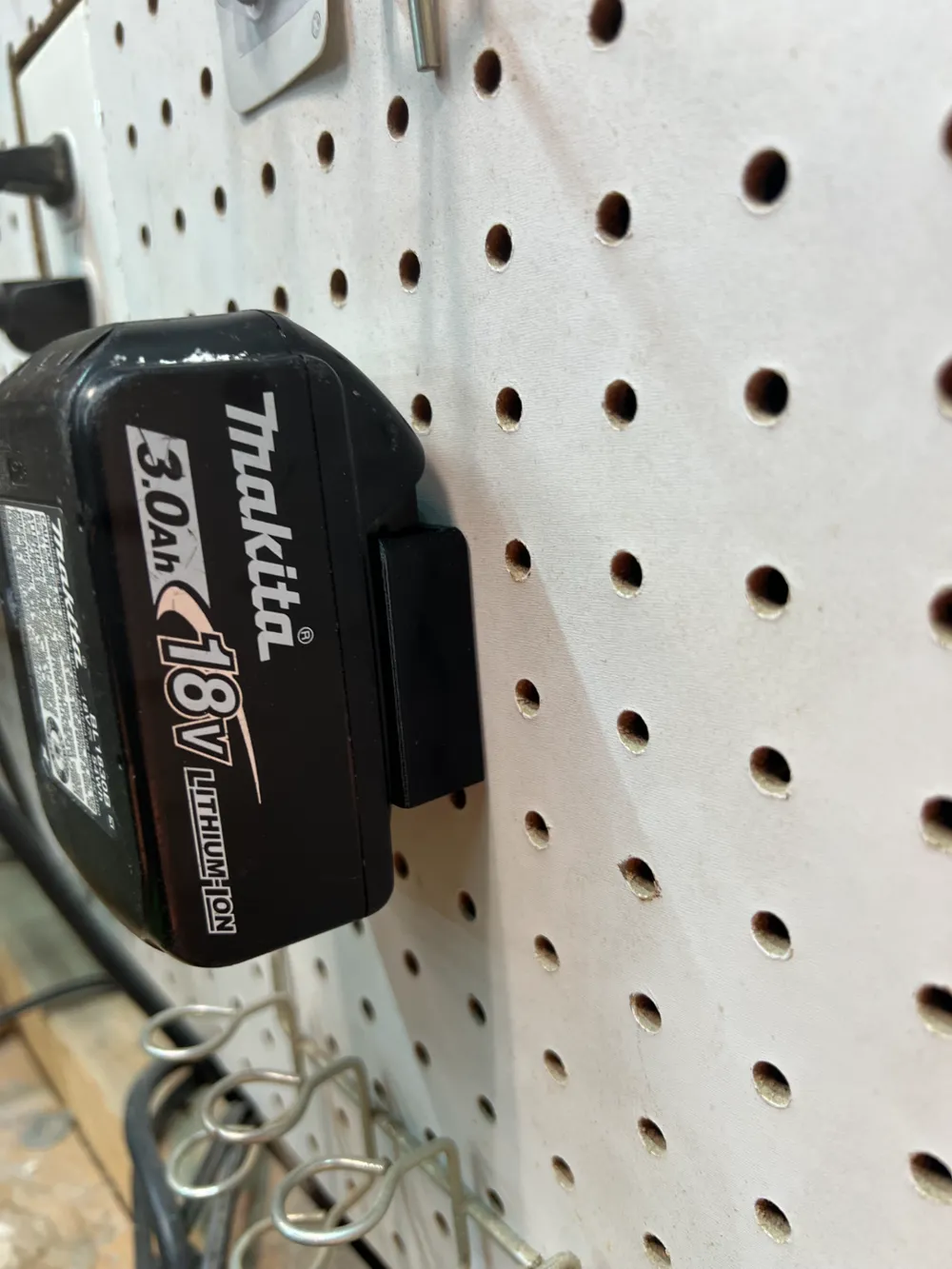

A Makita 18V battery holder that is latch free and size to fit a standard 1" spacing pegboard. Made this as I could not find a model that fit a pegboard and would fit a Makita battery. I made it latch free so it is super simple to use. It just slides right on and slides right off. I made the tolerance pretty tight so that it doesnt rattle or have any wiggle room. The pieces that go in the pegboard I made as large as possible for strength so you might have to work it a bit to fit in the pegboard initially.



I made mine from PTEG so it has slightly better temp resistance in the summer and in my hot garage, but any filament works. Does have slight supports to the areas that go into the pegboard, but you dont need to use a separate support material.



Let me know if you have any questions or suggestions for improvement.
