Doorbell Angle mount for VDB750

Print Profile(1)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
2.2 h
2 plates
5.0(1)

Open in Bambu Studio
Boost
5
13
6
1
21
18
Released

Description

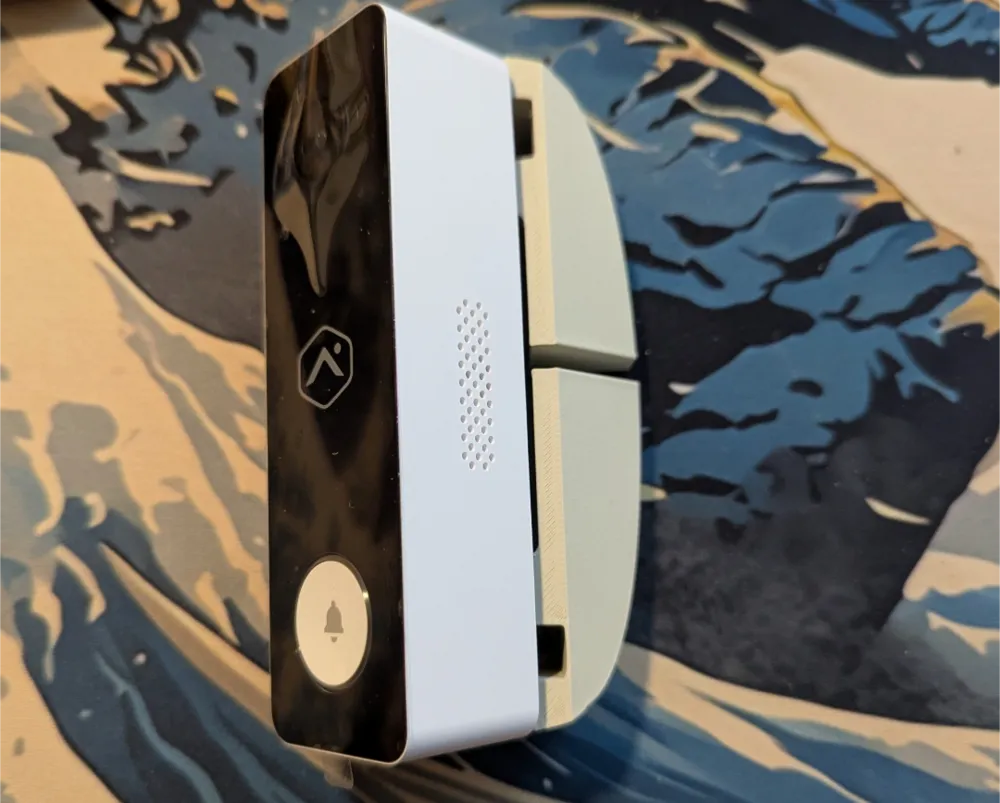

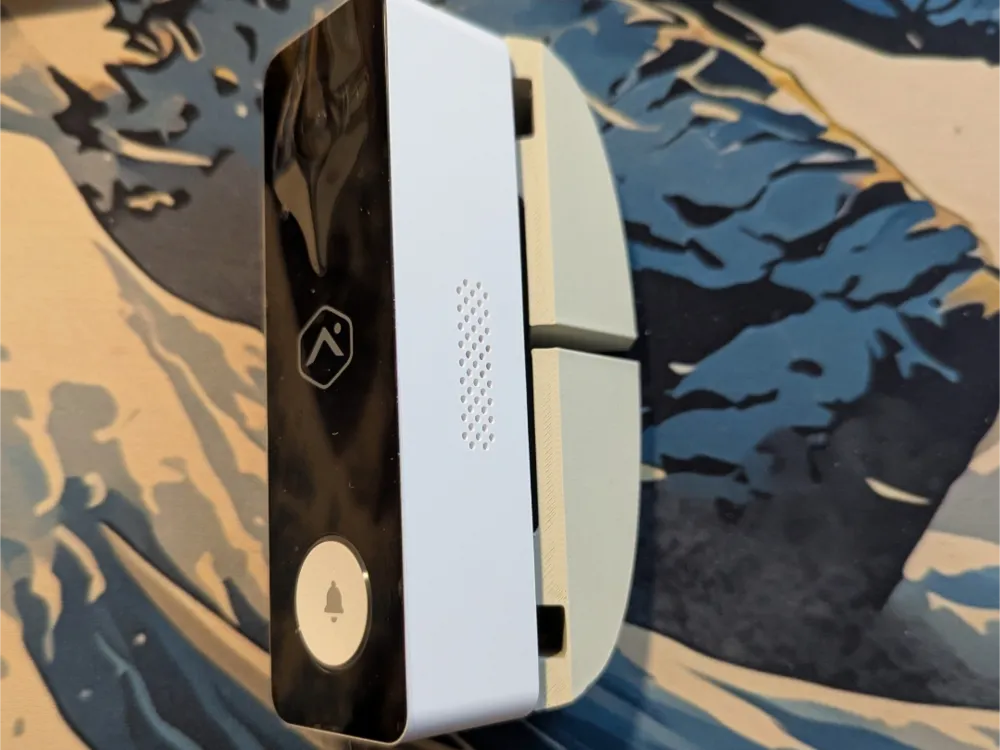

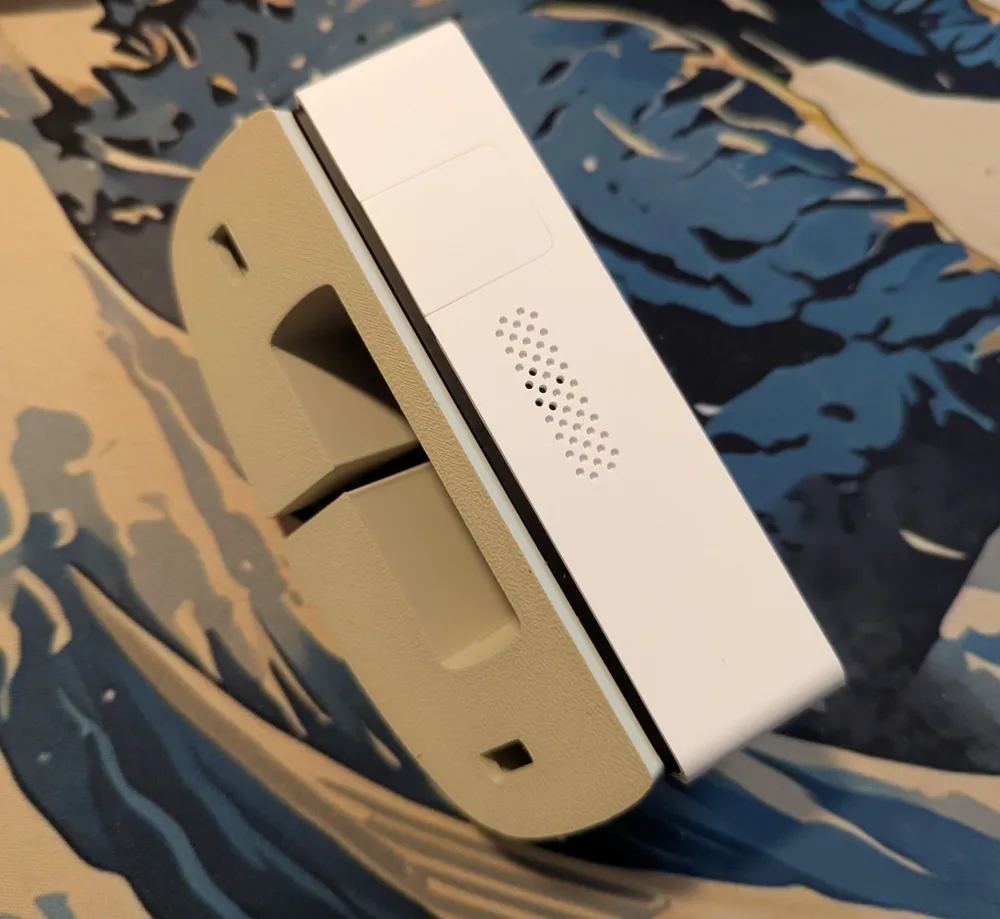

This doorbell mount is for the Alarm.com VDB750 video doorbell. It did not come with any sort of angle mount and they did not seem readily available. I designed this to be able to be installed after the fact. The mounting holes on the new angle mount will line up with the previously drilled holes for the old camera mounting plate. After attaching the mount and running the wires through, the mounting plate can be attached to the bracket with probably any screw you have handy. I've tested it with some M3 screws and it holds.

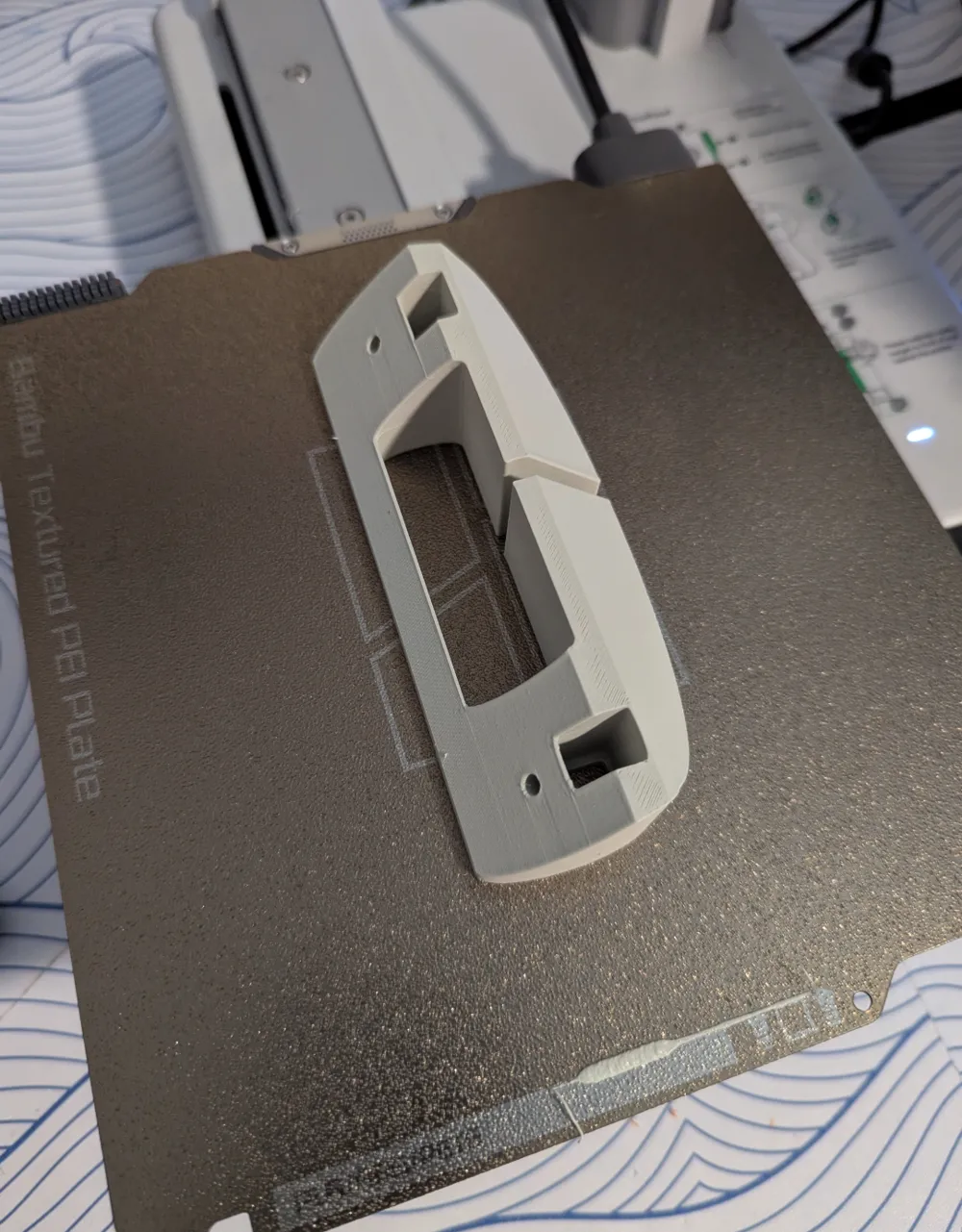

I have included 2 files. The first has a cutout in the side and can be installed without disconnecting any wires. The second is solid and will require removing the two wires from the mounting plate. There are some gaps but it gets the job done.
