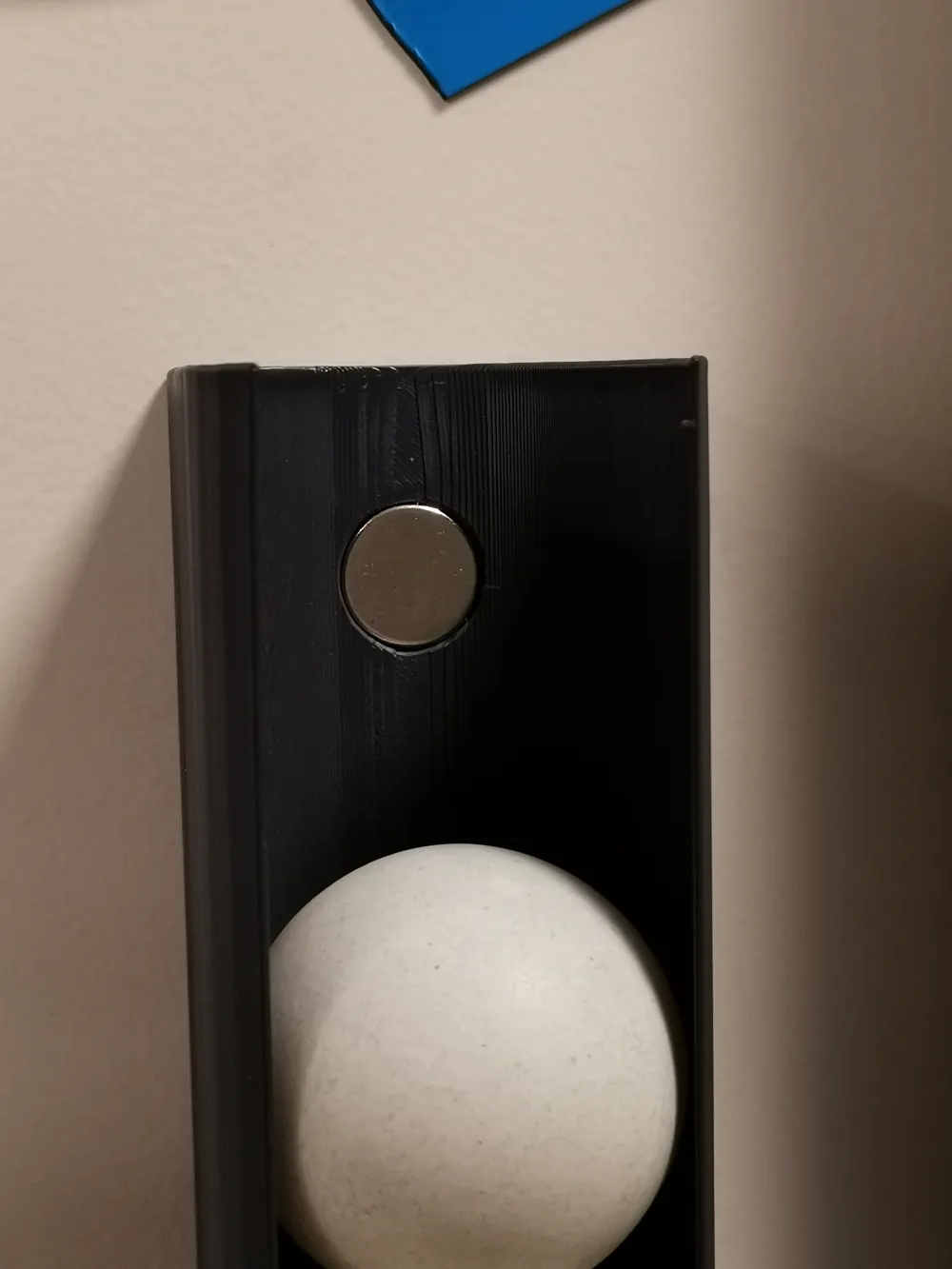

I remixed the model from Peter H as I needed a different way to hang it. I used just 2 Ø15x8 mm magnets press fitted.

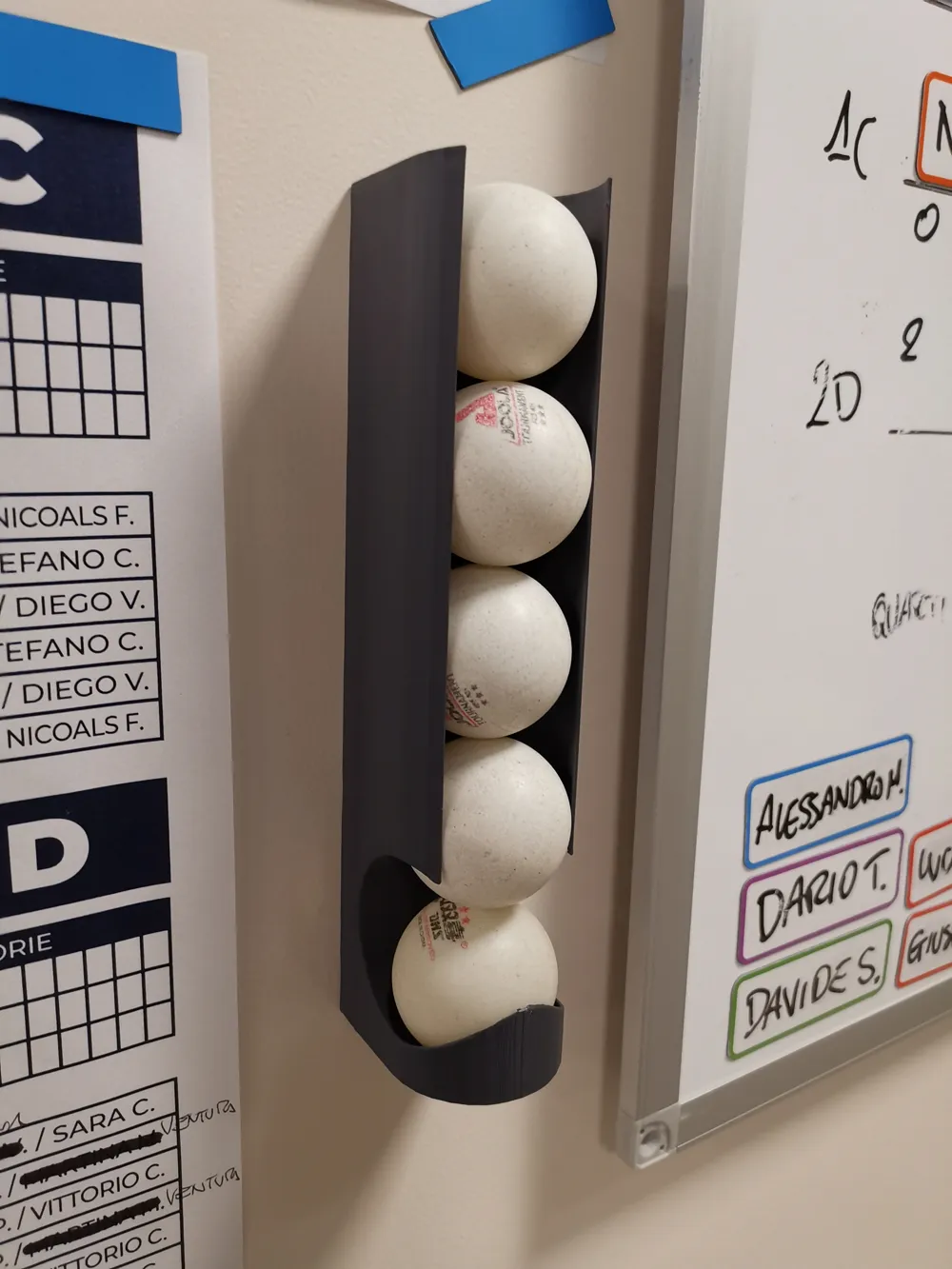

Plus I created a version, with an open front, that use less support material.

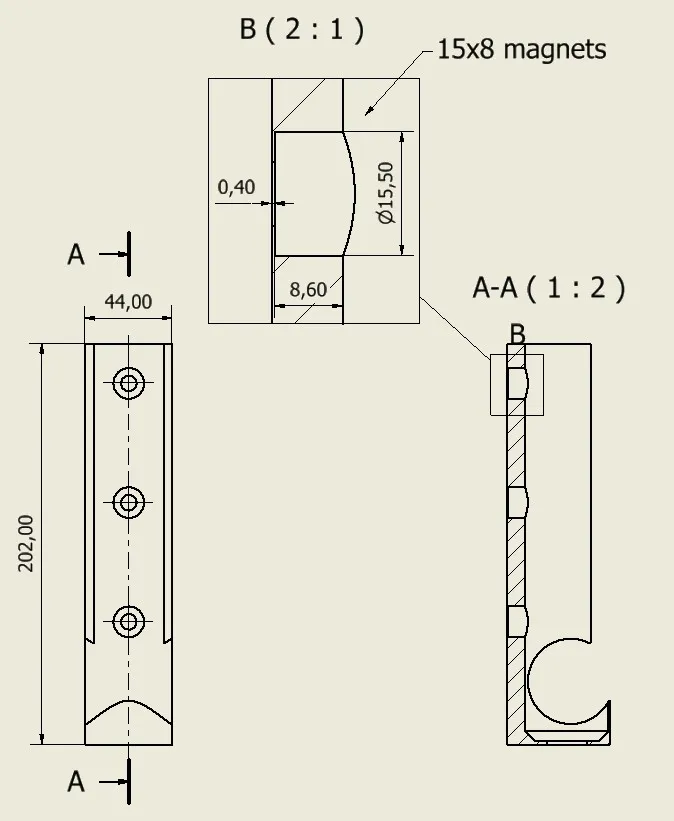

Behind the holes there are just 0.4 mm of thickness, enough to avoid reduction of the force of attraction.



There's also a version whit two holes for 4 mm countersunk wood screw



Tell me if you need custom versions.



Cheers



p.s. In the model you'll see 3 holes that I made cause originally I wanted to use 3 magnets, but at the end I used just 2. I'll leave it cause maybe someone has magnets with the same diameter but less thickness, so this means less force.
