Suppressor 13 – 35mm diameter (14mm counter-clockwise and 1/2-28)

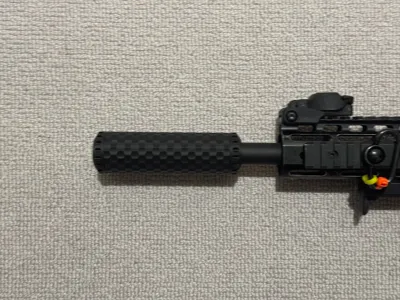

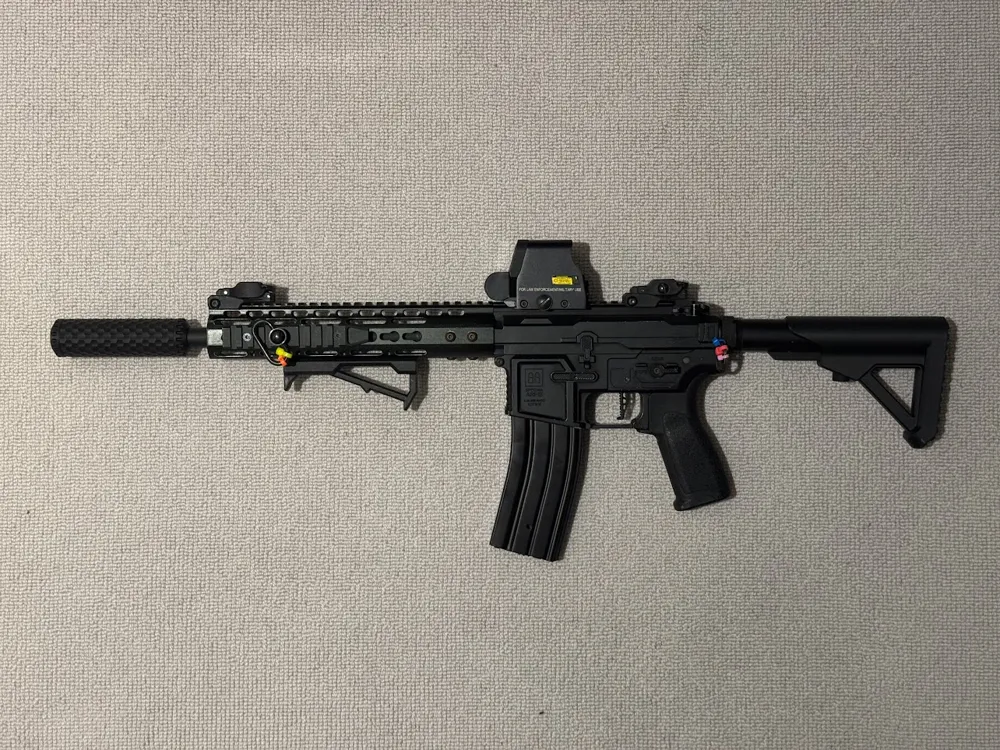

AR-15/ M4 suppressor designed to be universal. Works with 14mm CCW thread as well as ½-28 thread, can be mounted on the end or over the barrel (designed for and 18mm diameter barrel).

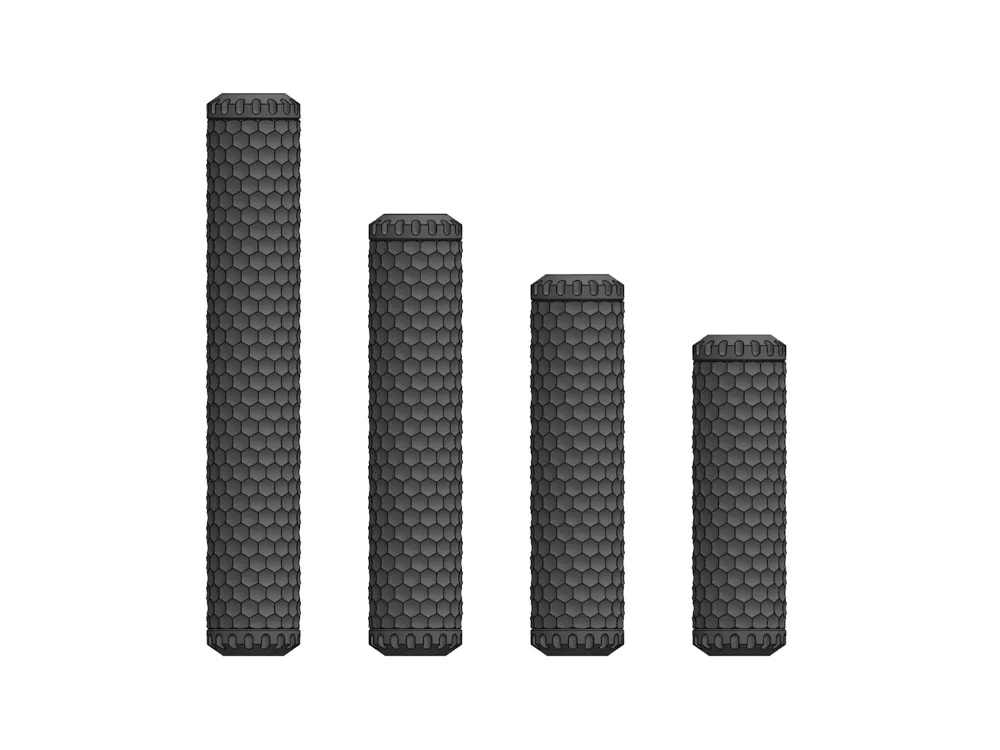

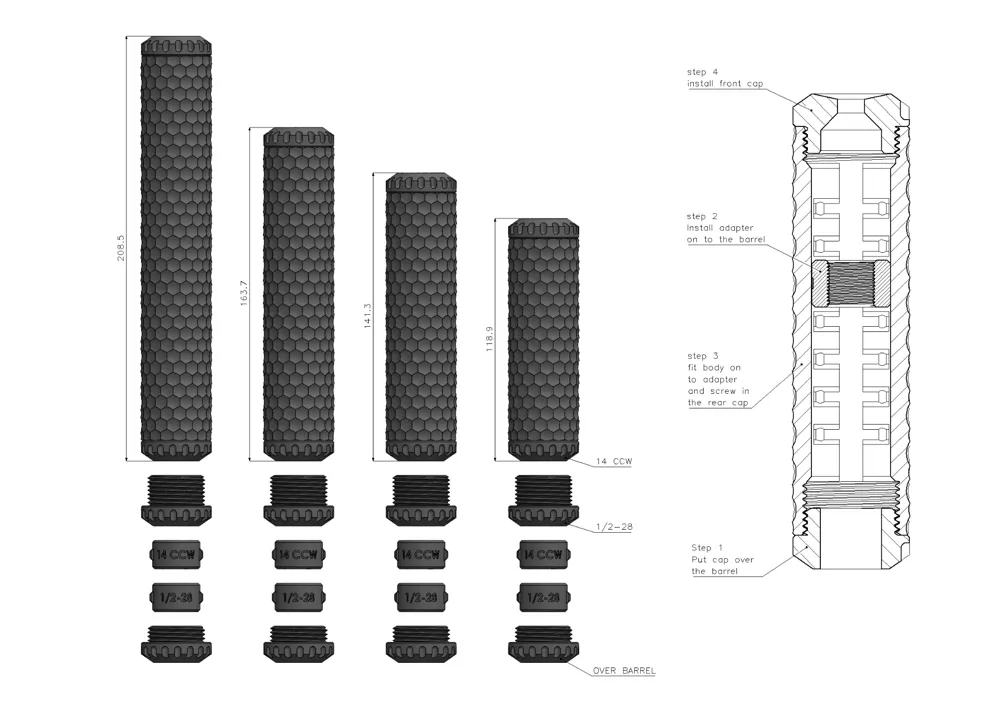

4 lengths,

Diameter 35mm, to also fit inside the handguard if you want integrated look

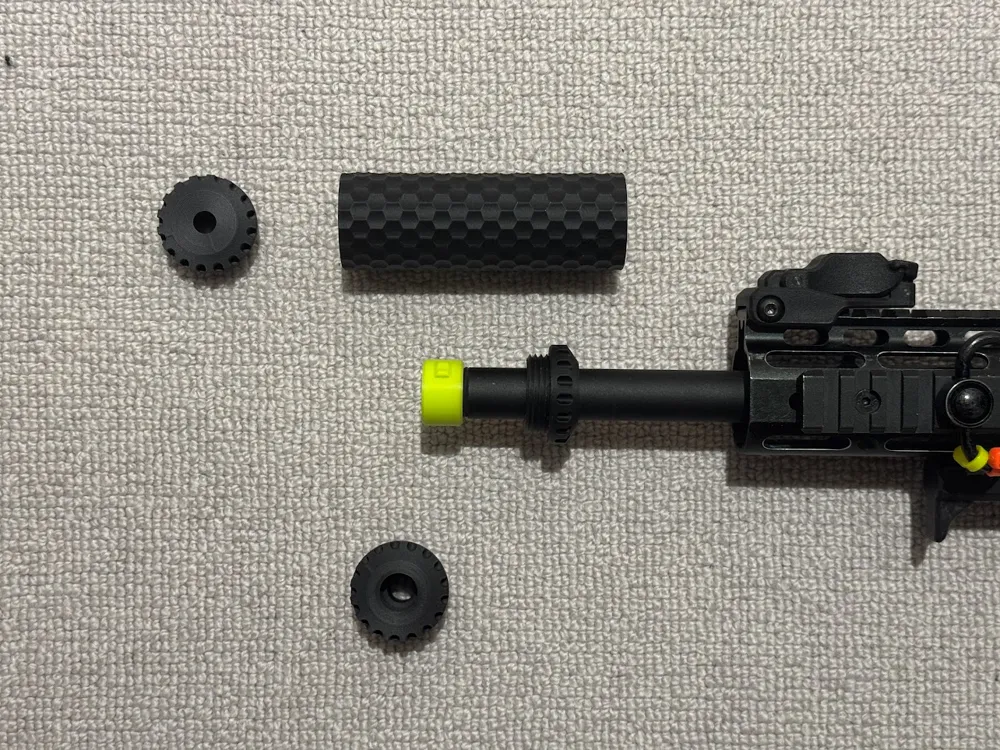

2 options of mounting (over barrel and at the end of the barrel) with 2 separate end caps.

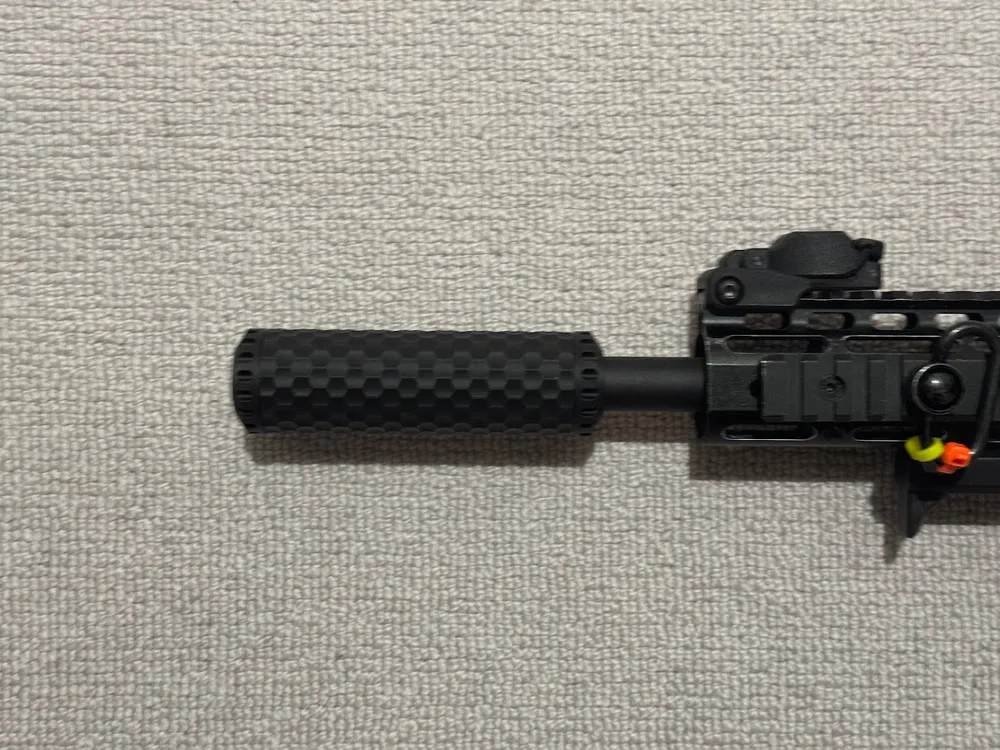

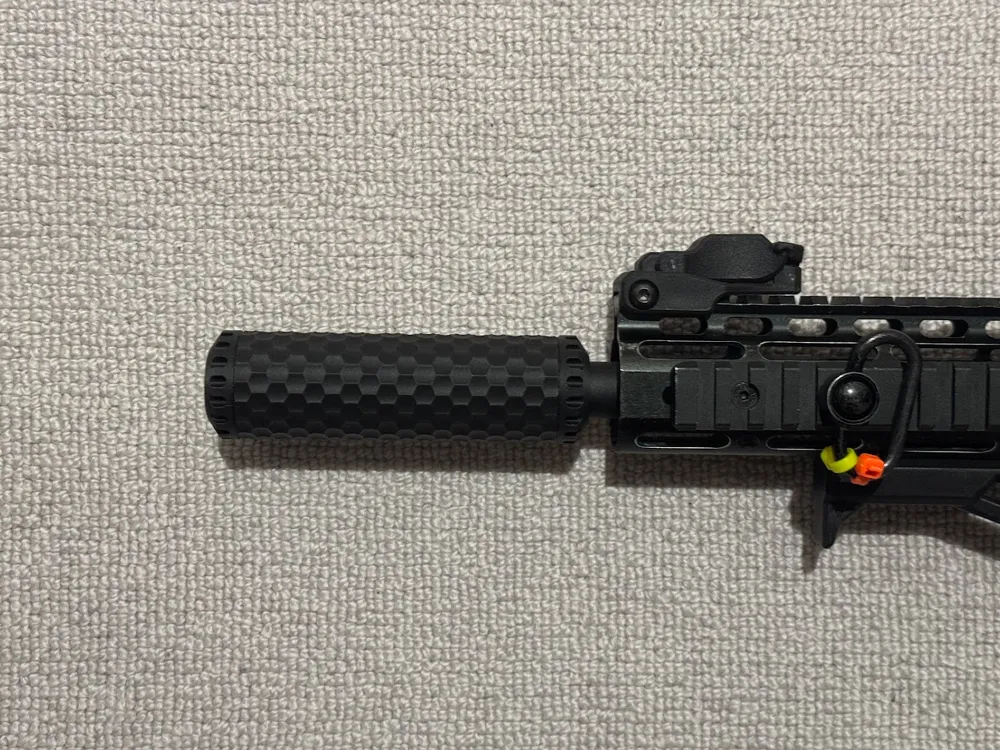

If you plan to use it as over the barrel it was designed to work with 18mm barrel.

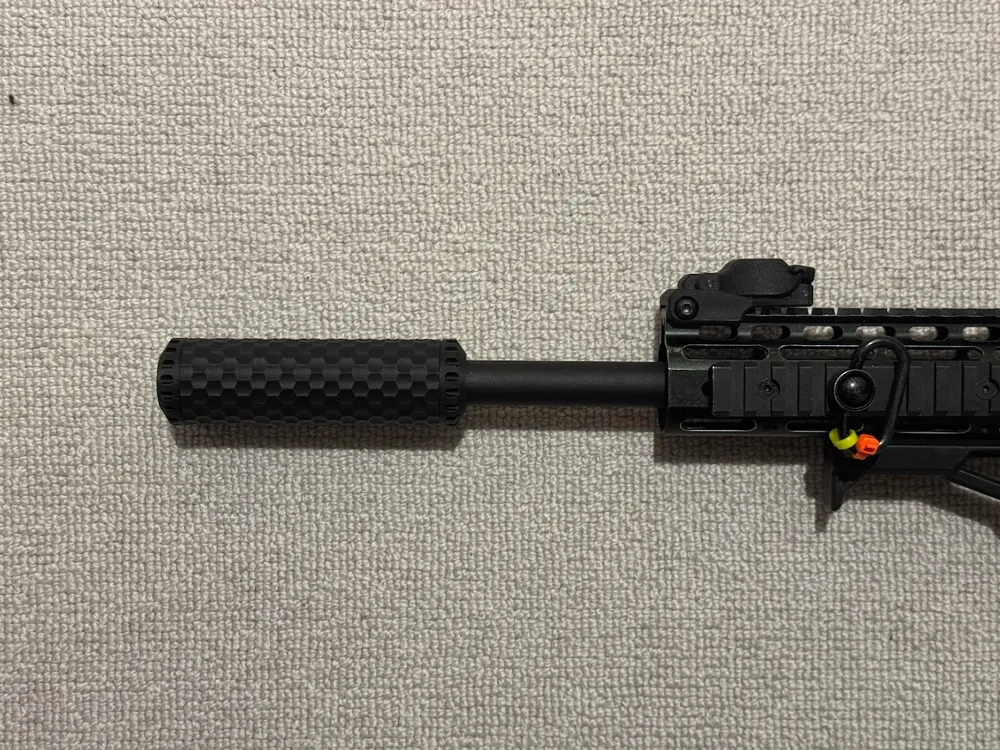

The new feature is the multi position solution that utilizes twist latch mechanism so you can set how much of the barrel it overlaps. In this model the distance between adjustment slots is 11.2mm it has 5 to 12 positions depending on the chosen length

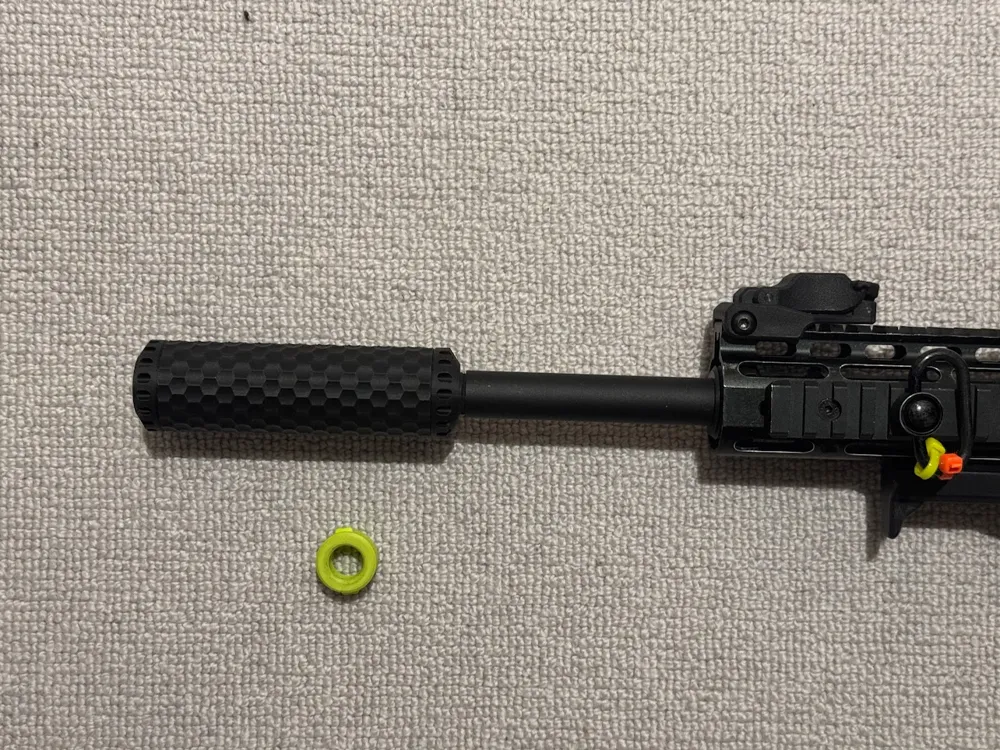

Please note, that because of the differences in accuracy of print dimensions caused by factors out of my control the adapters might need to be scaled up or down slightly so they fit quite tightly in to the barrel. Be prepared to do some fitting.

Once you find the position you like it might work best for you to glue in the adapter inside the body of the suppressor.

If you plan to use the longest version with minimal overlap of the barrel it might not be stable. in this arrangement I suggest to glue in the adapter.
