Xiaomi Thermometer 2 Enclosure Screenless Version

This enclosure for the Xiaomi Temperature and Humidity Meter 2 lacks a screen, resulting in lower cost and power consumption, making it ideal for filament storage. Integration with the Xiaomi Bluetooth mesh network enables humidity and temperature alerts.

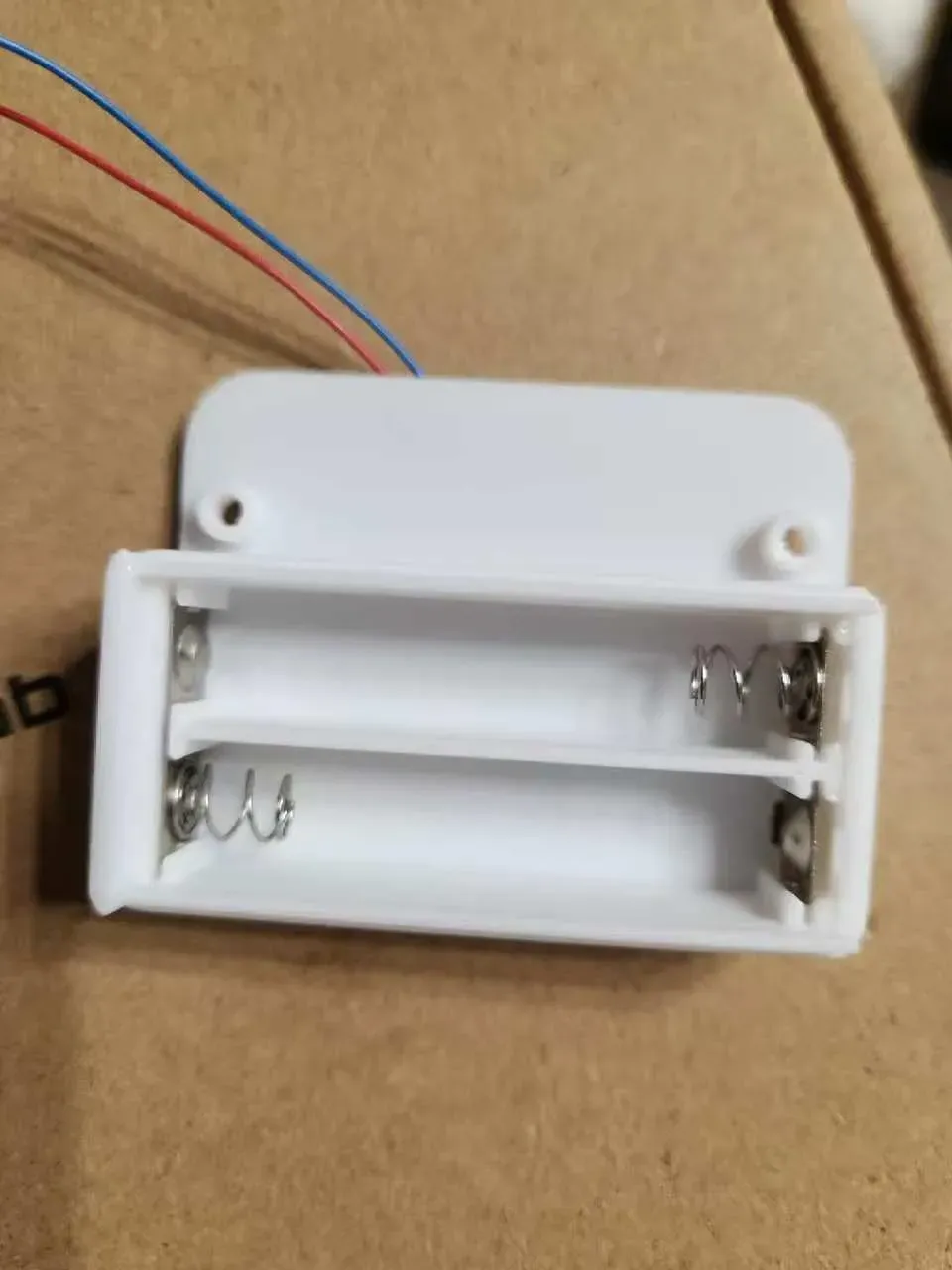

Modified to operate with two AA batteries, reducing the frequency of battery replacements. Expect a service life of two to three years. Note: Please use alkaline batteries. Carbon-zinc batteries are prone to leakage and should be avoided.

Dimensions: 57*45*24mm

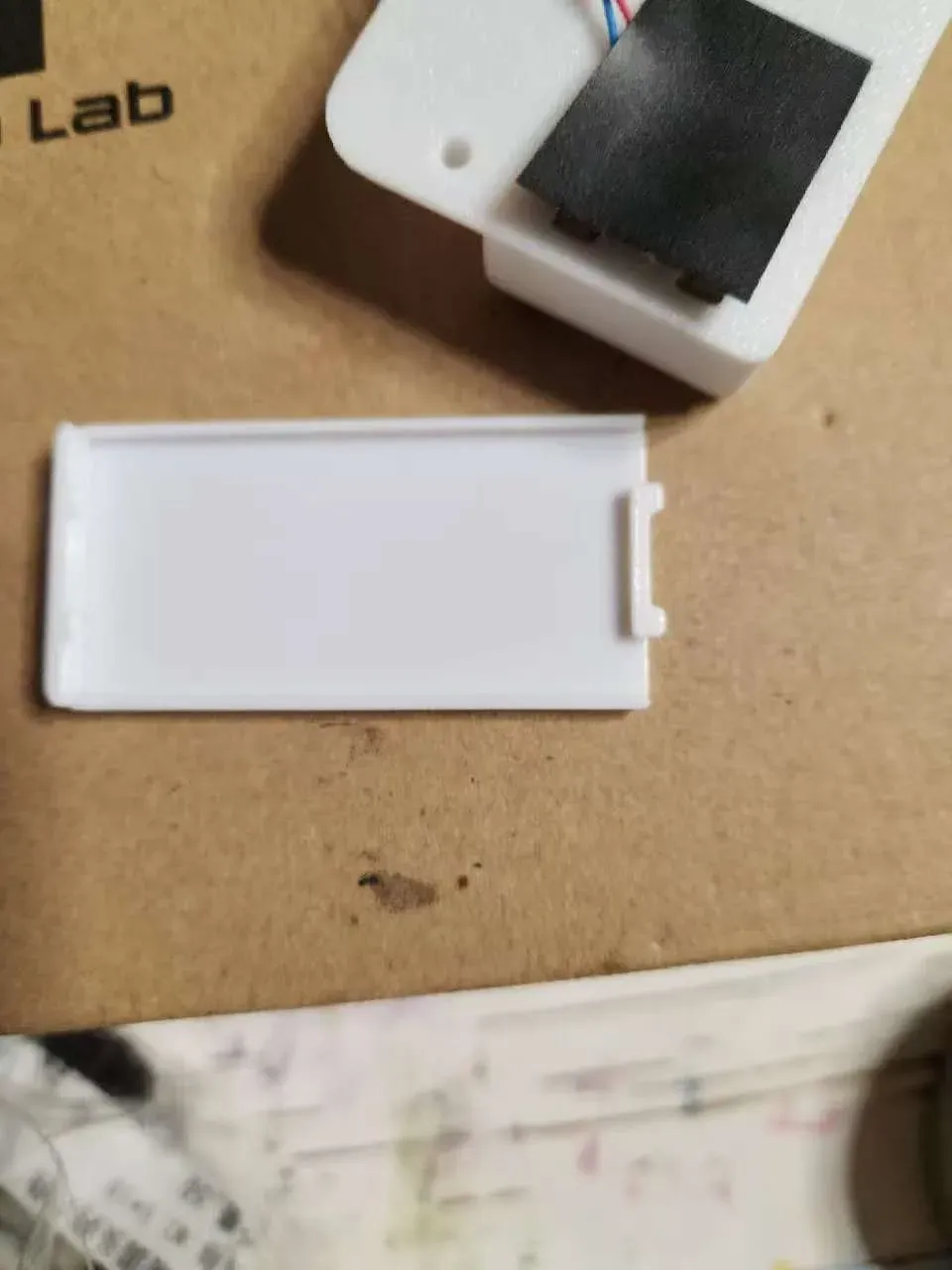

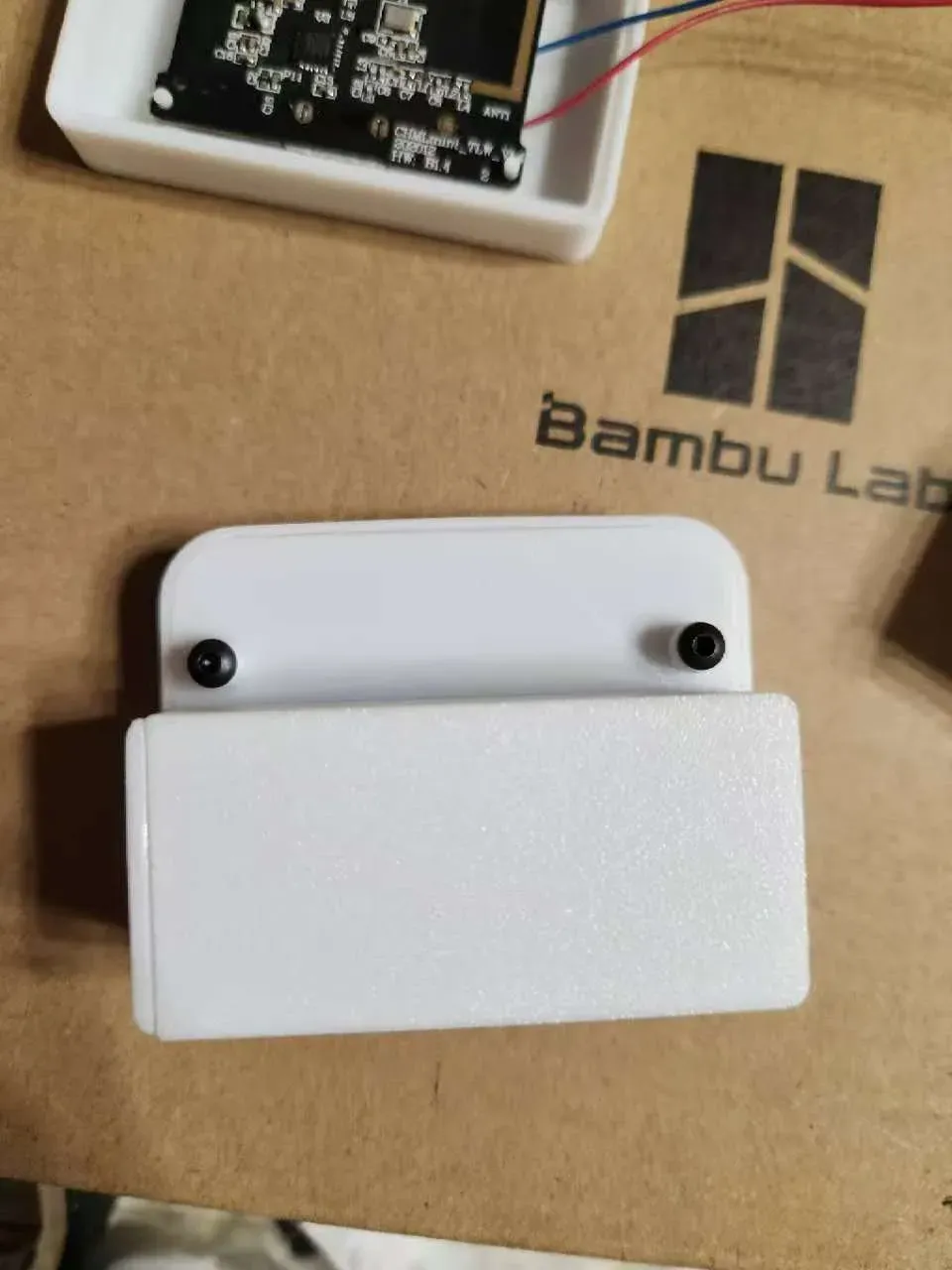

The top cover is compact and can be directly slid into place, or secured using two 2.5*10 screws.

Required Tools and Materials

1. Soldering iron and related supplies
2. Two wires, each 5-8cm in length
3. M2.5x10 screws
4. Screwdriver
5. Insulating tape

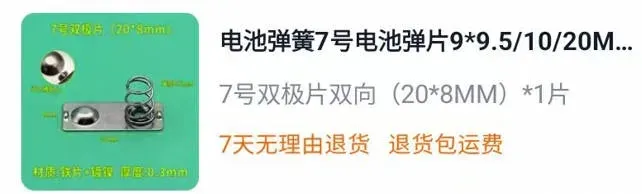

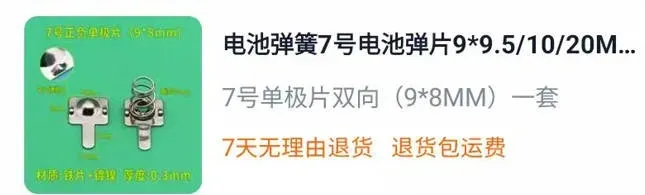

6. AA battery 9x8mm spring clips (clips with a width of under 10mm generally fit); AA battery dual-terminal 20x8mm spring clips (clips with a width of 22mm generally fit). Bidirectional clips are preferable as they can be installed in either direction, although unidirectional clips are also usable.
