Ventilation grille for residential ventilation
Print Profile(3)
Description
This is an updated version (V2.0) of my air vent https://makerworld.com/en/models/150896
With this new variant, I can more easily accommodate customization requests
No Supports
As with the previous version, no supports are needed for printing
Adhesion
If you have good adhesion with the chosen material and preferred print bed, you don't need a collar (brim)
In two out of three tests, it worked for me without a brim
If adhesion still causes problems, you can try "Brim Ears" They have been available since version 1.10
in Bambu Studio
And with that, you only mark the ends of the ribs on both sides to prevent lifting during printing
(However, some post-processing is then necessary)
Gluing
The model is printed in one piece, so no glue is needed
Variants

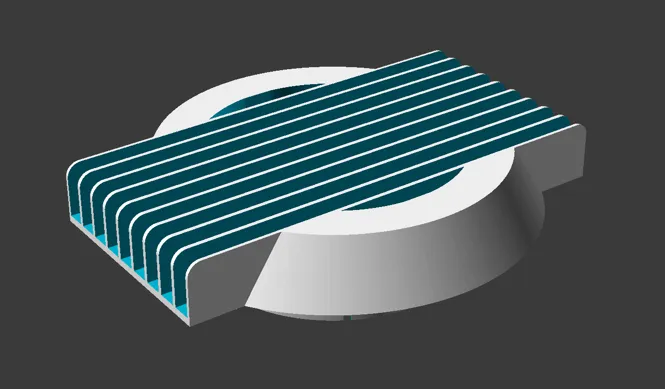

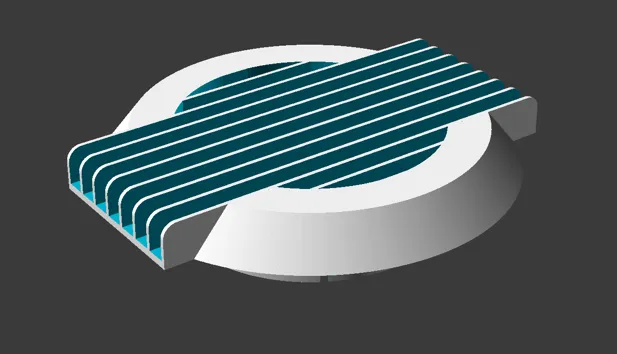

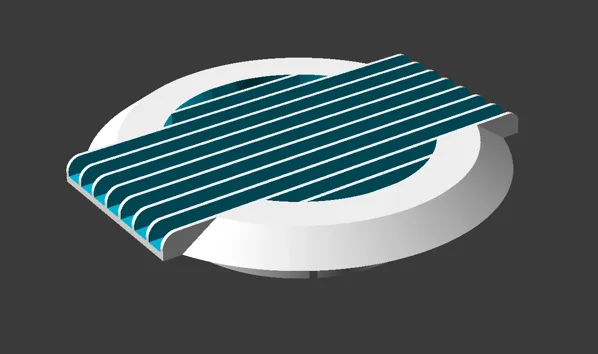

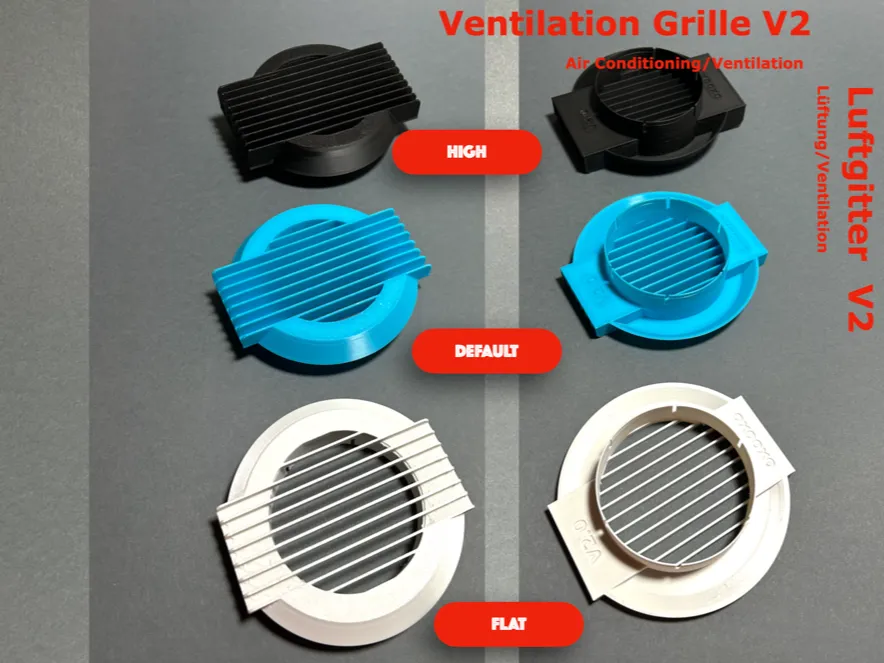

There are three variants (Default/Normal, Flat/Flach, High/Hoch), where in addition to
the height, another attribute was always changed
Dimensions

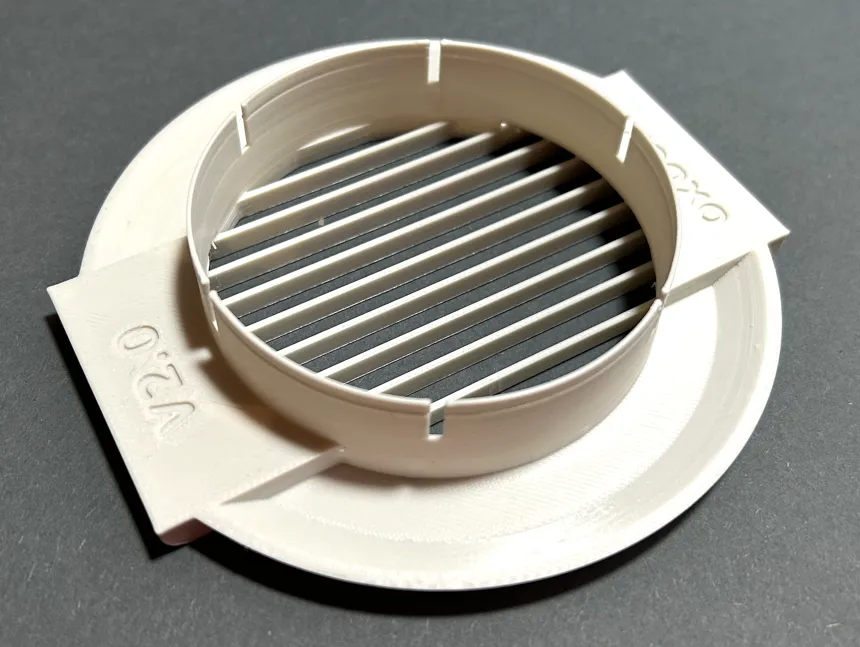

The outer diameter of the wall connection (all three variants) is configured to 76mm and comes out after printing
at about 75.4mm This allows the grille to fit very well

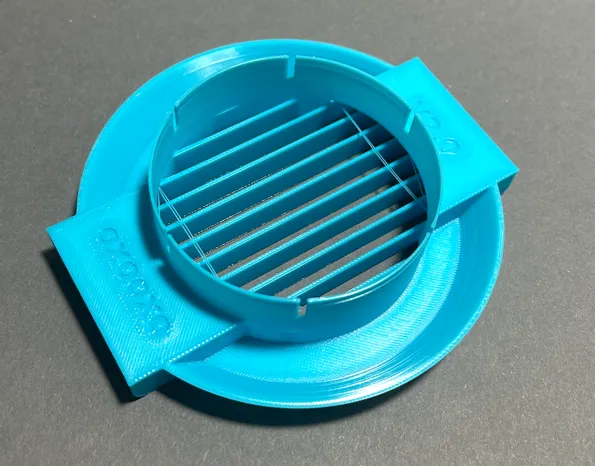

Towards the wall, the diameter is reduced to 74mm, so that the grille can be inserted more easily into the opening
Further Improvements

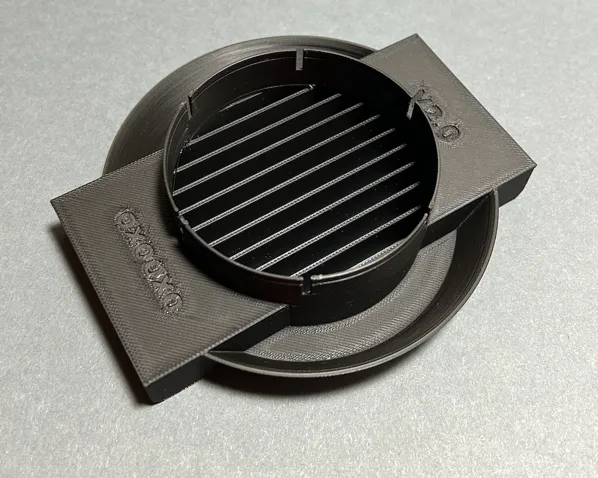

The new variant also has an external ring
which should provide more support (e.g., for ceiling mounting)
Boost Me (for free)
If you like this model, I would be very happy about a boost.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
