CAME TOPD4R-TOPD2R remote controllers strong cover
IP Report
Print Profile(2)
4BUTTONS-UNIVERSAL COVER 0.2mm layer, 4 walls, 20% infill
Designer
1.2 h
1 plate
0.2mm layer, 2 walls, 15% infill
37 min
1 plate
Open in Bambu Studio
Boost
10
31
7
0
73
34
Released
Description
Content has been automatically translated.
All my automatic gate's remote controllers broke. CAME did a bad job with these models

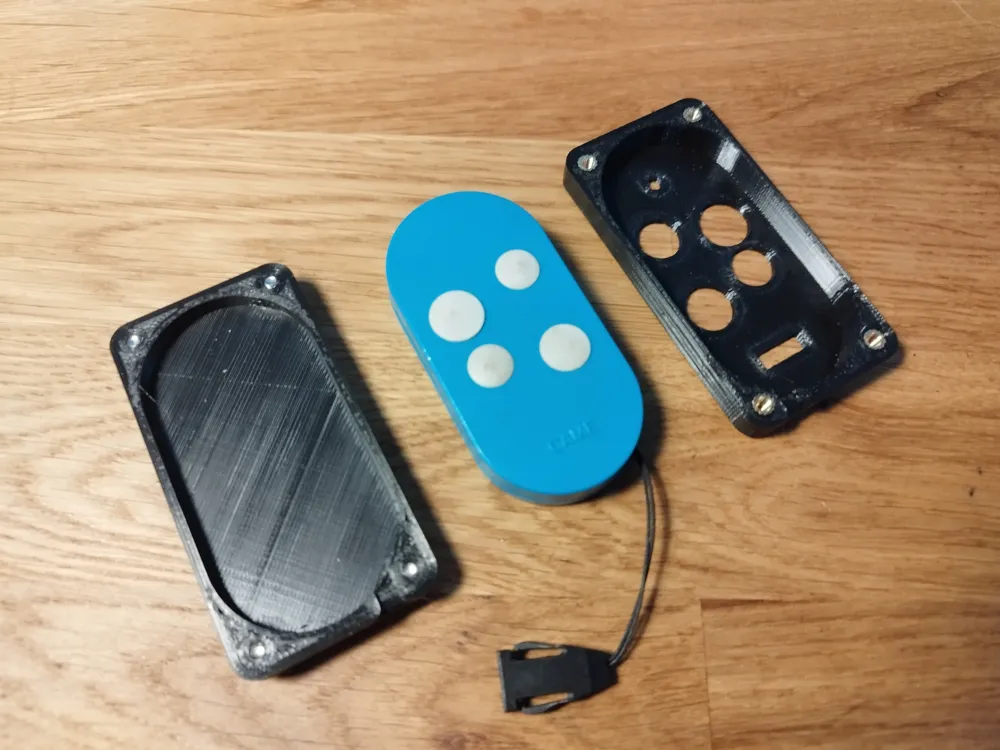

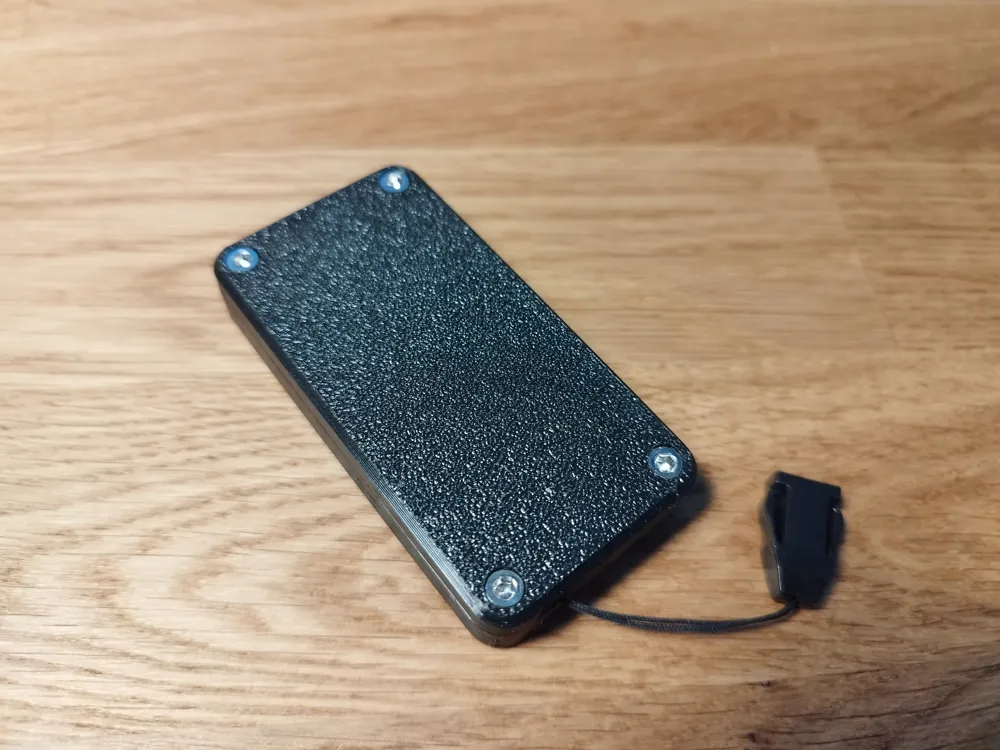

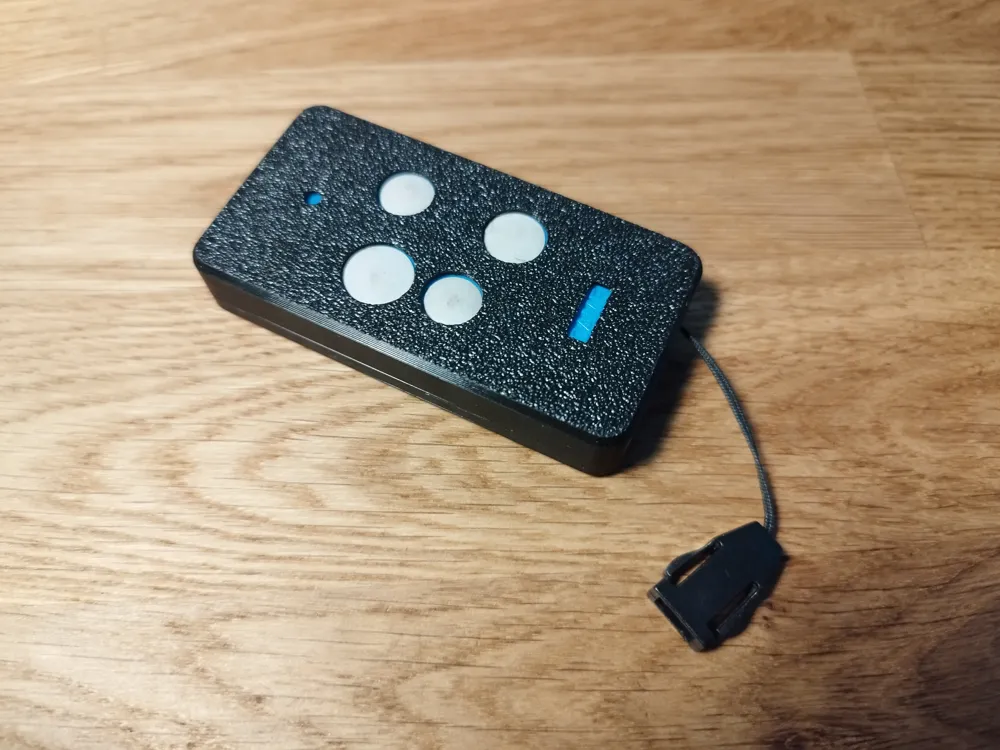

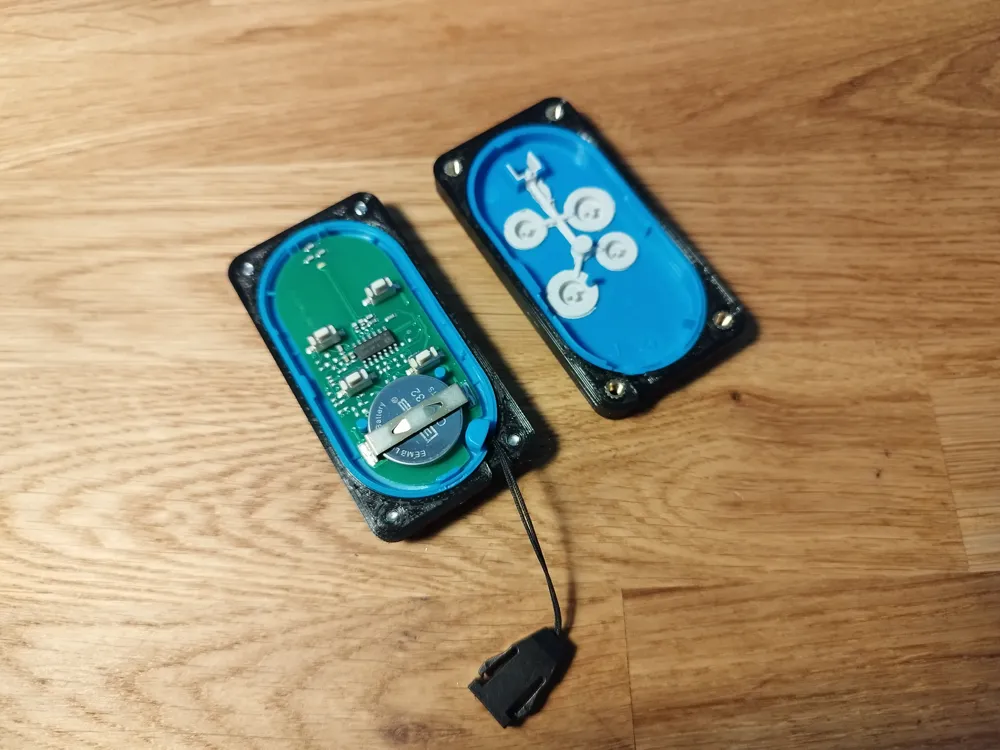

I designed this protection cover to repair broken ones and save new ones
You need four M3x6mm screws and four M3 brass inserts

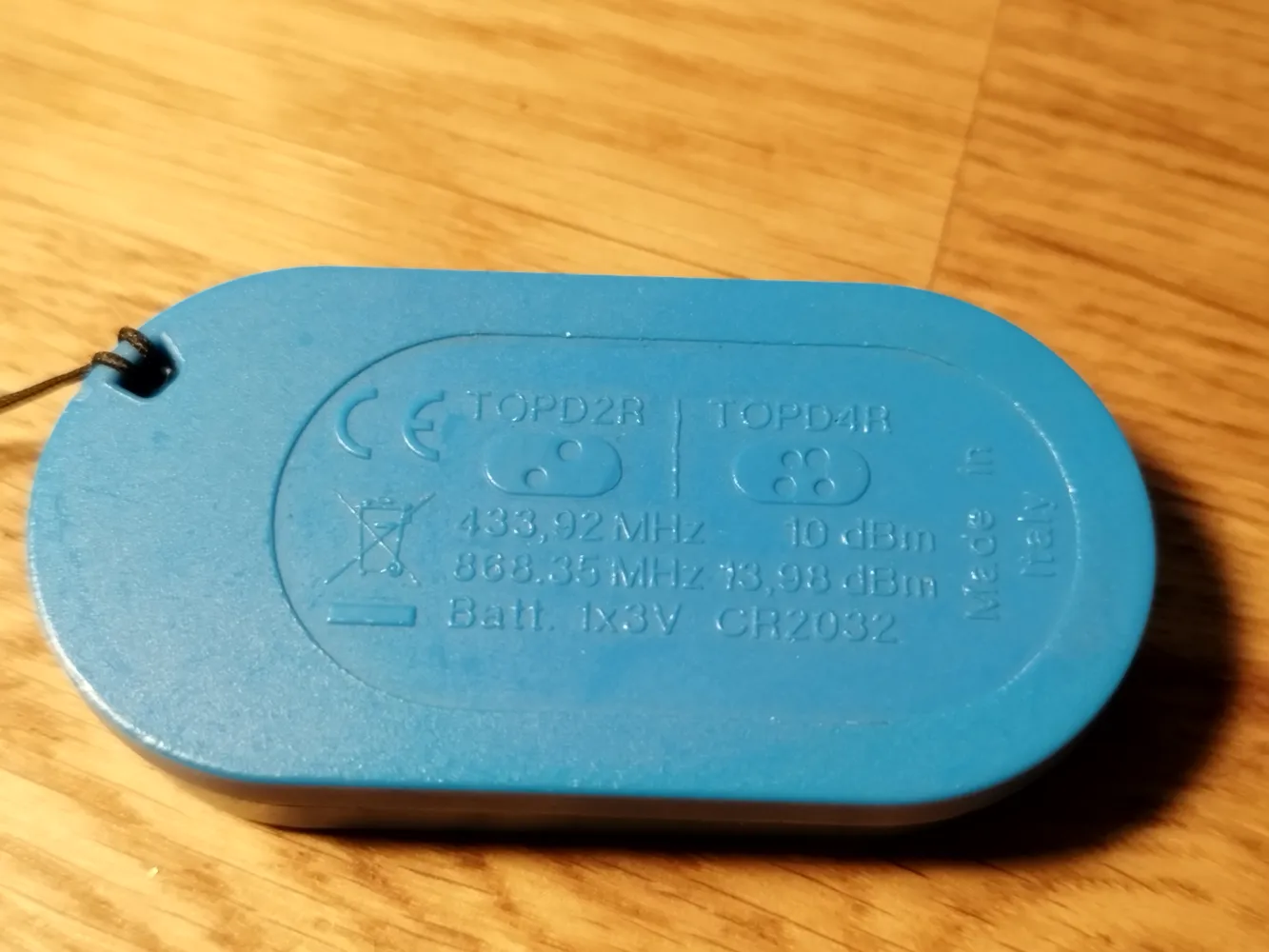

The TOPD2R has only two buttons and it's not tested because I have only the TOPD4R, but it should be ok
I printed mine in PETG and ASA. Both are working fine
I will add a new version that doesn't require inserts and is secured by screwing small wood screws directly into the front casing
UPDATE 29/04/2026:
I’ve added a print profile for PETG that also includes a universal front cover compatible with both 2-button and 4-button remote controls
