ATX mother board under glow LED strip mount
IP Report
Print Profile(2)
Fast printing with everything on plate
Designer
1.9 h
1 plate
translusent glass like finsih but very slow print speed
Designer
12.4 h
2 plates
Open in Bambu Studio
Boost
8
19
0
0
6
2
Released
Bill of Materials
List other parts
- LED Strip L Connector x 4:
Description

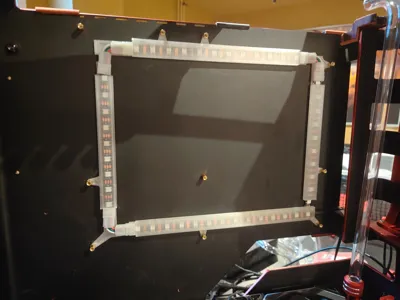

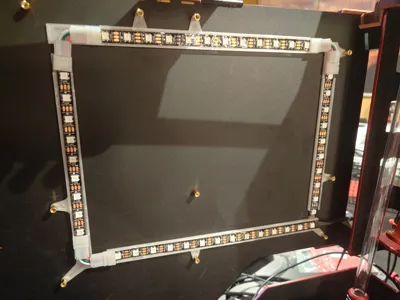

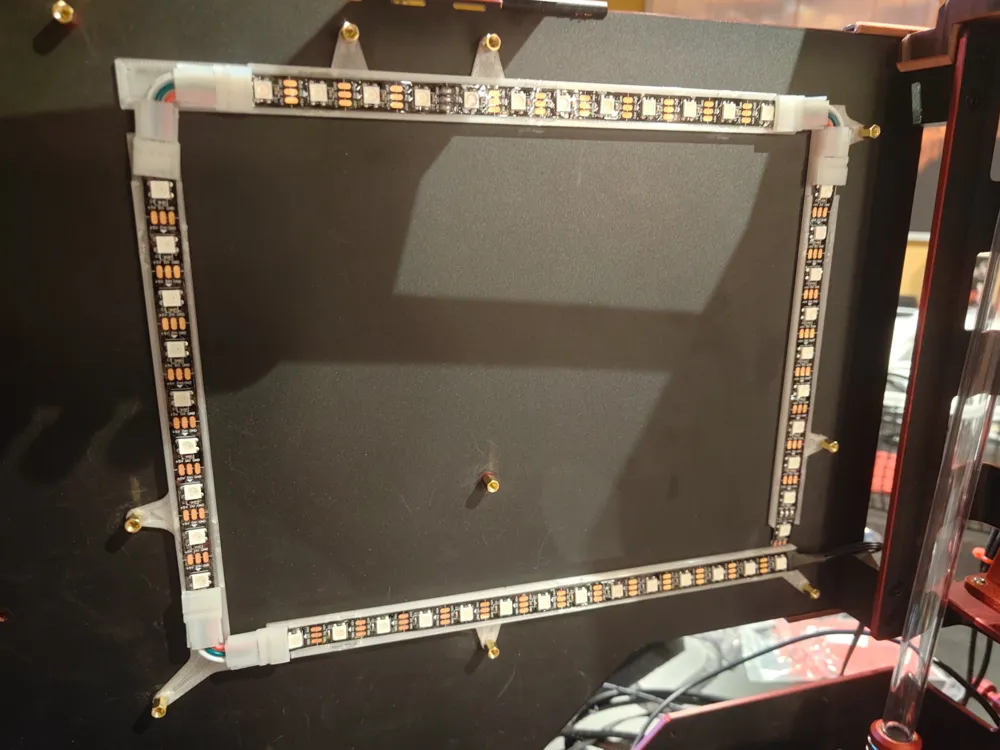

This is a motherboard under glow mounting kit for ARGB LED strips. It should fit all standard ATX motherboard size.

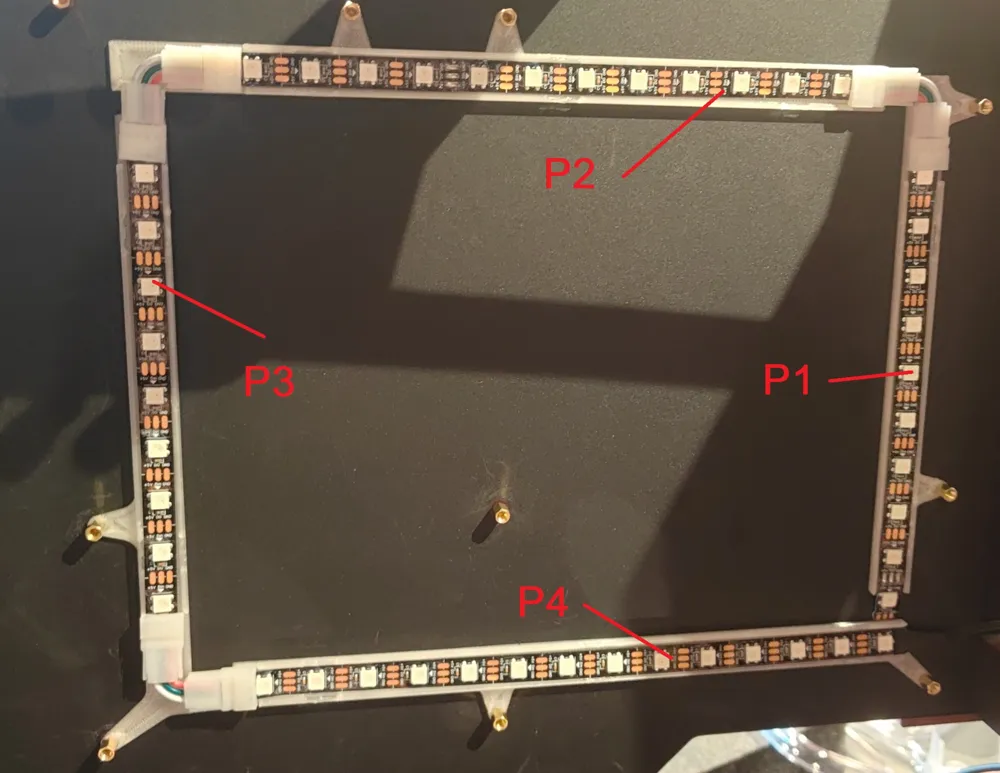

I would recommended to print the cover with translucent PETG. Please use the second picture for the installation guide. Each piece will have 2 part, one for the base mount, the other for the insulation cover (e.g P1 for the base and P1C for its cover).
The channel is 14mm wide, so any LED strip that is narrower than that should work. The cutout should also be able to fit regular right angle connectors if you do not want to use solder.
License
This user content is licensed under a
Creative Commons Attribution
