Solar Panel Angle Finder
Print Profile(1)
Description
Users of portable solar panels know the drill: frequent readjustment to track the sun is often necessary.
This simple inclinometer facilitates achieving the optimal 90° alignment.

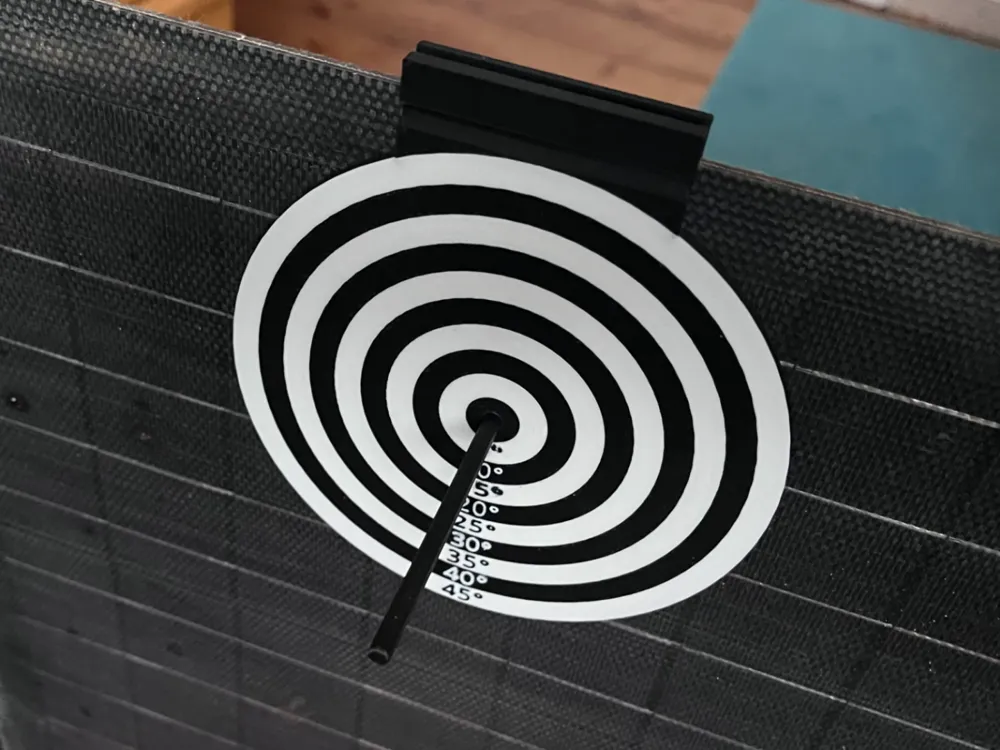

Simply place it atop the solar panel before adjustment for convenient alignment.

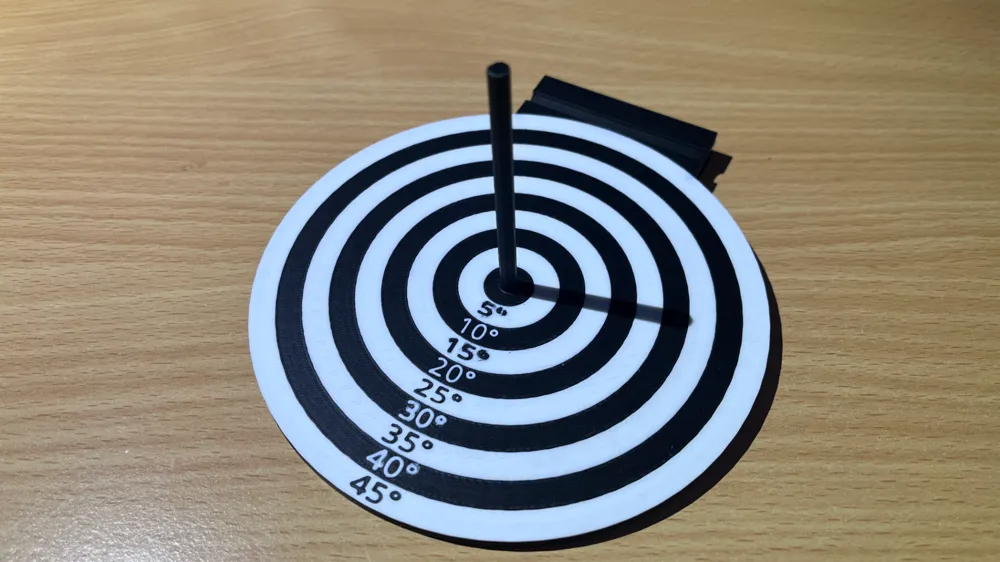

The model comprises three parts:

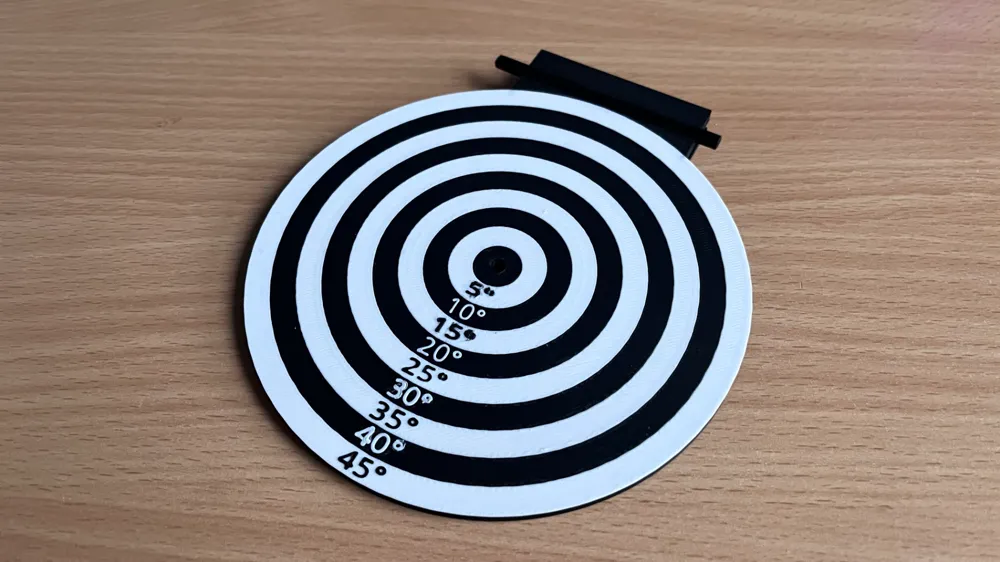

- The plate with concentric circles marked in 5° increments
- The indicator pin, detachable and storable within the plate
- The small retaining plate securing the inclinometer to the panel
The retaining plate is calibrated for a 3mm thick solar panel, suitable for Ecoflow panels, for instance. For thicker or thinner panels, simply scale the retaining plate disproportionately along the Z-axis.

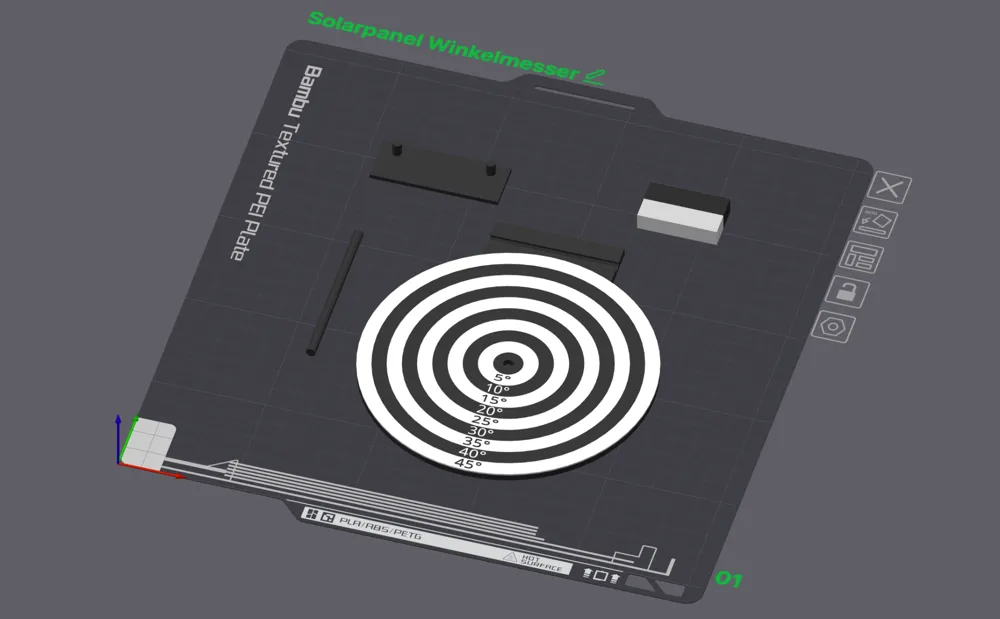

Printing tips: A small brim for the indicator pin may prove beneficial. Minimal support is required for the rear holes of the plate.
