Monitor Wall Mount VESA 100/75 Tilting

Hello, I have made some adjustments to the Vesa wall mount by Cover1012.

I noticed that the screws and threads were too tight to turn in.

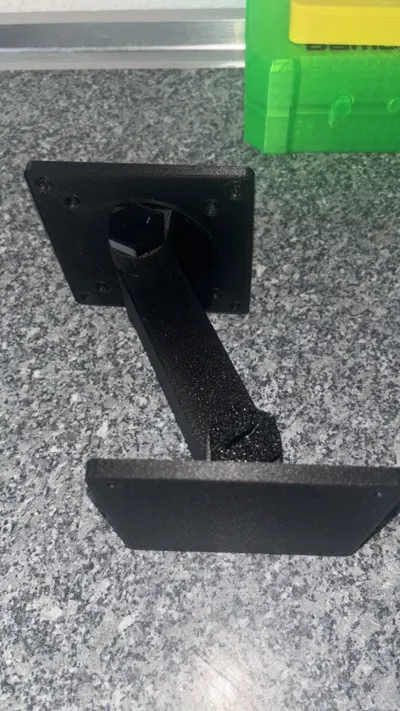

I fixed that. I also created a longer version of the arms at 160mm. The short arm is only 102mm.

I also added Vesa 75 holes to the monitor plate, so now multiple monitor sizes can be used with the same mount.

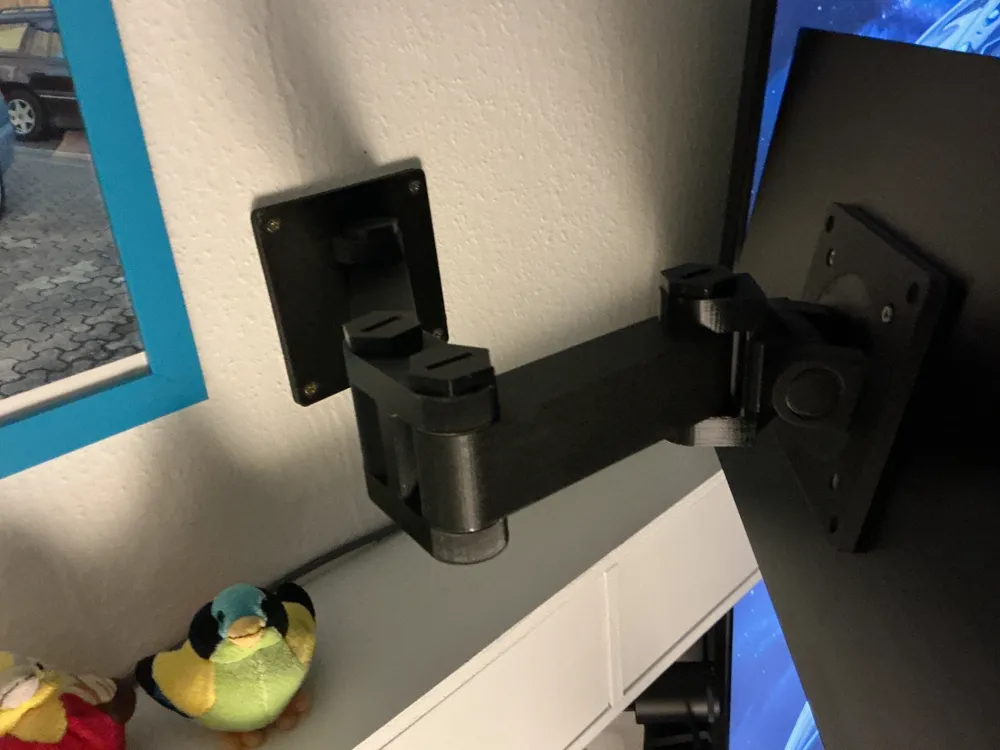

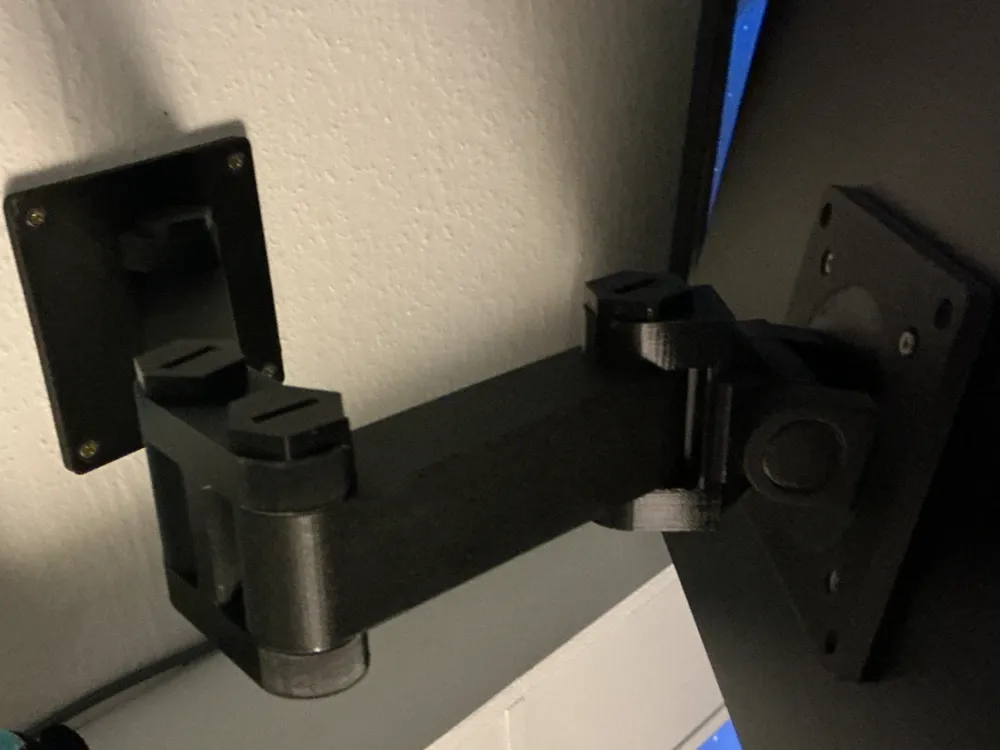

I also designed a tilt joint that allows the monitor to be tilted up or down.

I designed the additional tilt joint for an 18.5 inch USB monitor. This holds very well. When using a heavy monitor, it is recommended to use spring washers or serrated washers to prevent unintentional tilting.

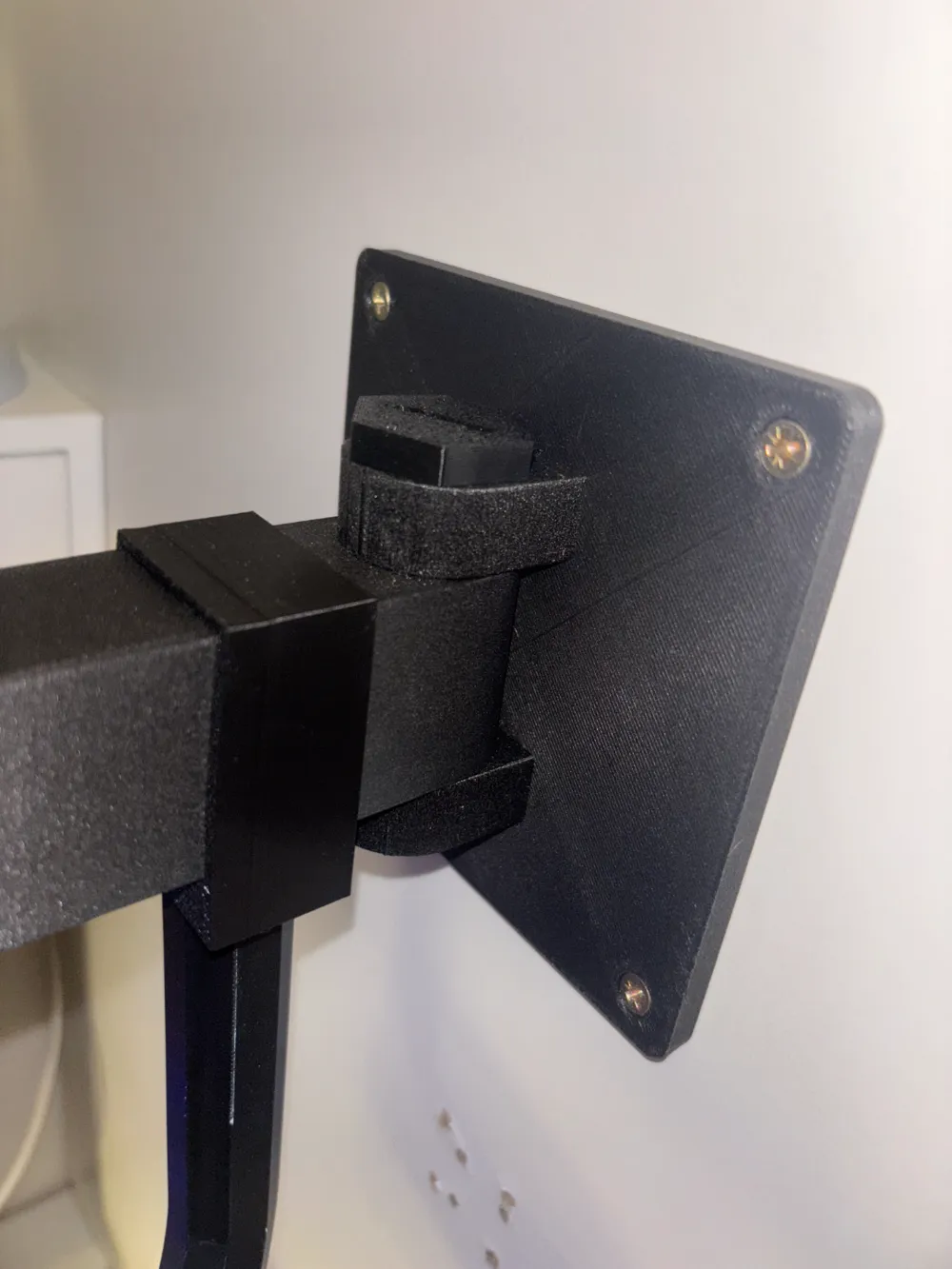

Furthermore, I have now designed a connector for the arms. This allows both arms to be used.

Please remember to print 2 more screws if you want to use the connector. :-)

I hope you have fun with this further development.

Regards Demekin
