Description

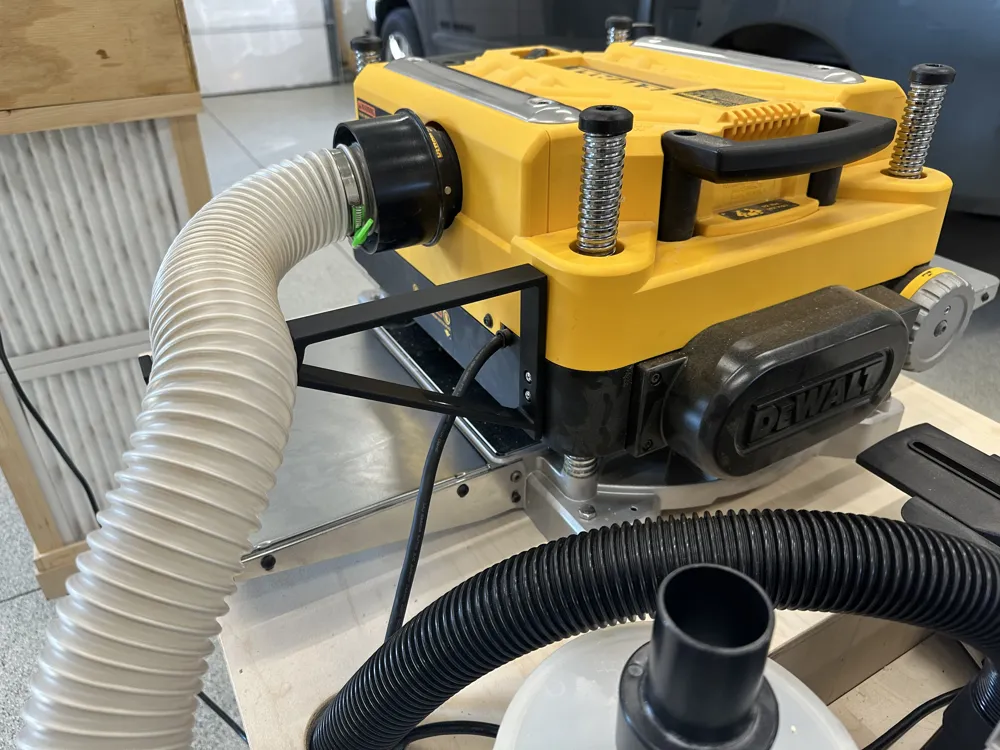

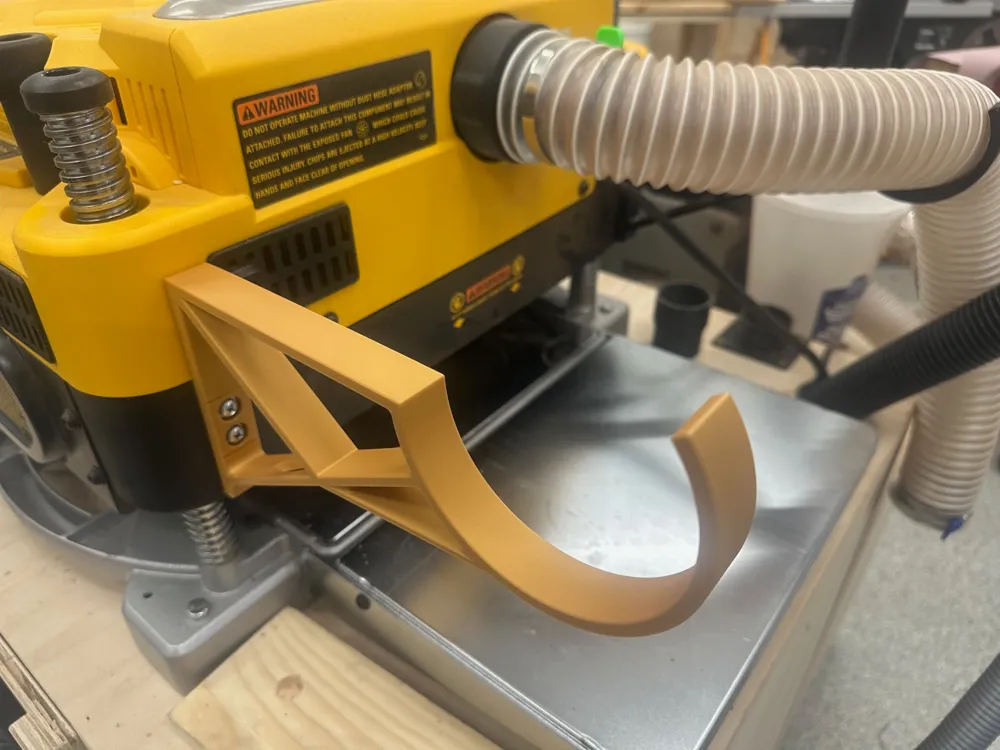

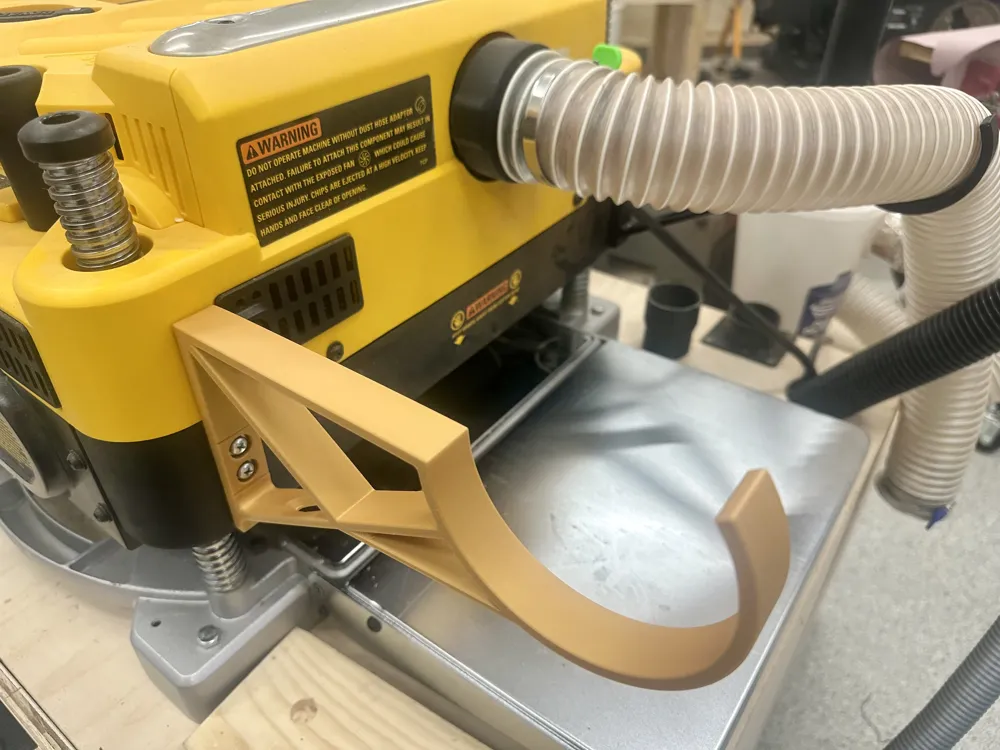

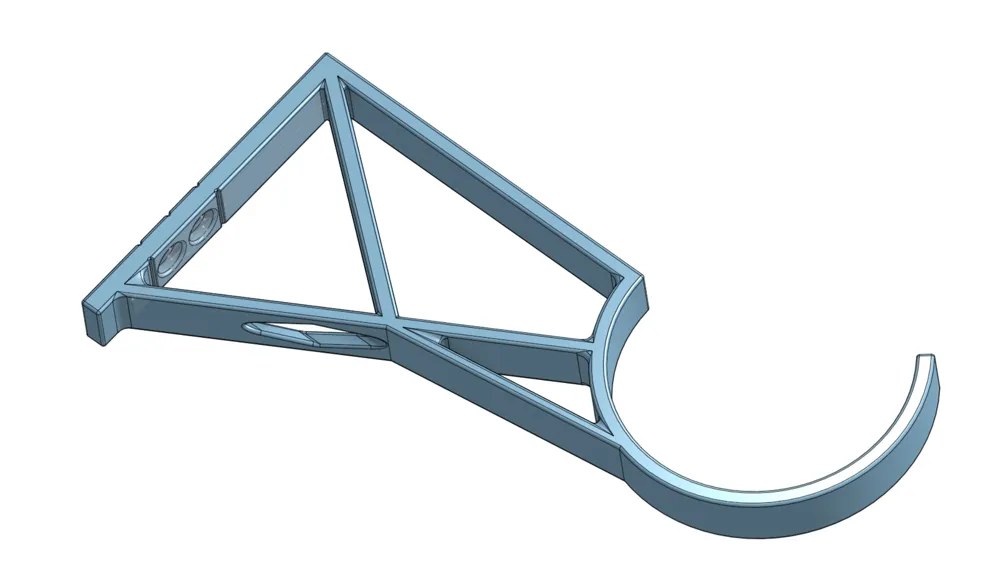

This attachment for the DEWALT 735 planer will hold a 2.5 or 4 inch dust hose off to either side of the planer, keeping it out of the way during operation. It mounts to the existing screw holes on the planer using 2 M5x16 screws and M5 or M6 washers. Take care not to over-tighten the screws or you may damage the part. This improved version is stronger with less flex. Does not require supports to print. I recommend printing with 4 walls and 15% gyroid infill.

Update V3 - 6/26/25 Strengthened the attachment points and enlarged hole to allow for up to an M6 Washer - Use of a washer is highly recommended
