SMMT - Octagon Frame - x8
Print Profile(1)
Description

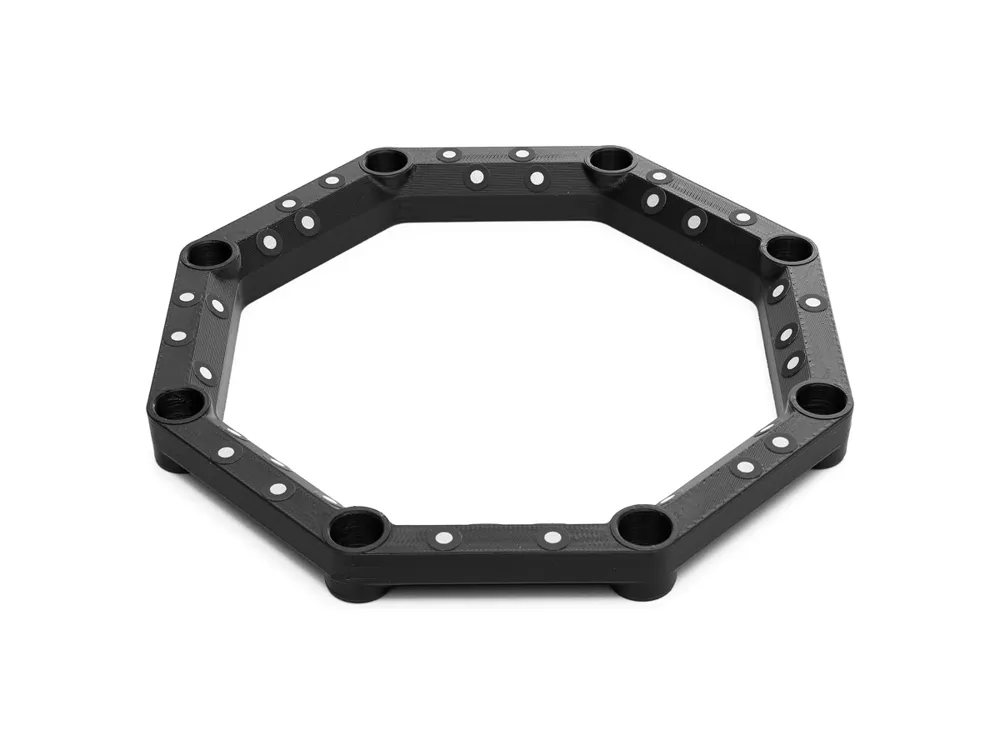

This is an Octagon Frame for the SMMT (Small Modular Marker Tower) system.

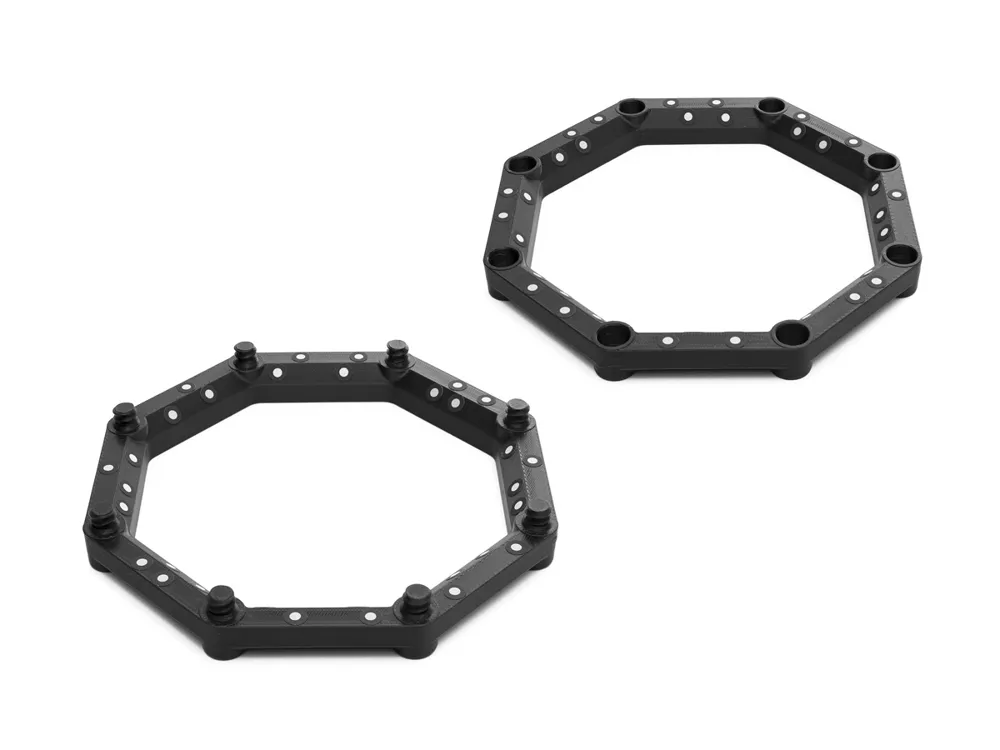

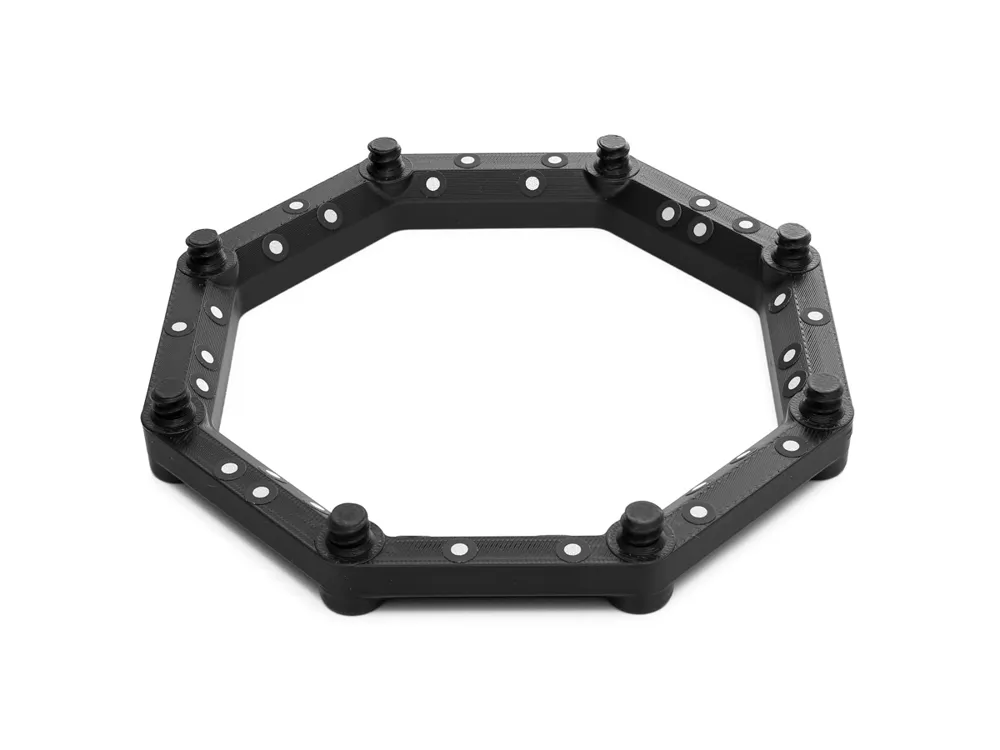

The frame with threads is intended to be placed at the bottom of the setup, and the bolt through frame at the top.
Use the part "SMMT - Bolt & Nut" to attach the bolt through frame to the top of the towers.
The Magnetic version uses D6x3 magnets (8x) to secure the frame to a ferrous surface.
Choice of filament material:
This part was designed for use with Bambu Lab PLA Basic, but can work with other regular PLA of similar quality.
Matte PLA or Silk PLA should not be used due to their weaker mechanical properties compared to regular PLA.
Choice of filament color:
Gray: Works well when scanning most objects in marker mode, and it will also work to assist tracking in geometry mode.
Black: Works well when scanning black parts, as it can otherwise risk overexposing the marker block, leading to loss of tracking.
Boost Me (for free)
A lot of filament is used for all the iterations of design and prototyping of these parts.
If you find the item helpful, please consider sending a boost as it helps to cover some of the development cost.

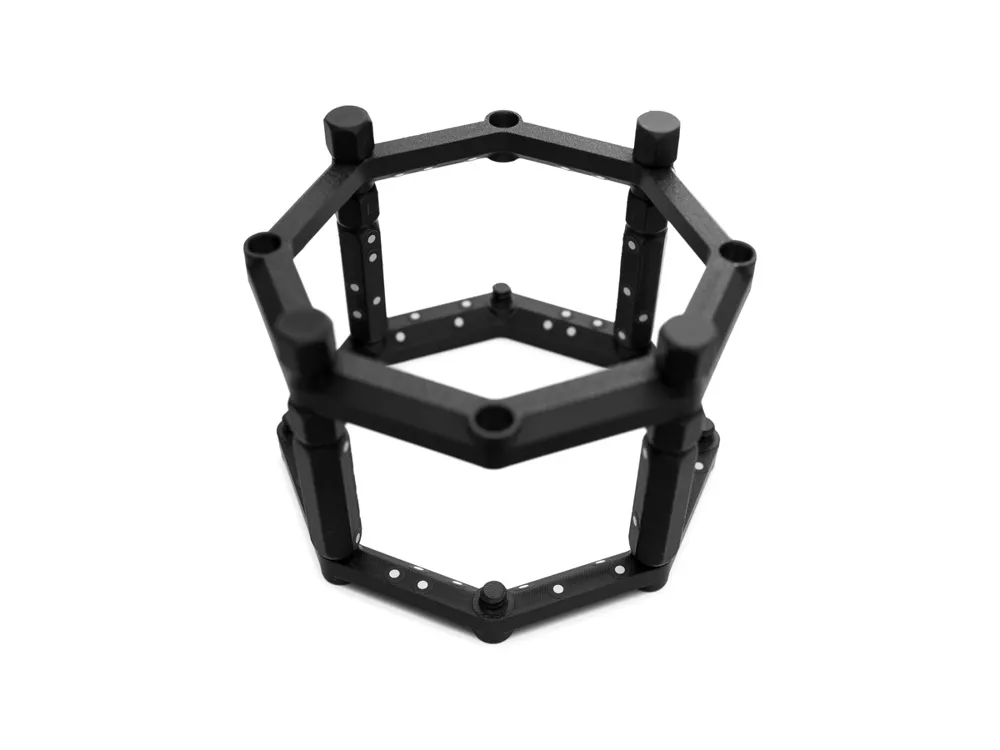

Here is an assembly demonstration of how the SMMT + MMT parts can be used to create a marker rig (But many more variants can be created):
