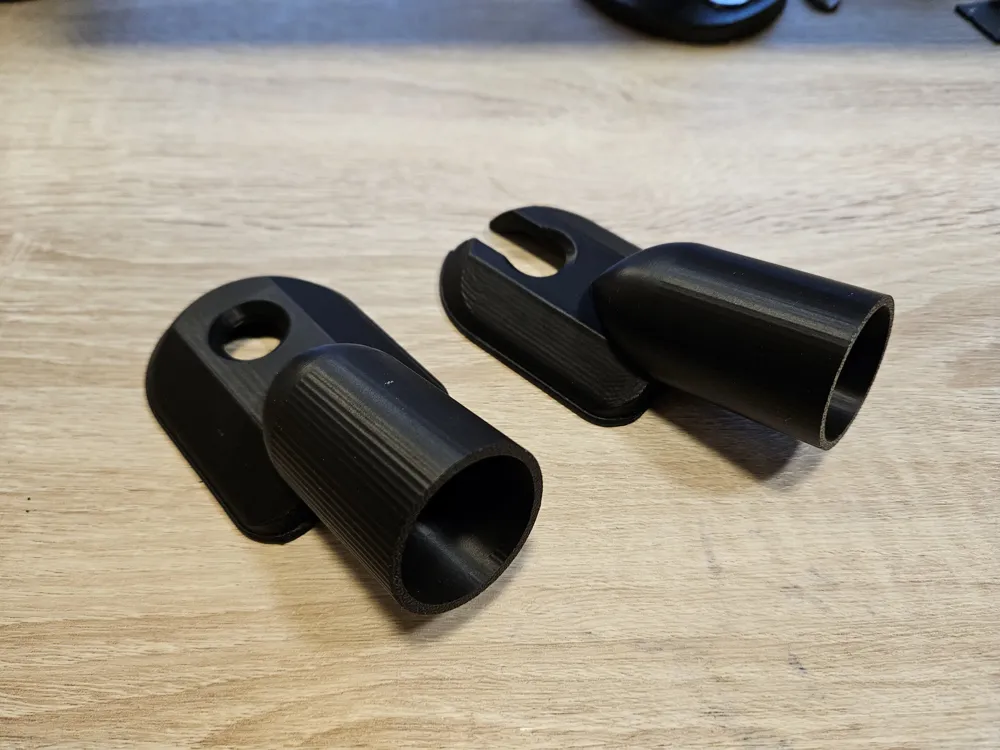

Two version of a Vacuum drill collector.
Both are the same model with slight modification:
- Printed to be small enough to fit any drilling position
- The vacuum connector hose is under an angle for comfortable holding
- inserts into the vacuum hose, this way, you will not get any leftover dust when taking it down from the vacuum.

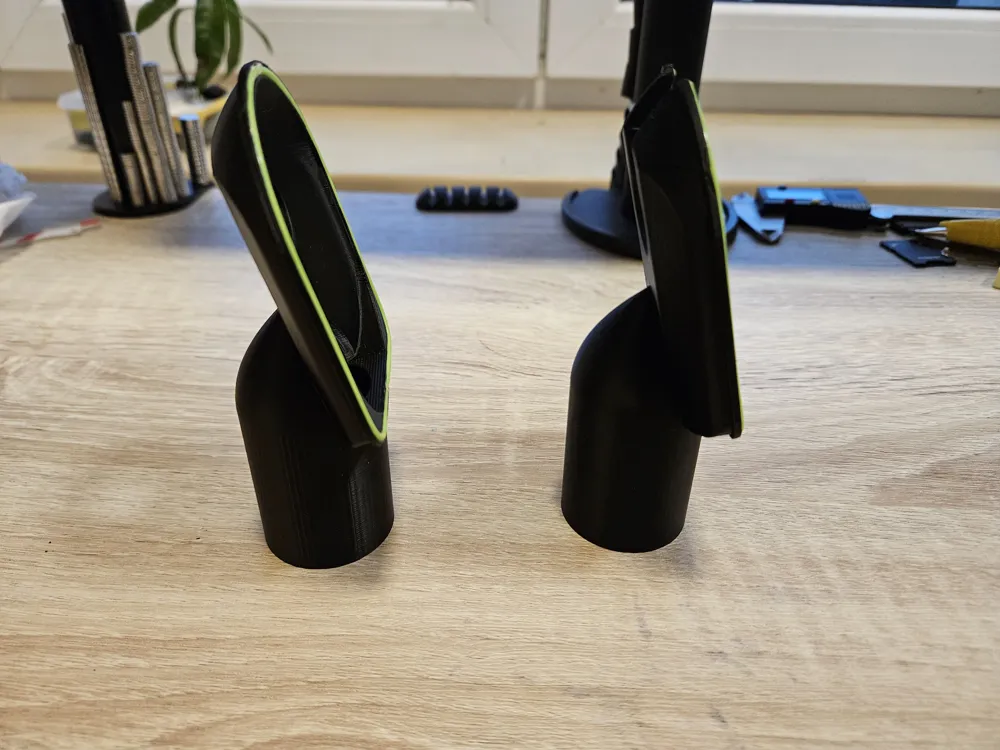

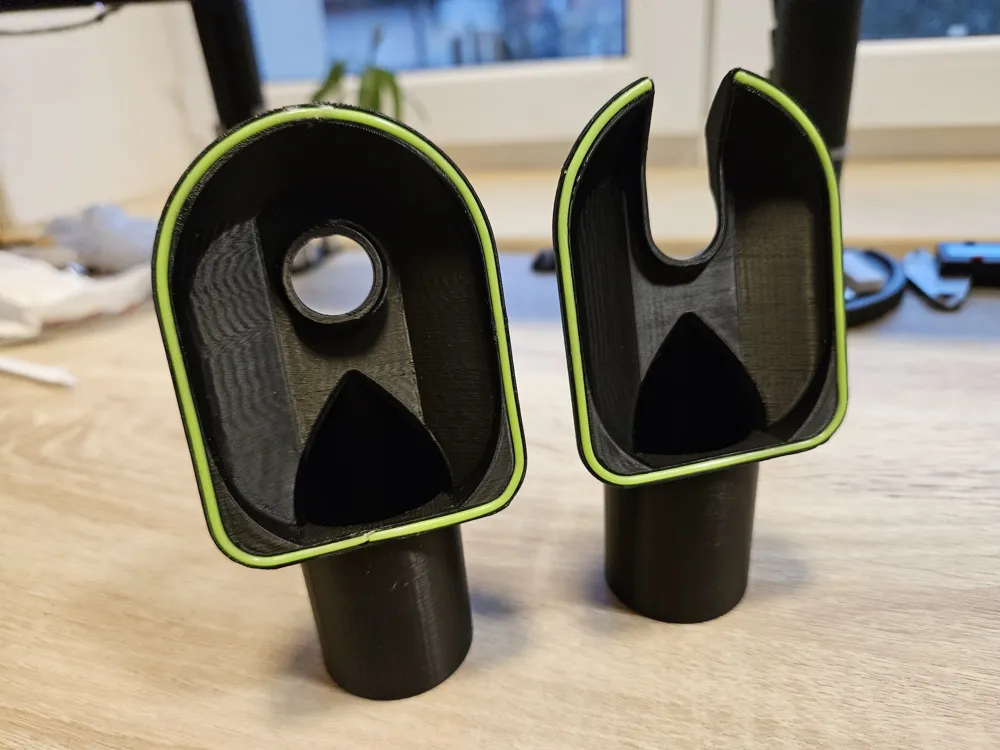

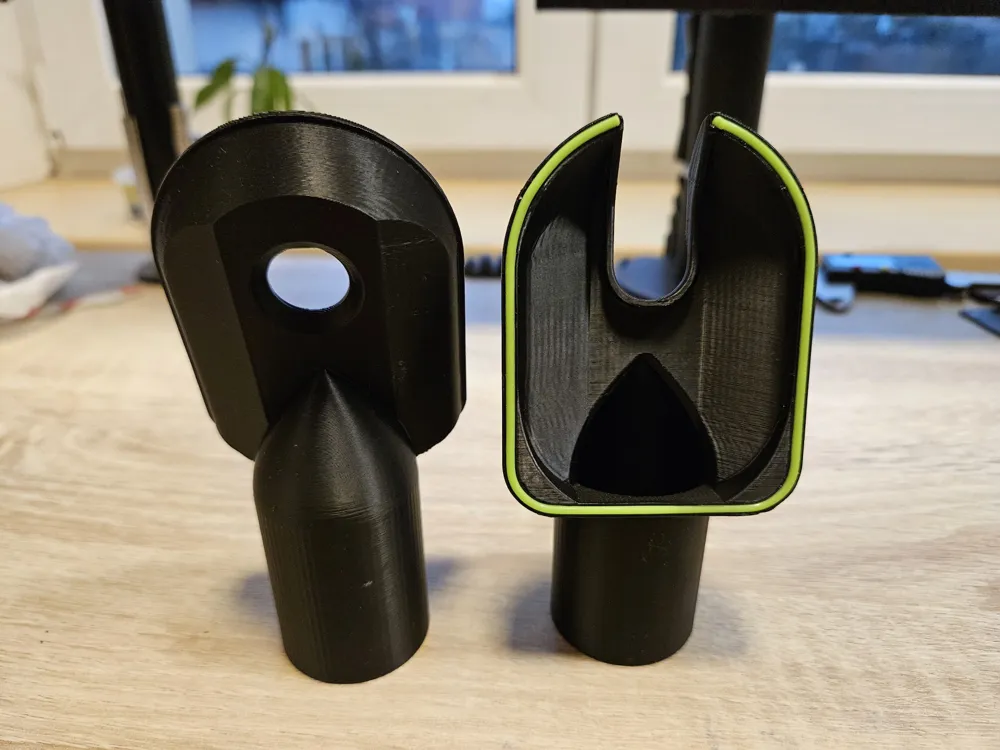

- there is a groove all around the wall facing part for TPU filament insertion (the green part on the picture), for sealing.

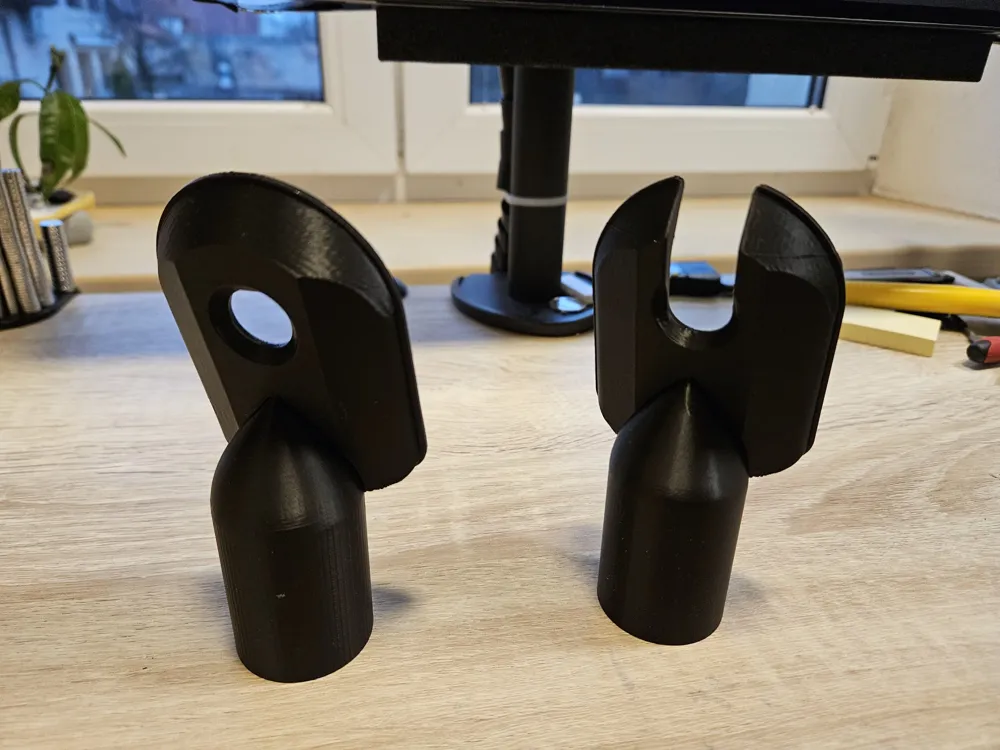

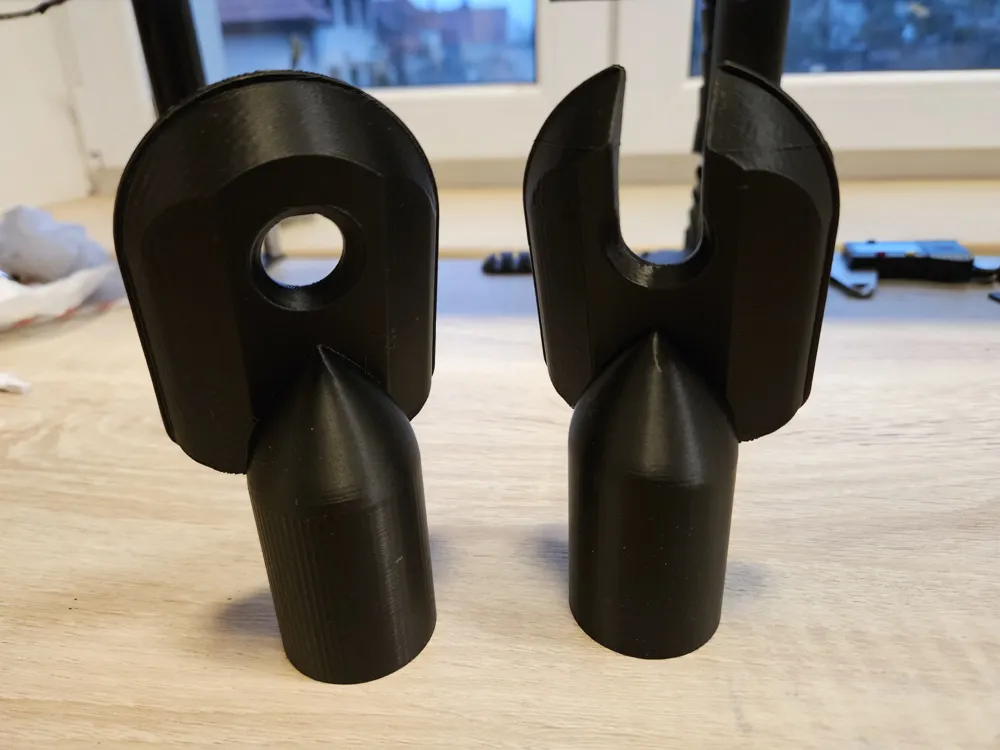

Version with Hole only:

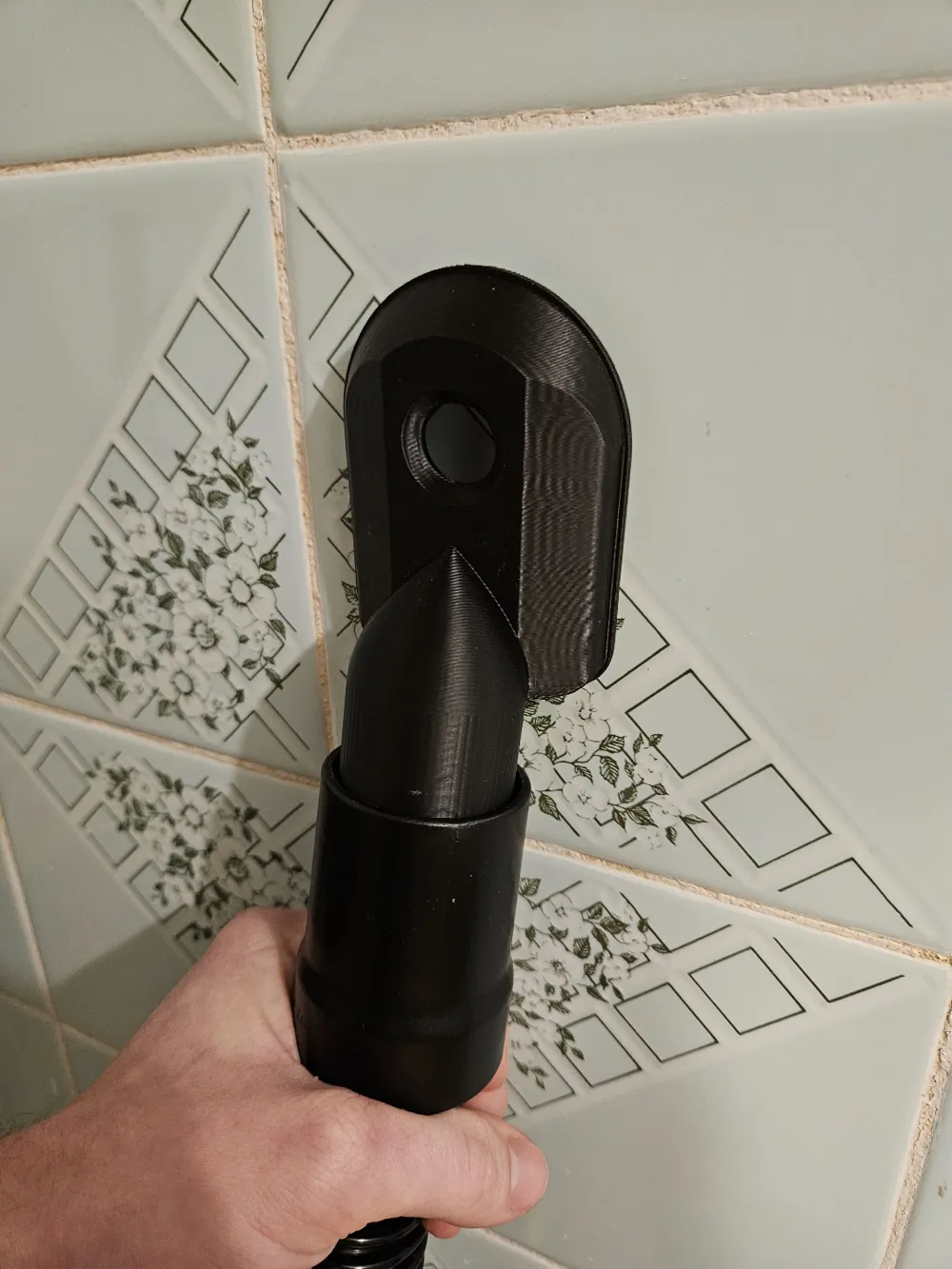

- press the collector on the wall on a mark spot and drill, or
- put the hole on the drill, place the drill on the mark and after that press the collector to the wall (this way you will not miss the spot)
Version with the full cut:
- press the drill on the marked spot and slide the collector through the cut on the wall
Update 1:

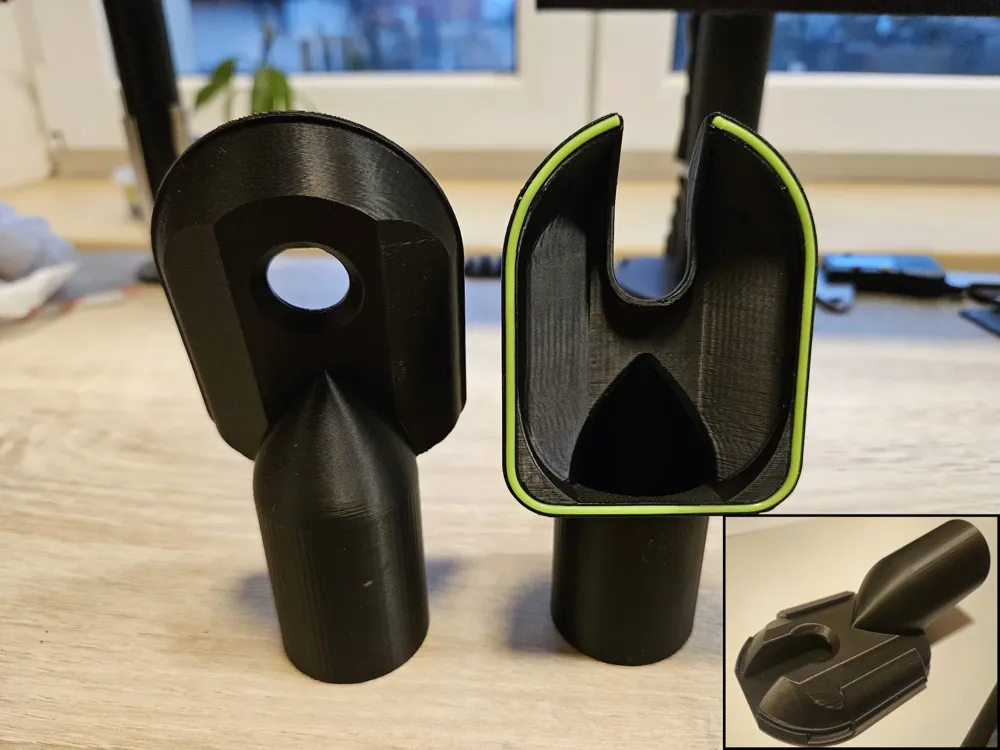

Added a Mount piece. Use double sided tape to keep it on a vacuum, or your Skadis board
