I'd love to see your prints! Please share your photos in the comments, and don't forget to Boost if you like the results! Happy printing! 🚀 🙏

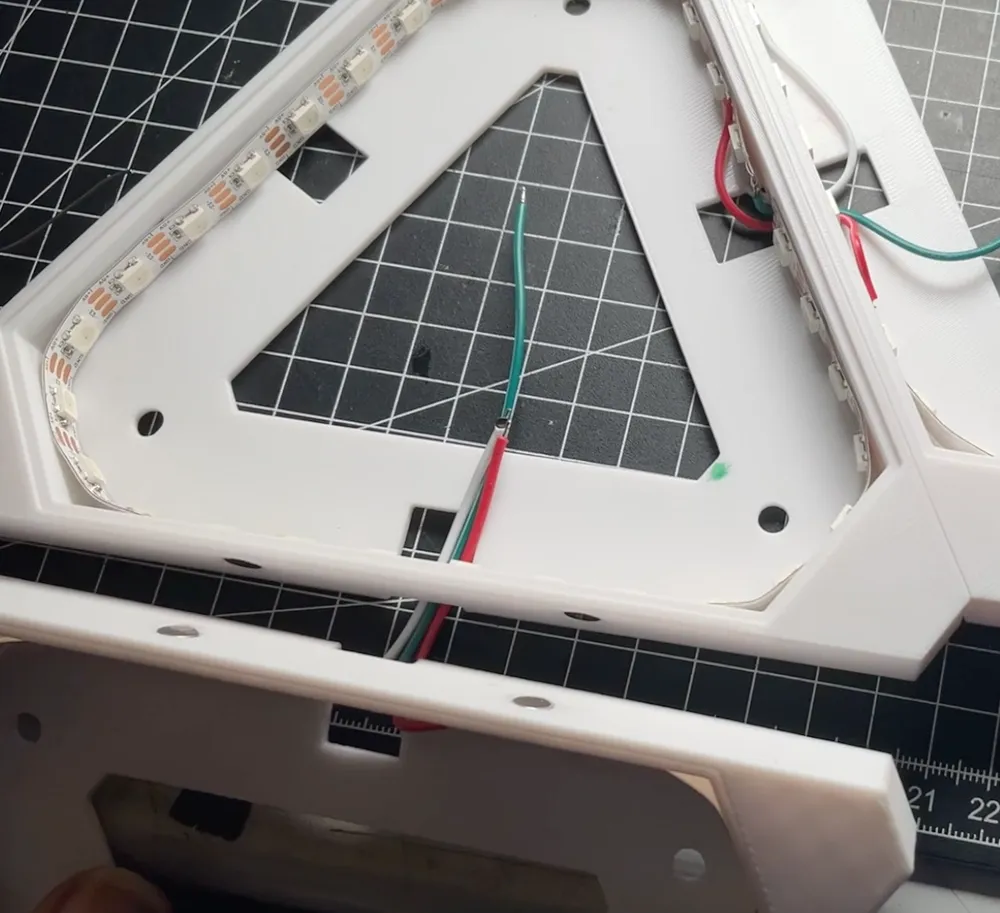

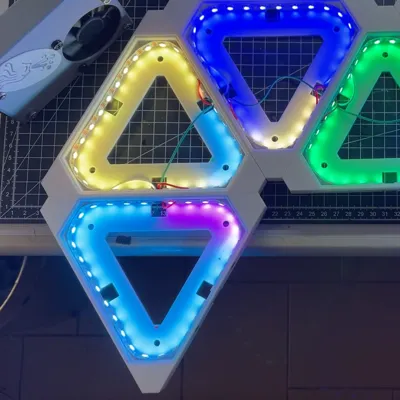

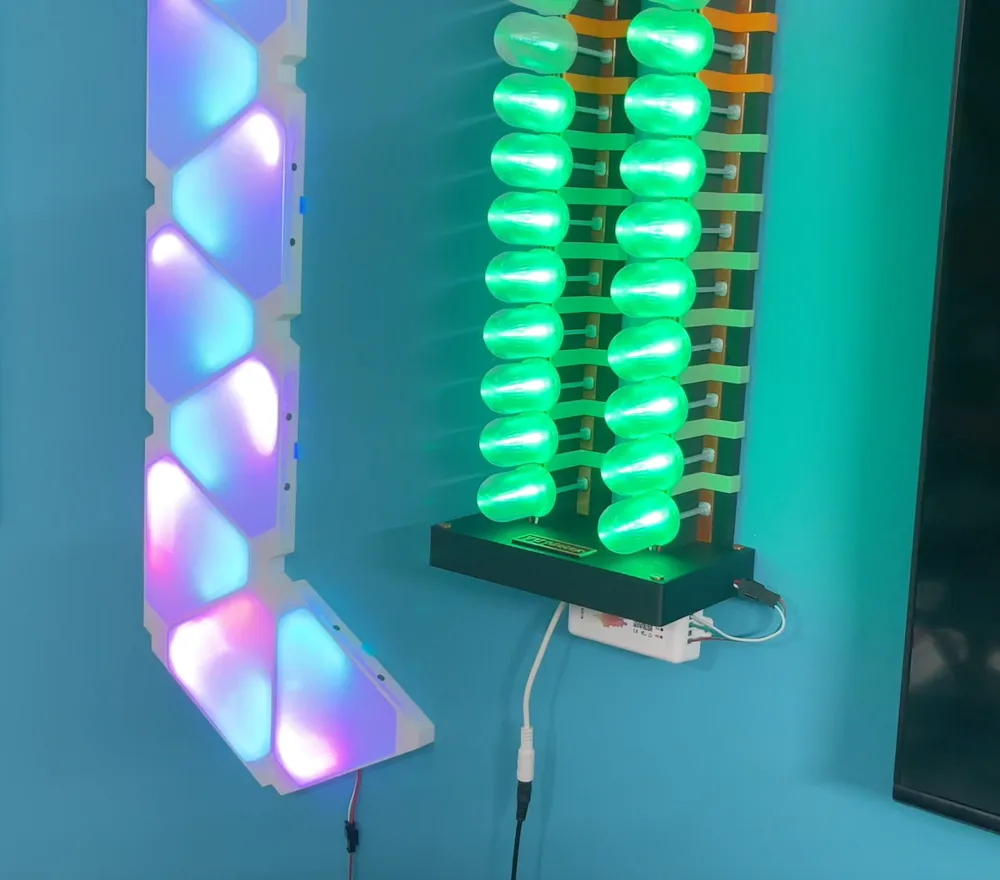

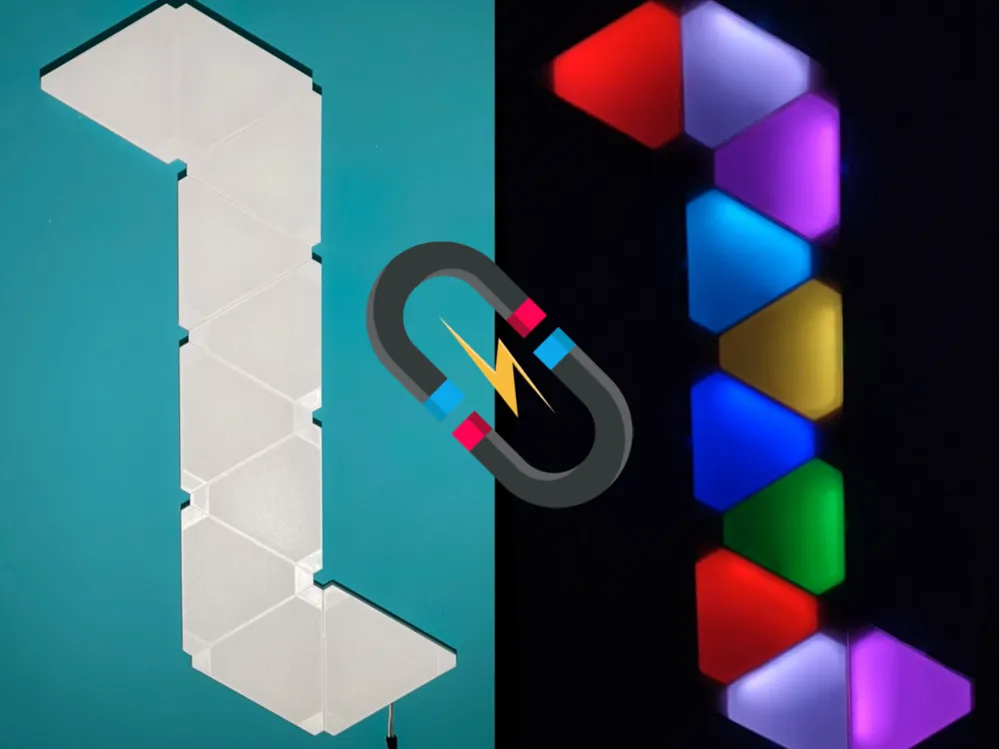

I have created a replica of the renowned Goove/Nanoleaf LED panels. Each triangular side incorporates two magnets for effortless assembly and alignment. I employed an internal and external (cover) cardboard diffuser, both 1mm thick and printed at 0.2mm layer height (5 layers). This yields a flawless visual effect, with light diffusion so seamless that individual pixels are imperceptible.

Project Materials

WS2812B 5v LED strip - 5m, 74 LEDs/m, white (30 LEDs per panel). Exceptional brightness, even in daylight.

SP107E Bluetooth Controller

5v 3a Power Supply

6x3mm Magnets
