Krytac Kriss Vector Strike Front Face - Airsoft
IP Report
Print Profile(2)
V1 with all parts
Designer
4.3 h
2 plates
V2 Front Face and Sideplates
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
341
779
32
12
368
122
Released
Bill of Materials
List other parts
- Schraube_seitlich_Länge_ca.10-11mm x 12: M4x10-11mm
- Mutter_Schlüsselweite_7mm_Höhe_3mm x 10: M4-SW7-H3mm
- Schraube_FrontFace_Länge_ca.16mm x 2: M4x16mm
Description
Content has been automatically translated.

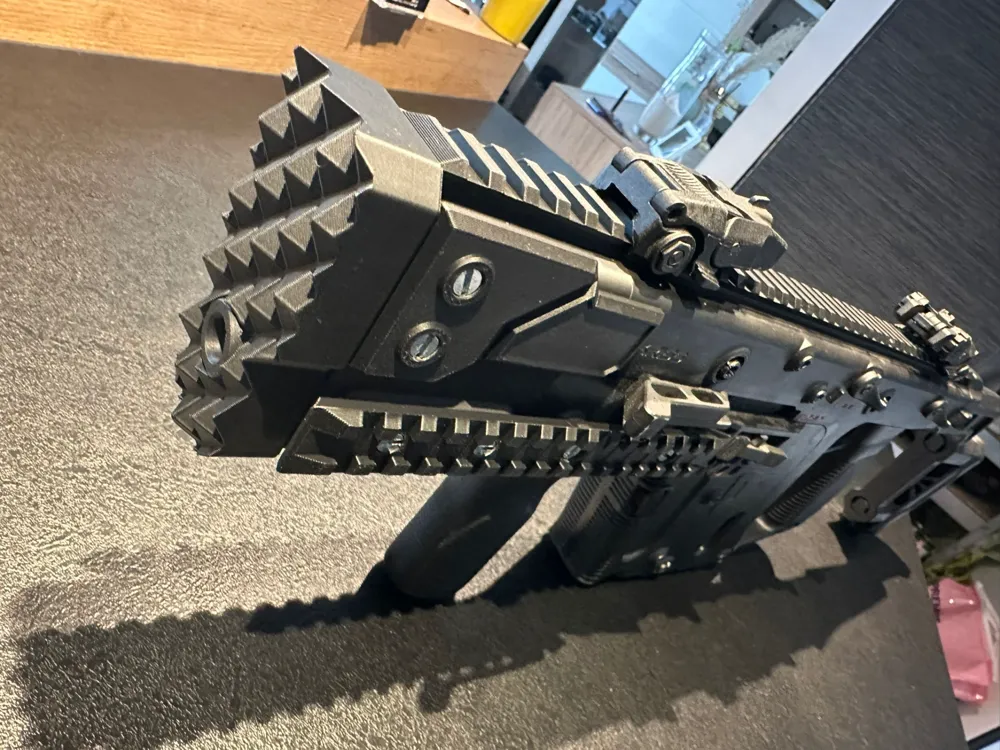

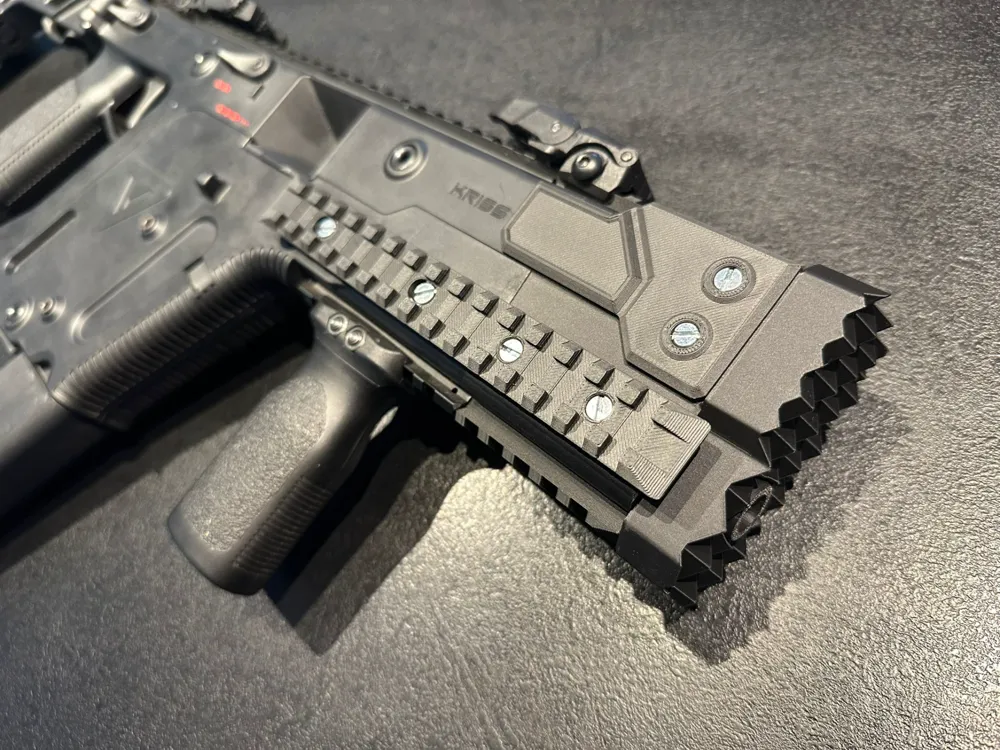

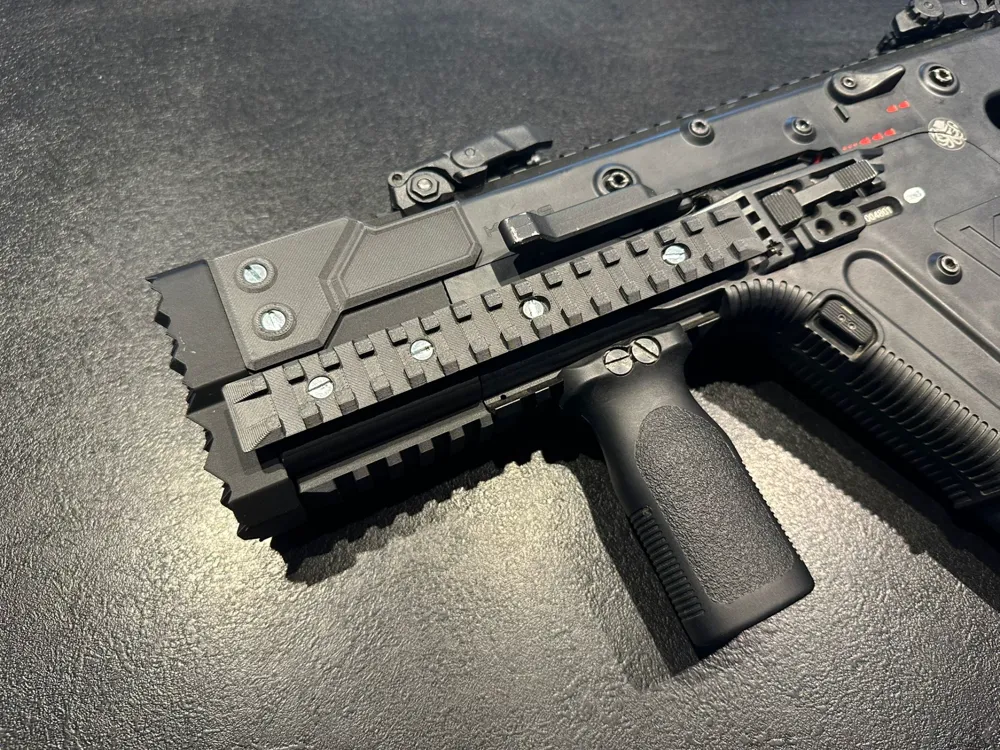

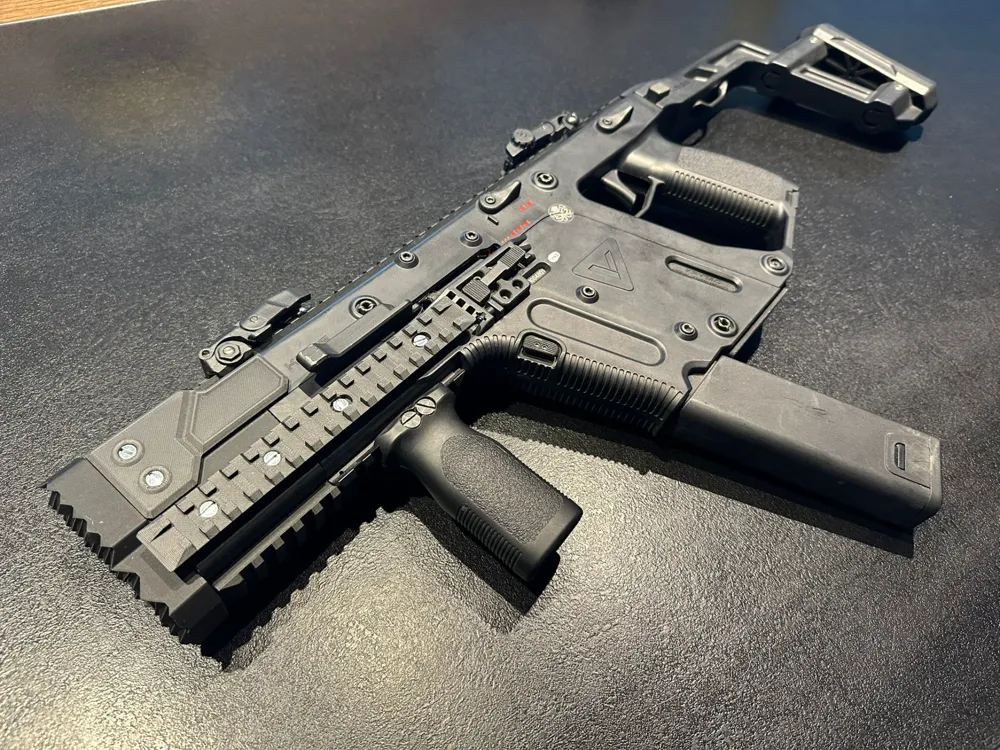

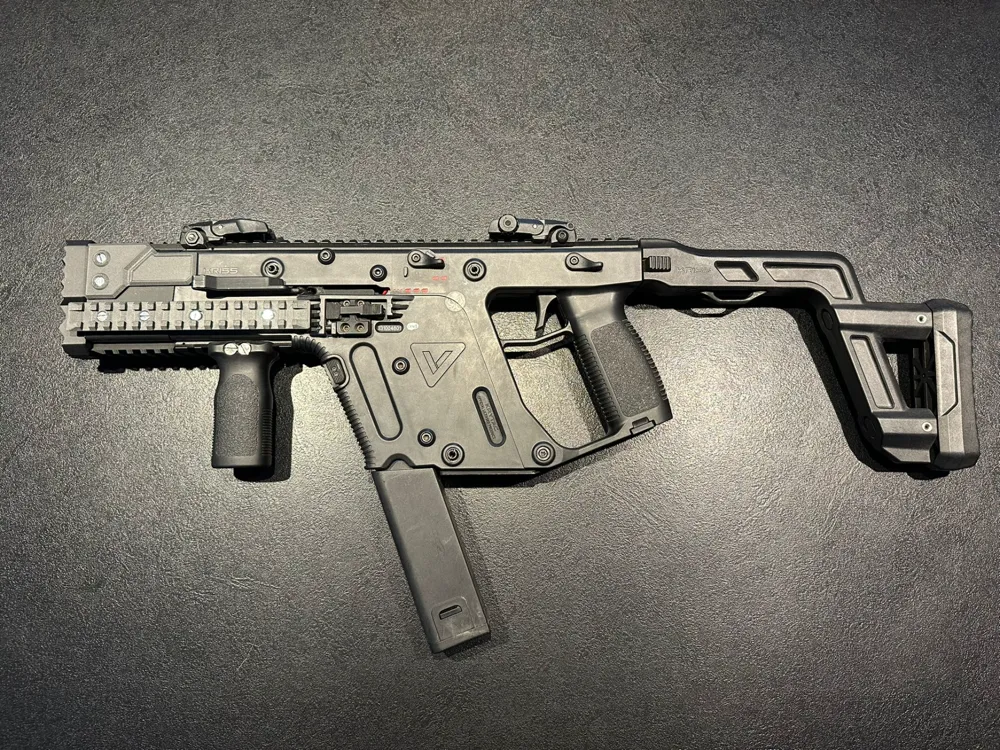

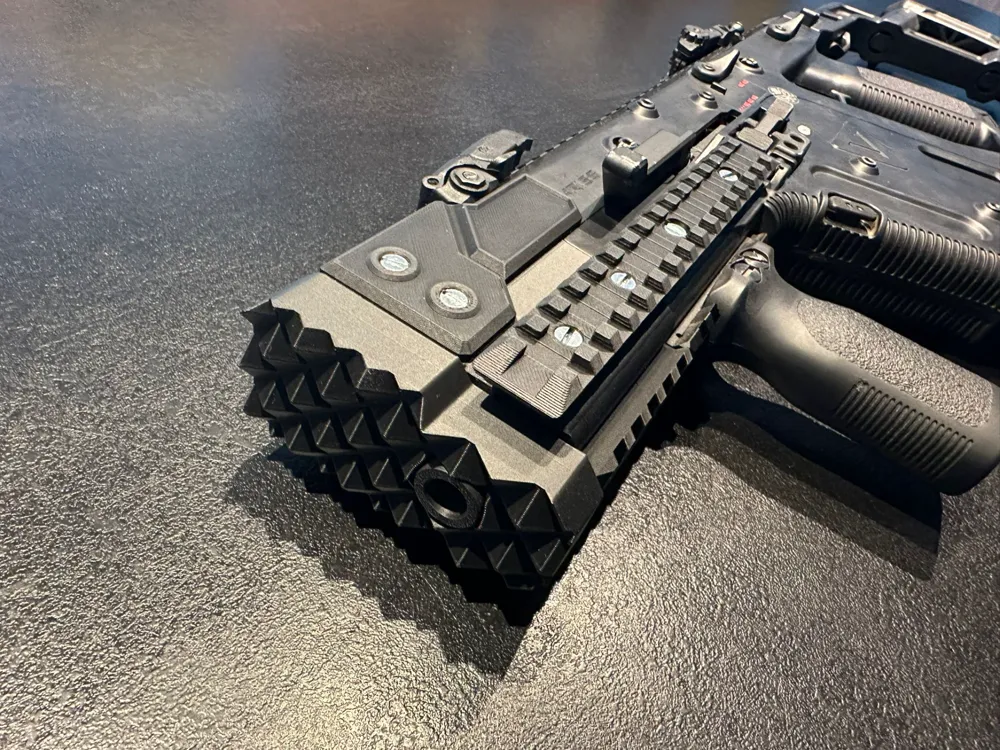

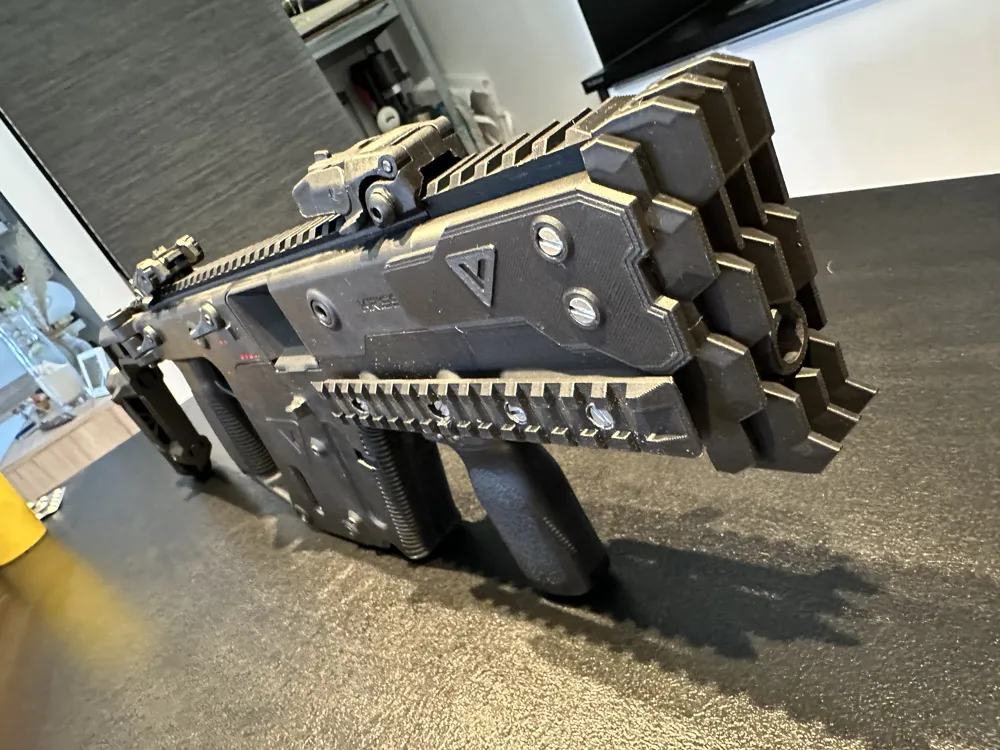

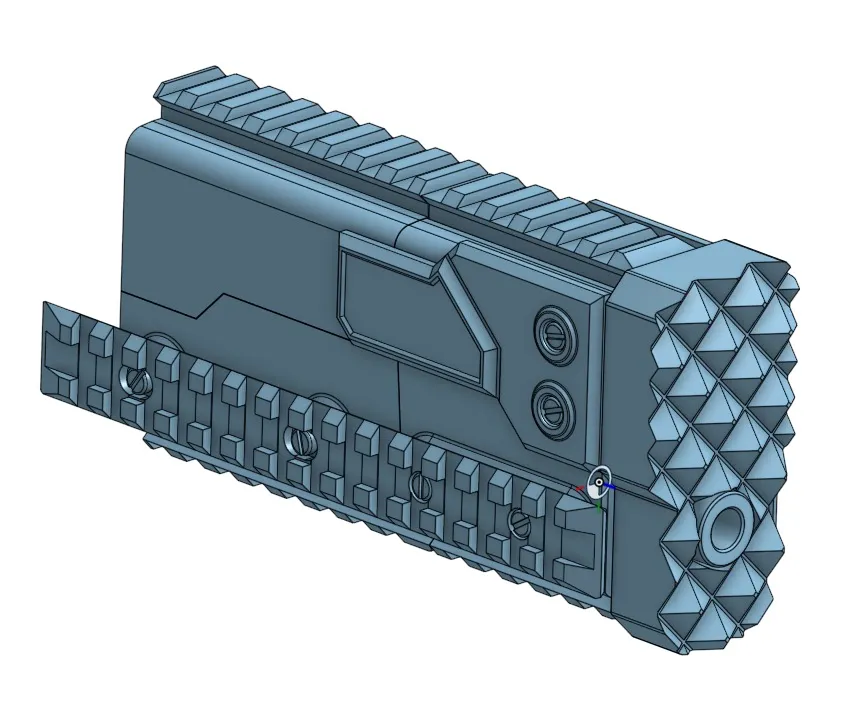

Krytac Kriss Vector AEG/GBB Front Strike Face - Airsoft

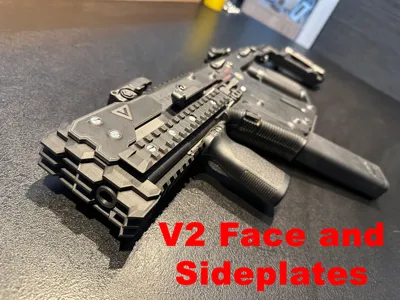

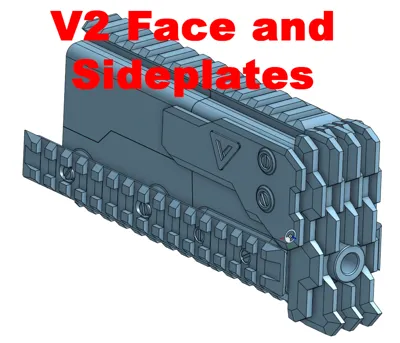

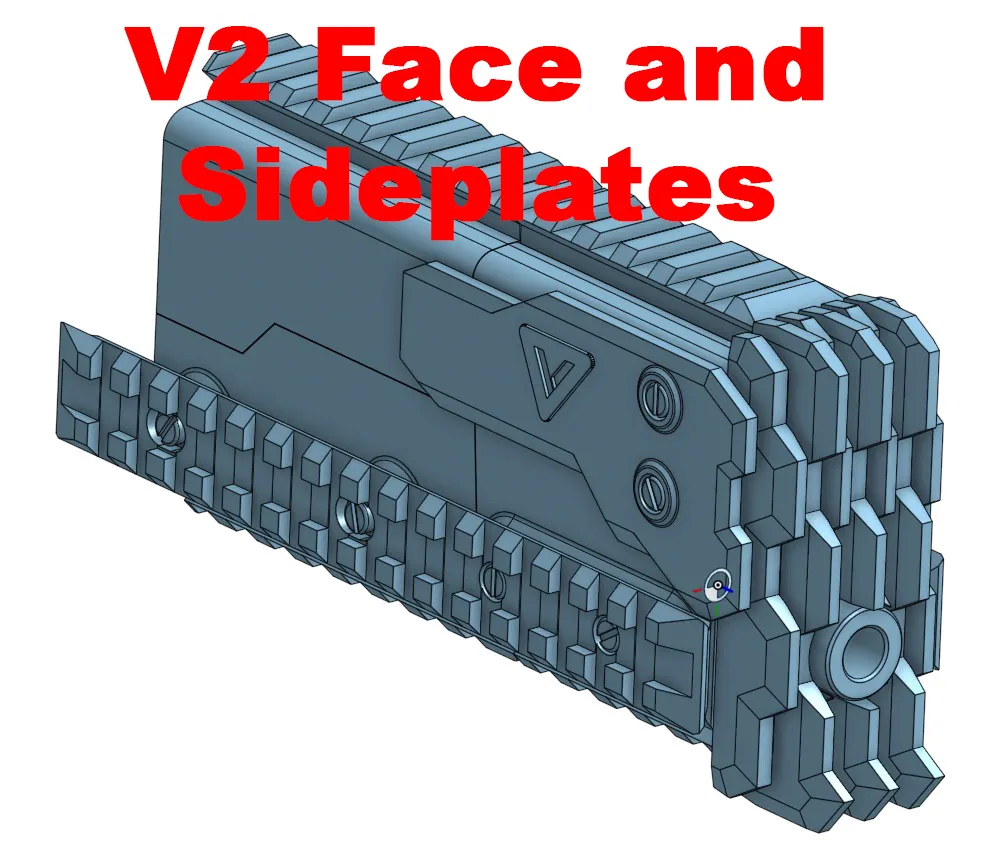

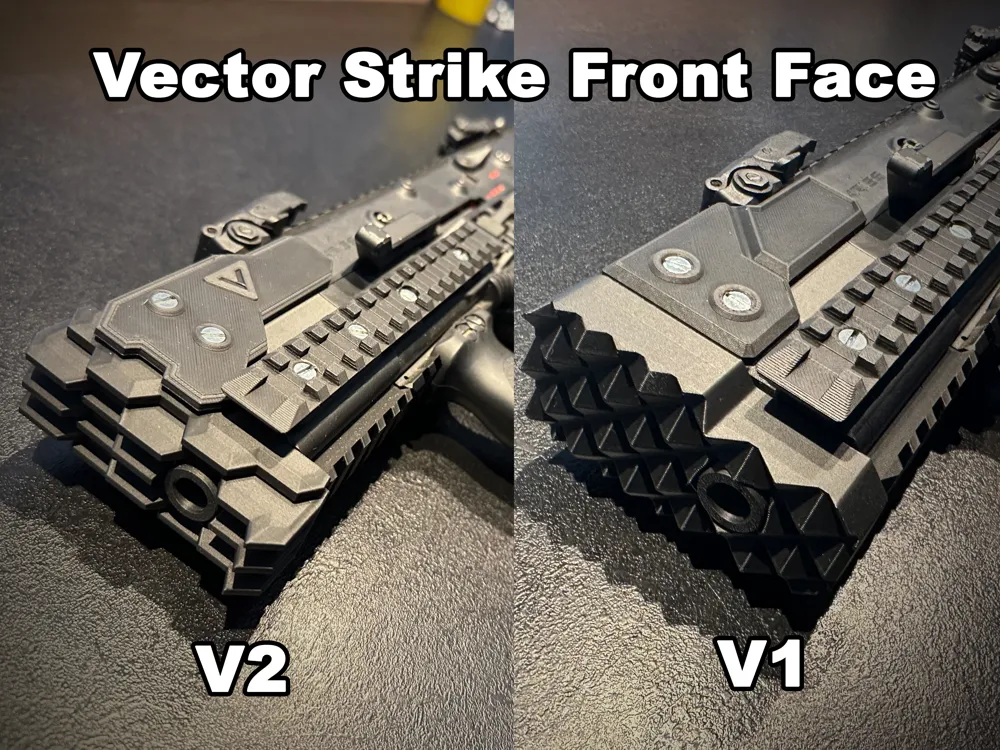

NEW! V2 Front Face added!
Required accessories include M4 screws (screw head DIA6.5x2.5h) and corresponding nuts (SW7x3h).
The 14CCW thread adapter is designed without threading, intended for press-fitting.
The nozzle model may be glued into the adapter or simply press-fitted.
Suitable for Krytac AEG and GBB versions.
A model for the Krytac Kriss Vector front is also included.
Not intended for printing.
No post-processing required.

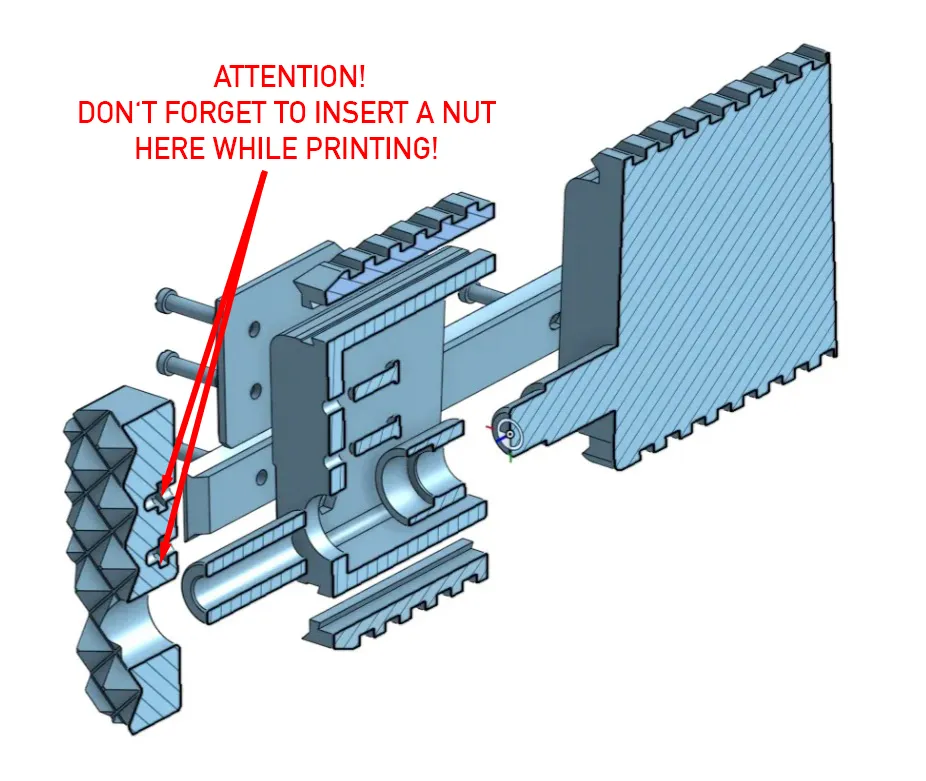

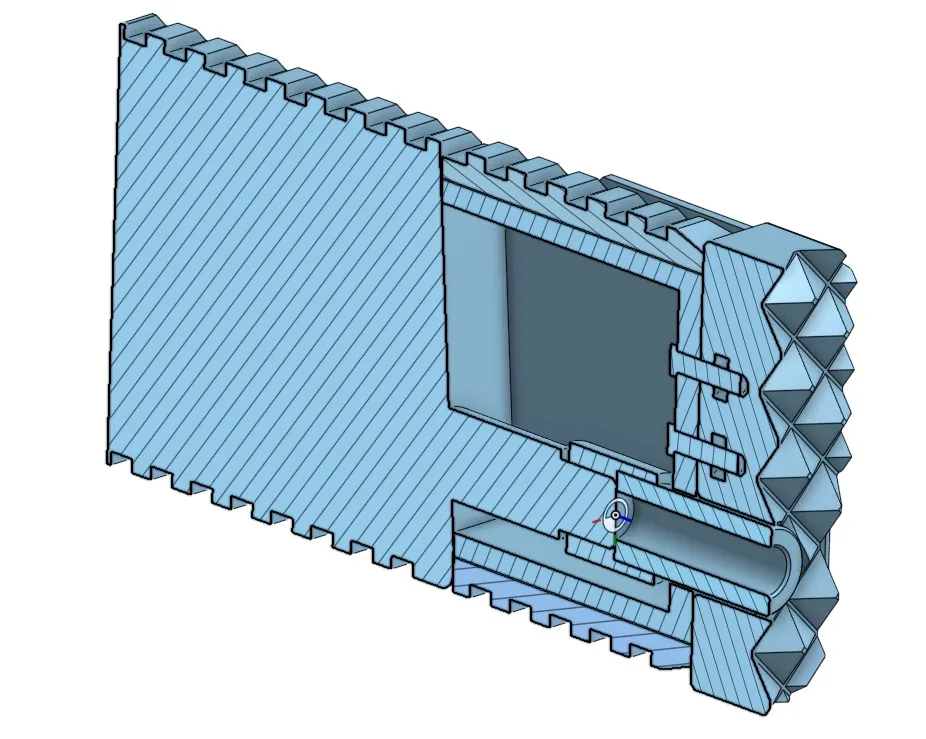

Caution! A print pause is necessary for the front face, as an M4 nut is embedded mid-print.
Remember to insert a nut here!

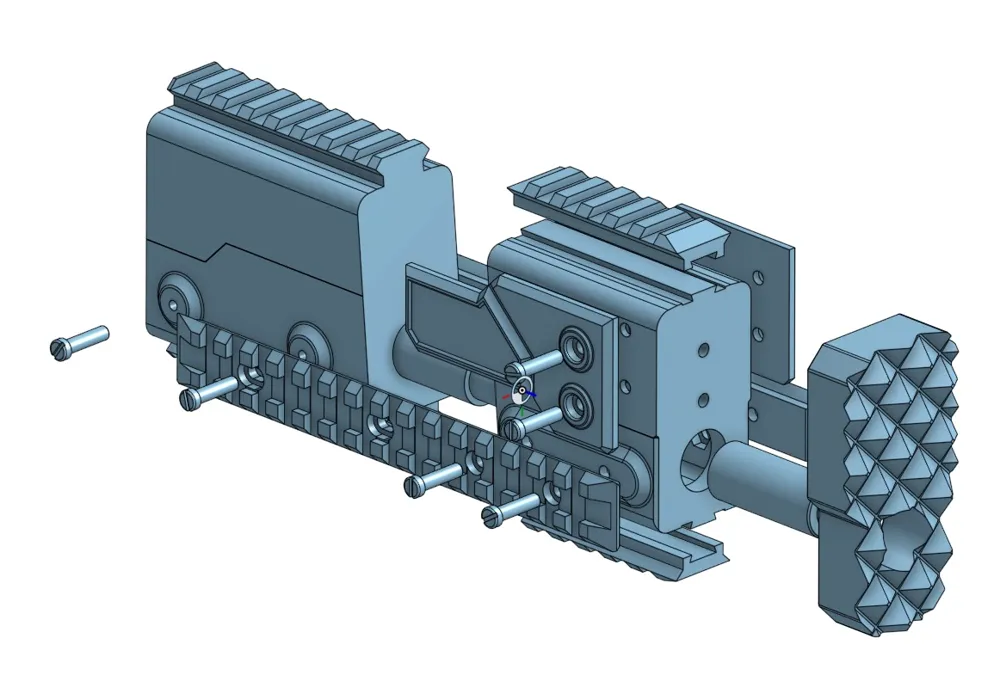

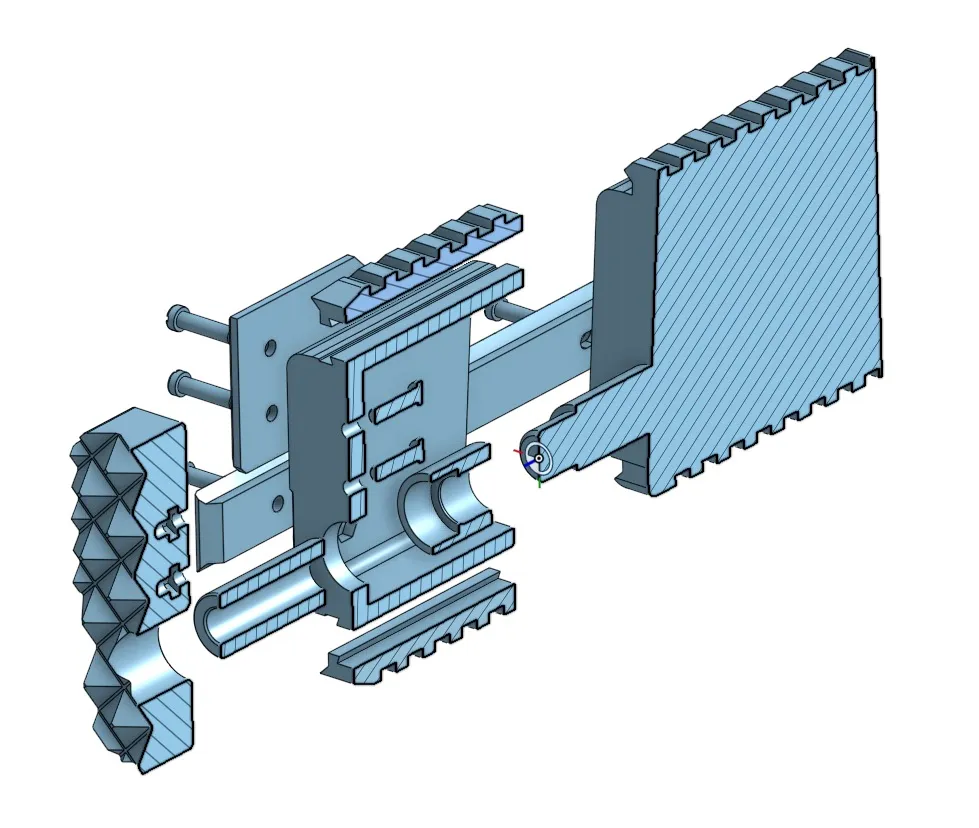

An exploded diagram is included in the photos.
Screws used: see comments.
