Ford KUGA phone holder

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.16mm layer, 2 walls, 65% infill
0.16mm layer, 2 walls, 65% infill
Designer
2.1 h
3 plates
5.0(3)

Open in Bambu Studio
Boost
28
47
4
0
49
20
Released

Bill of Materials

Bambu Filaments
Select all
Gray (45102) / Filament with spool / 1kg
ASA
x1

Description

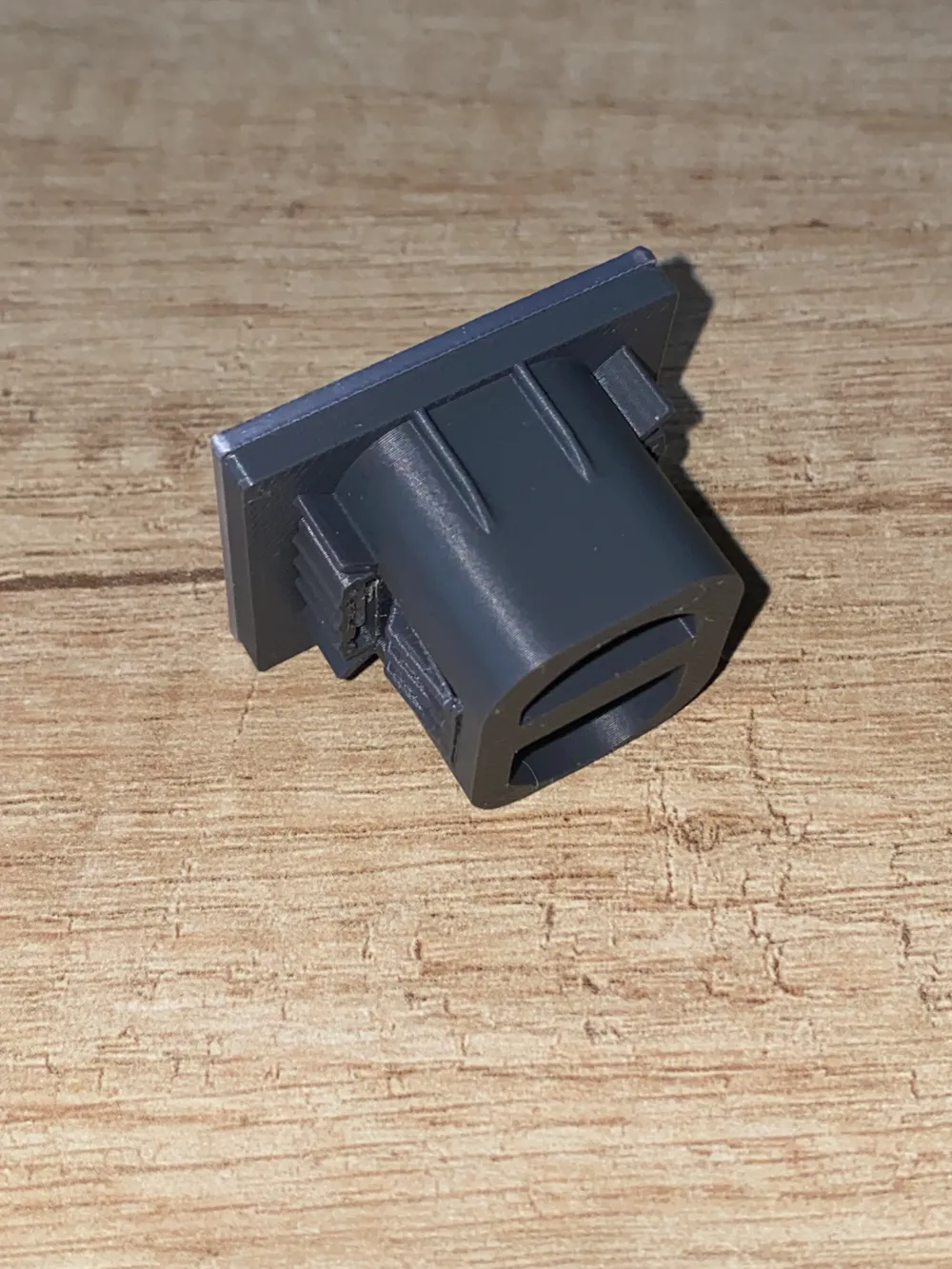

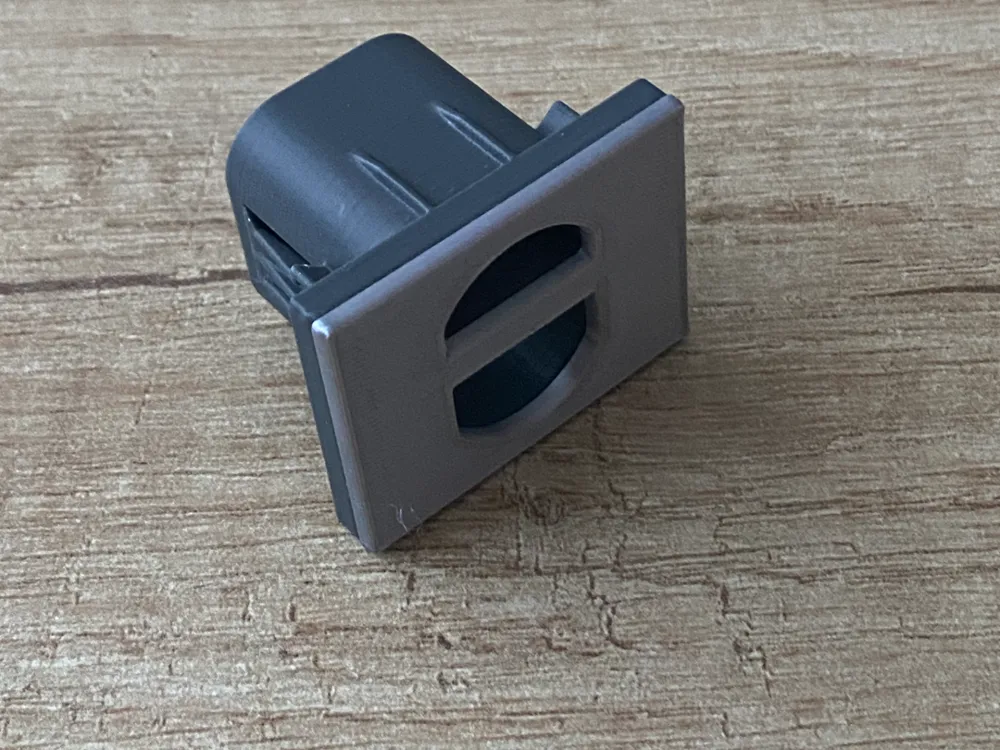

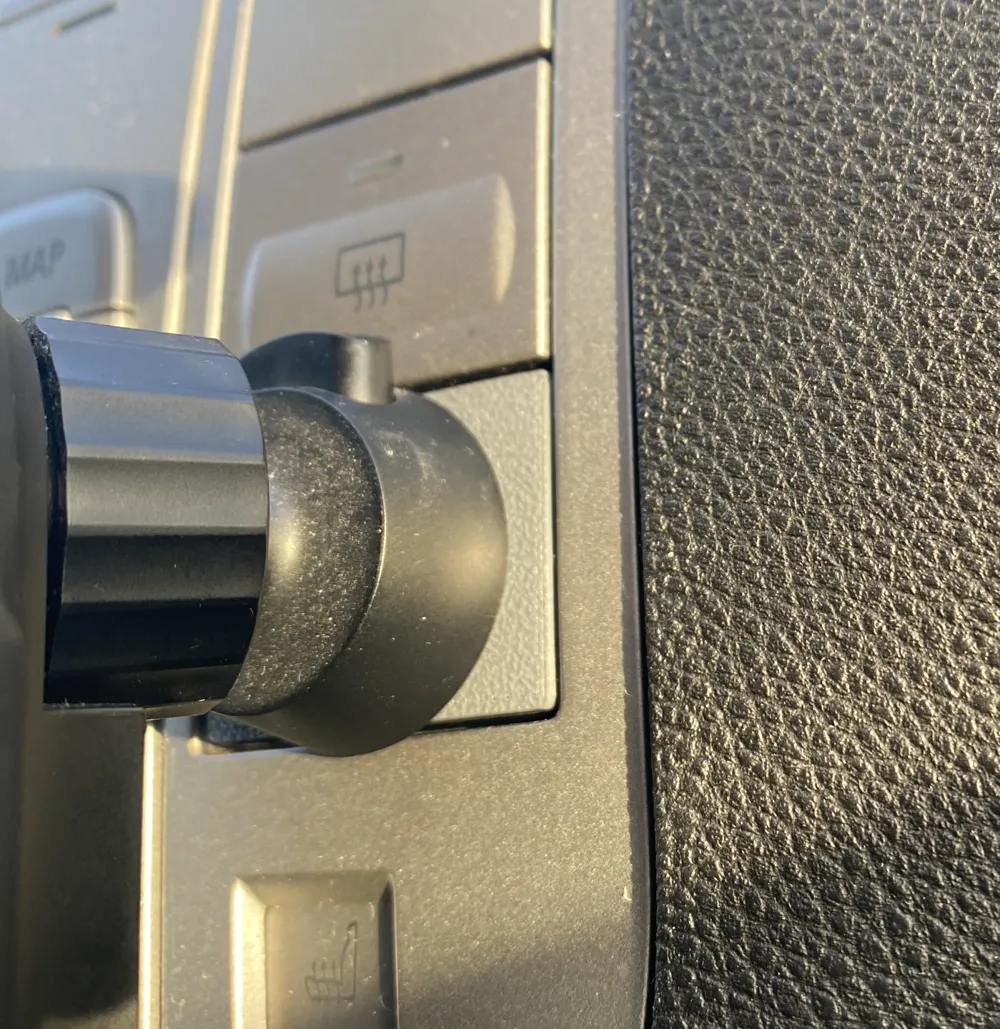

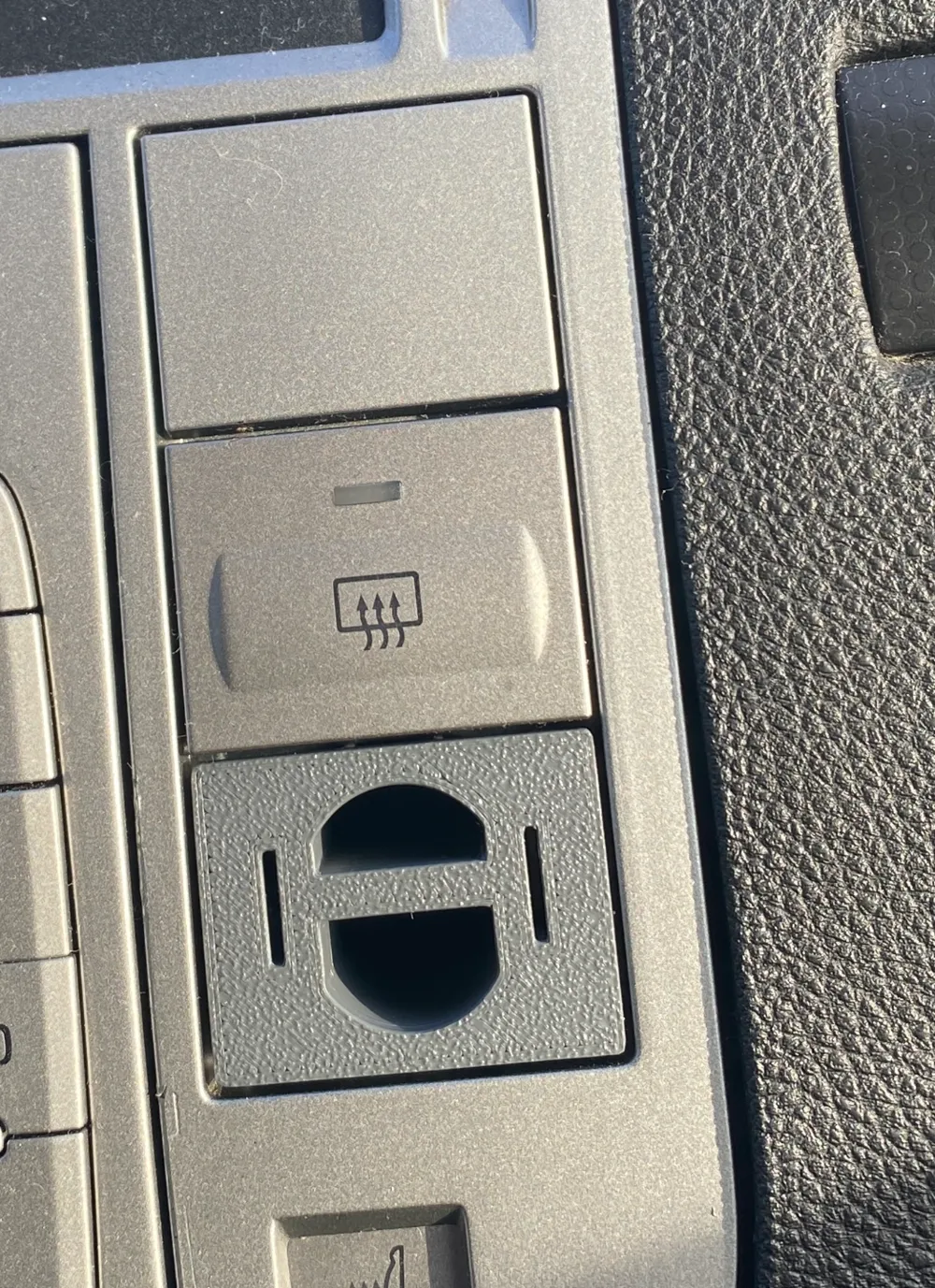

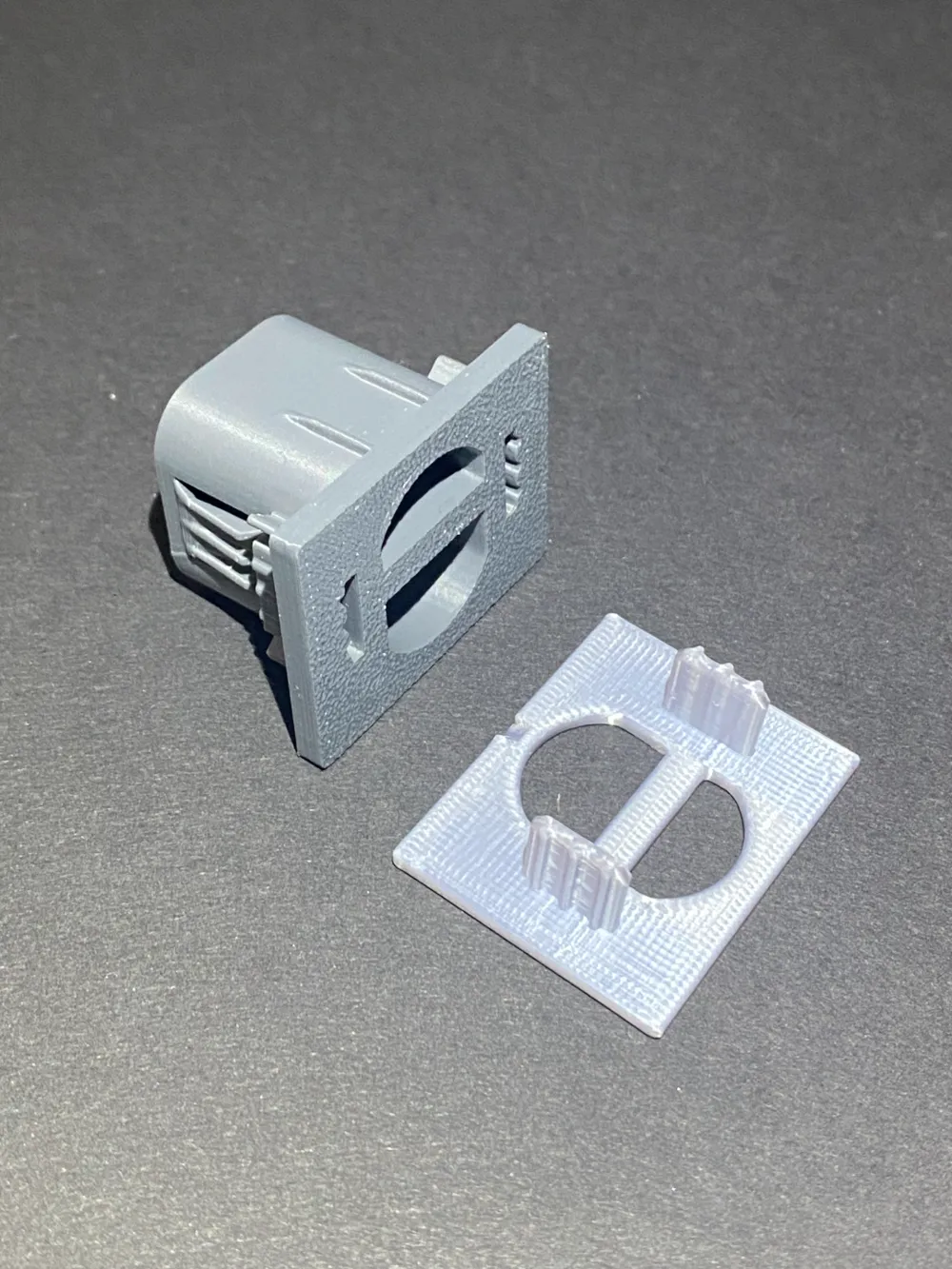

Hi. I'm probably not the only one who had a problem with mounting the phone holder in a Ford Kuga. No matter where you install the phone, there has always been a problem with it falling off or accessing the buttons in the car. I decided to use the plugged holes in the panel near the radio. This solution suits me very well and maybe it will be useful to someone too. The design for Bambu is equipped with supports that are necessary to print the hooks correctly. We print from material resistant to the temperature inside the vehicle. I used ASA, but you can also use other materials such as ABS, PETG, or with an admixture of CF. For those who do not have a Bambu printer and want to use a slicer other than Bambu, I am including STL files. However, these are raw files and everyone will need to adjust the layer height, padding and supports as they see fit. The project includes two versions of mounting the handle. One - consists of two parts: the main part and the cover, which we will print from a filament similar in color to the cockpit. The second - a uniform element without a decorative cover. The choice is yours.
