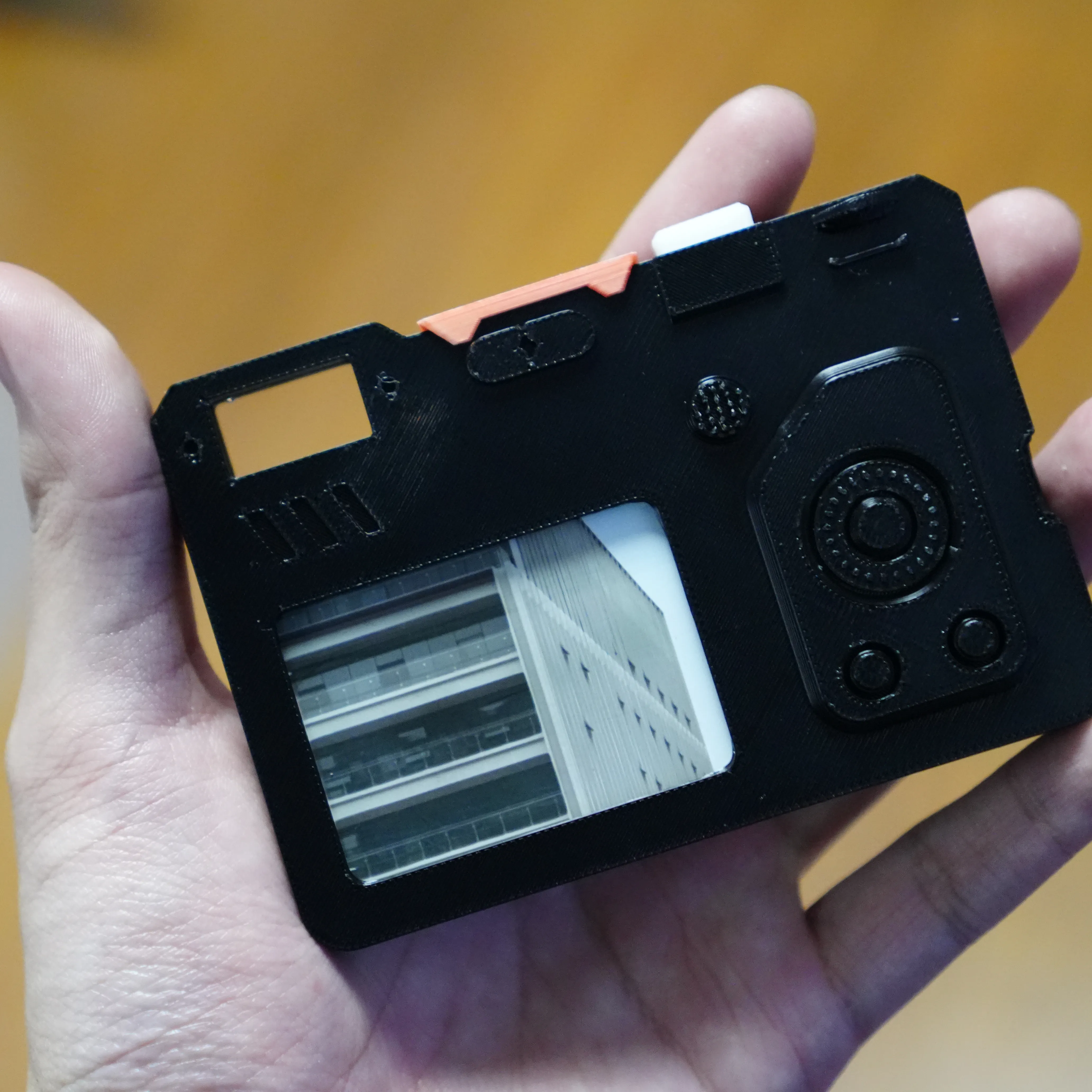

Business Card Holder | Card Camera Shape (Movable Button)

【Introduction】

I designed a shell for my business card, because the bottom left corner of my business card is a customized photo area, so this card holder also has a hollow area in the bottom left corner to display the photo

At the same time, I added a button with a sense of paragraph, which also has a hollow area, which is the viewfinder, I have always wanted to add it to my business card, but now I have realized this effect with 3D printing

(Please note: The supported card size is the same as the ID card, and the lower left corner can be exposed)

【Printing】

• Remember to modify the settings to match your printer and consumables
• Pay attention to applying glue to prevent warping, otherwise the front and back covers will not fit perfectly
• If you need different colors (e.g., a red button), please print the accessories separately or use AMS!
• After printing, you need to clean up the support carefully. The support is easy to leave at the window, causing the card to be unable to slide inside
• Install the button component (as shown below), correct installation can achieve the sense of paragraph

• Make sure your card can slide smoothly into the back cover, then combine the front and back covers. You can temporarily fix it with another two clips, but it is strongly recommended to apply a circle of acrylic glue to fix it
• Two clips, a short one can be installed on the top, with a limit, a long one without a limit, can be installed or not, the main function is to temporarily fix the size

• Installation is complete! Start taking pictures!

【Other】

Because it is made for my own business card, the screen imitation area may not be useful for others, you can print small photos on it

Of course, I also provide the source file of the model, you can change the size of the camera yourself, enlarge the window, and see your creativity!

Welcome to follow my Bilibili @鱼小兑Yo
