Build-A-Label Character Tiles REV0
Print Profile(2)
Description
This is a REV0 and don't count on it working perfectly for you.

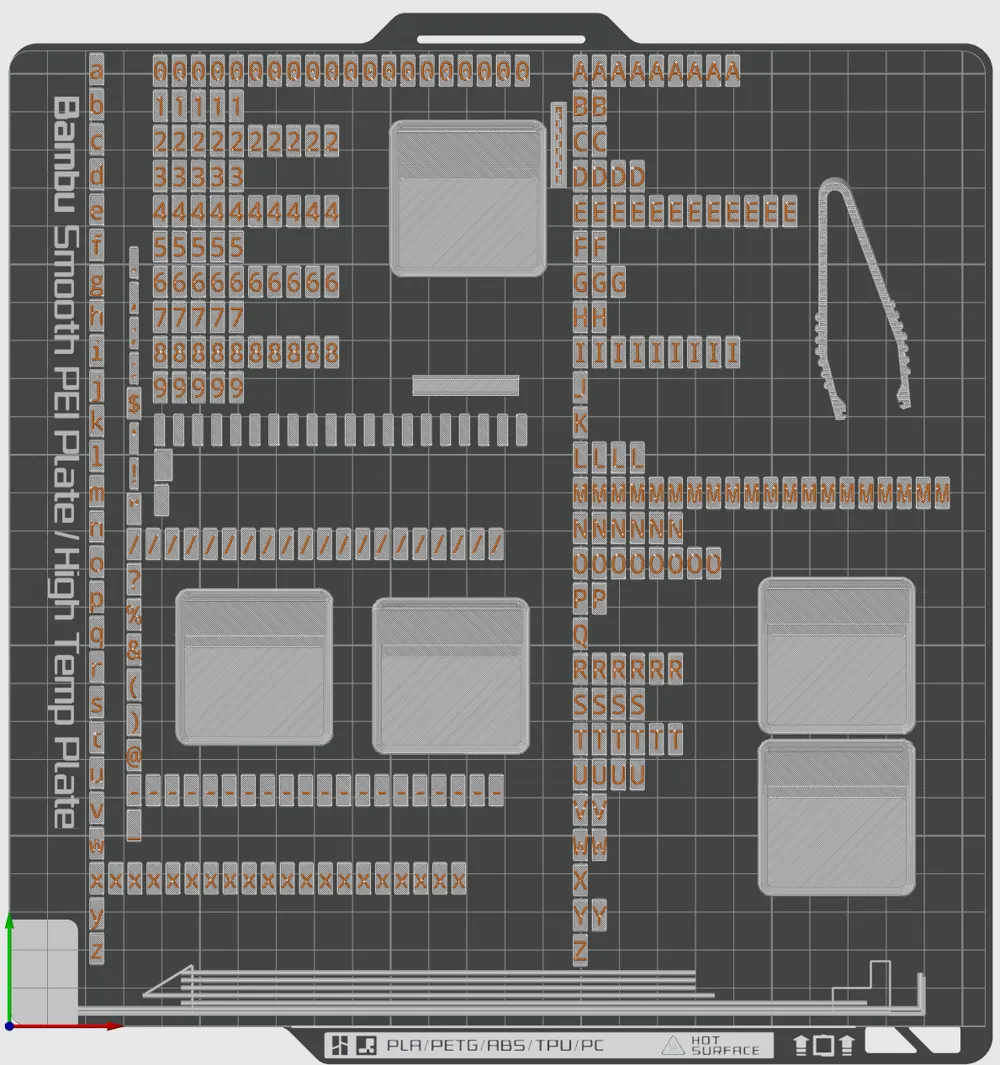

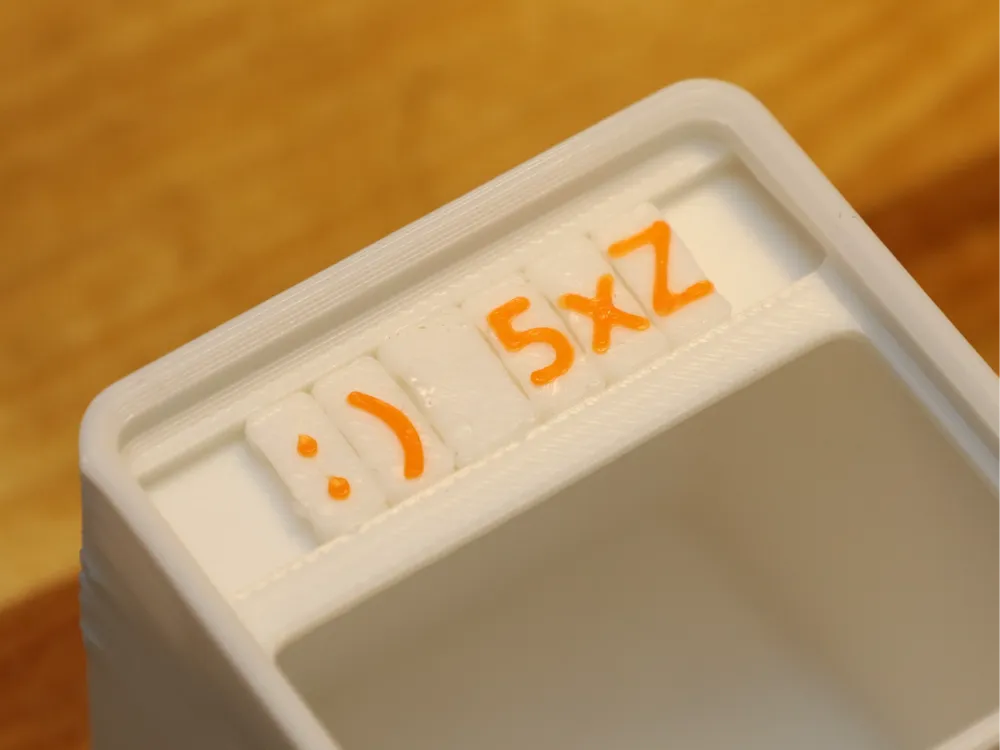

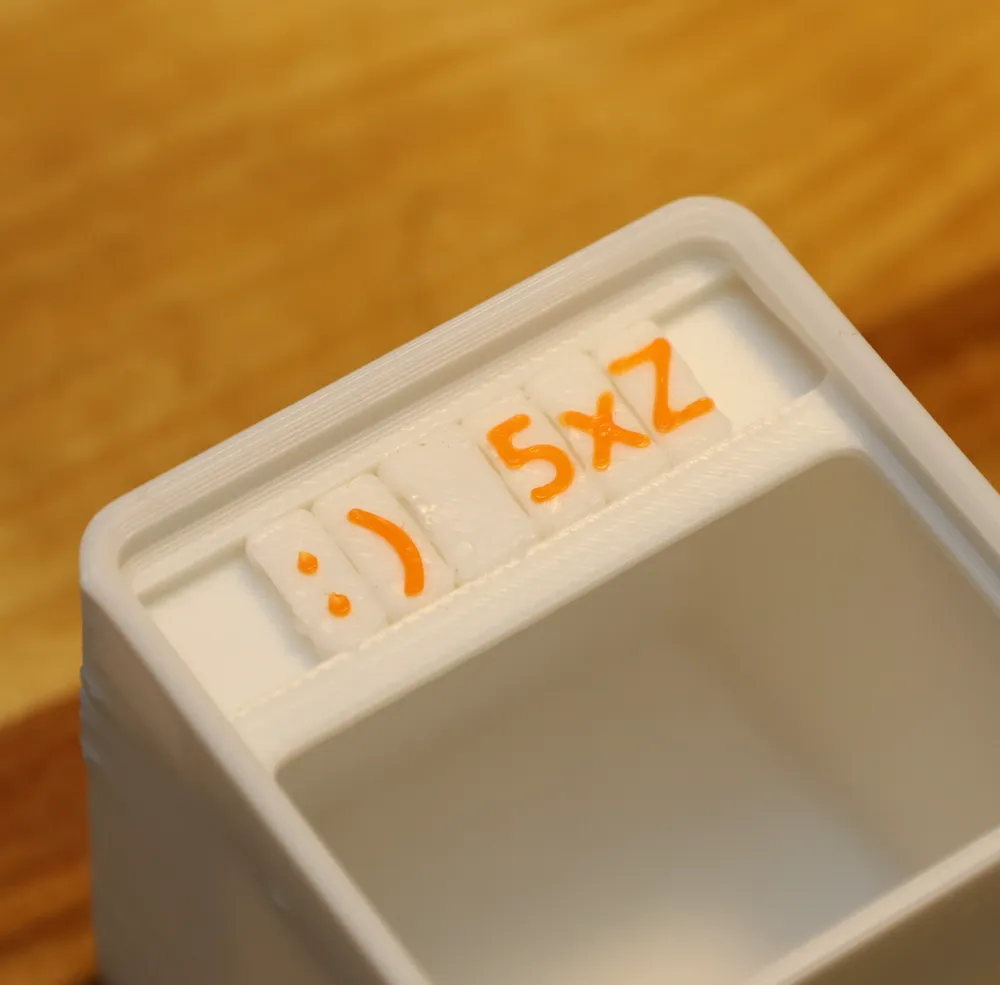

These can be used in nearly anything, I have included
Some 1x1x6 Gridfinity bins
The number of characters I think might be needed for metric and SAE labeling in 4mm wide tiles.
Blank tiles

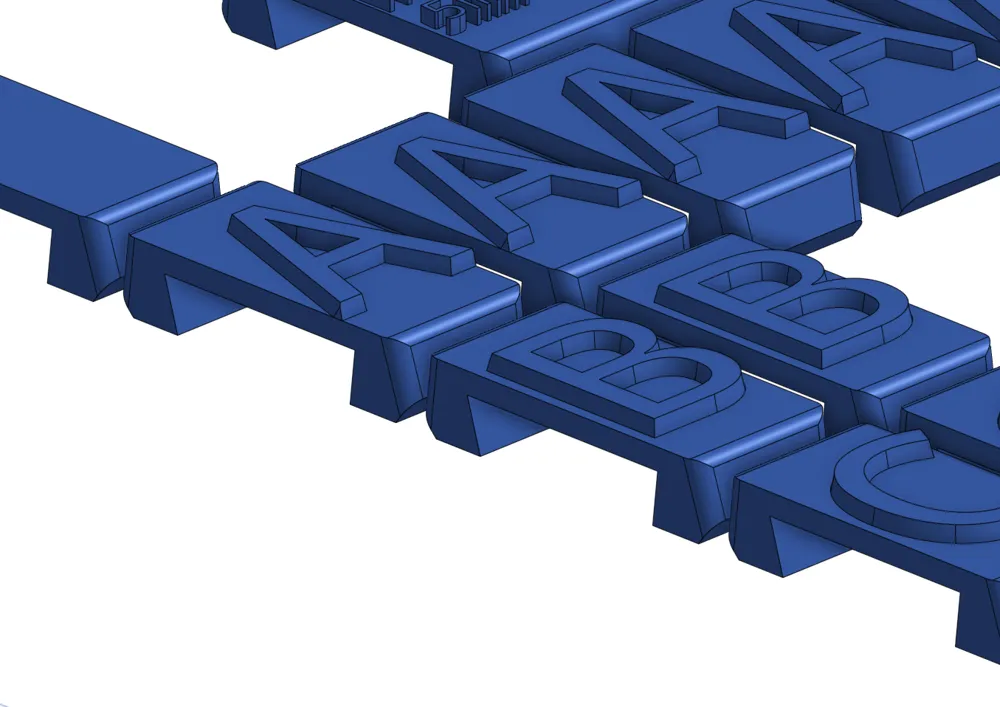

Negative Space keystone for adding to your model
Rib keystone that can be glued or modeled to anything
Tweezers
Font is Droid Sans Mono 5mm tall.
The negative keystone cutout is 8.5mm tall, 2mm deep, and has a 10 degree draft and a .4mm fillet on the top edge
The rib keystone is 5.8mm tall, 1.4mm deep, and has a 10 degree draft and a .2mm fillet on the top edge
