Bosch IXO/Charger/Accessories IKEA Skadis Holder

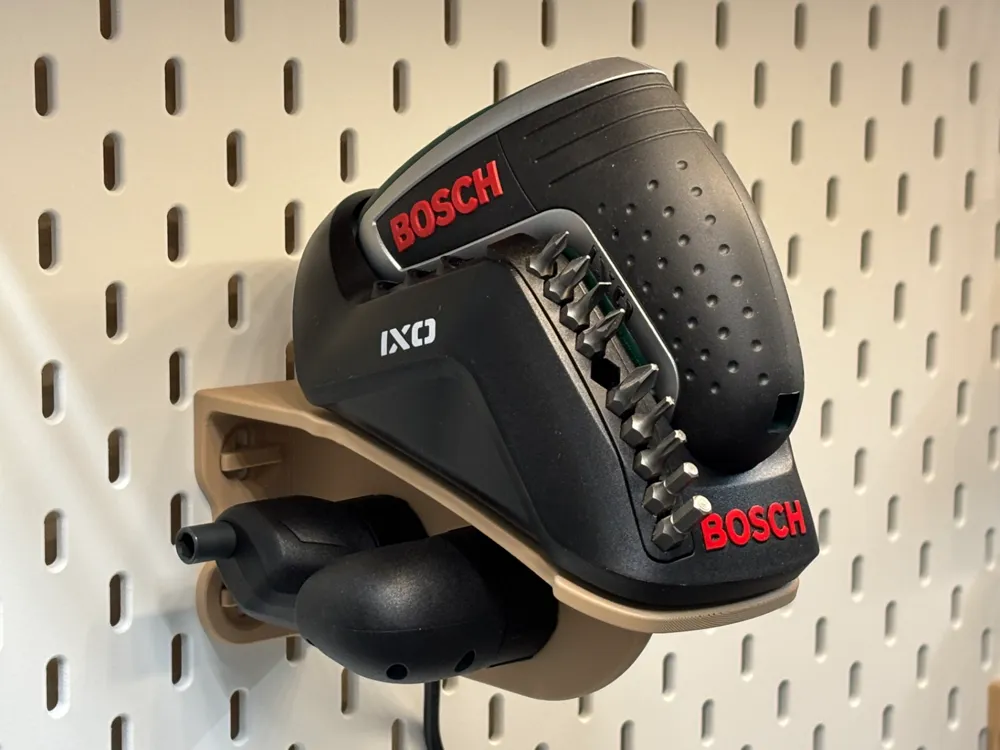

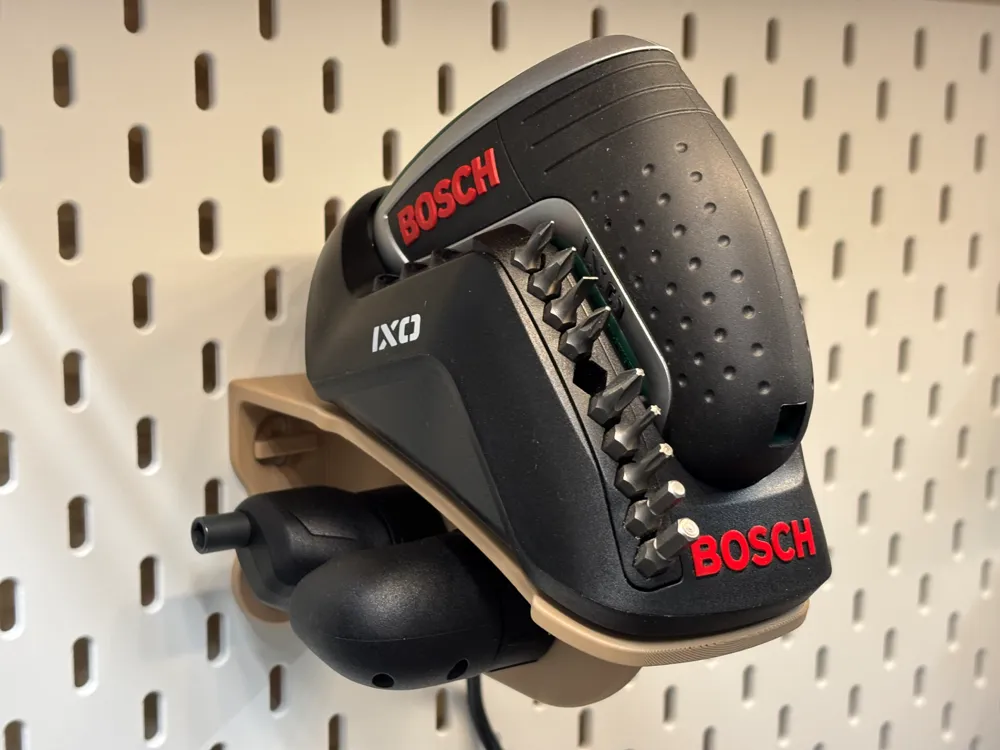

Bosch IXO Holder for IKEA Skadis including Charger and Accessories Mount

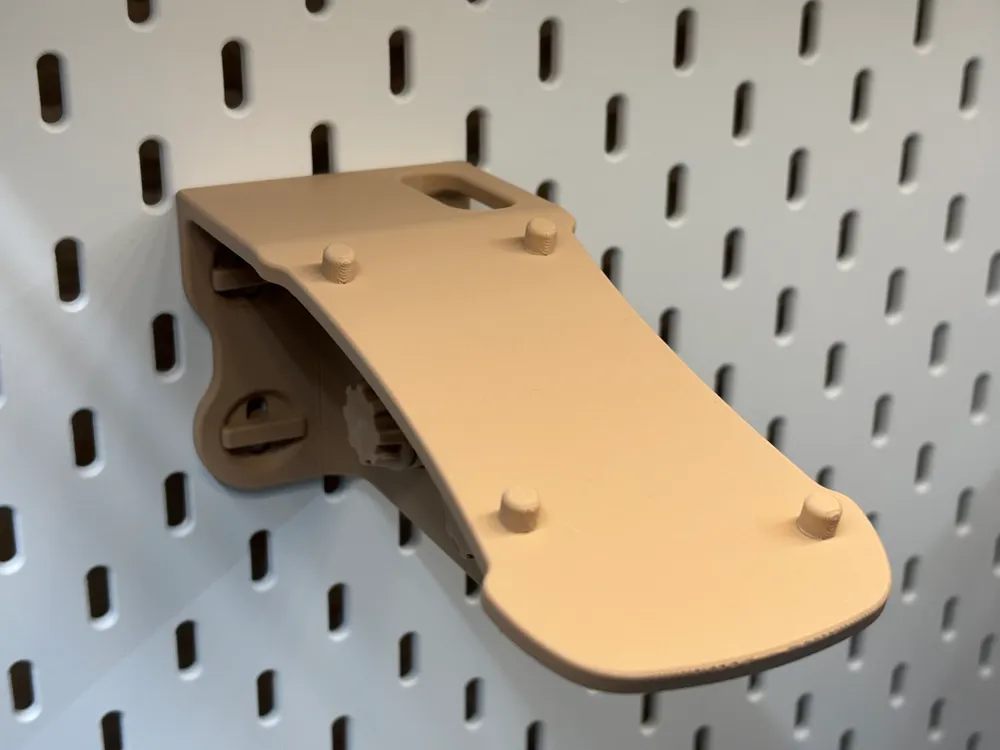

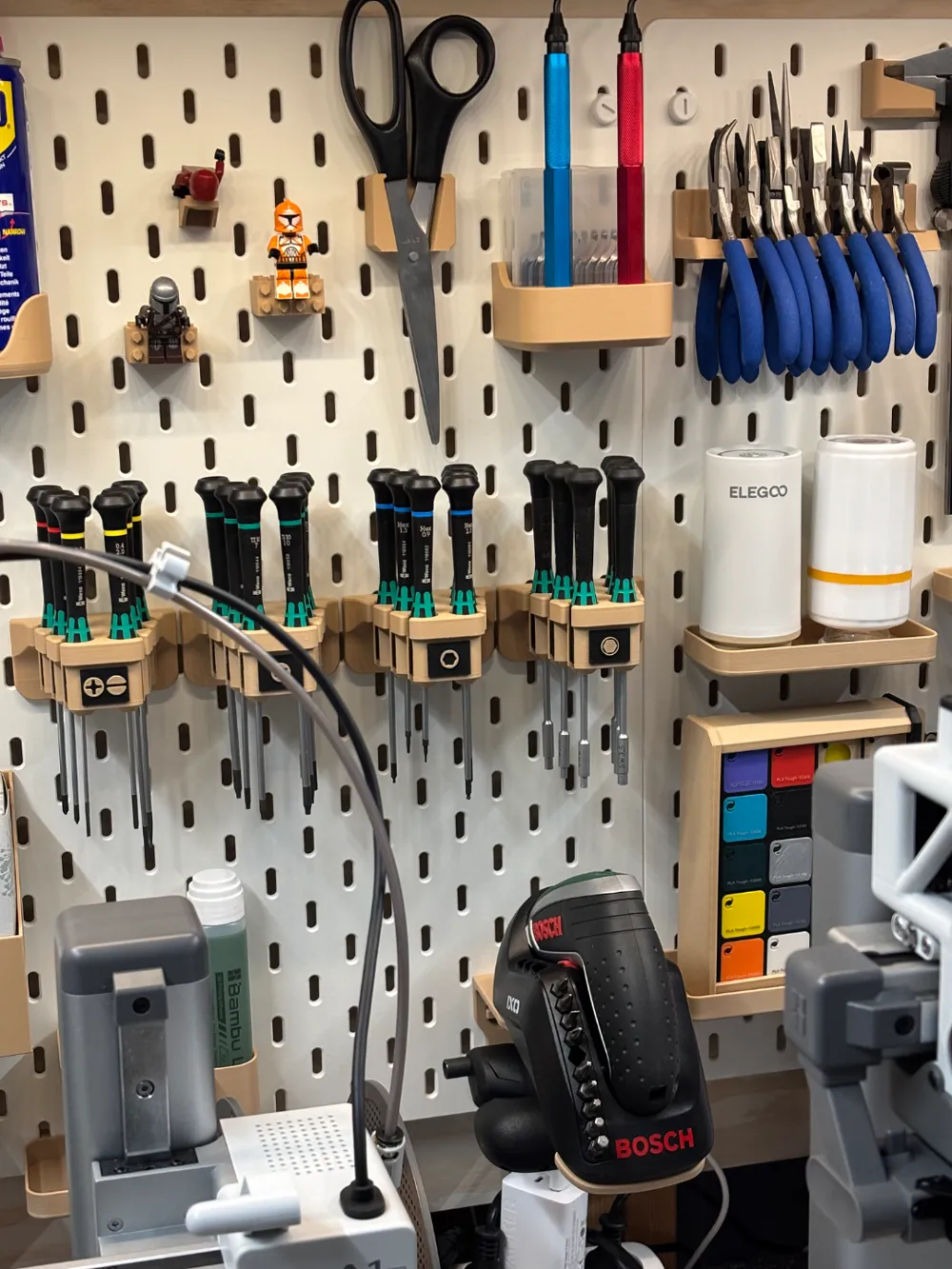

• Allows to hold the machine, charger and accessories all in one place on the IKEA Skadis board
• Simple, sturdy design

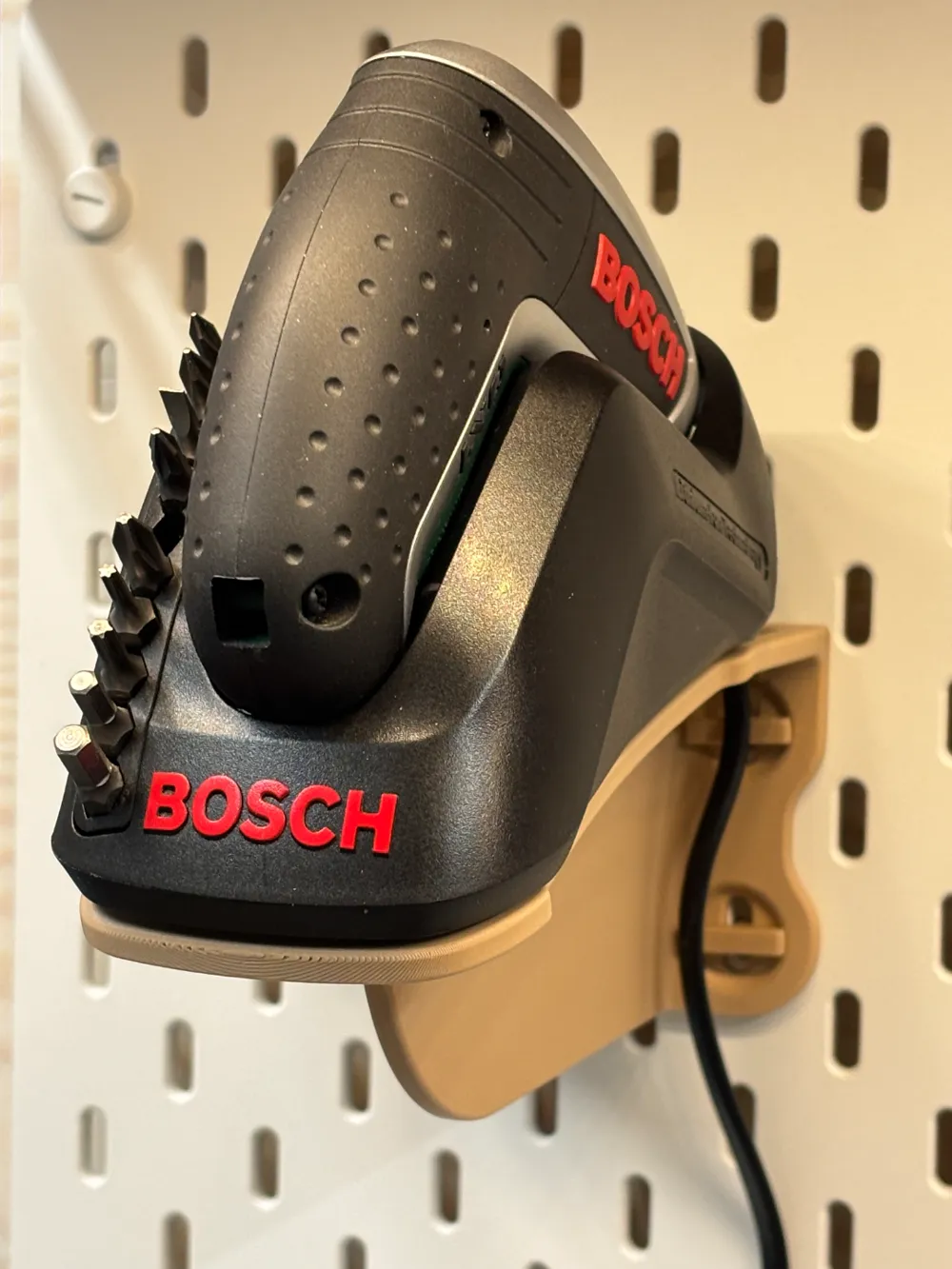

  • Holds the battery charger in a fixed position
  • Cutout for cable management included,  so the cable can exit close to the Skadis board

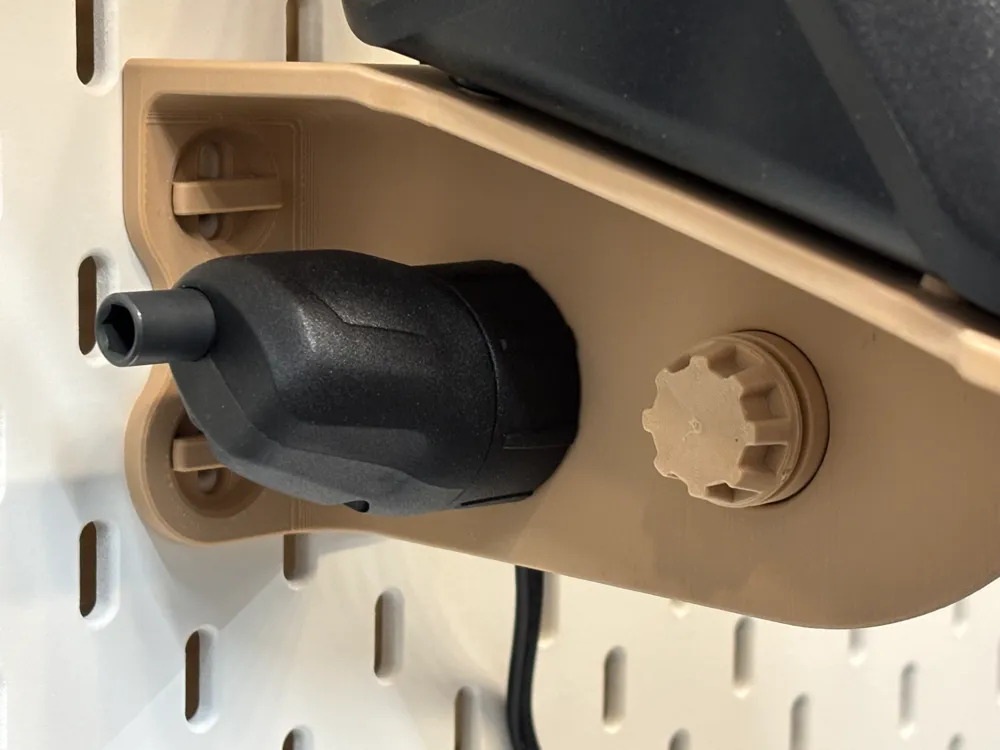

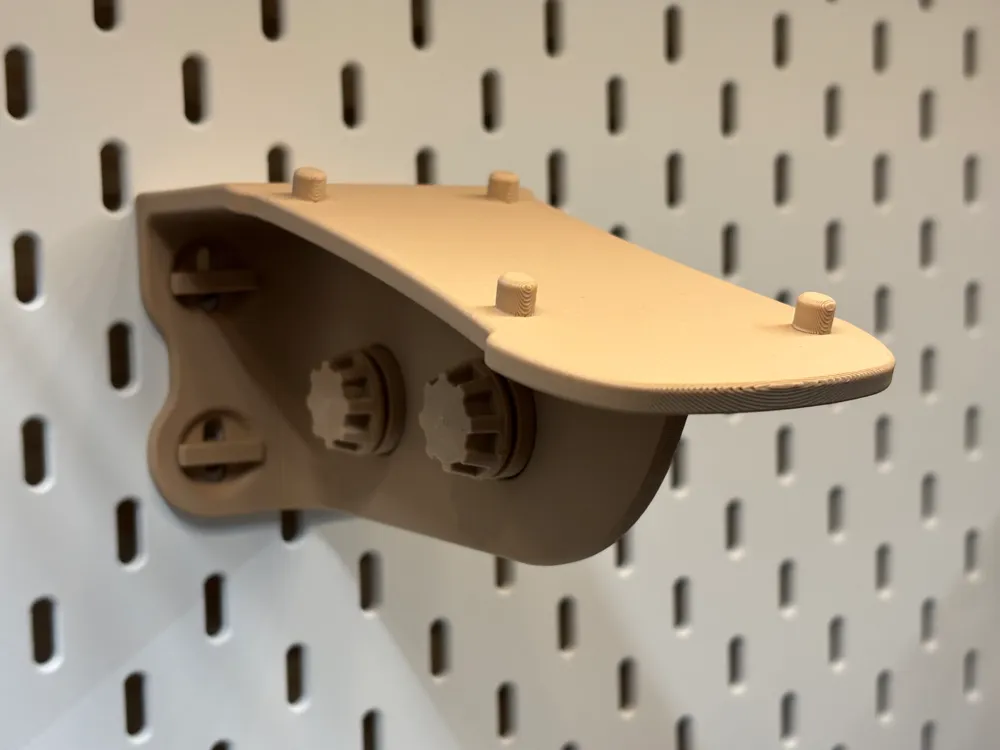

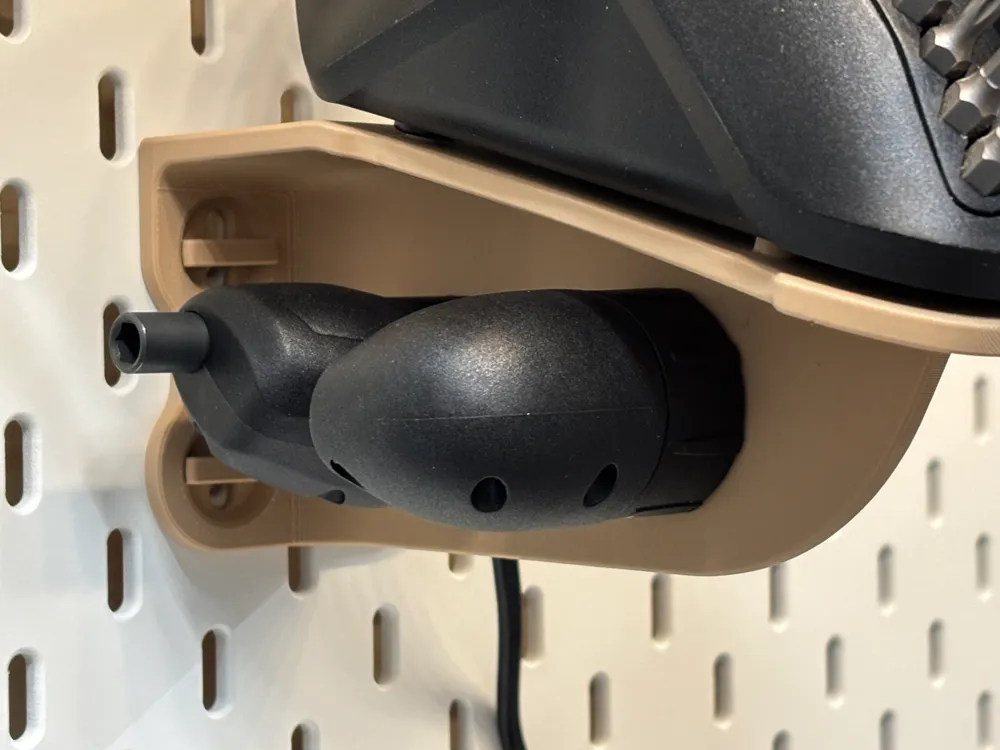

  • Optional interface mounts (build plate 2) for the accessories can be super-glued to the main holder. May sure you glue it well - this interface gets some force especially during the clip-on of the accessories

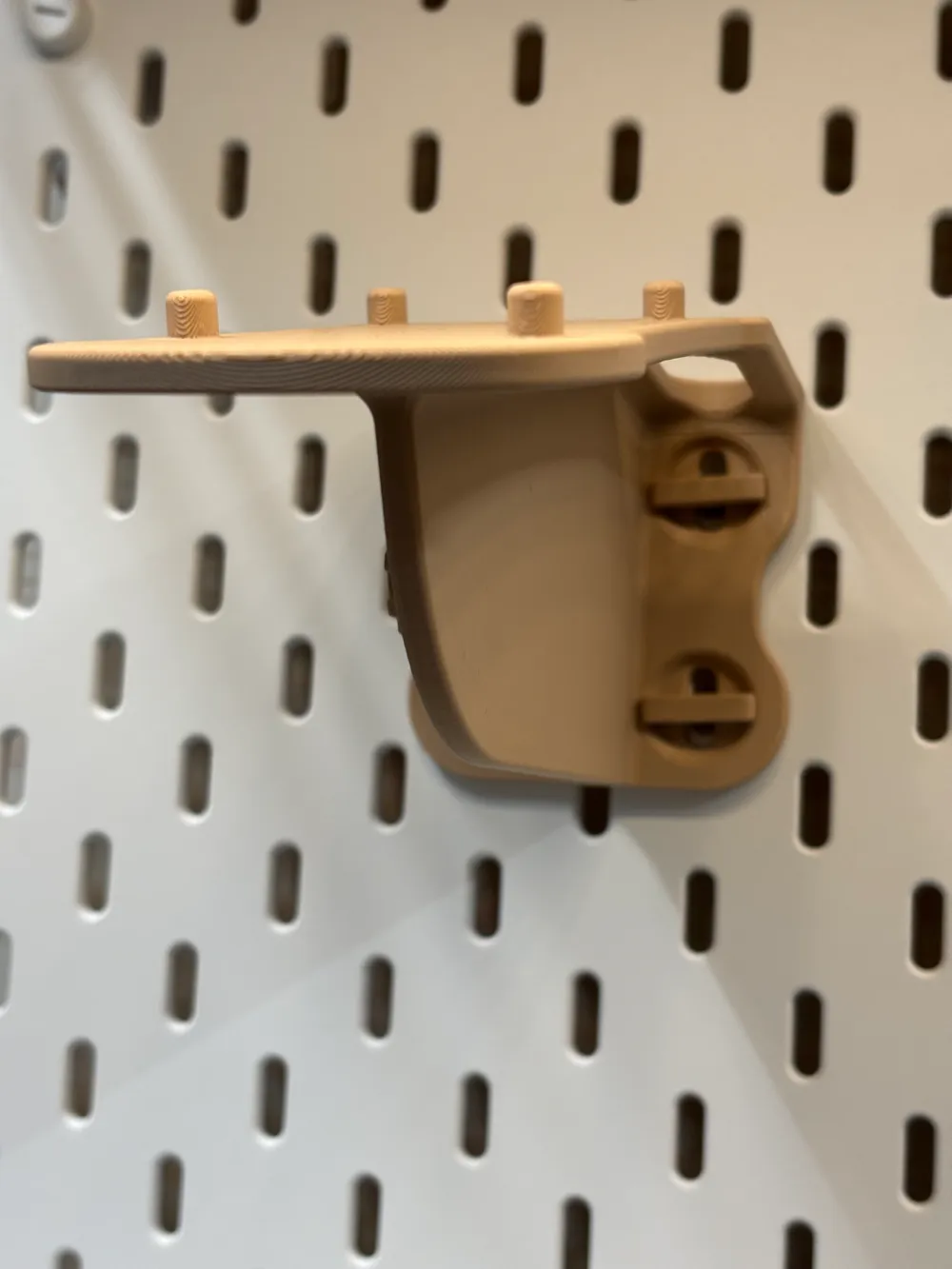

  • Small side cutouts on the rear wall to allow for mounting very close to the screws where the Skadis board is mounting onto your wall
  • Prints without supports due to usage of the Skadis T-Clip mini (see below)
• Proven print profile: While the part is generally designed for an easy print without supports, the interface mount has a large overhang to ensure a good snap fit with the Bosch accessories. This is addressed in the print profile via selective 6-wall reinforcement, larger layer height and concentric walls
• Mounting on the Skadis board is done via Skadis T-Clip mini provided by capze. Make sure you pick the right profile (regular for the brownish uncoated Skadis boards, “painted” for the white/black Skadis board). The version in my pictures is the painted one.
• 2 build plates:
  • Plate 1: Main holder
  • Plate 2: Interface mounts

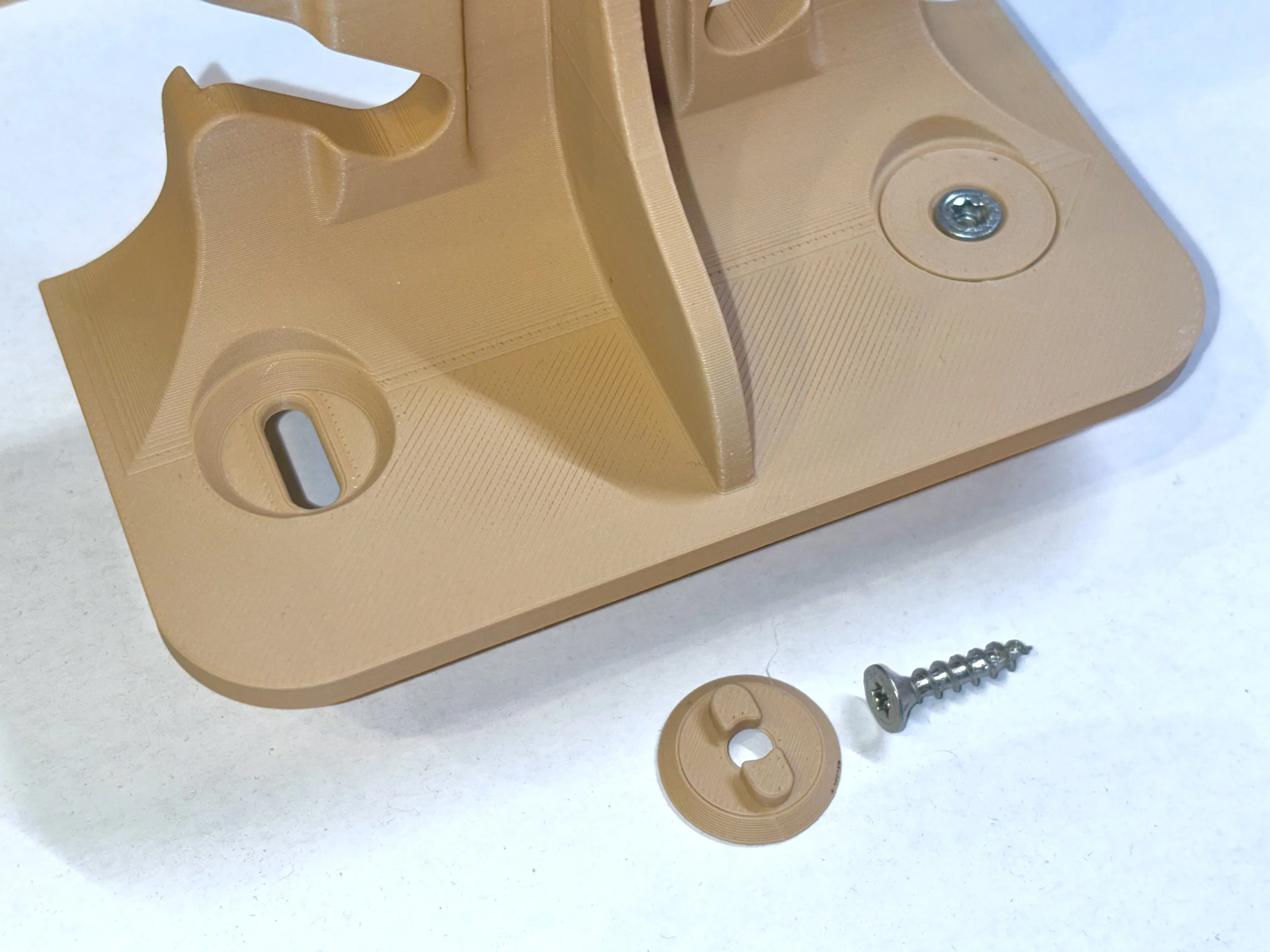

If you prefer a direct screw mounting to the wall, you can use this small adapter to make it look intentional: Screw Mount Adapter for IKEA Skadis Mini-T Clip

Have fun printing and hope you enjoy my design!
