Description

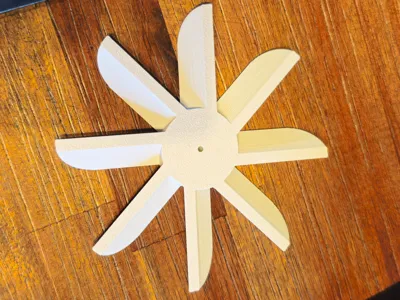

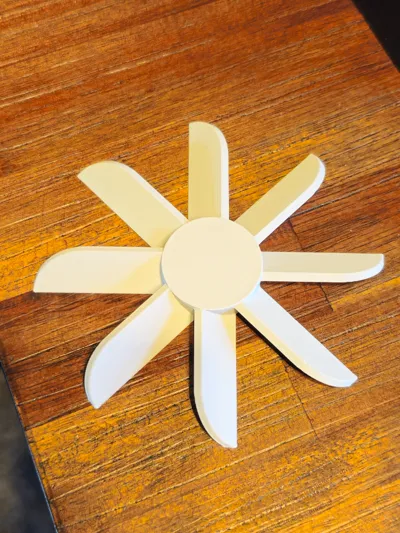

8 Blade fan for small electric motor
Fan Dimensions: 100mm x 100mm x 7.3mm

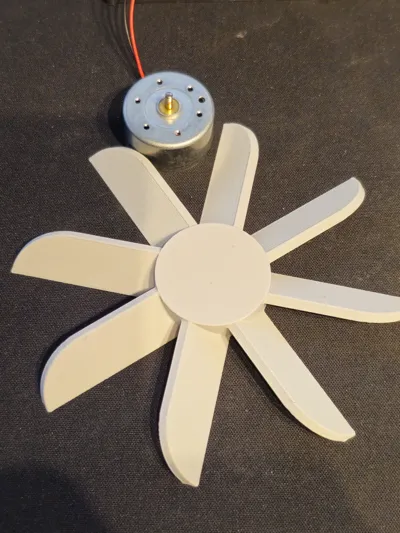

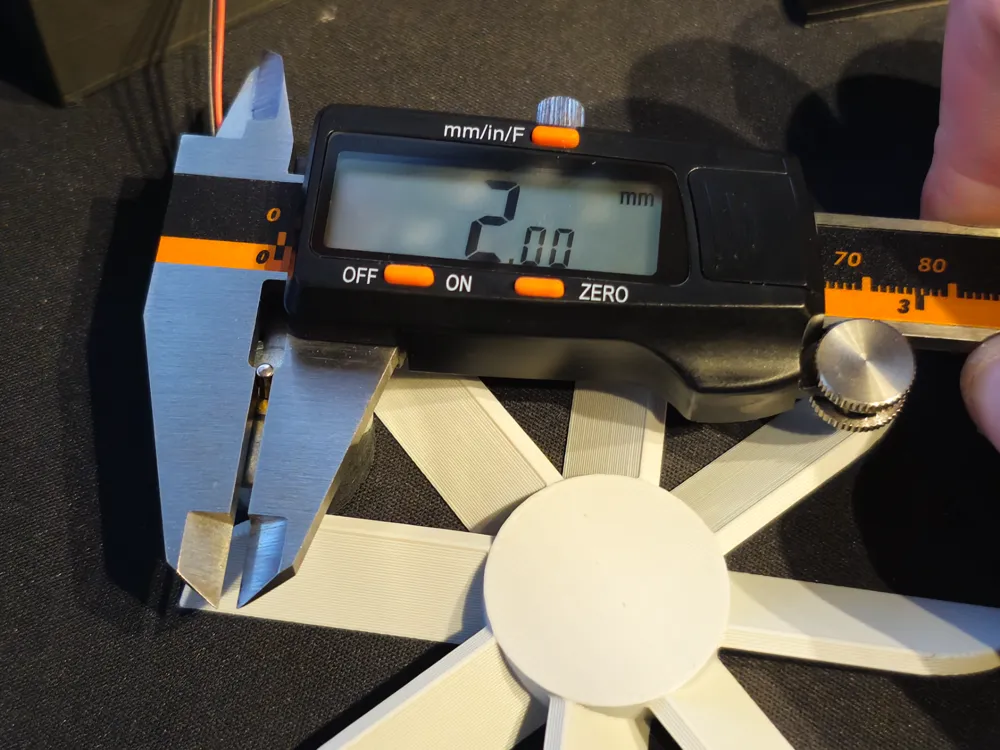

I have made a central hole to snugly push fit an electric motor with 2mm shaft (See photo)
Could be used as a PC cooling fan depending on motor rotation. Clockwise rotation will cause air to be pushed behind it. You could mirror it in slicer to reverse air flow.
I didn't see many uploads for basic fans so thought I'd share. The fan is from Tinkercad
0.20 Strength @BBL Recommended
- Sparse infill Archimedean Chords 25% Recommended (For even balance)
