Adapter for Eve Motionblinds Upgrade Kit - ROL34

I purchased Eve Motion Blinds that support Thread/Matter: https://www.evehome.com/en/eve-motionblinds.

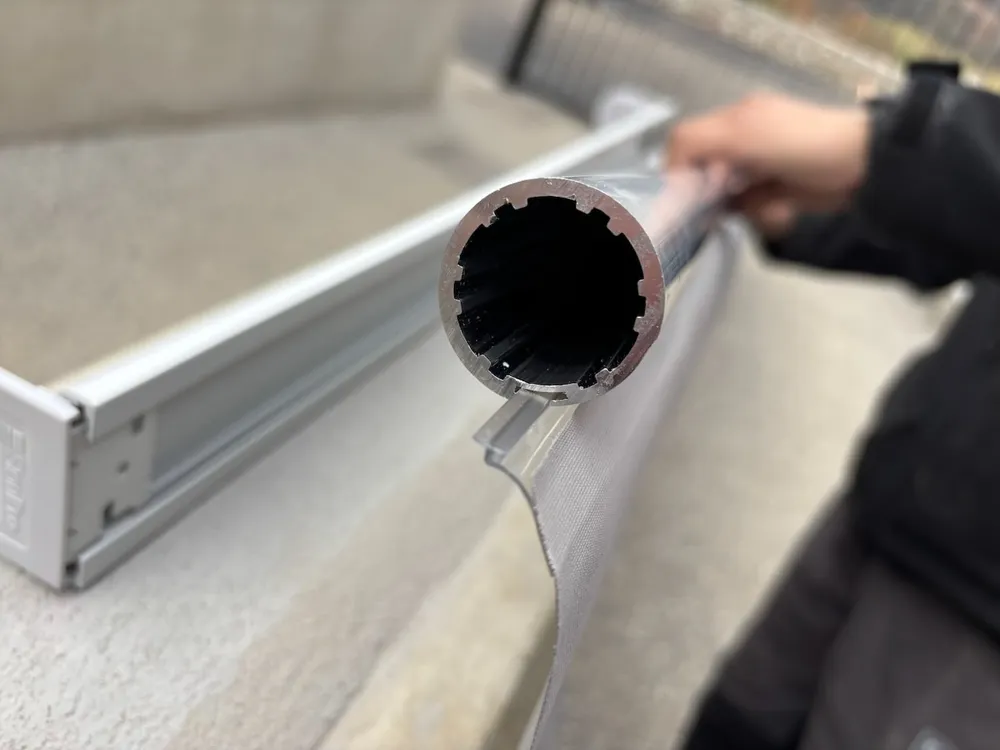

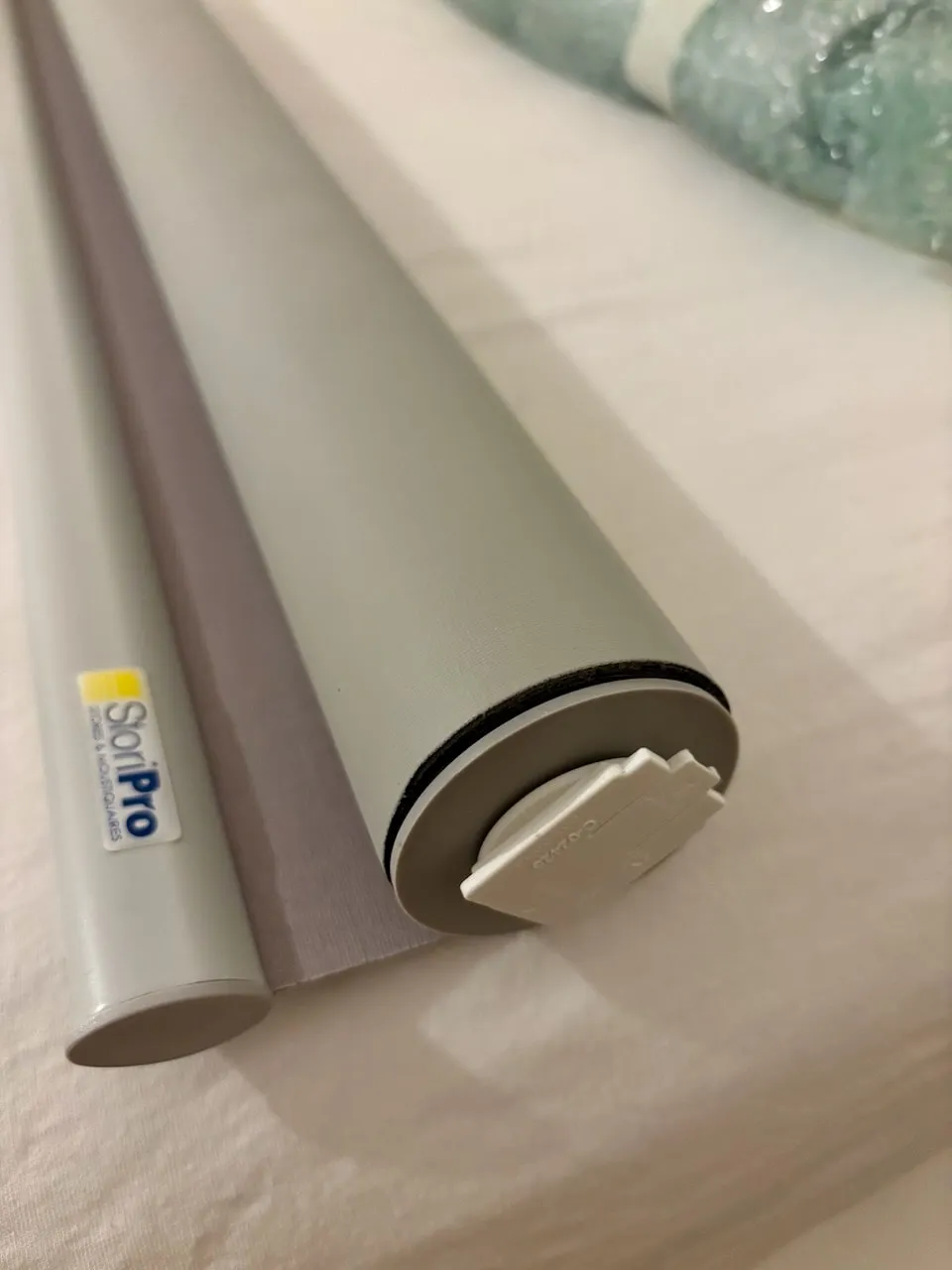

However, they only support roller blinds with an OD of 38-51mm. I found out after purchasing that my rollers were less than 29mm ID, so the included adapters were too large and would not fit. I found this adapter (https://www.printables.com/model/675595-adapter-for-eve-motionblinds-upgrade-kit), but it was still too large and the profile of my blinds (Storipro's ROL34) was more complex.

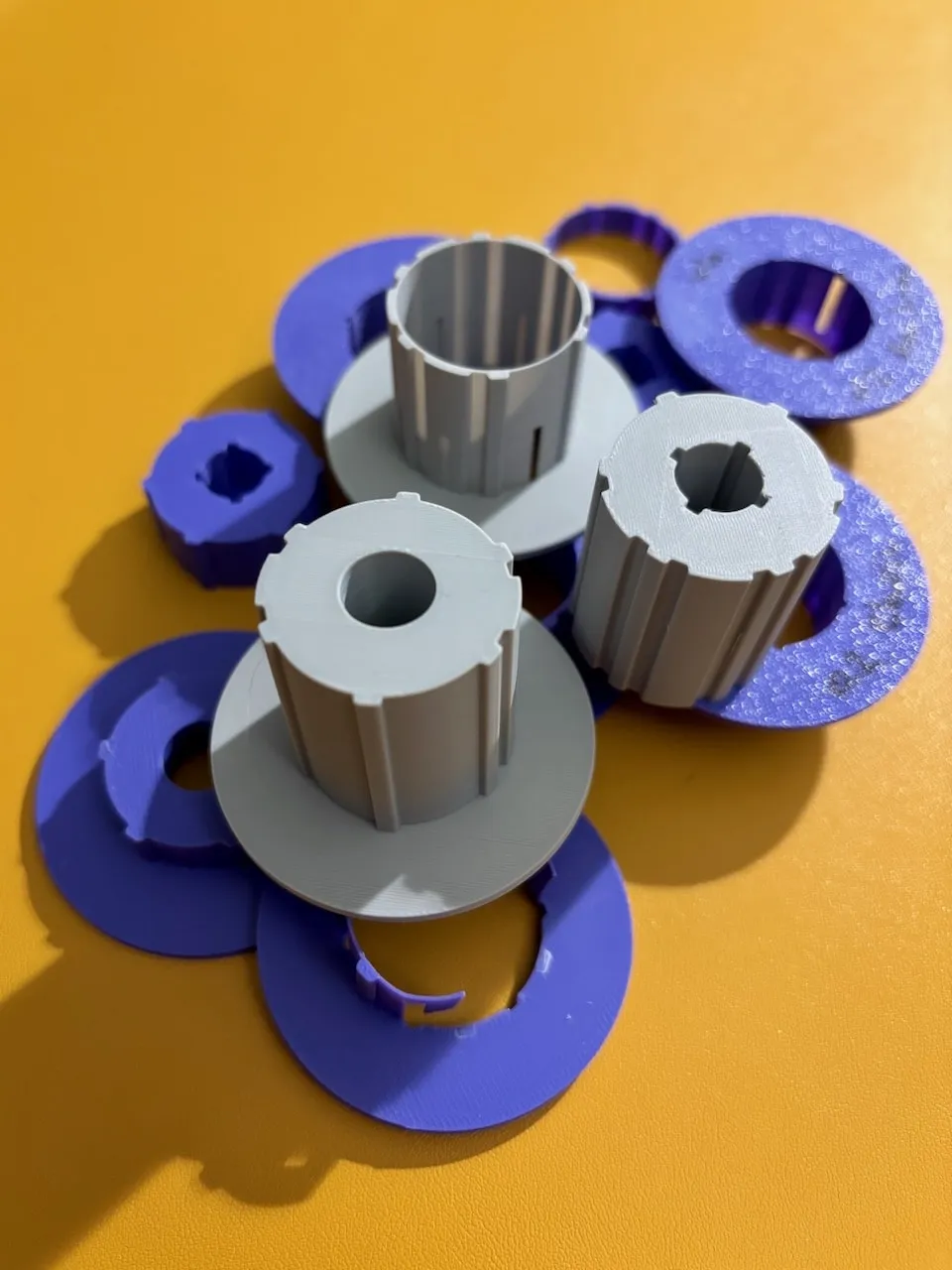

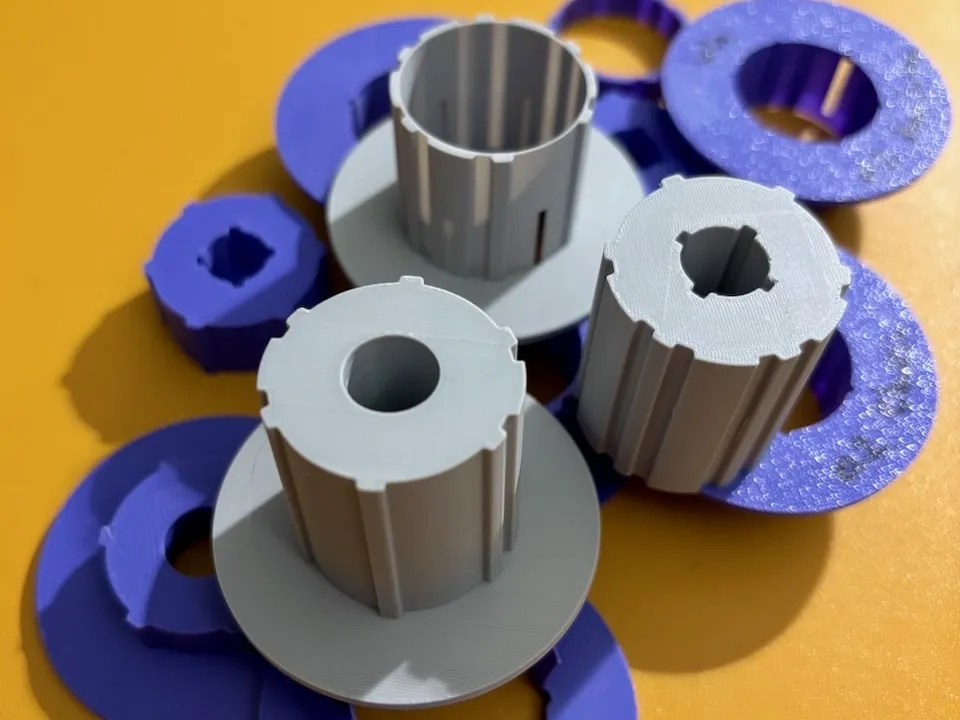

So I made these custom adapters to fit my blinds.

• You will need to print one of each (left endcap, right endcap, motor cap) per blind.

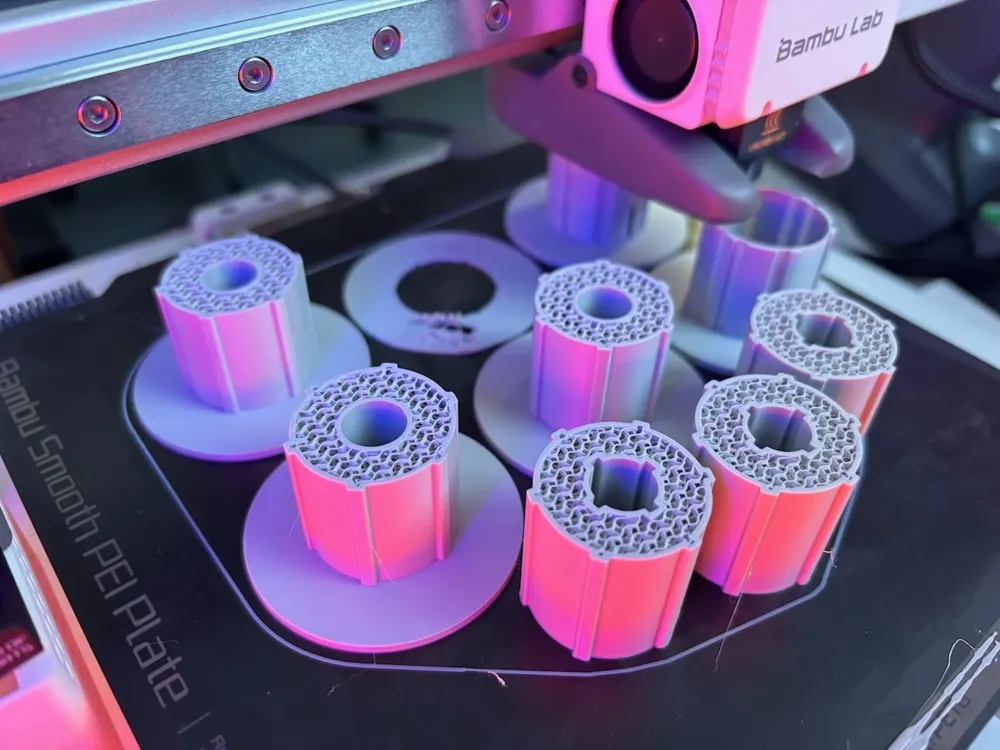

• The left endcap is especially thin (< 1mm). Because of this, and the fact that it is designed to be a tight fit, it will break when printed in PLA. There are also small details that require precision when printing, which a 0.4 nozzle won't do properly. It is HIGHLY recommended to print in PETG and use a 0.2 nozzle. Don't forget to dry it properly before printing.

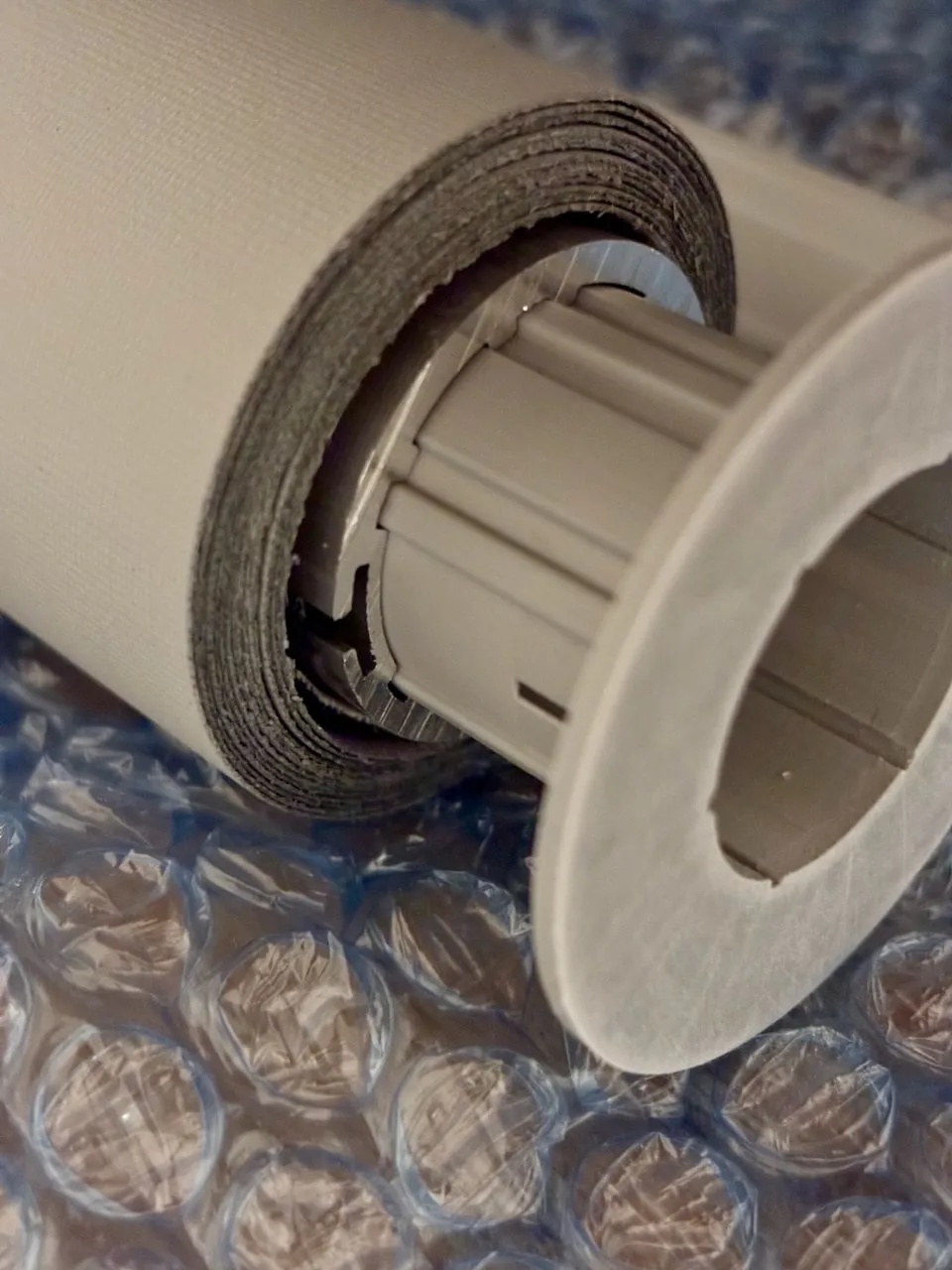

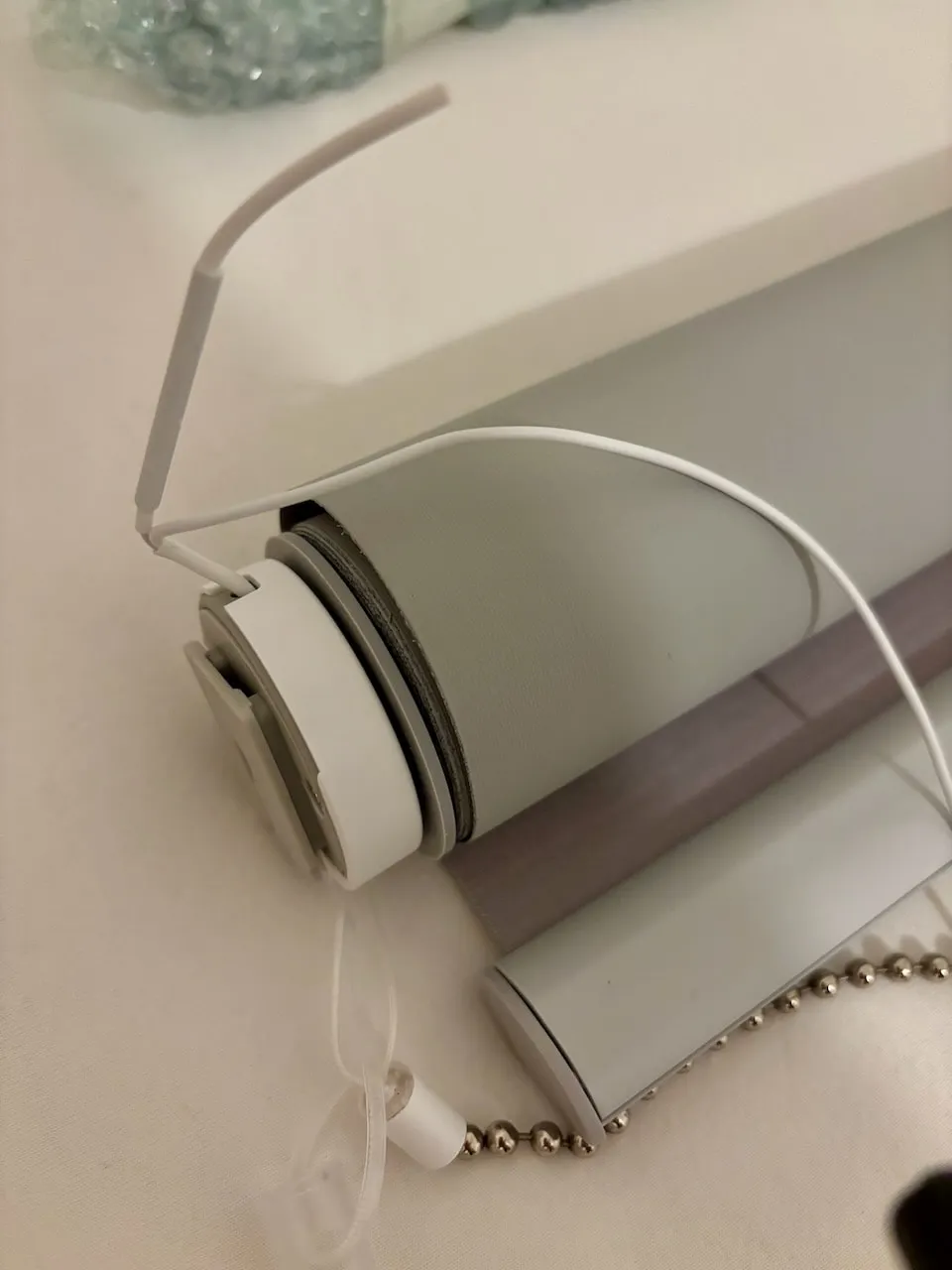

• Once printed, you can replace the stock hardware with these. No additional hardware is required. For how to install the original parts:
