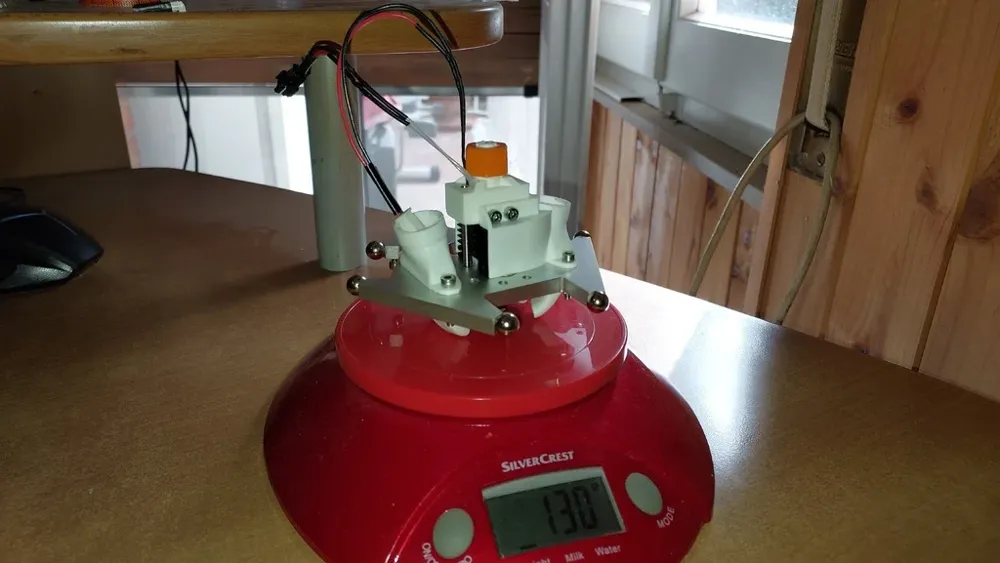

Dgk bambu 130 Flsun sr super racer flying 5015

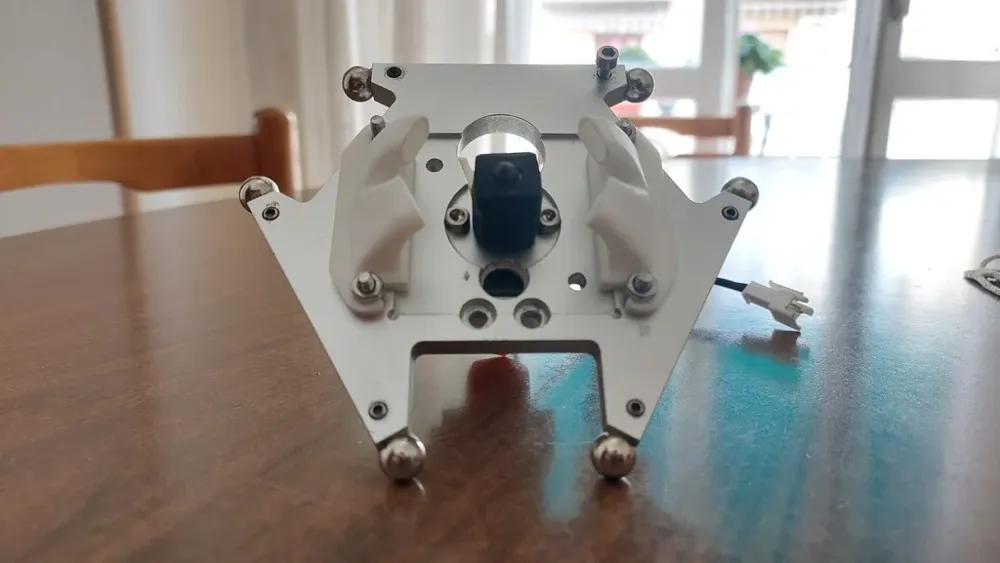

Once the bambu hotend is fixed to effector, it will no longer need to be removed, you can freely change your type of cooling and nozzle.
In this first release there is the modular flying, later, versions for original and fixed 5015 fans, directs will arrive.

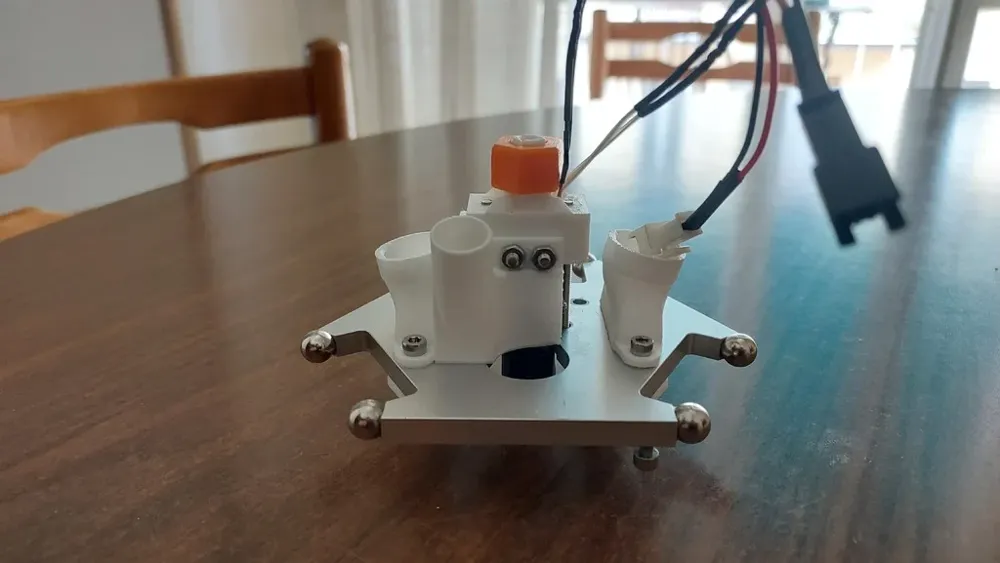

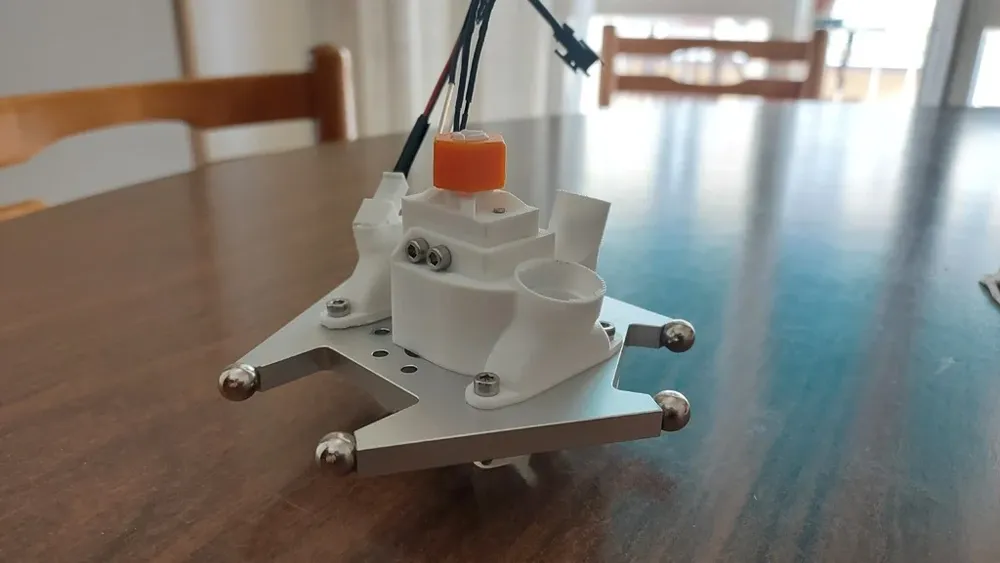

There are 2 versions that hold the hotend in place
1 which uses your 1/8 pneumatic connectors like the original sr V6
2 one that uses a fully printable screw system (lighter)

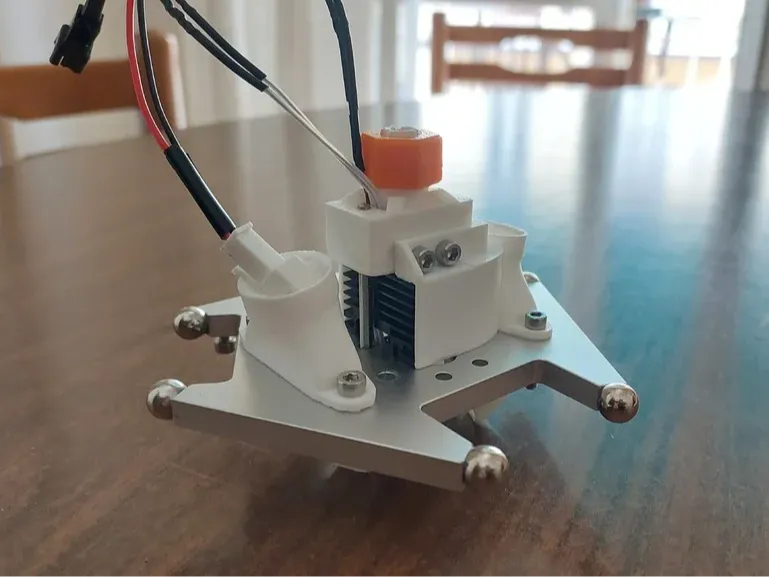

The first step is to insert the heater and the temperature sensor inside the holder.

To carry out this project you will need:
3 5015 fans
2 M3 35mm
2 M3 25mm
4 M3 15mm
8 nuts M3

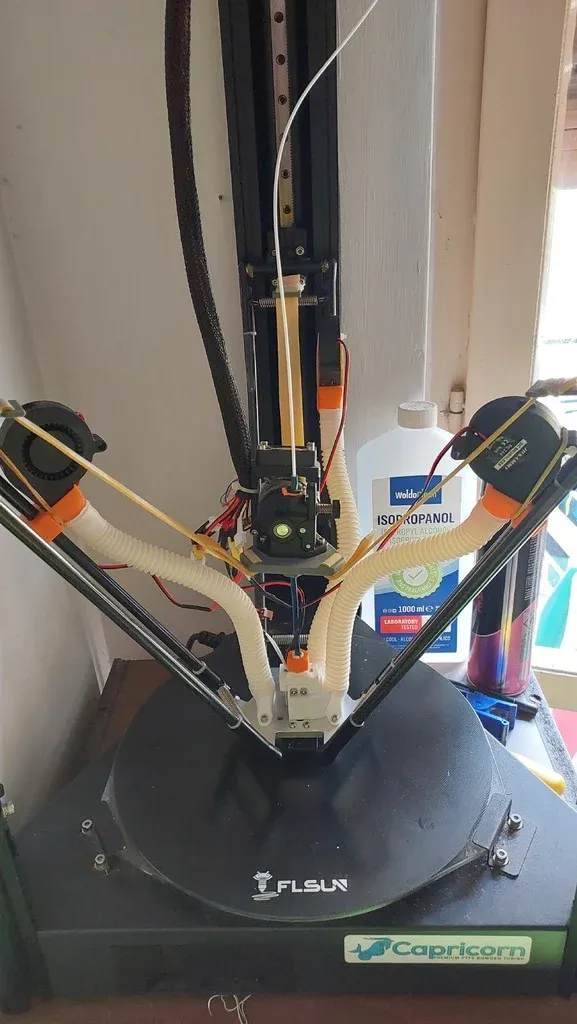

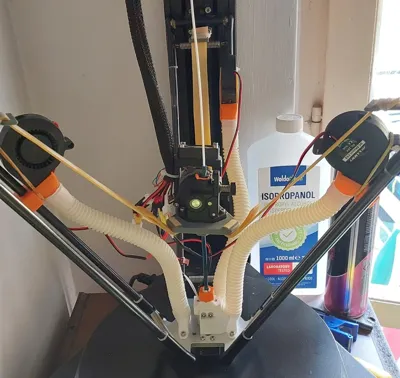

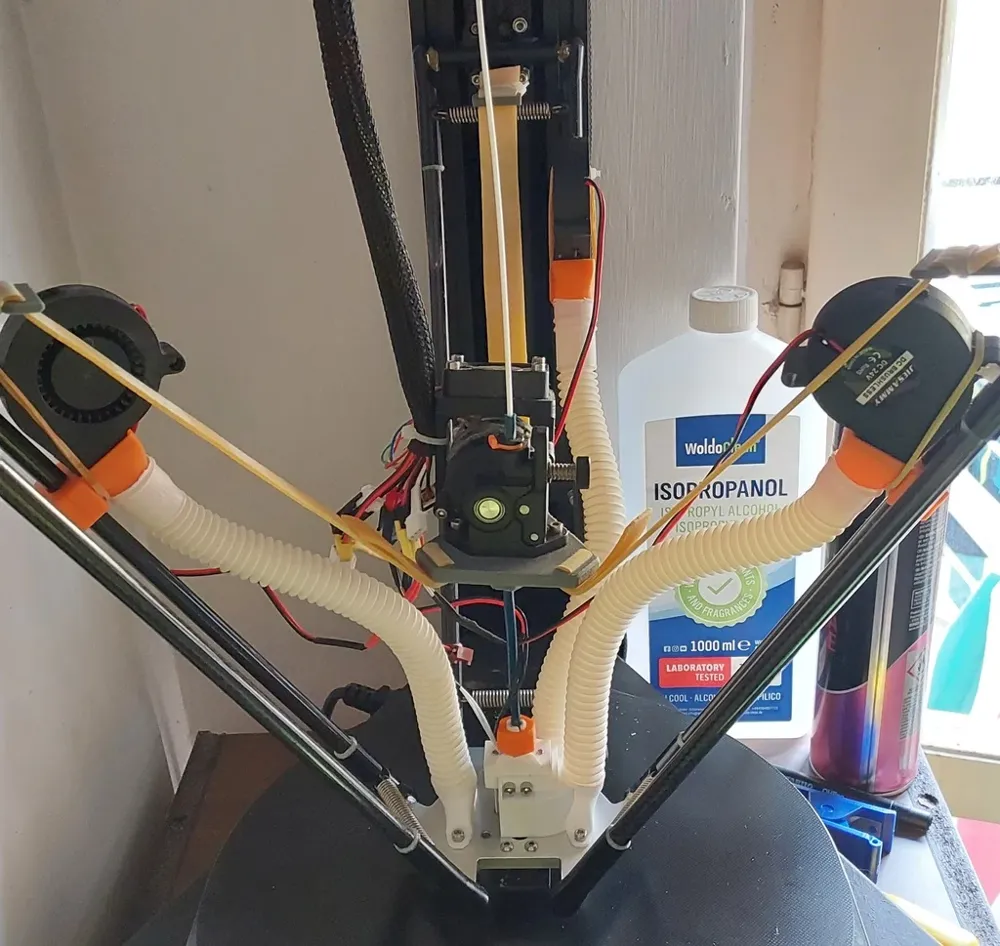

you need the 16/18mm condensate drain hoses from the air conditioners, they are universal and easy to find in department stores, they are usually found by the meter with 16/18 connections, you need 2 pieces with the 18mm part that must be cut from 16.

the pipes are held with superglue, as "attack", you have to put it both outside and inside.
(tubes cut to the right size weigh only 8 grams each)

to complete the project I improved and also used these accessories which are remixes of other users: I thank @Nissenko for his sharing of step files that allowed the realization of this project
