Meiho 7070 tackle box Jara bait holders
Print Profile(1)
Description
Version 4:

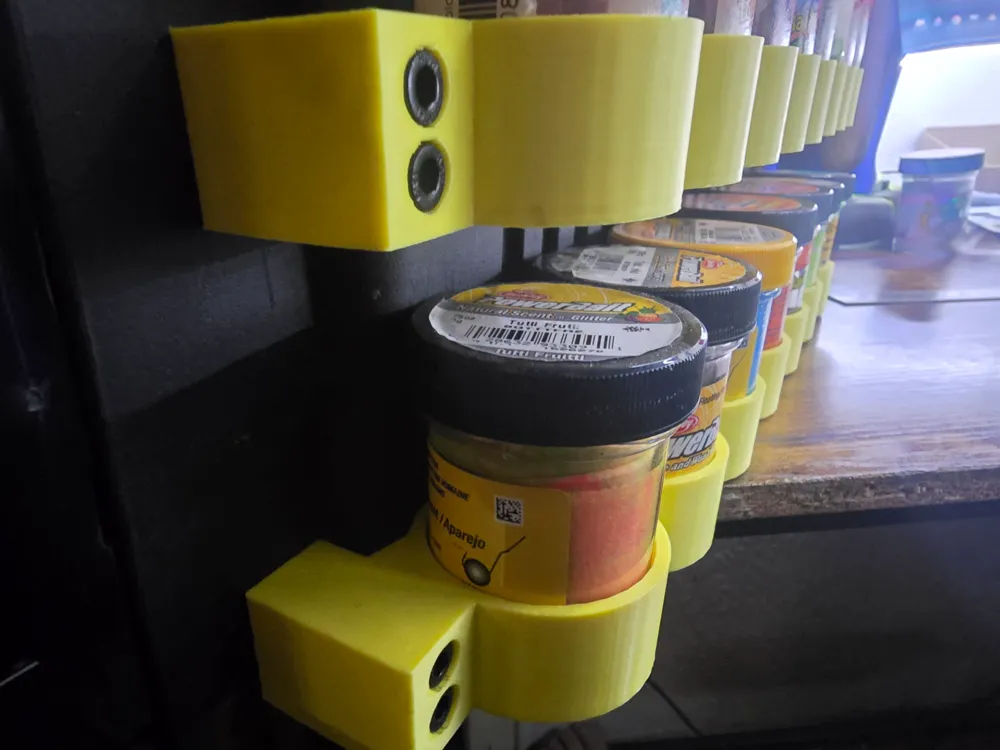

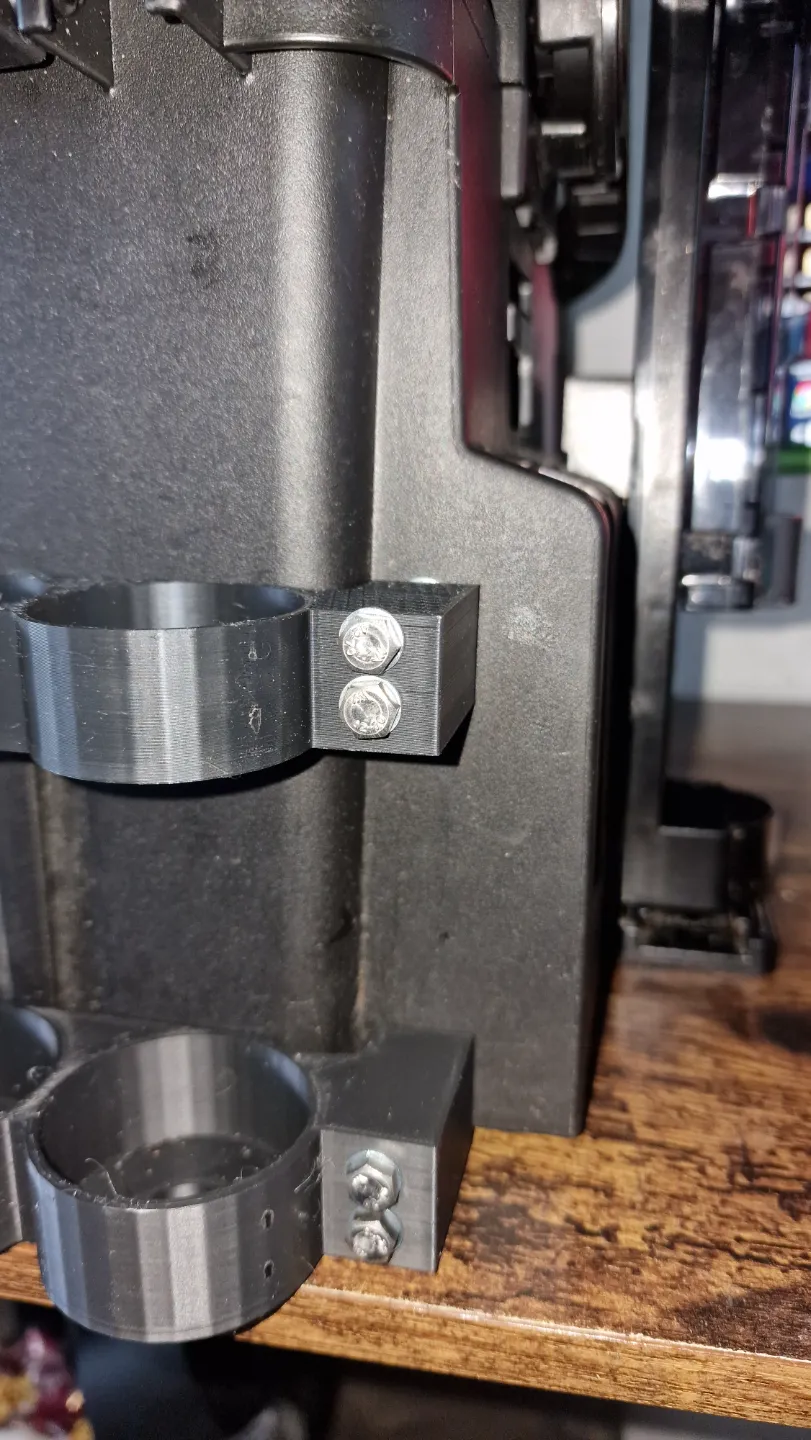

Joint redesigned and now the bolts have been countersunk
Printed as 2 pieces at the same time and then glued together
The holes on the holders are all 5mm. however, dependant on your printer tolerances you may need to drill them out to get the bolts to fit using a 5mm drill bit.
You will require the following to attach each holder to your box:
Size 5 drill bit
4 x M5 x 50 socket cap Bolts
4 x M5 nuts

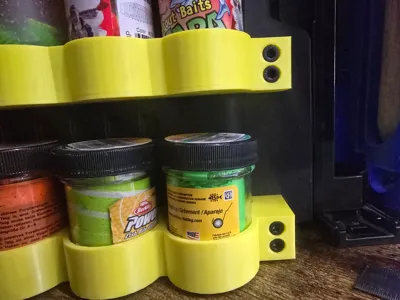

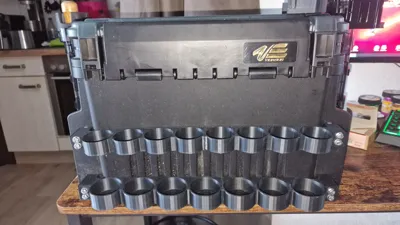

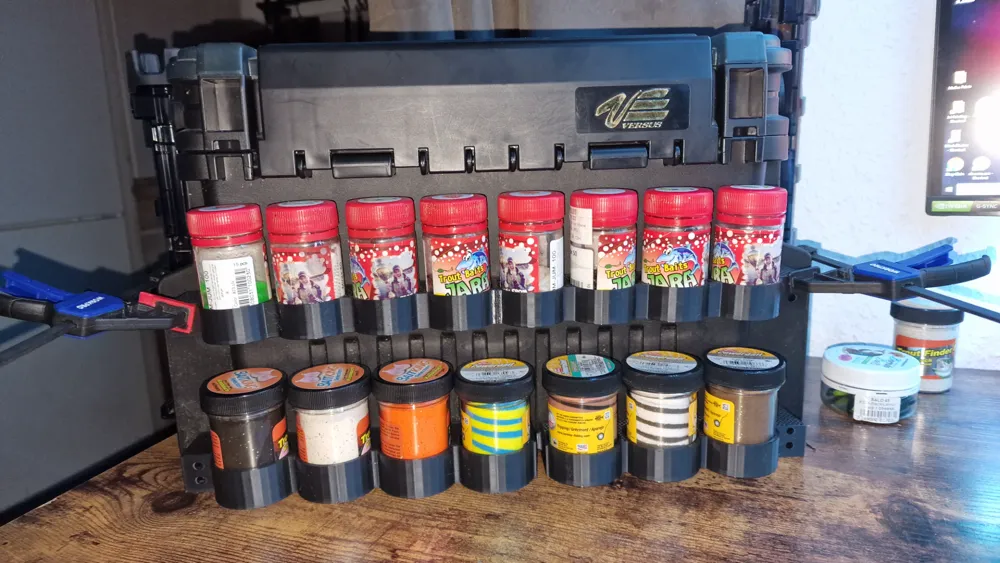

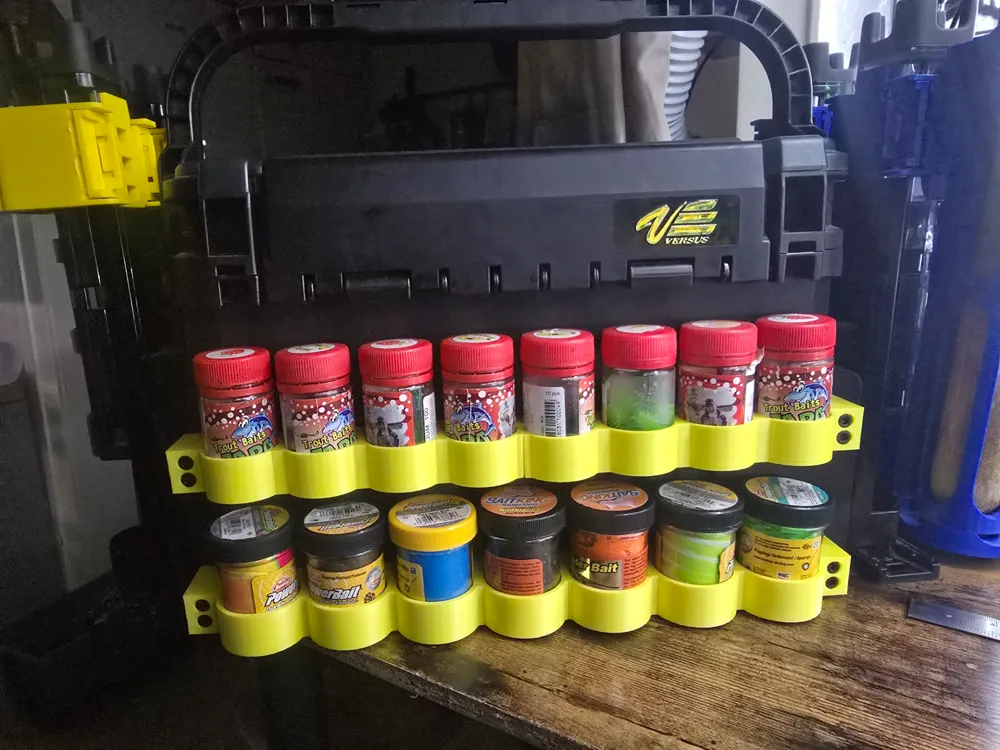

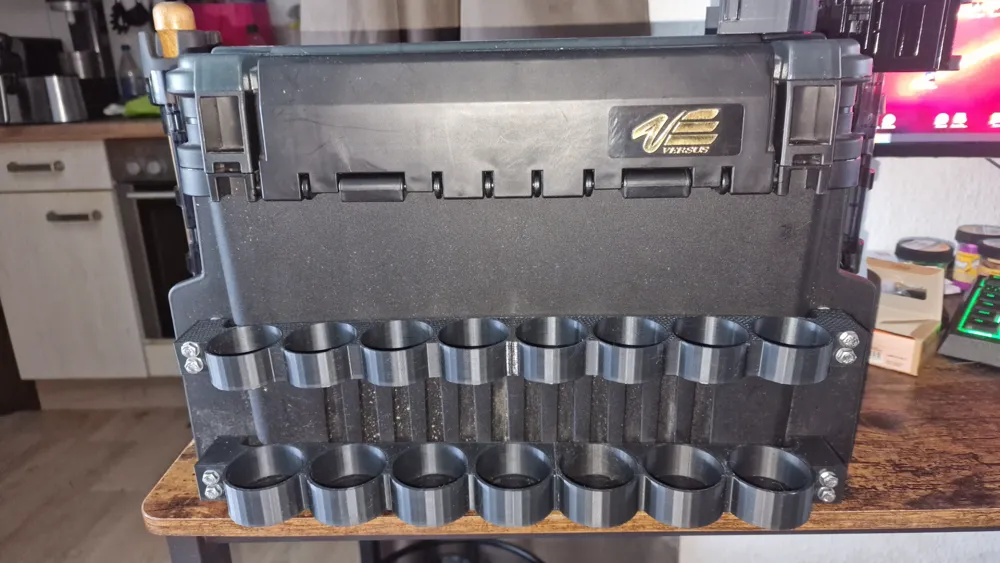

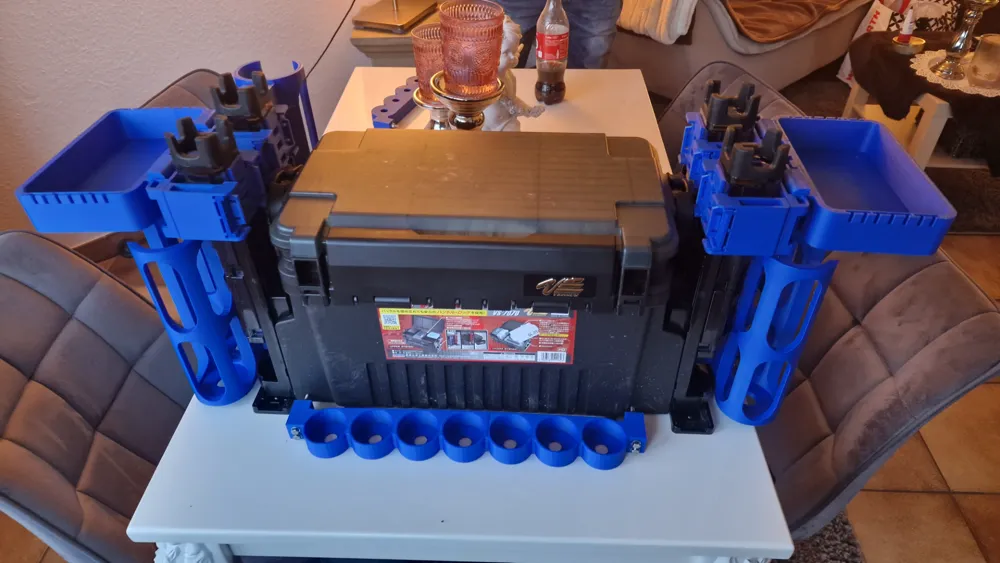

The holders are designed to be attached to the bottom of the box. Should you wish to print a second as in my pictures it will fit but you will need to place spacers between the holder and the box or there will be a 2mm gap.
My printer settings:
First layer height 0.2mm
Walls 3-5
Infill: 25% Cubic or Gyroid
Material: PLA+ or PETG recommended
Supports: None
