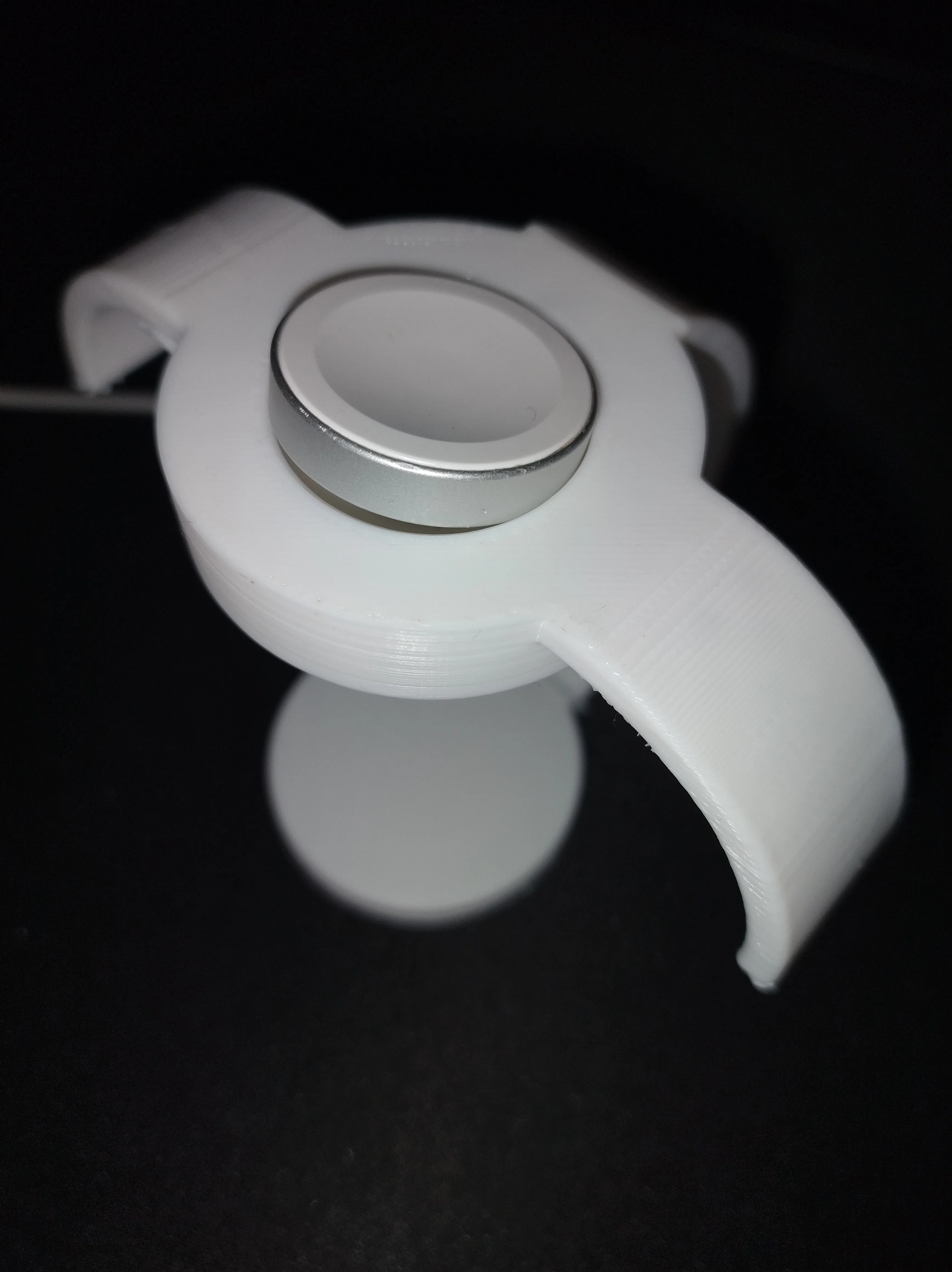

Apple watch charger
Charger holder for Apple watch. It is modeled for a charging disc with a diameter of 27.8 mm and a height of 6.15 mm. A groove (2,1mm) for anti-slip felt is prepared from the bottom side.
Boost Me (for free)
Thanks for the support, soon I want to make version 2 without "wings". :)
Assembly and disassembly

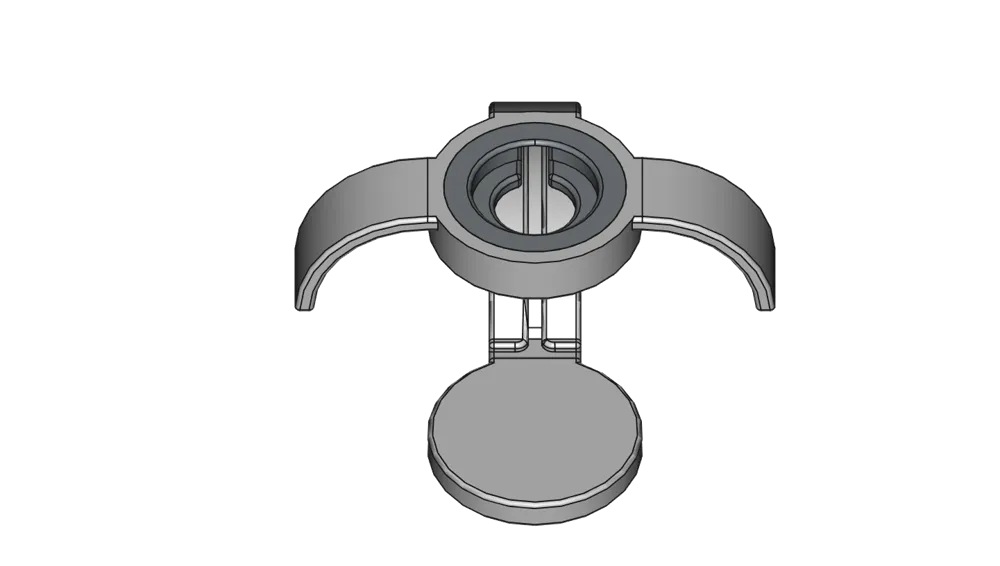

 | The charger snaps into the stand. First the power cable is inserted and then the other part snaps into place. |

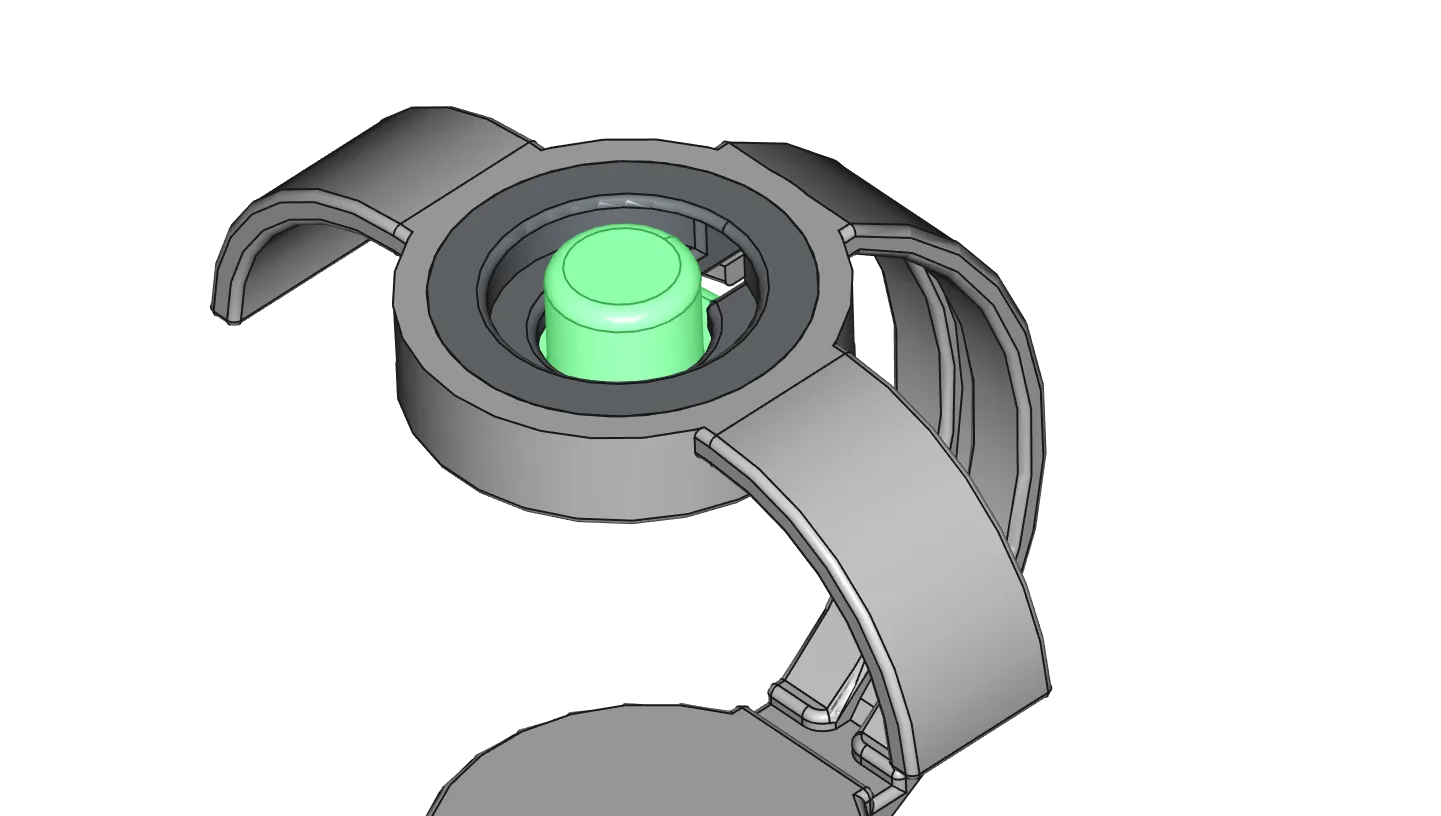

 | An extractor is used for easier removal of the charger from the stand. It serves to evenly push the charger out of the holder without scratching and damage. |
Development
- ☐ V2 holder without side "wings"
Documentation (1)
Bill of Materials (1)

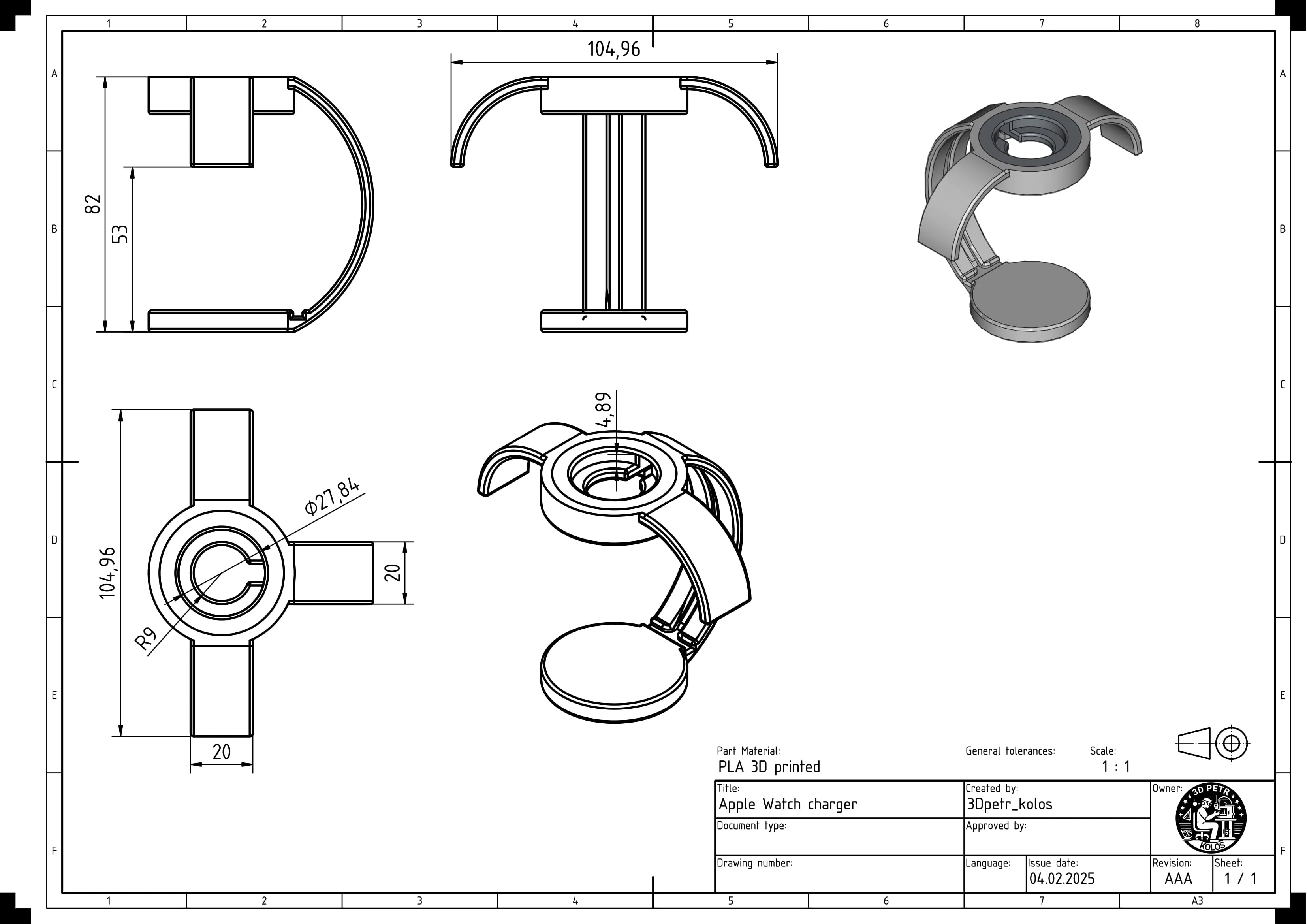

techdraw.pdf
