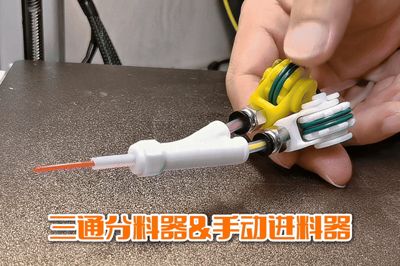

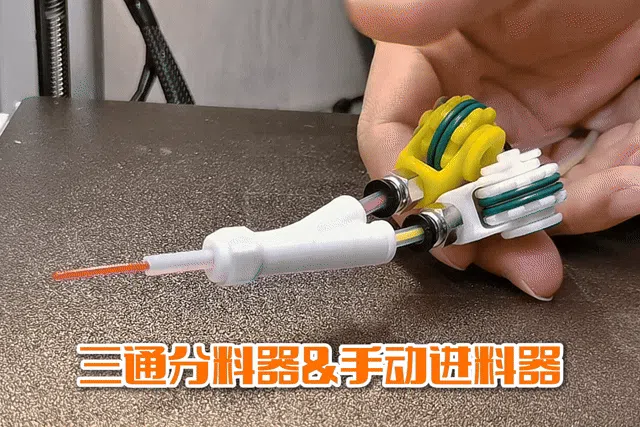

3D Printed (3/4/5 Way) Feed Splitter
Print Profile(1)
Description

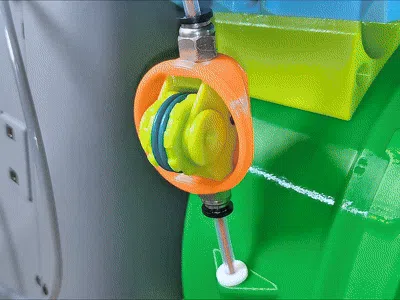

Click to download 3D Printed Manual Feeder
1、Use a 2.5x4 PTFE tube and make sure it's inserted all the way in, otherwise the filament might get stuck during feeding
2、The filament tip needs to be cut at an angle, and trimming it into a cone shape with multiple angles is best. Also, to prevent the tip from bending, you can straighten the first few centimeters with your hand
4、Before installation, first feed some filament through to check for any clogs; there might be residual filament debris inside

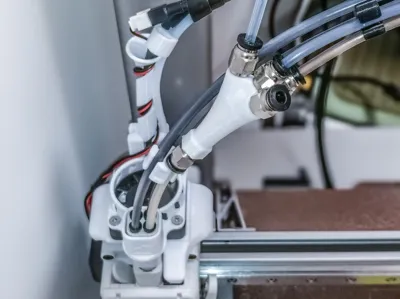

5、If used with an AMS, please use the two straight-through ports, and use the branch port for manual feed
6、The model is designed with thread tolerance, allowing you to screw in a PC4-M6（through-hole）pneumatic connector by hand. When used with the manual feeder, the effect is even better
