Parallel Index Drive with External Roller Ring
Print Profile(1)
Description

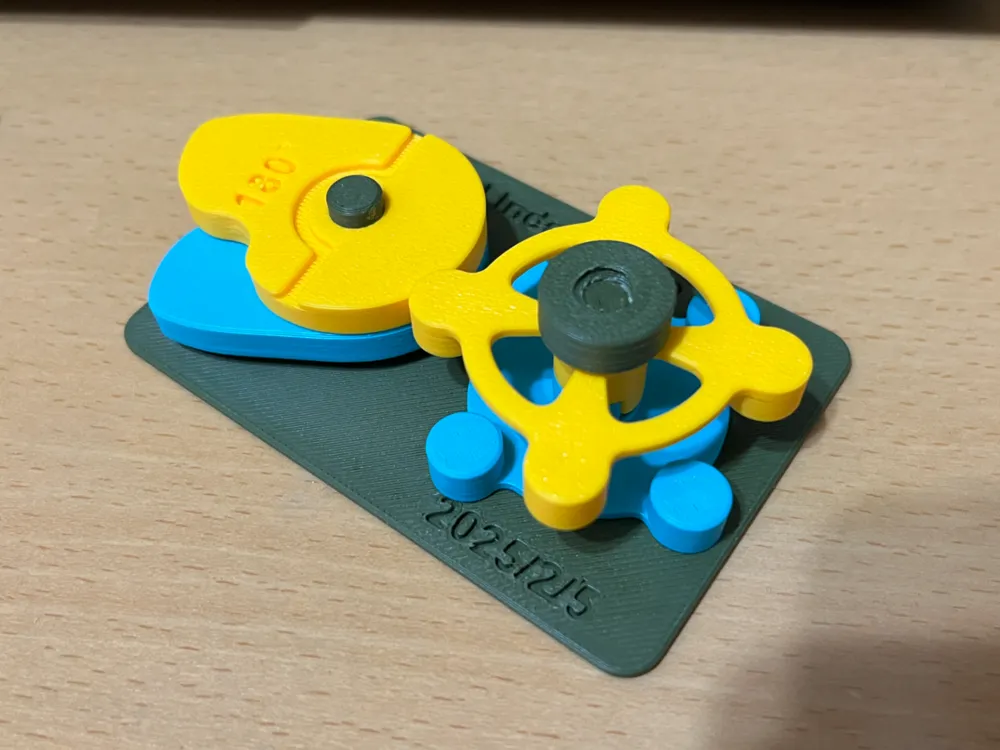

This parallel indexing cam mechanism employs two or more cams and rollers to facilitate smooth rotational and arresting movements in the driven components.
Input: Cams
Output: Roller Follower
External
Dimensions: 90 60 26 (mm^3)
Cam Input Stroke: 180°
Output curve: Cycloidal curve 90°
Contact plane clearance: 0 - 0.2 mm
Youtube: https://youtu.be/egZP9qcodyQ
