Thin Rip Table Saw Jig Dewalt

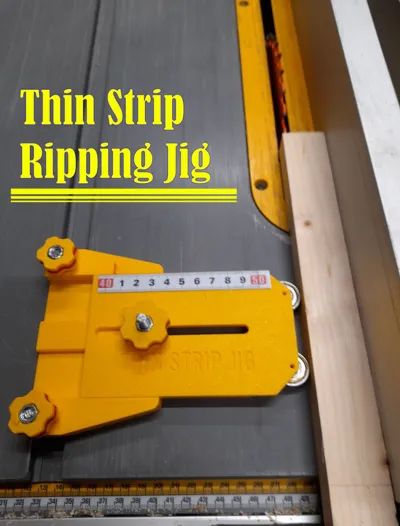

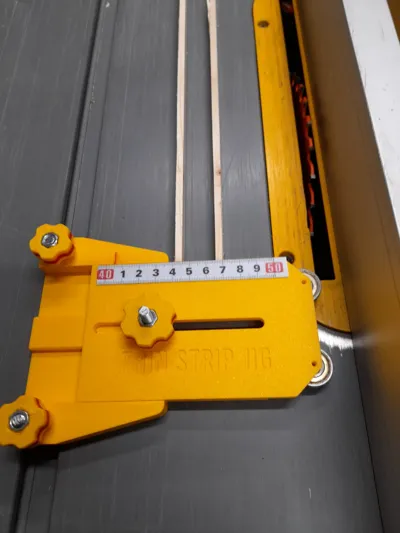

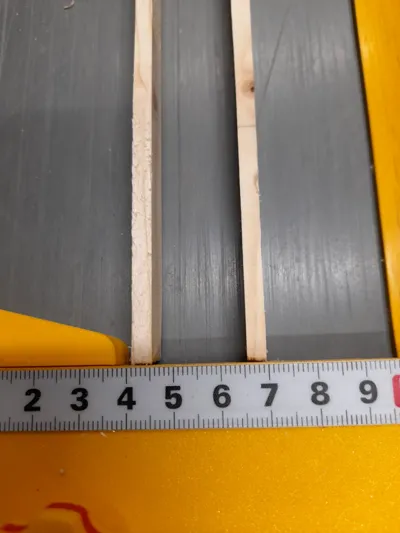

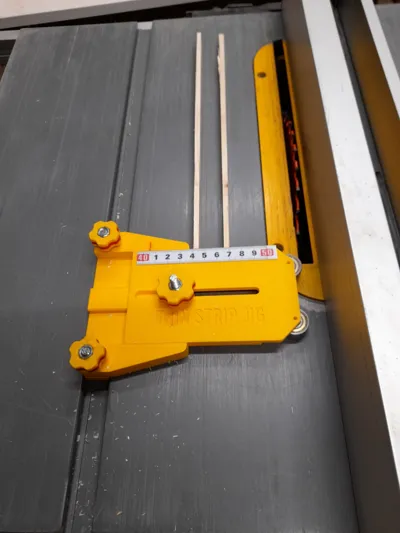

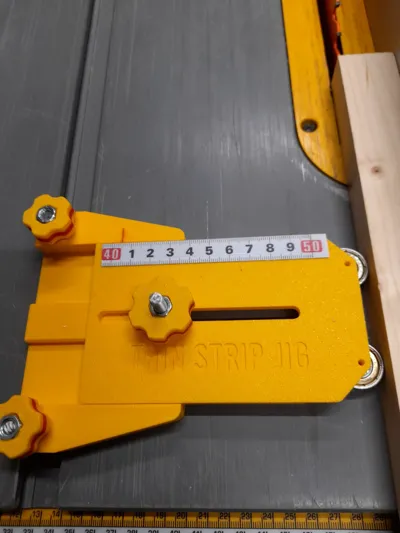

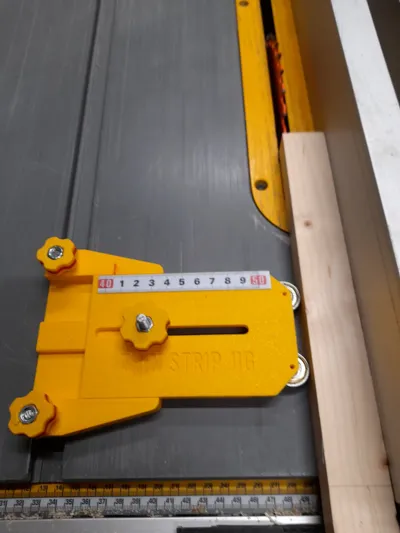

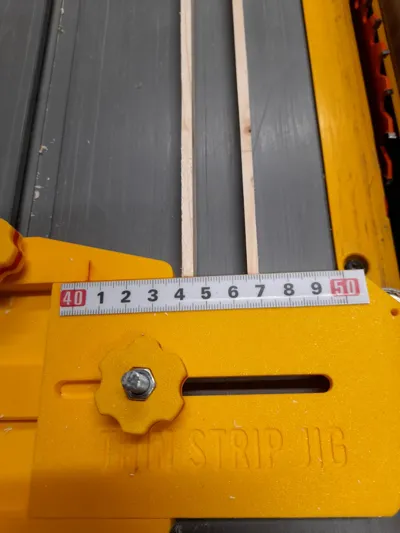

Thin Strip Ripping Jig. Make repeatable thin strips using this Thin Rip Table Saw Jig. To set it up, install this jig in your table saw miter slot, and simply set the thickness of the strip desired. Measure the distance from the outside of the blade to the sealed bearing and lock the jig in place. Set the fence against the workpiece and rip to size. For repeatable strips, readjust the fence so the workpiece is touching the bearing and repeat the cut. This Jig was made for DeWalt Table Saw. If you want to use on different table saw - add in comments the dimensions of your miter bar slot.

You will need :

3 x bolts M6 metric length 40 mm.

3 x nuts M6 metric .

2 x bearing inside diameter : 8 mm / outside diameter can vary within these limits : 22 - 45 mm.

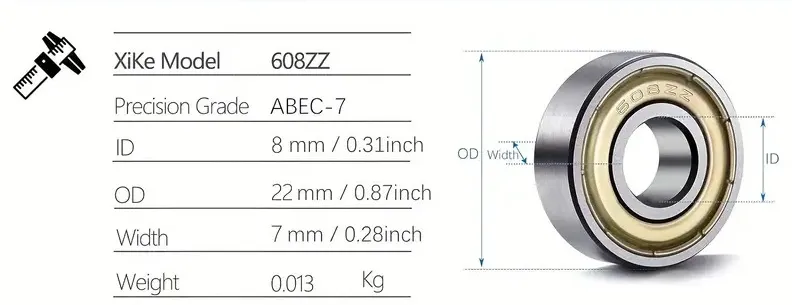

I use 608ZZ bearings :

If you dont have bearing you can print it . Use Bearing Generator : https://makerworld.com/en/models/1083205-bearing-generator-parametric-ball-bearings#profileId-1075444

I added miter runner for table saw : Rage 5-S Evolution Table Saw.

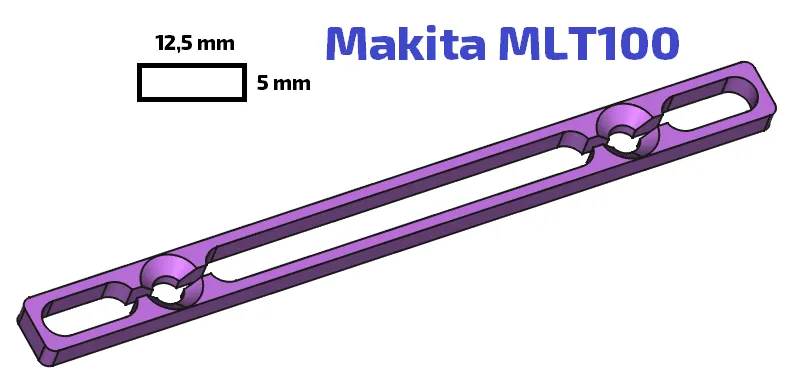

I added miter runner for Makita MLT100 Table Saw. You will need to have M6 Screw length 40 mm.

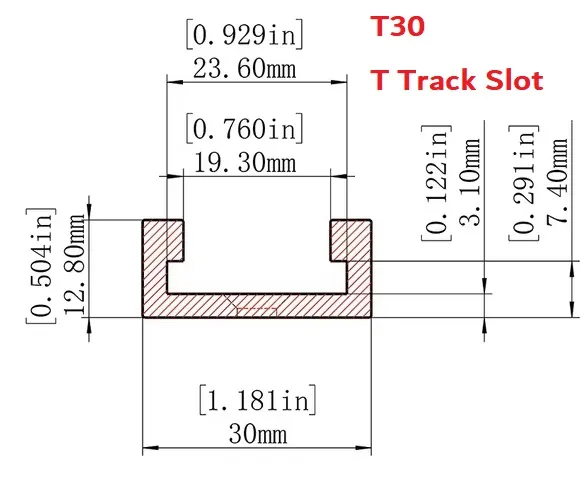

The DeWalt table Saw has T30 Standard Miter Slot :
