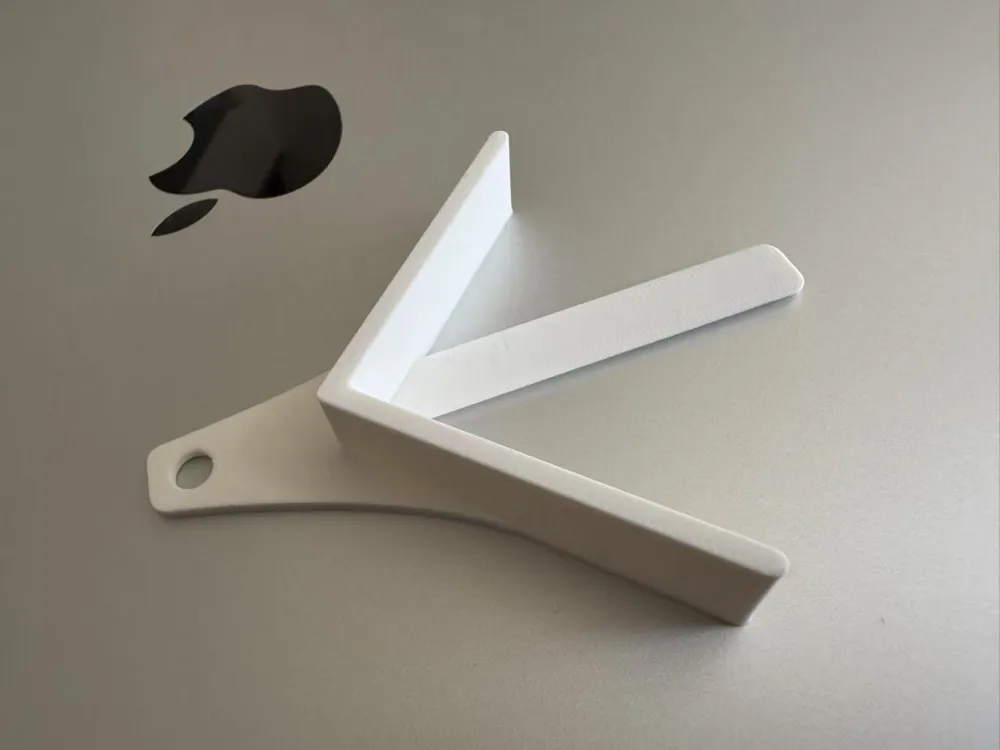

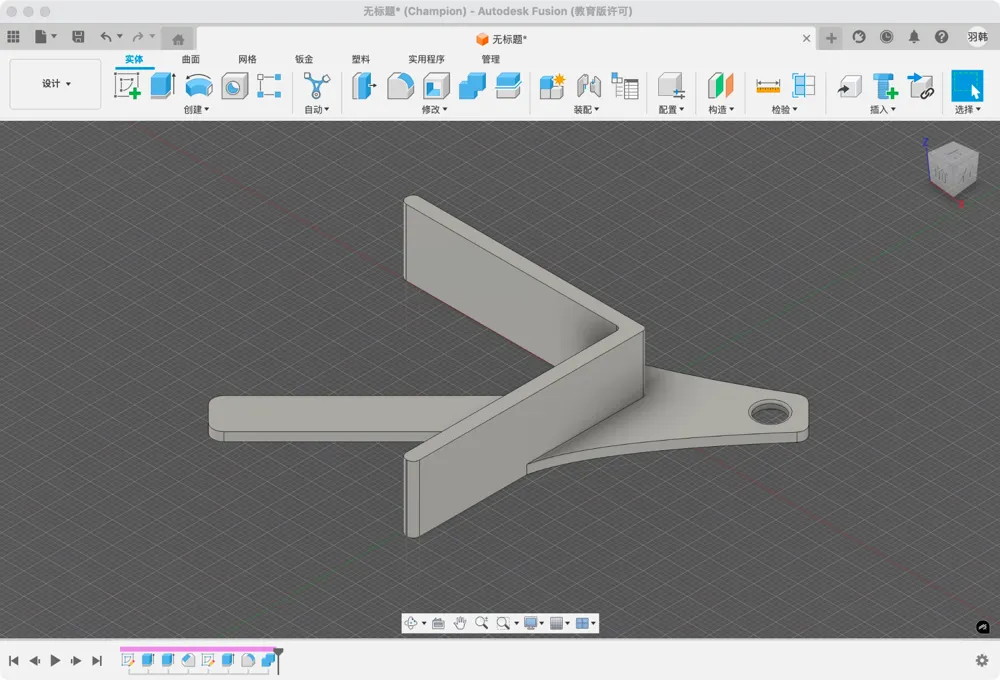

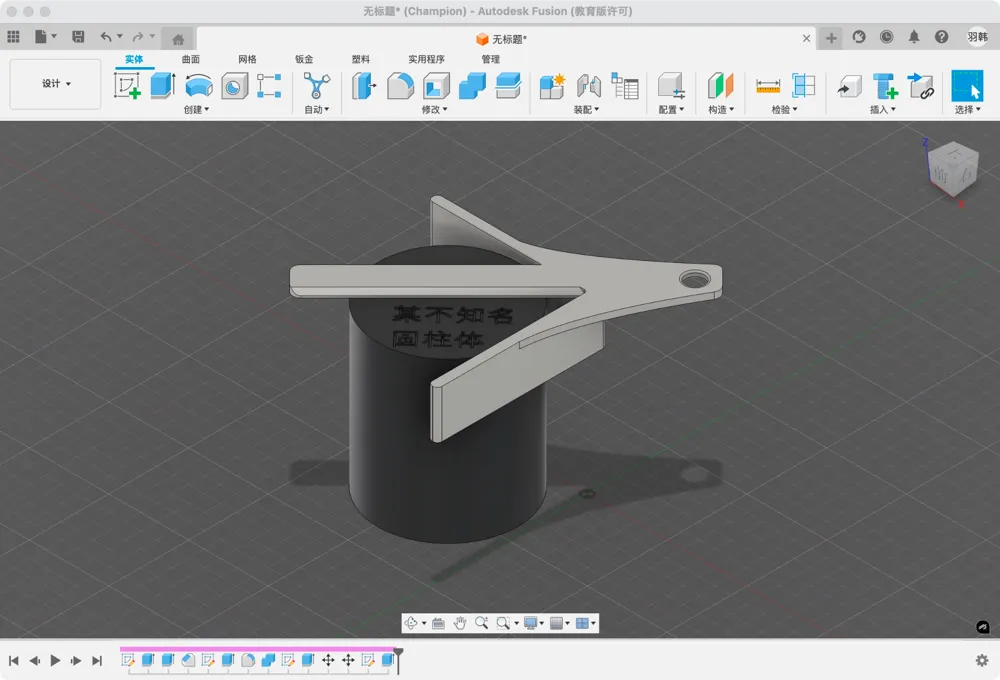

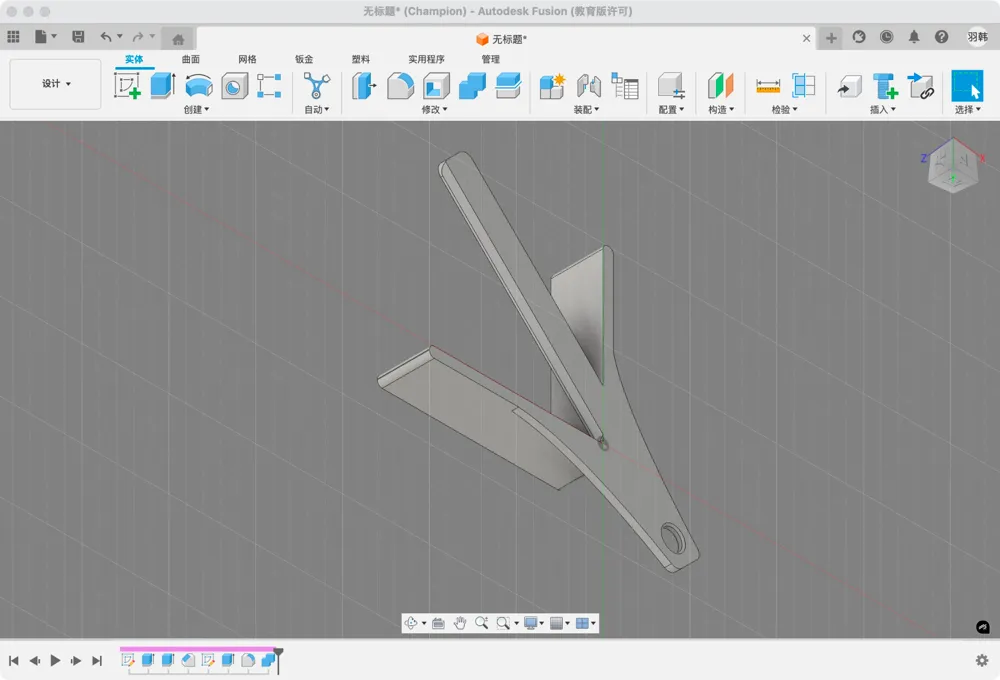

Woodworking/metalworking center positioning ruler
Print Profile(1)
Description

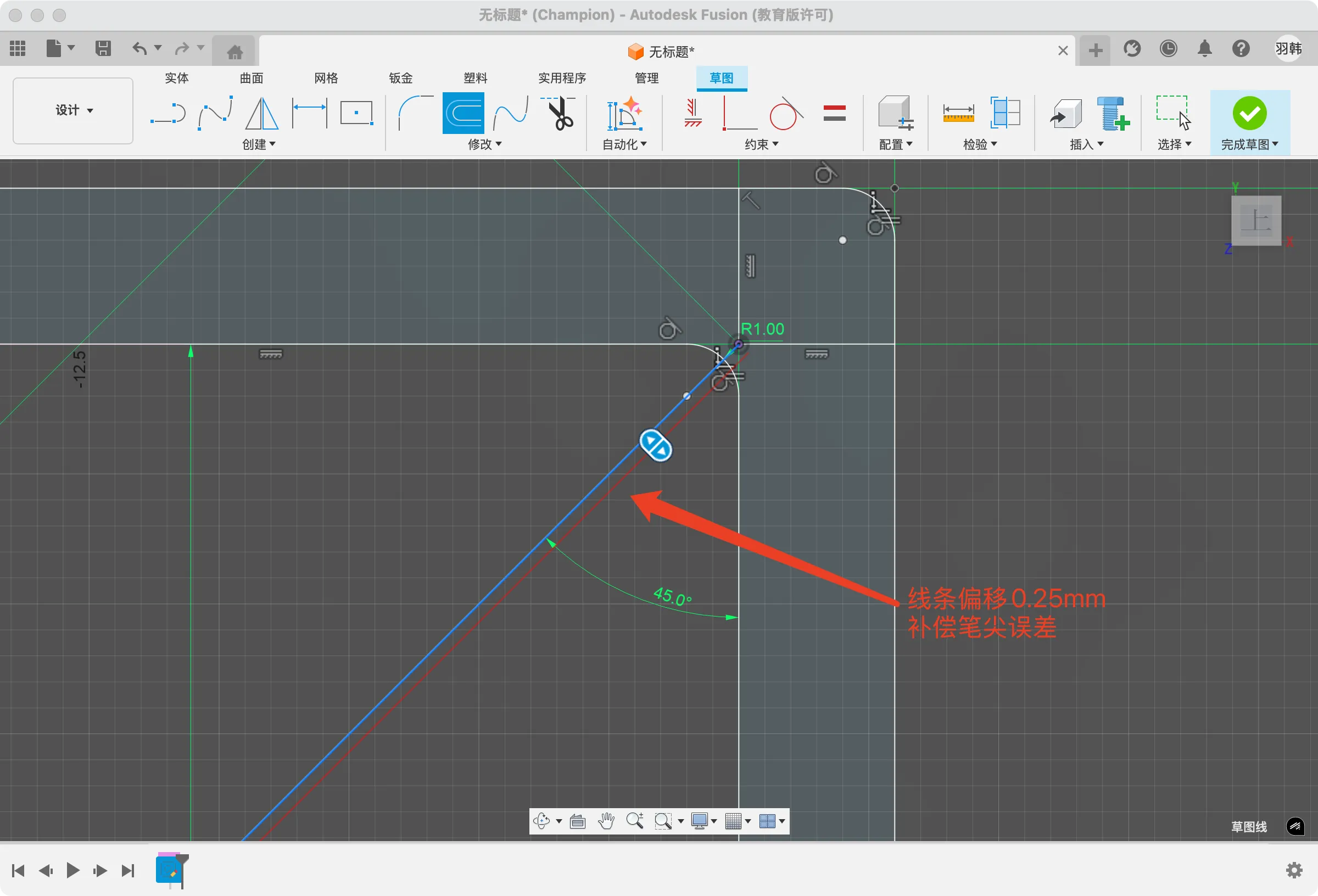

This model is designed with the ruler position offset outward by 0.25mm from the centerline to accommodate for the tolerance caused by the brush diameter, as shown below:
During the design of this model, the ruler position was offset outward by 0.25mm from the centerline, and a tolerance was reserved to compensate for the tolerance caused by the brush diameter, as shown in the following figure:

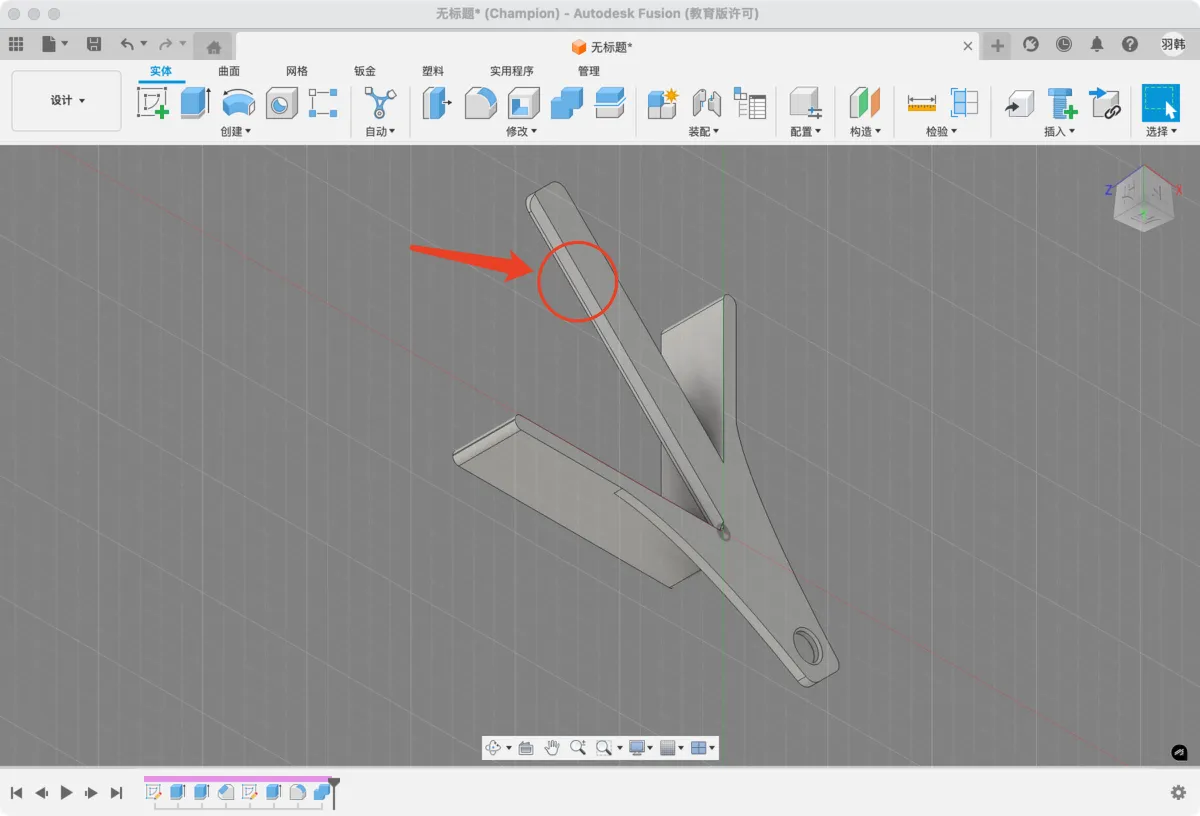

Additionally, chamfers are incorporated into the ruler's surface for ease of marking;
At the same time, chamfers are also designed on the surface of the ruler for easy marking;
