Keychain, tag Schneider electric
Print Profile(4)
Bill of Materials
- 25mmpaperclip x 1:
Description

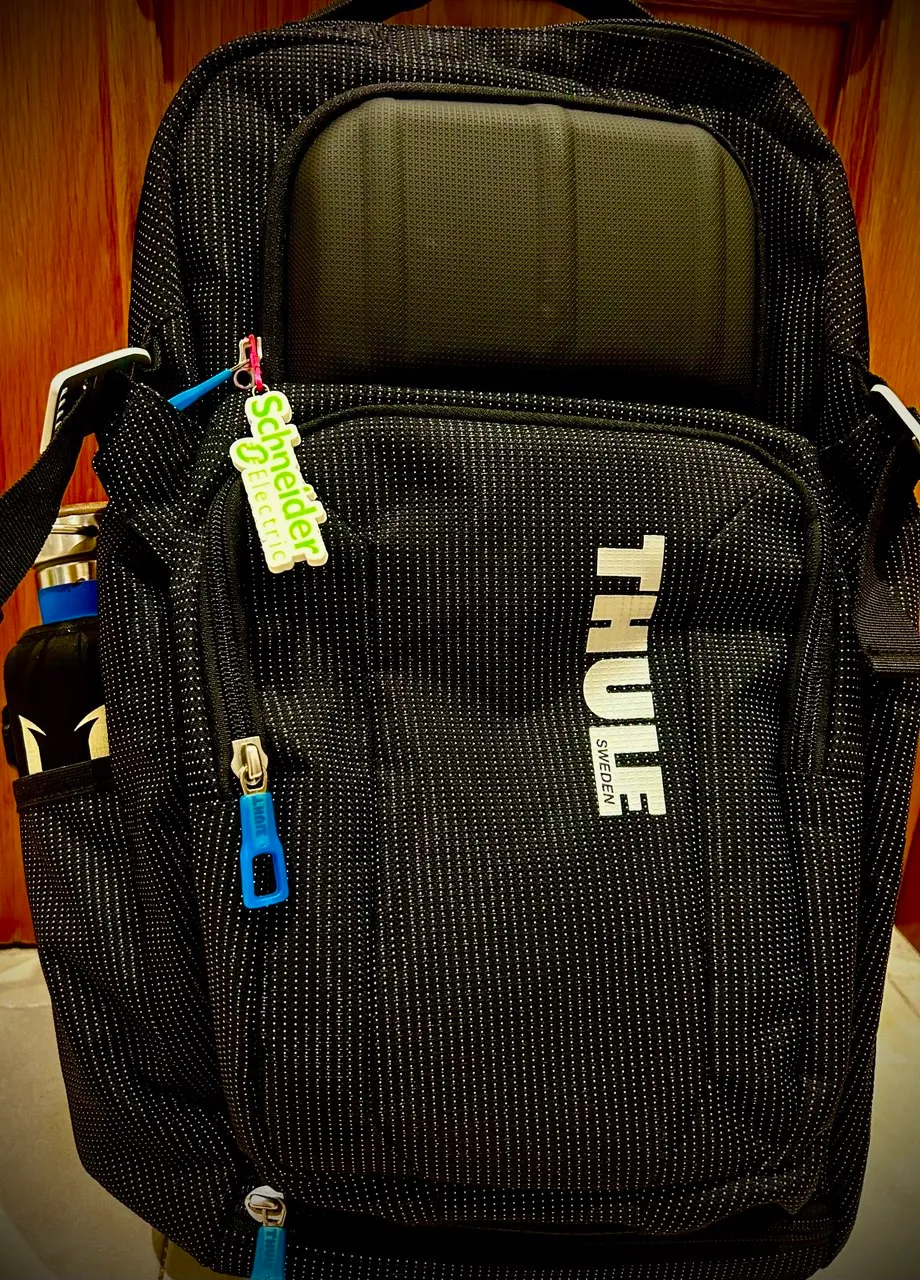

The needings of tag some tools, bags, keys, lockers…. give me the idea to make this corporate and versatile tag.
I made various profiles:

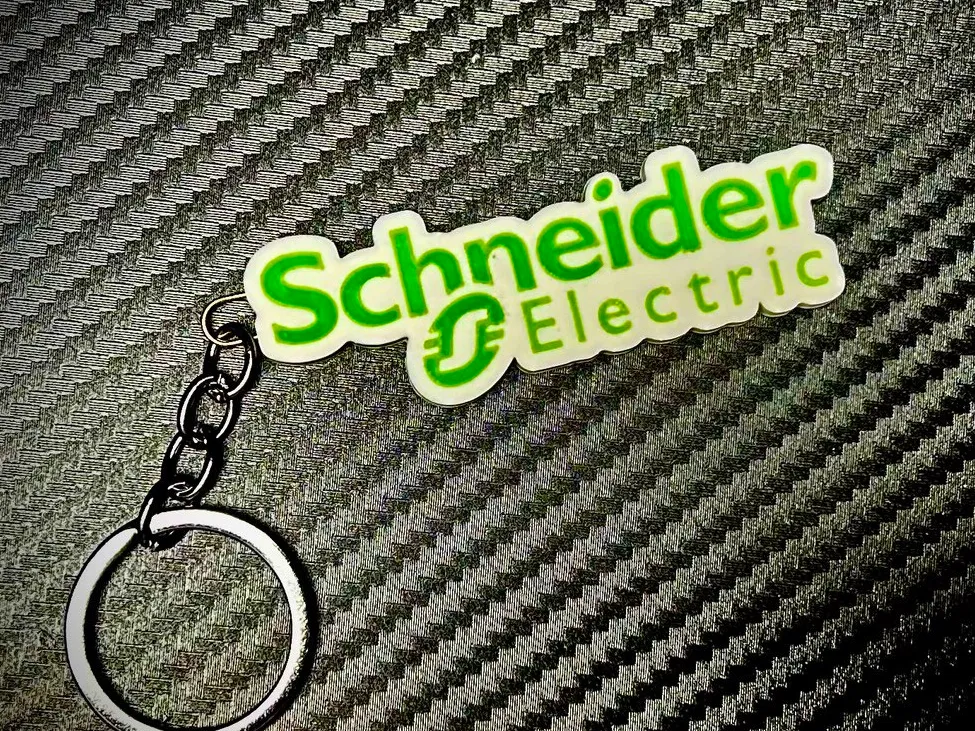

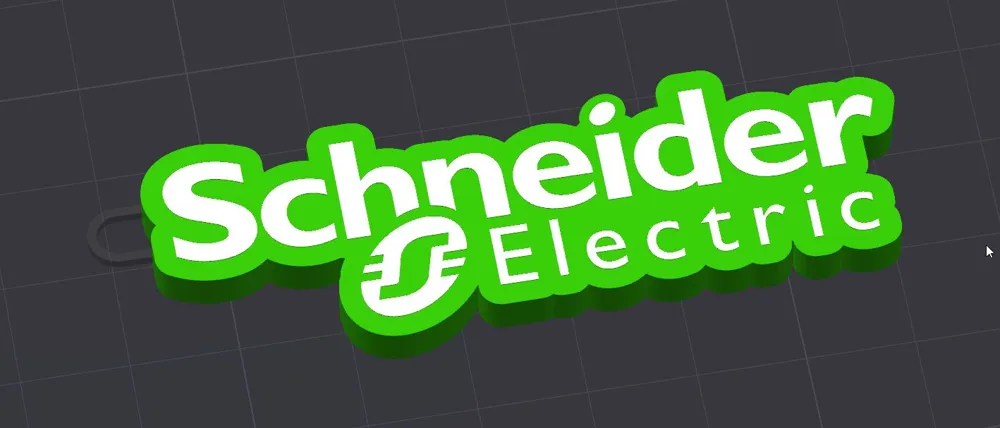

· Only the logo (green letters) one face
· The logo and ON at back

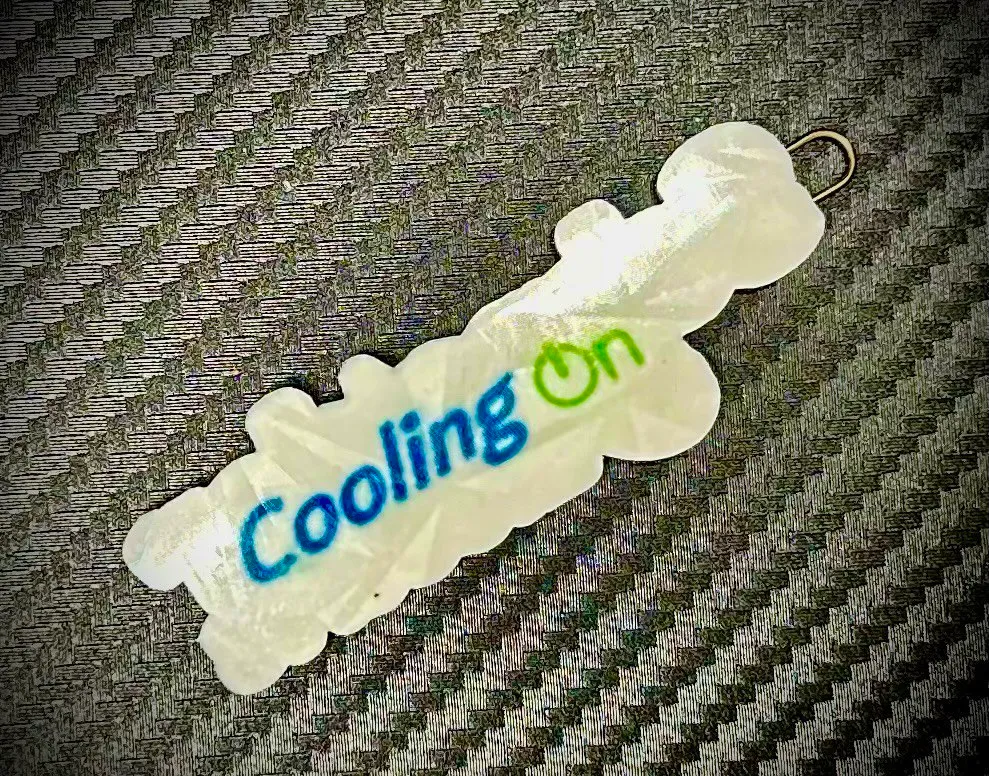

· Logo and Cooling at back

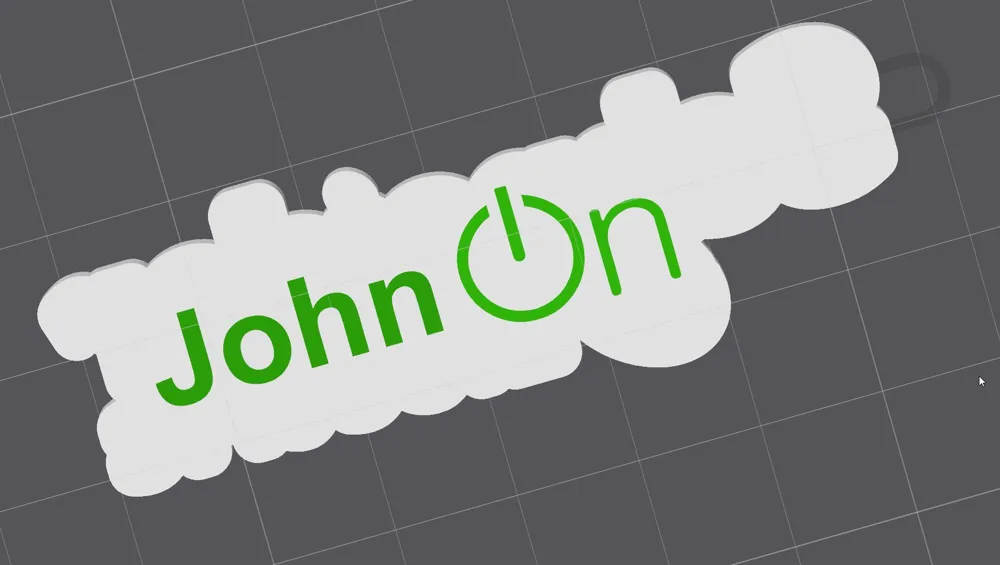

· Logo and PERSONALIZE yourself with the name, kind of tool, key text.
I hope you like it and it can be useful for you
Boost Me (for free)
I only create things for passion and needings. I´ll be very grateful if you want to make me happier with a boost. Thanks!

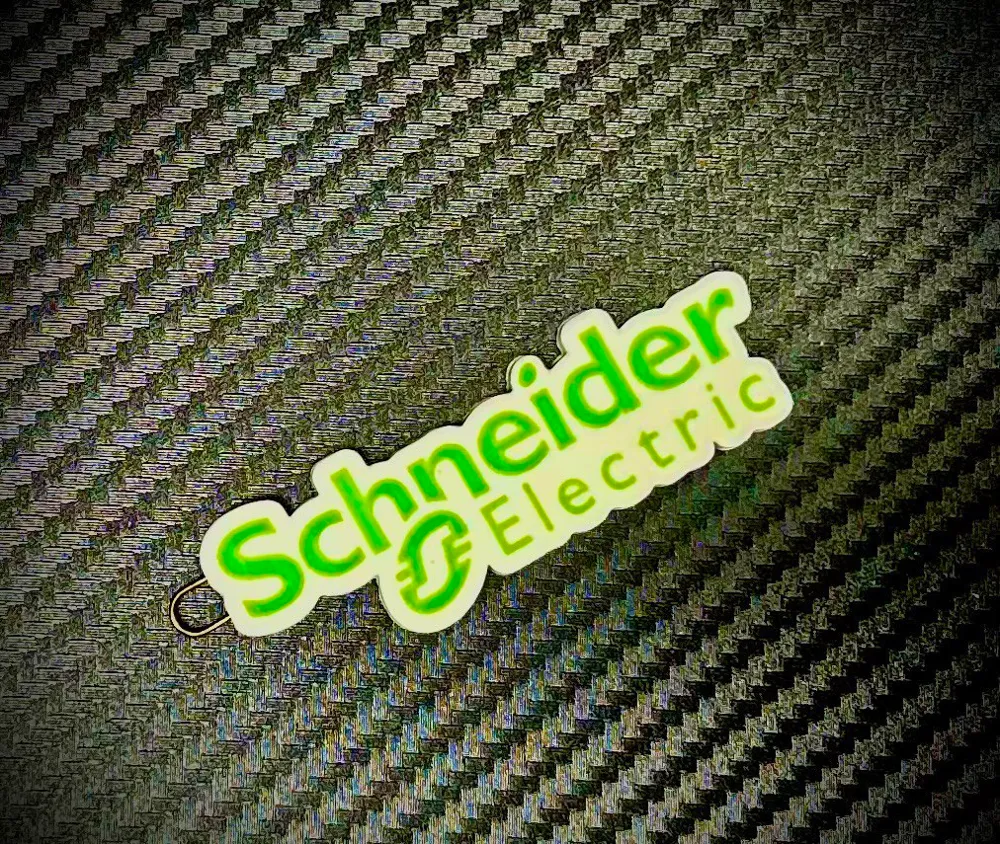

It have a strong attachment made with a paper clip to hang it with chains, strings, zips….
It is easy to print and with a great result.
The idea of clip hanger has been taken from https://makerworld.com/es/models/930320#profileId-894120 I recommend to visit it and give thanks for the fantastic idea.
YOU WILL NEED A 25mm PAPER CLIP.
ALL THE SETTINGS (the gape and the pause) HAS BEEN INCLUDED JUST TO PRINT , You don`t need to modify anything, only cut and insert the clip when the pause is active.

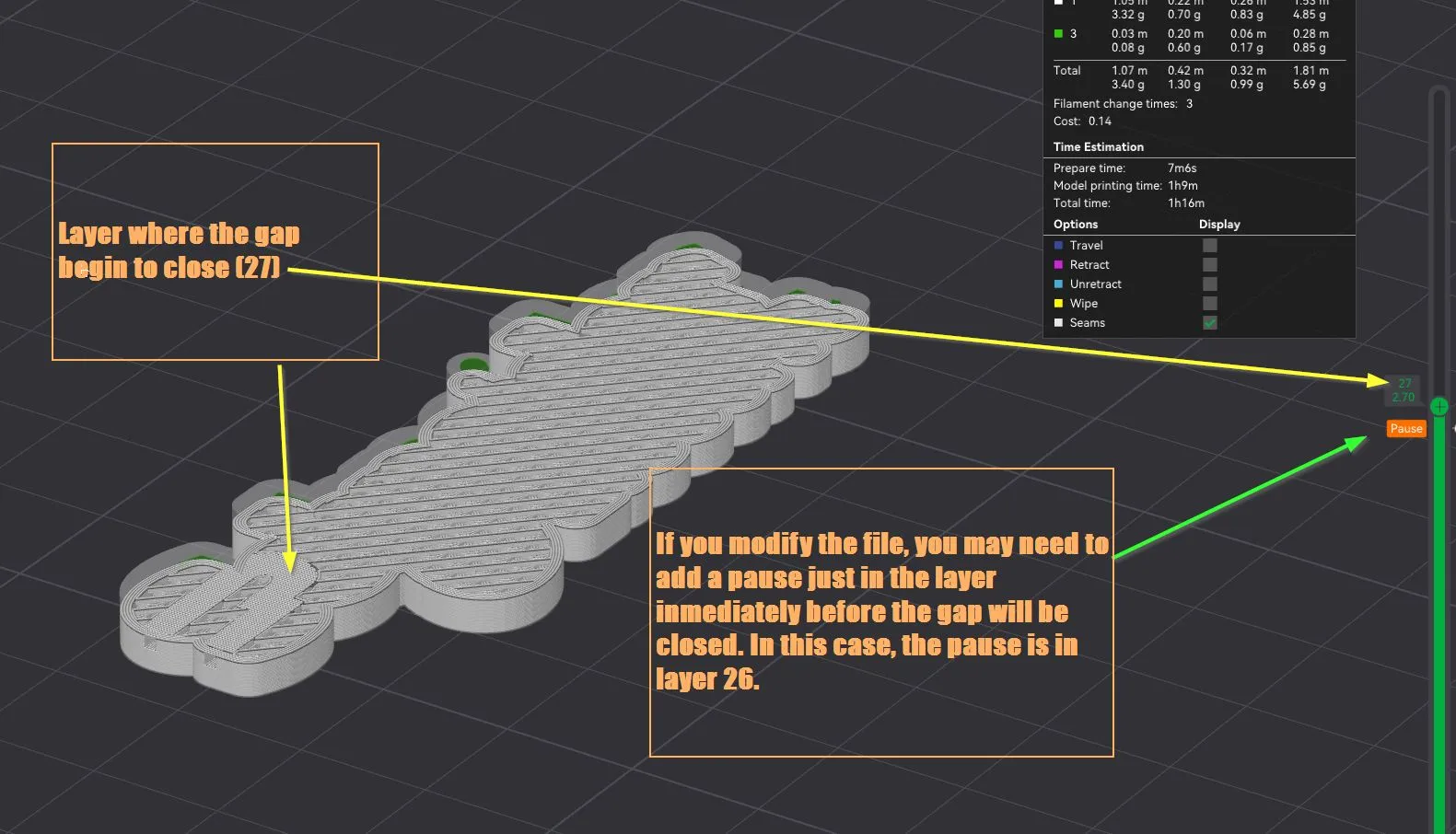

- A gap with the shape of a clip is created between layers
- A pause is added just in the last layer before the clip gap begin to be covered.

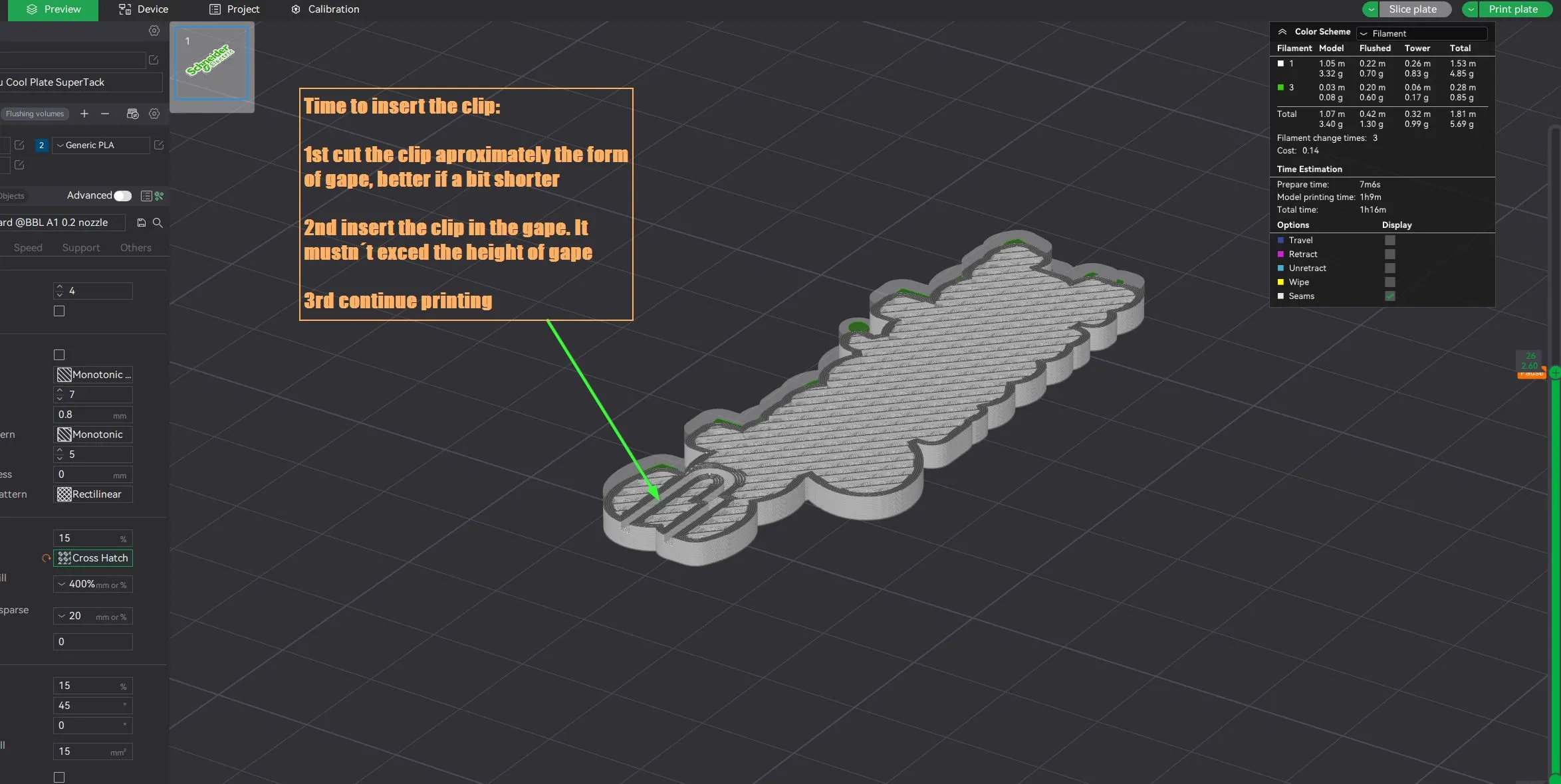

- Whent the printing reach the pause, you need to cut the clip with shape like the gap and insert it.
- You need to make sure the clip is well installed without it rises over the layer
- If you modify the file, you probably need to add a pause or modify the position, please check it.
Feel free to ask any question you have.
