A1/A1 mini Ultralight Thin Waste Shield Heat-Resistant, Non-Stick, Shock-Absorbent Waste Guide Plate

This baffle, compatible with the A1/A1 mini, might be an essential accessory for new machines, ensuring filament falls precisely and vertically into the waste bin.

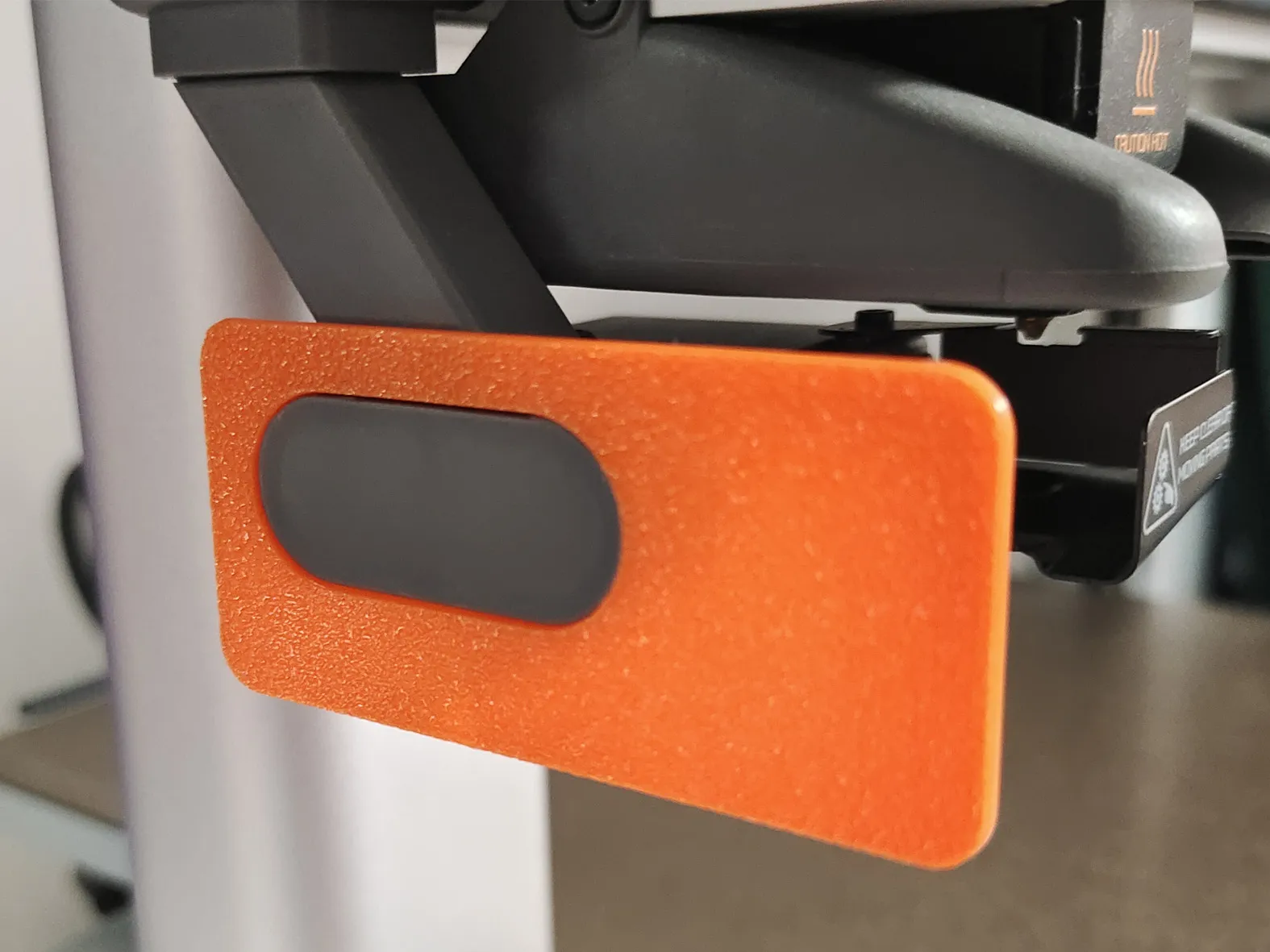

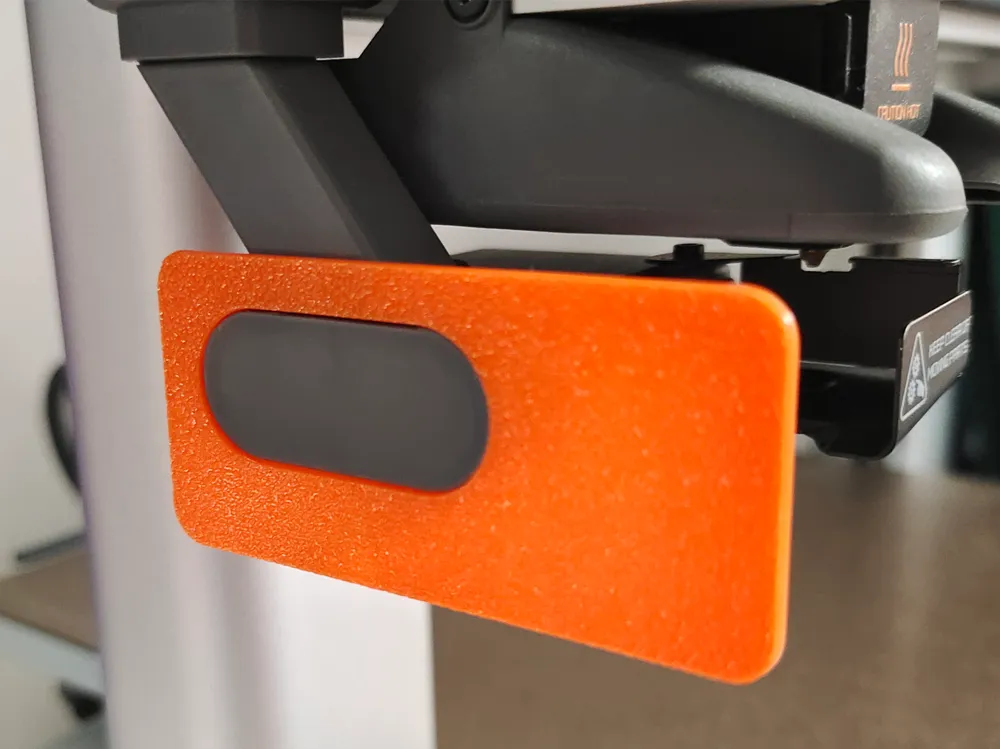

Its sleek form adheres to Bambu Lab's design language, seamlessly integrating with the overall aesthetic when using PETG HF-33103 or PLA Basic-10105.

Raising the top edge mitigates the rare possibility of filament escaping.

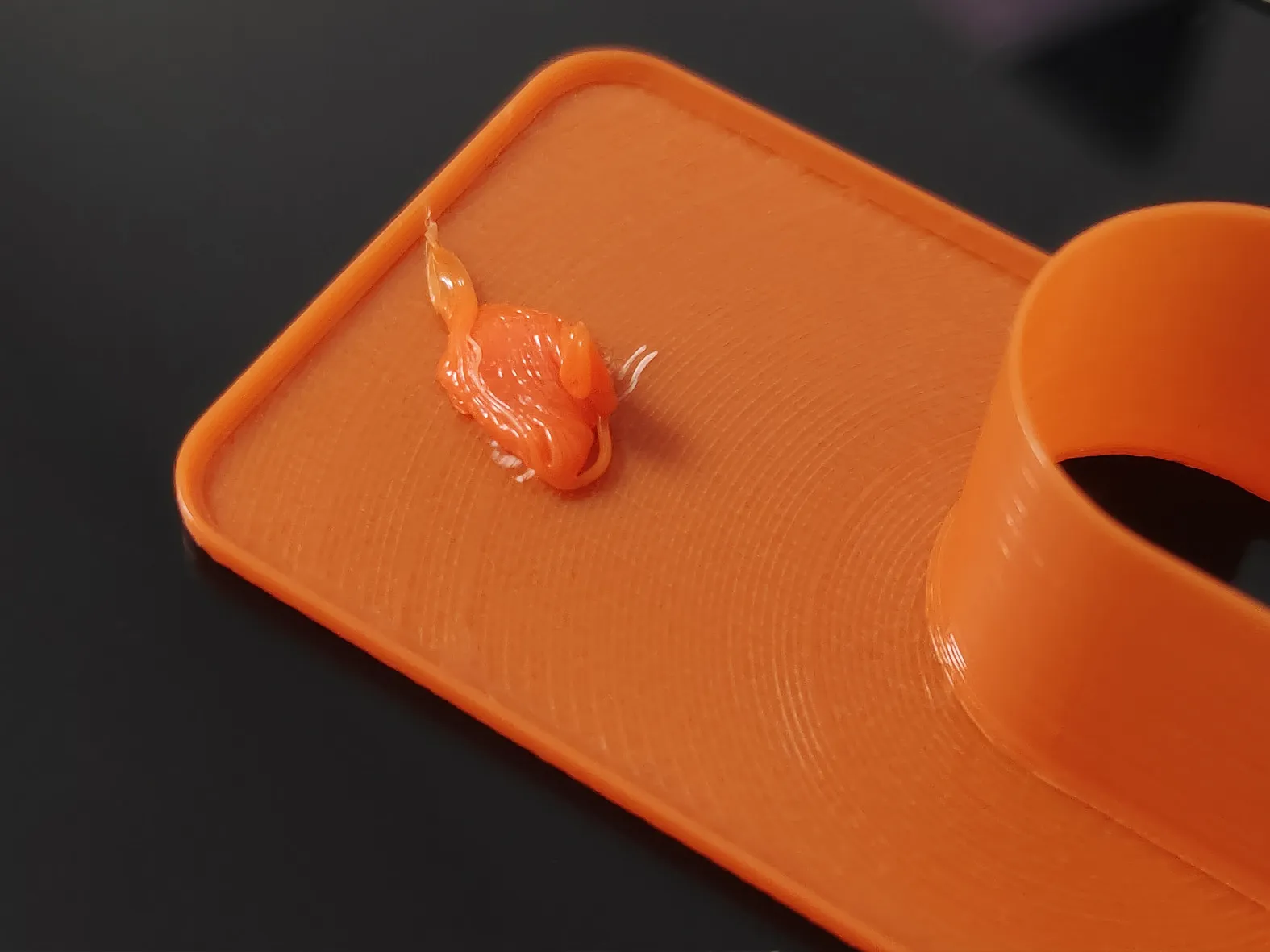

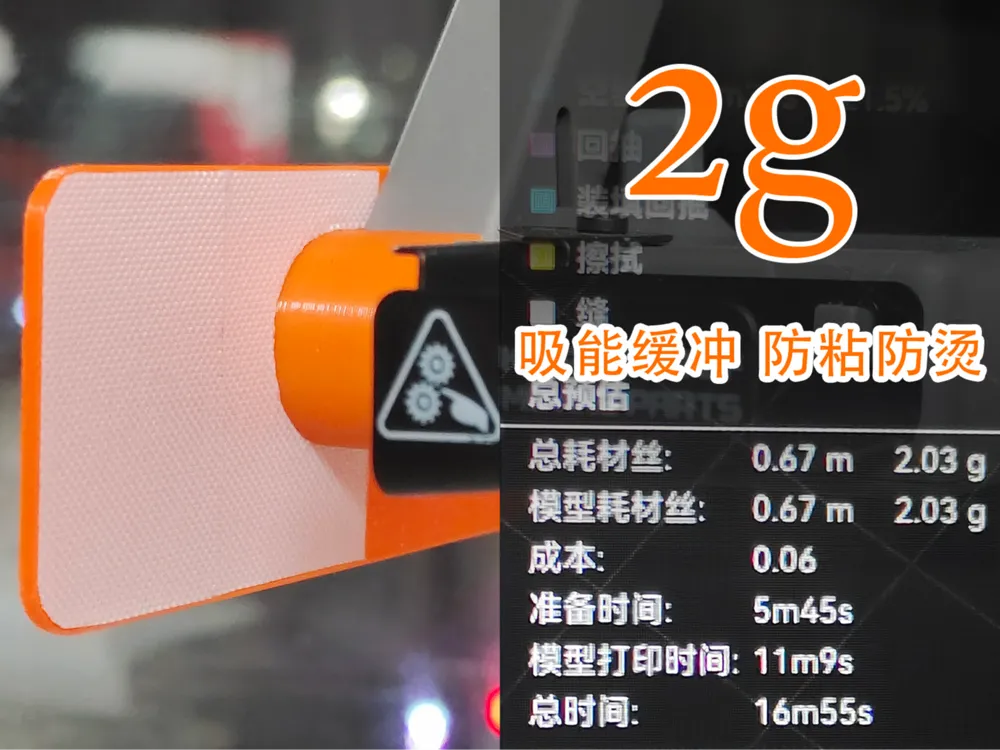

Some filament can reach high temperatures, readily adhering to the baffle.

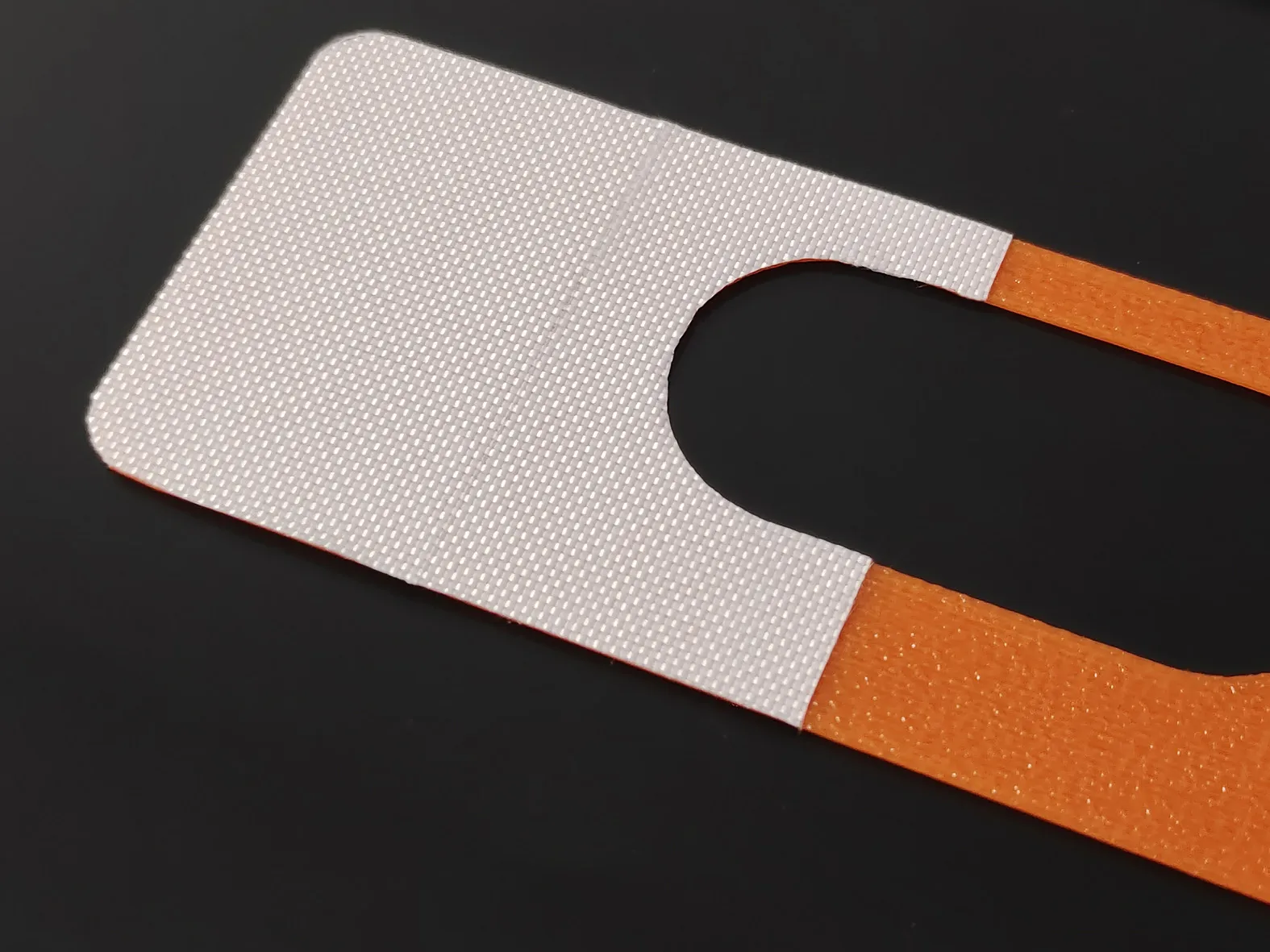

Teflon heat-resistant tape effectively addresses adhesion and deformation. Two types exist—the textured tape I used and a film tape; both boast smooth, heat-resistant surfaces, achieving identical results. My film tape is currently unavailable; I'll locate it later, as its dark grey hue is preferable.

After application, trim excess tape with a craft knife before assembly.

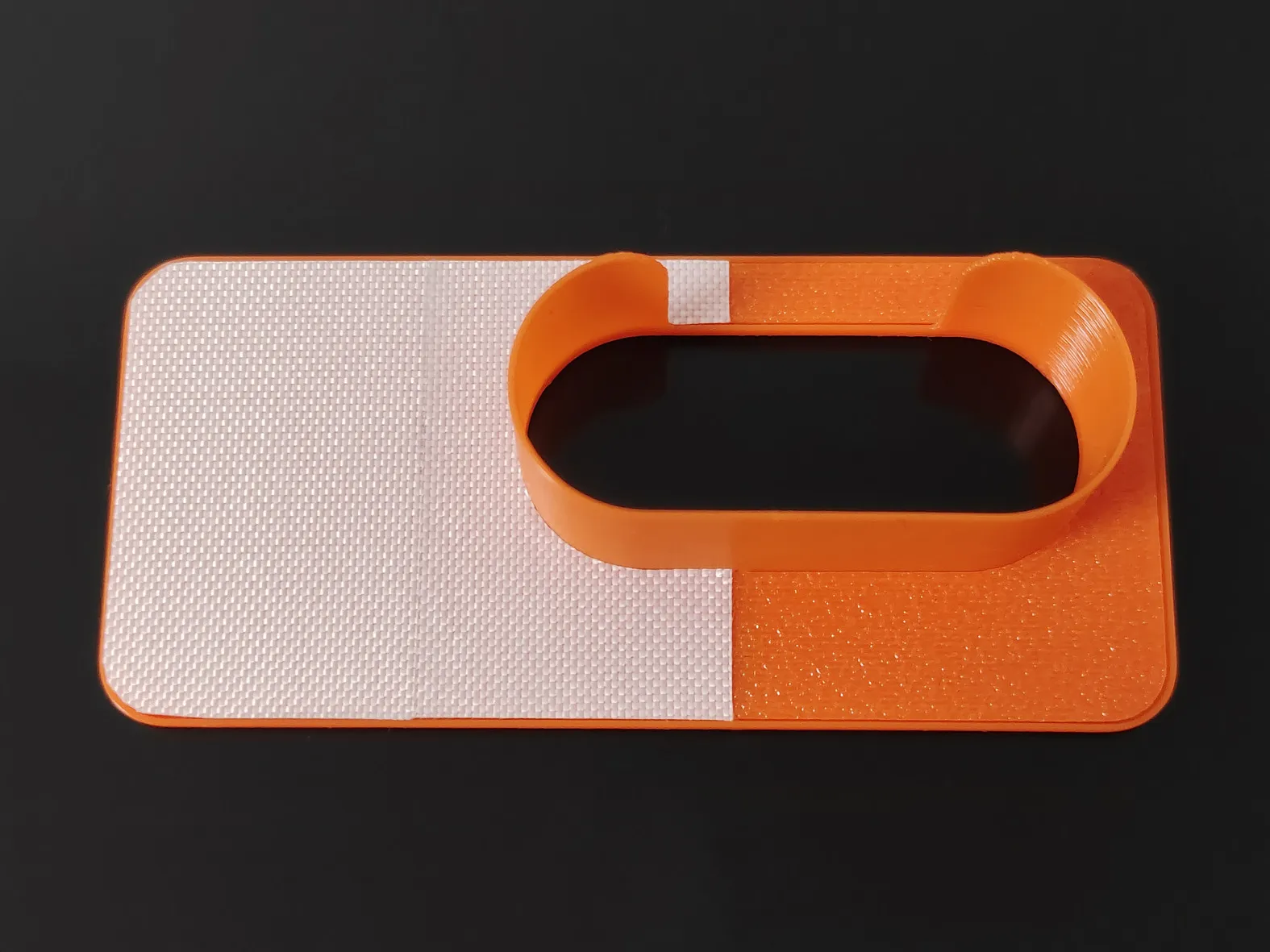

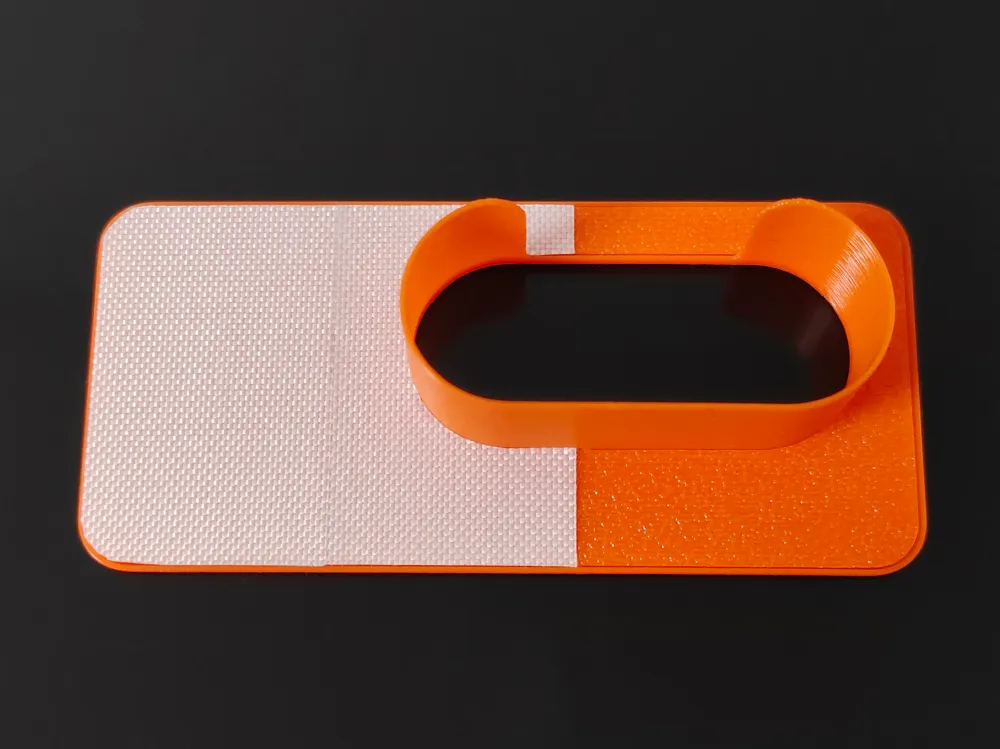

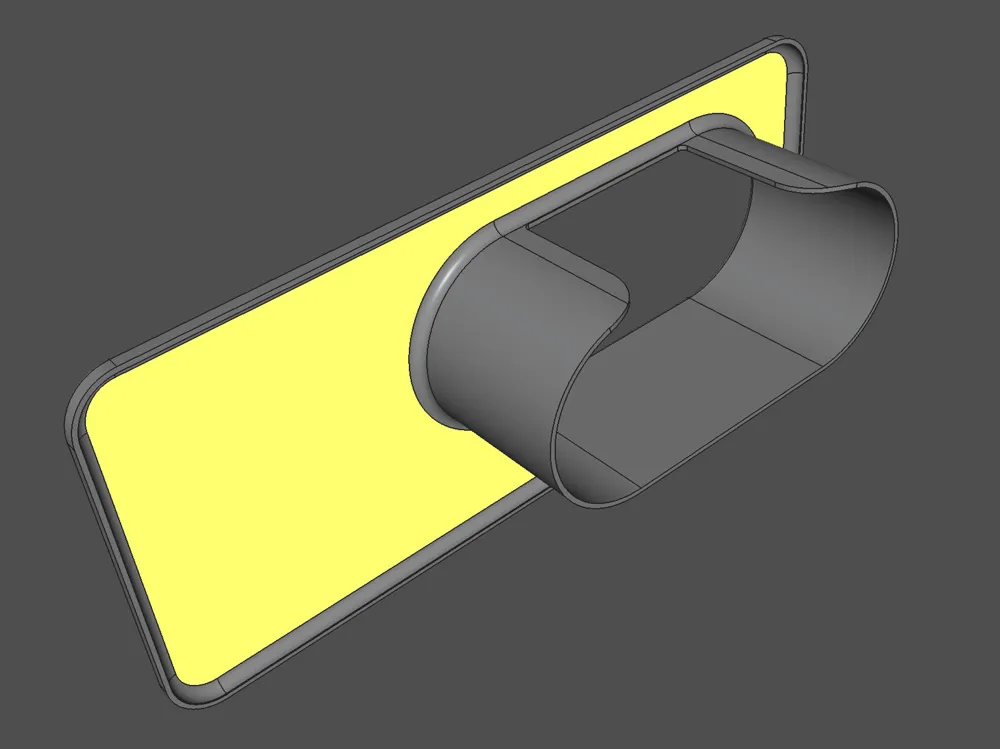

This design's modularity facilitates easy tape application and convenient trimming.

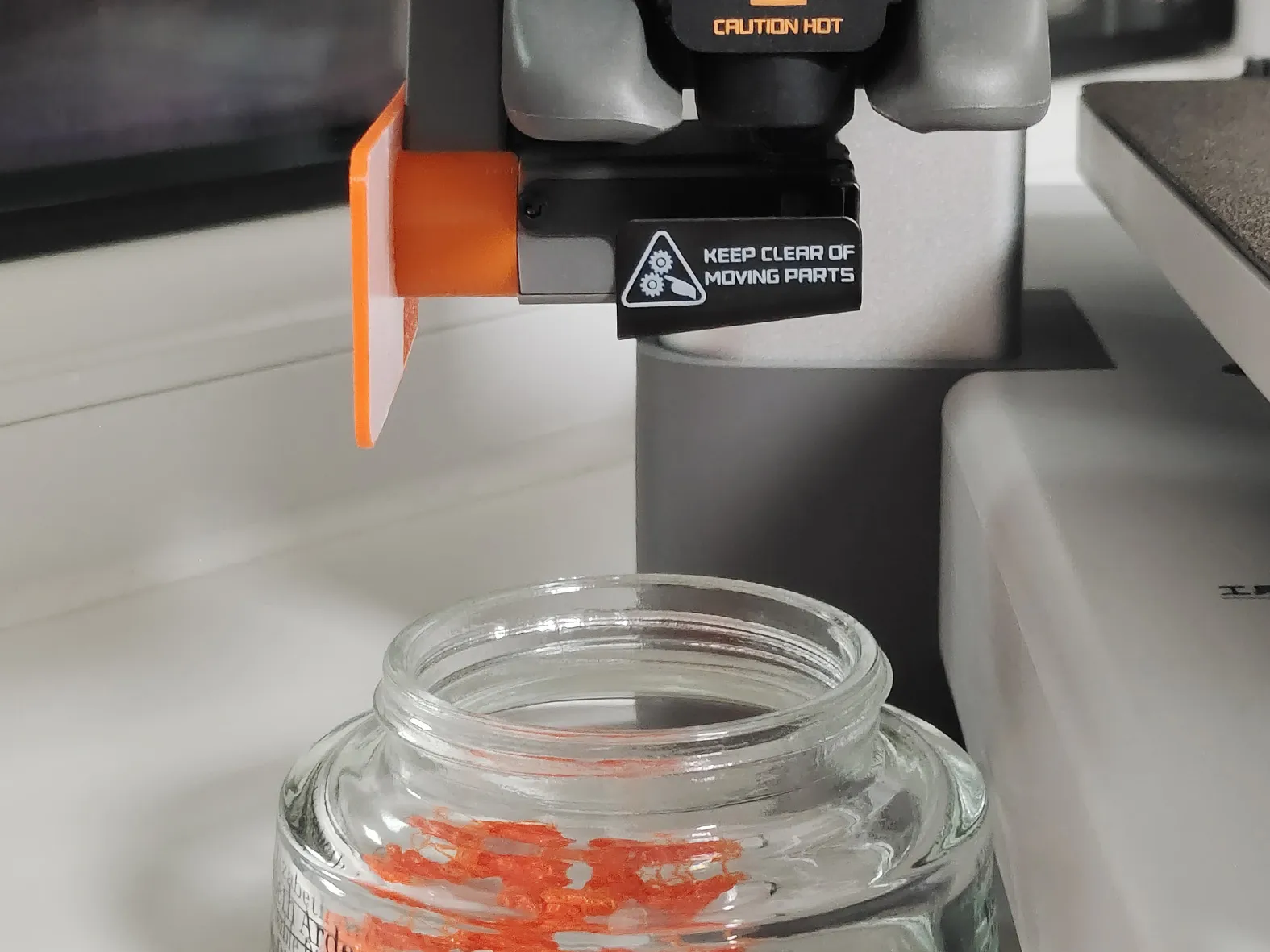

Furthermore, its ultra-thin, hollow structure absorbs filament impact, ensuring accurate deposition into the waste receptacle. A comparison of filament landing on a tabletop versus this baffle reveals minimal rebound on the baffle.

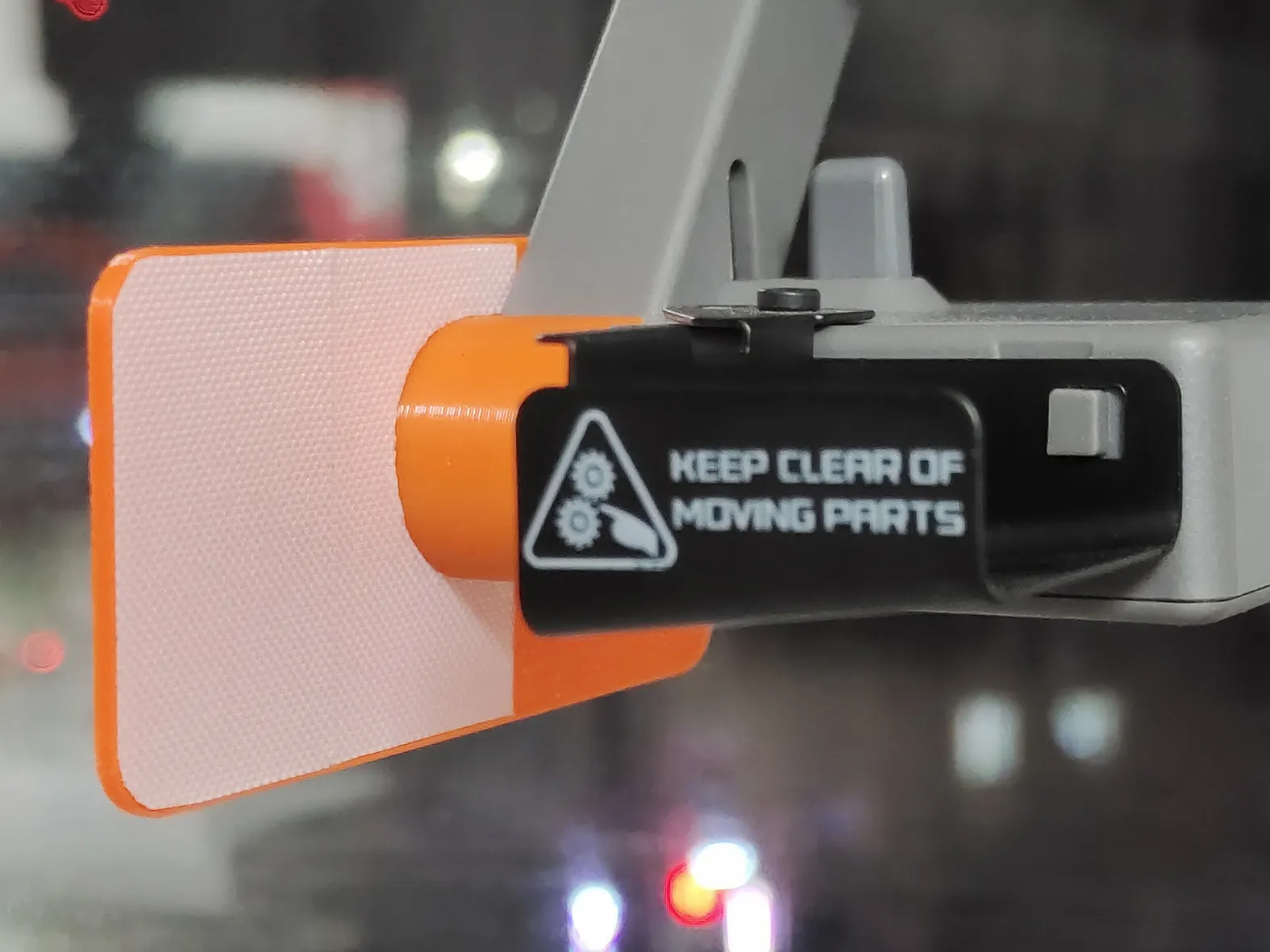

The two-part baffle requires no double-sided adhesive, resulting in a seamless fit and a visually less slender assembly.

I'm also designing a waste bin; I'm still researching anti-vibration feet. A simple waste bin risks collision with the printer due to the anti-vibration feet's operation.

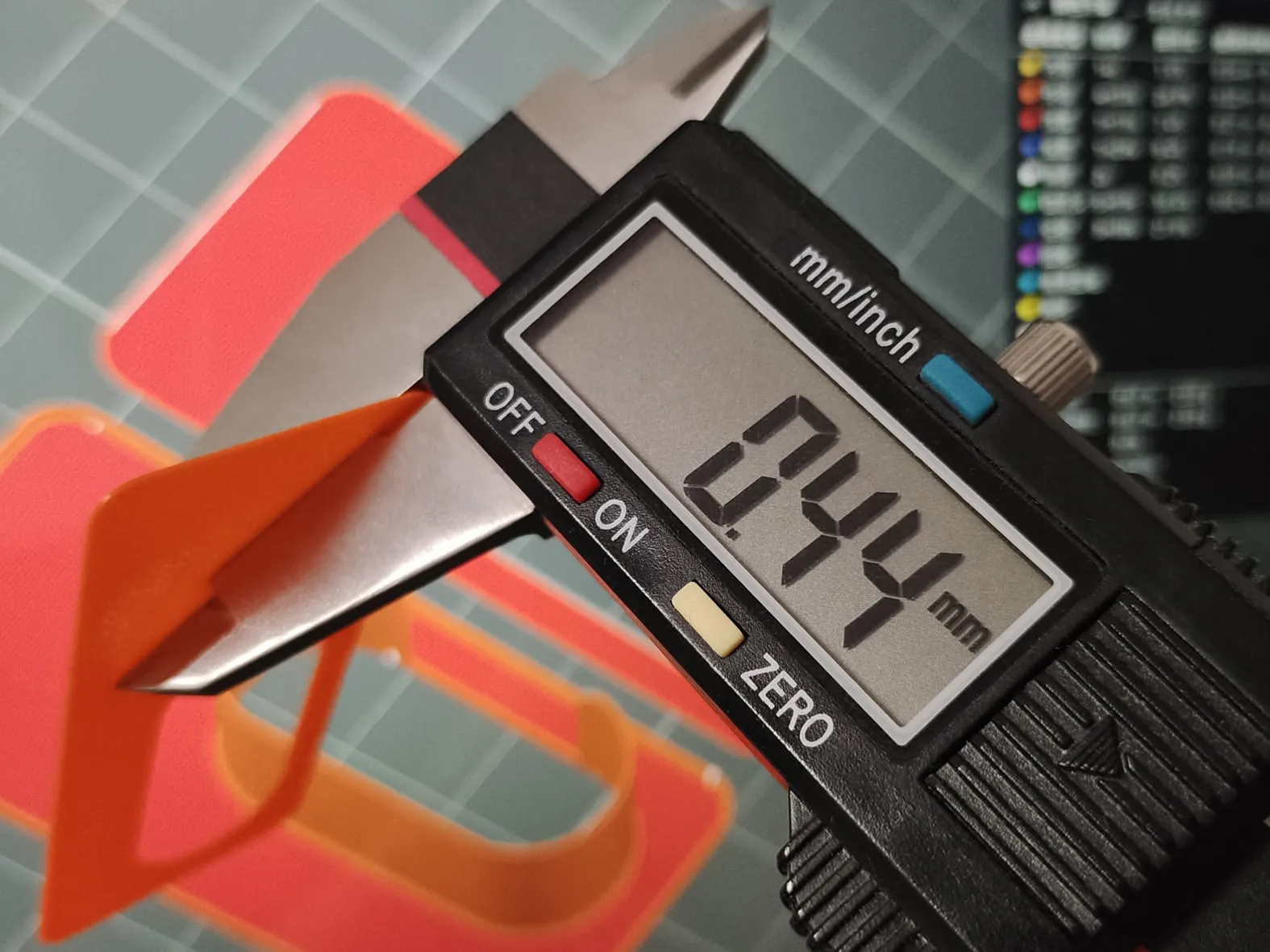

Testing the A1's capabilities, 0.44mm print quality remains satisfactory.

Note!

I used the official complimentary PLA Tough filament. Adjust parameters as needed for different filaments.

Crucial settings include:

Inner and outer wall widths and the Arachne wall generator.
