Modular Platform for Märklin C-Track

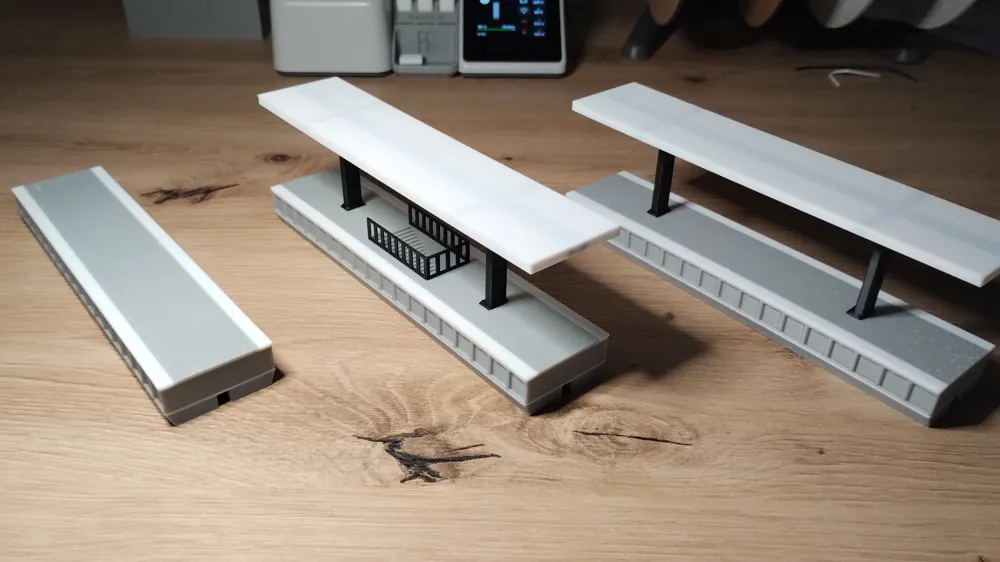

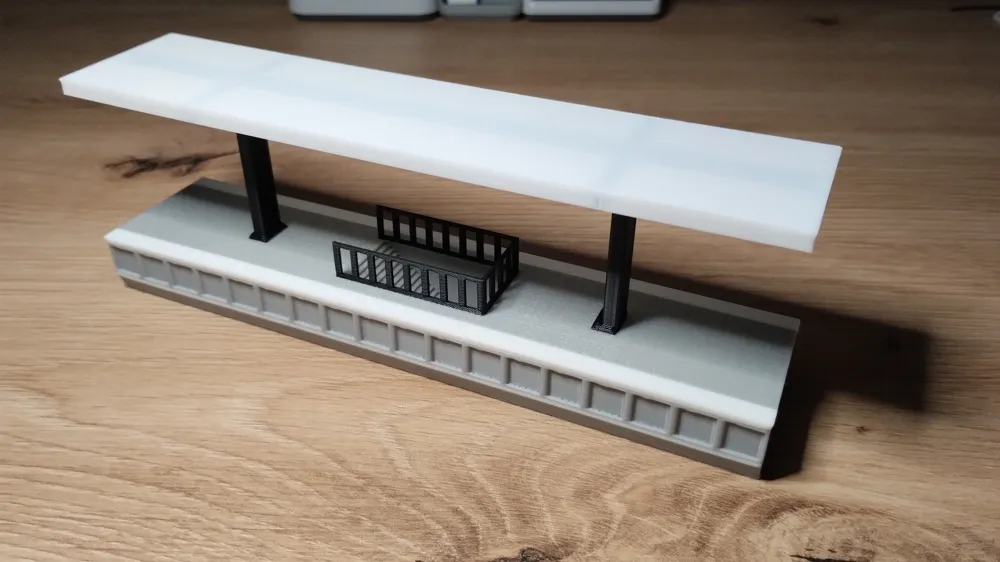

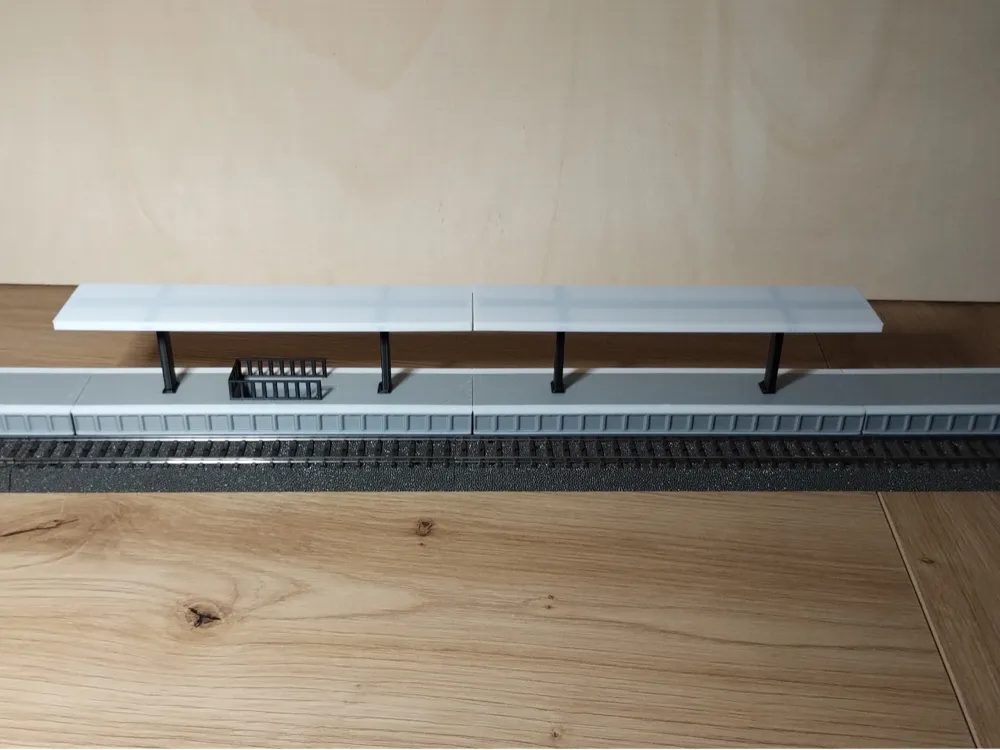

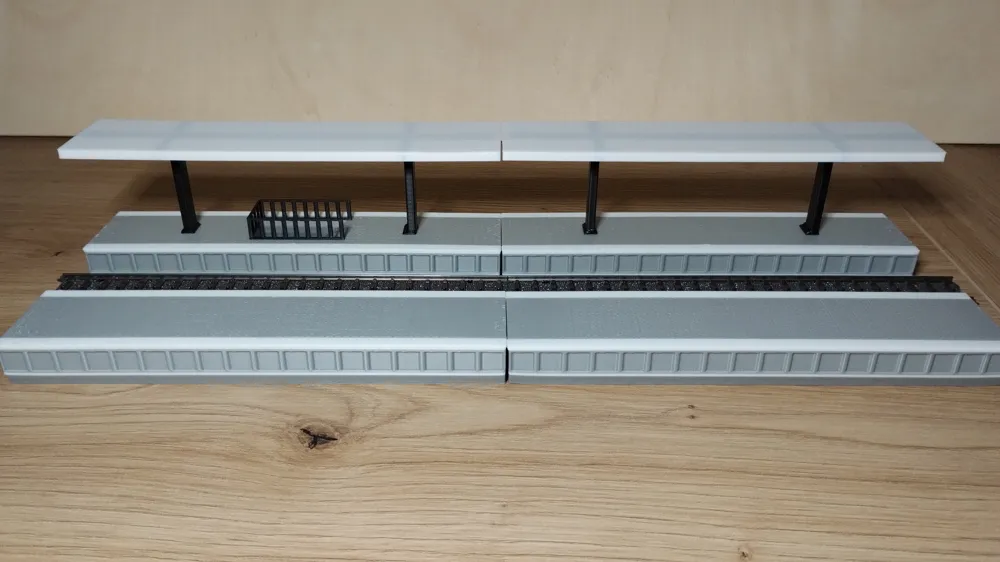

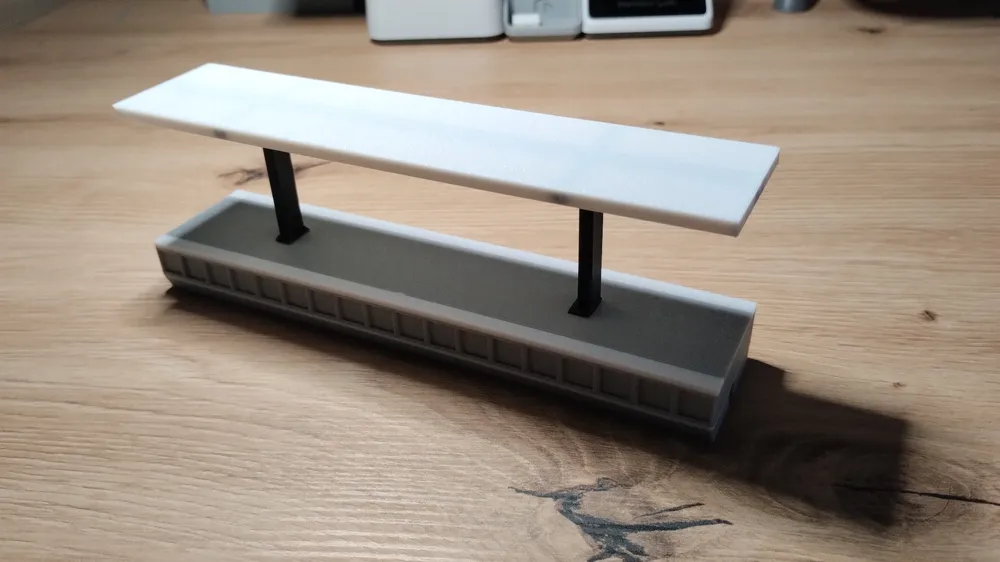

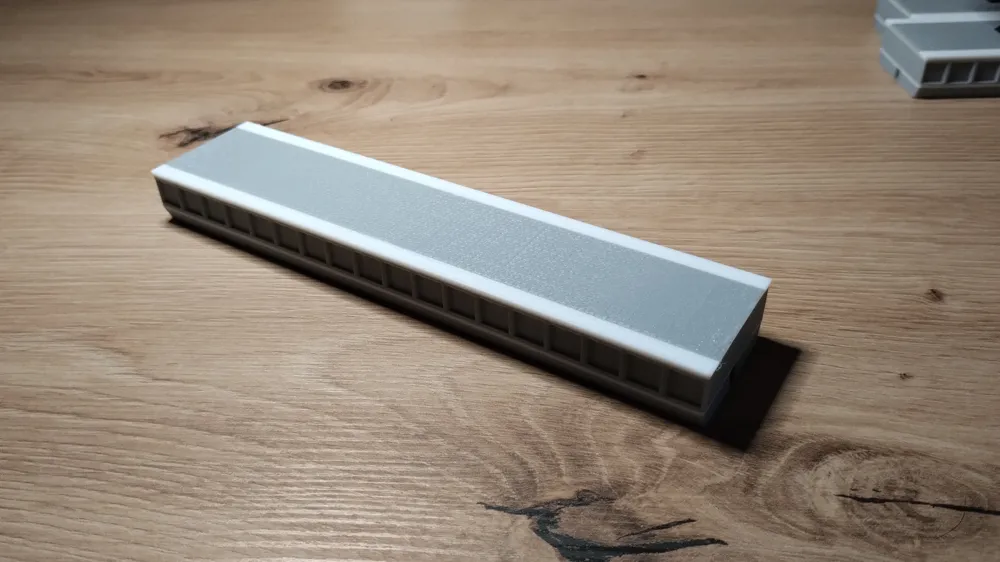

Comprising various combinable base modules and diverse, partly pluggable, additional modules or parts

Version 1:

Module Dimensions: Length 180mm, Width 36/40mm. Platform Height 18mm, Roof Height above Platform 40mm

Version 2:

Module Dimensions: Length 180mm, Width 36/40mm. Platform Height 19mm, Roof Height above Platform 40mm

Modified Platform Height 19mm

Modified Connecting Clips

Version 3.1:

Module construction completely revised to save printing time, material, and filament changes

Tests with various locomotives and carriages revealed problems with high platforms, necessitating a revision of the platform modules

Revised modules with a low 14mm platform height

New rounded modules with a low 14mm platform height suitable for Märklin C-Track points

Revised modules with a high 19mm platform height

Revised connecting clips

Tip: Depending on the print, the connecting clips may fit very tightly; post-processing with a nail file or the use of pliers is recommended

Here is a diorama on which my previous projects can be seen together:

And here are the individual projects:

• https://makerworld.com/en/models/1091211
• https://makerworld.com/en/models/1167218
• https://makerworld.com/en/models/1283854
• https://makerworld.com/en/models/2504218

Have fun with it.

Notes:

• Some of the test prints shown in my photos have had their designs changed during development.
