YAMAHA Oil Funnel - Widemouth
Print Profile(1)
Bill of Materials
Description
This is an old design, new version available here → Yamaha Oil Funnel
Boost Me (for free)
Support more cool designs!
Fitment: YZF-R1, R6, R7, R3, MT-07, MT-10, MT-03, FZ1, FZ6, FZ8, FZ750, Tenere 700, Super Tenere, Tracer 7, XSR700, V-Star 650/950/1300, Virago 535/750/1100, Bolt/XV950, Stryker, XJ600, XJR1300, XS650, and more.
Does NOT fit: Triples (MT-09, XSR900, FZ-09, Tracer 9, R9, Niken) or YZ/WR dirt bikes. Use this funnel: Yamaha Oil Funnel Model C
Find more brands and models here: complete funnel set for all makes and models available

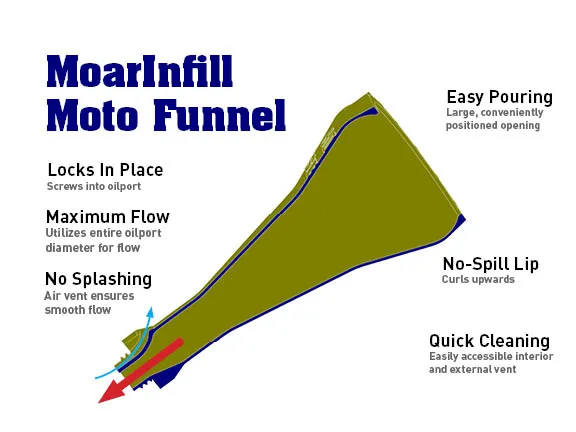

The MoarInfill Moto Funnel is a must-have accessory for those who prefer a hassle-free and smooth oil service experience!
Print guidelines:
- PETG or other higher temperature material
- 0.4mm nozzle
- 0.2mm layers for the main body, 0.1mm layers for the threads
- Slow down for threads
- 3 wall loops
- Arachne (This ensures fast printing and structural integrity for the main body)
- 20%+ infill
- No support
