【Music Box】Pokemon Luvdisc, magnetic kissing Luvdisc, Valentine's Day gift, no AMS required

In the Pokemon world, **it is said that couples who encounter Luvdisc will be together forever, and in some places, there is a custom of conveying affection to loved ones through Luvdisc** Therefore, I designed this music box which plays music when two Luvdisc kiss Of course, you can also import audio files and let the Luvdisc convey your feelings to the other person (However, I hope you have also prepared other gifts...)

Dimensions 12.3*12.6*4cm

The music box requires an additional magnetic control music module:

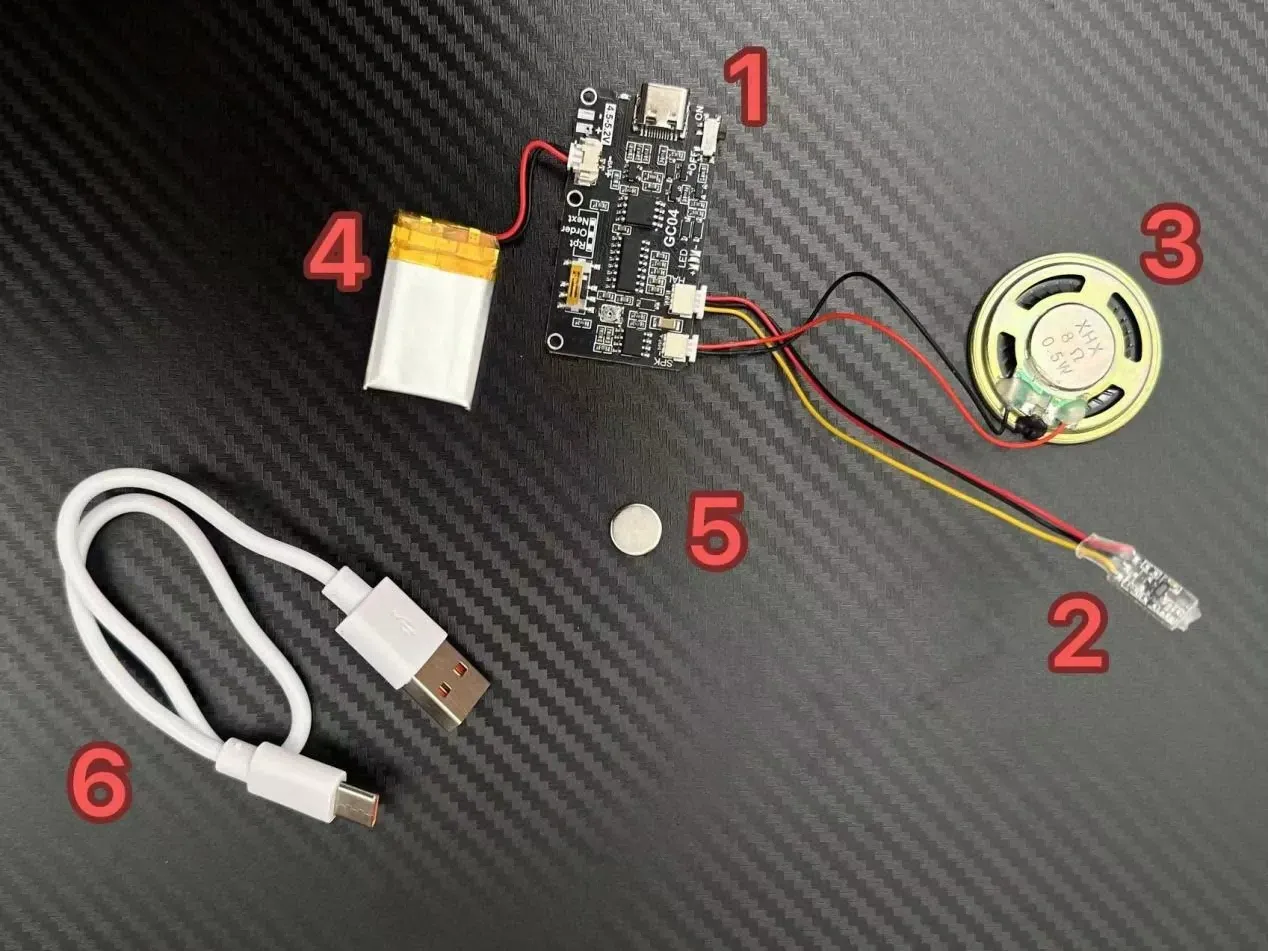

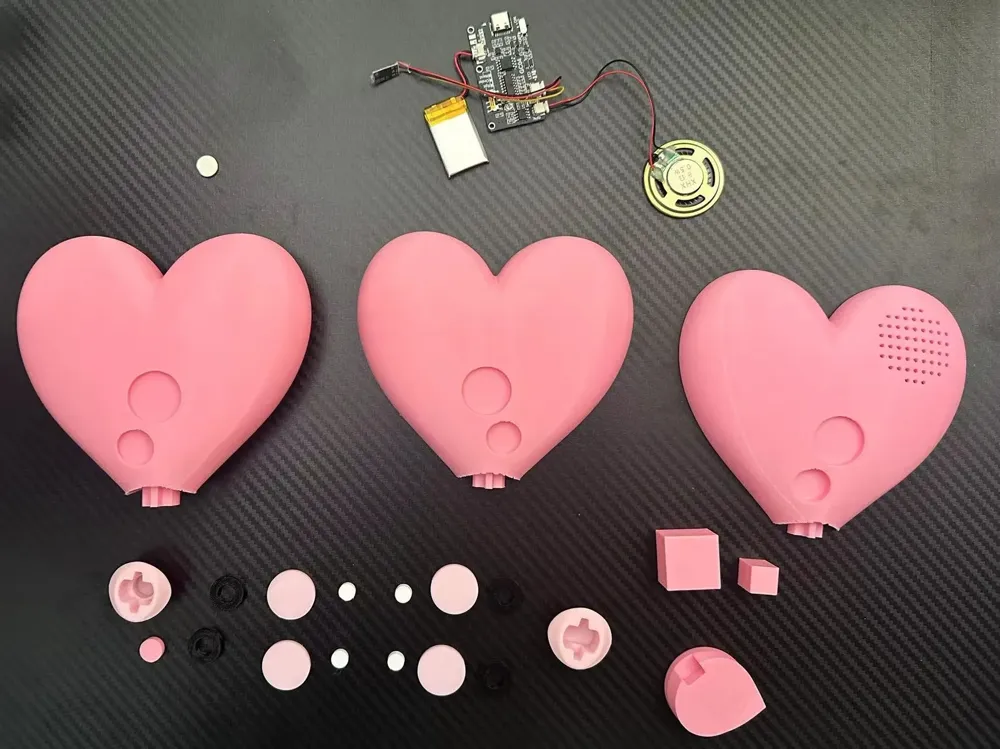

It needs to include 1-circuit board, 2-magnetic switch, 3-speaker, 4-battery, 5-magnet, 6-Type-C data cable

This is the link where I purchased the magnetic control music module, the 'Magnetic Control Version: Play upon proximity + 8M memory + universal version (with battery)' model, which can import audio and music files up to 8MB, for 18.5 RMB:

https://item.taobao.com/item.htm?id=834237035407

**If you cannot purchase the accessories through this link in your region, you can leave me a message with the dimensions of your magnetic control voice module, and I will make the corresponding modifications Please be sure to buy the 'play upon magnetic proximity' version**

The magnet I used came with the magnetic control music module, with a diameter of 10mm and a thickness of 1.5mm

I designed two versions, namely 'Luvdisc Music Box' and 'Magnetic Kissing Luvdisc'

Print profile 1 is the 'Luvdisc Music Box' (requires an additional magnetic control music module)

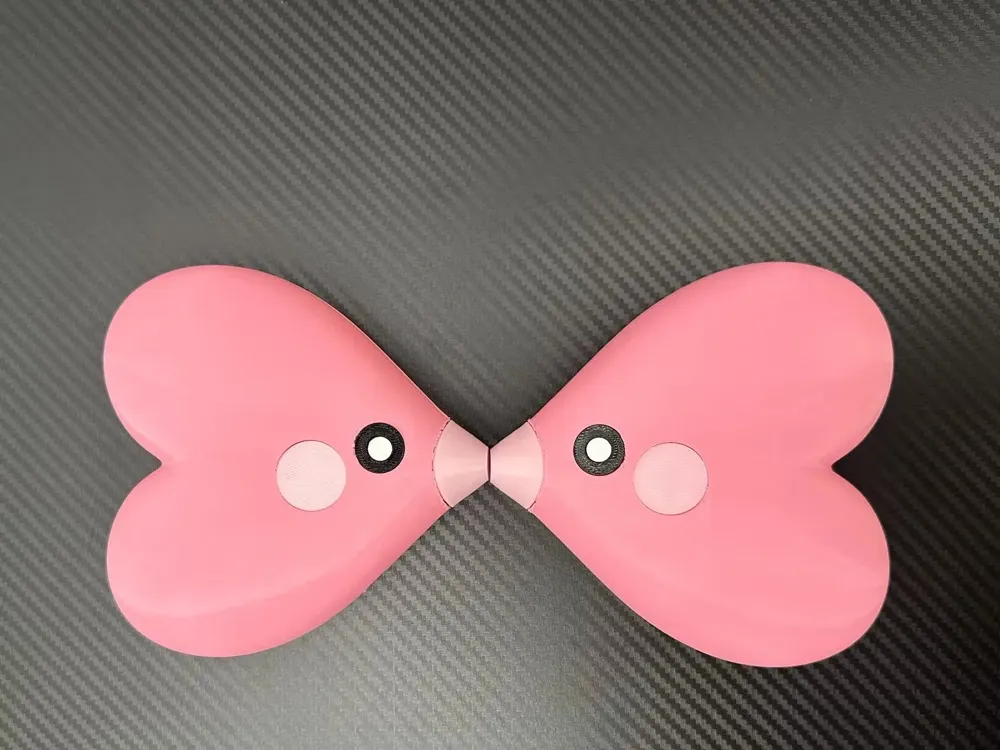

Print profile 2 is the 'Magnetic Kissing Luvdisc' (only requires magnets) The purpose of the magnets is to allow the two Luvdisc to kiss automatically when they get close The magnet size should have a diameter less than or equal to 10mm and a thickness less than or equal to 4mm Without magnets, it can also be used as an ornament

**Installation Instructions:**

The eyes and the light pink circles on the face may require glue, other structures do not

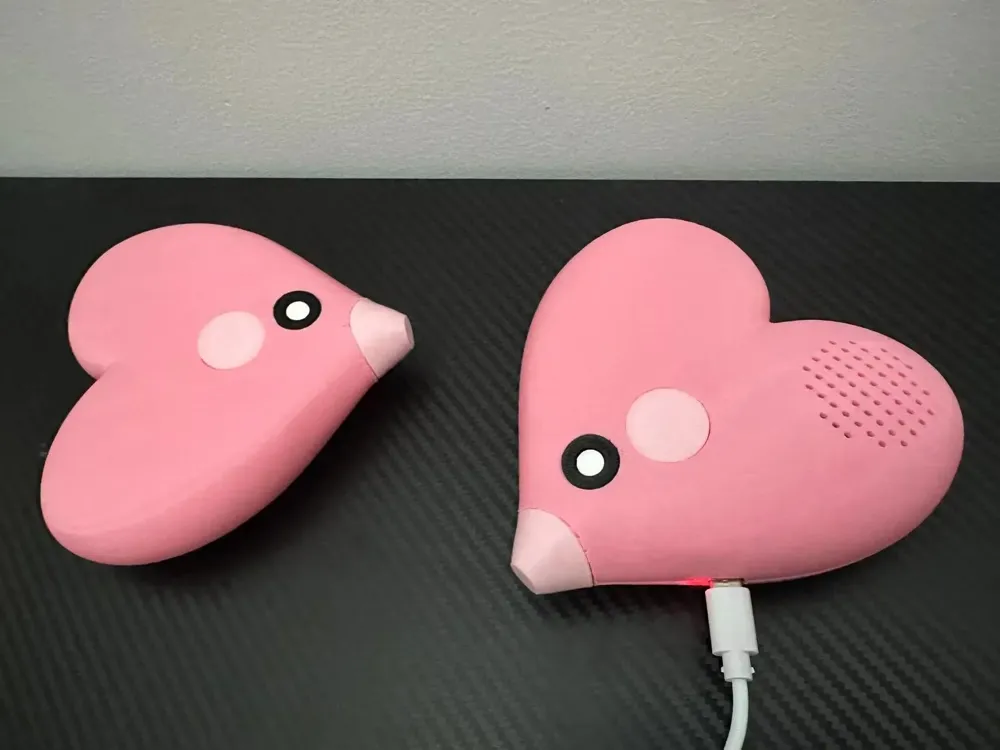

For the 'Luvdisc Music Box', you need to print two Luvdisc, and these two Luvdisc are different, one is for installing the magnetic control voice module, and the other is for installing the magnet

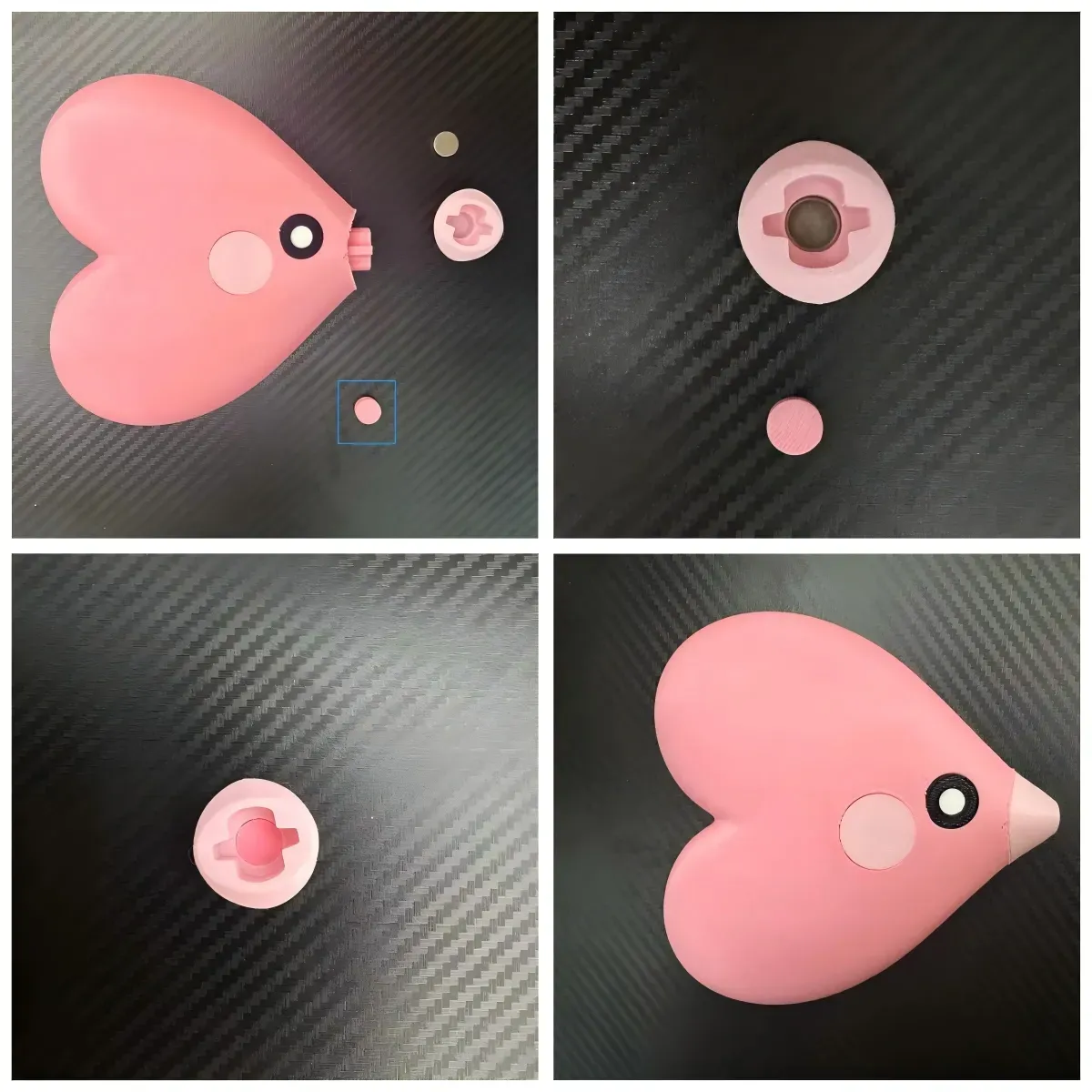

**Luvdisc with magnet installed:** Figure 1 shows all the accessories for the magnet-equipped Luvdisc The cylinder within the blue frame is designed to hold the magnet in the mouth

**Luvdisc with magnetic control music module installed**: Figure 1 shows all the accessories Special attention: **1. The wire of the magnetic switch needs to pass through the middle position between the two sockets (as indicated by the arrow in Figure 4).** 2. When installing the mouth, it will be easier to place the magnetic switch into the mouth first before snapping the mouth into place

**Stand Instructions:**

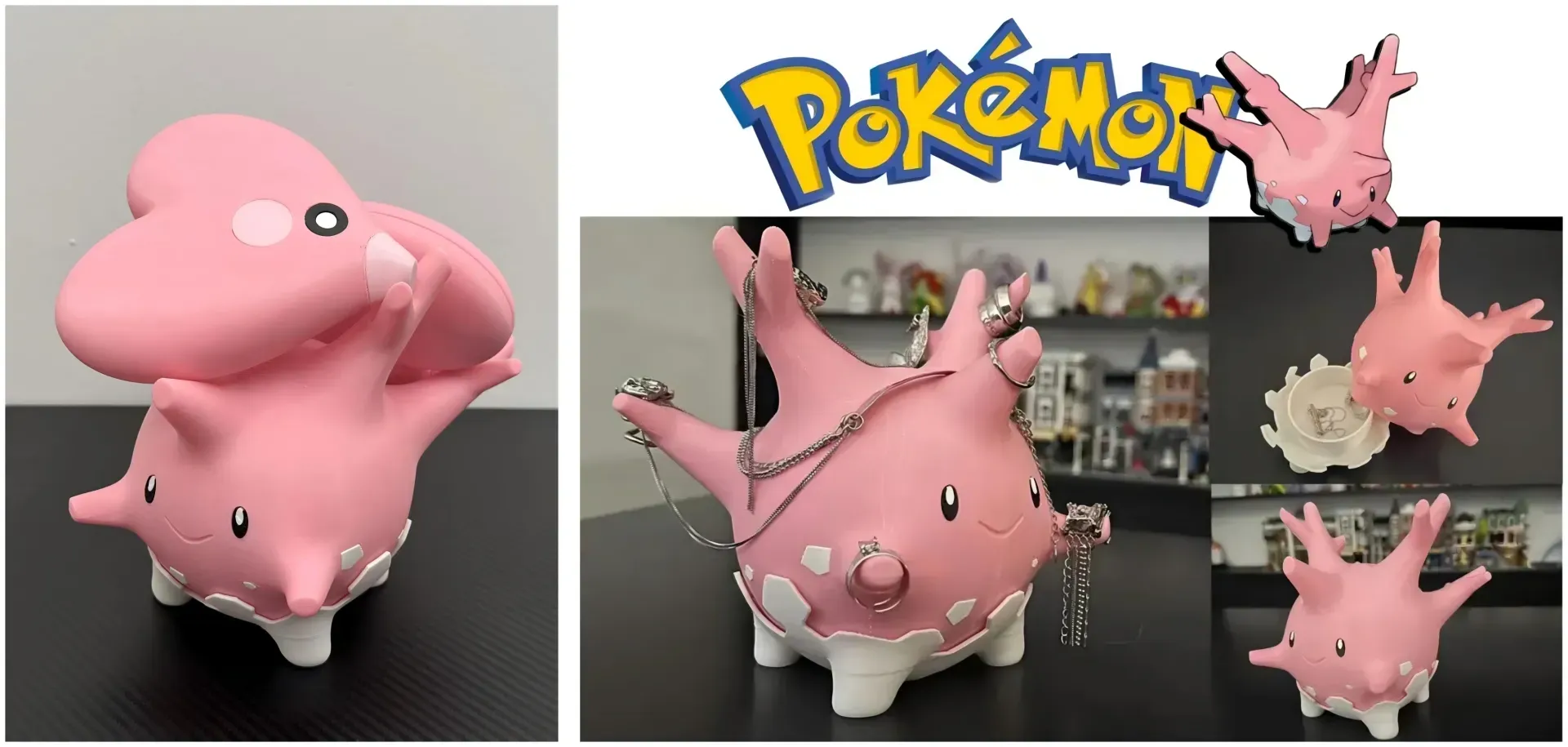

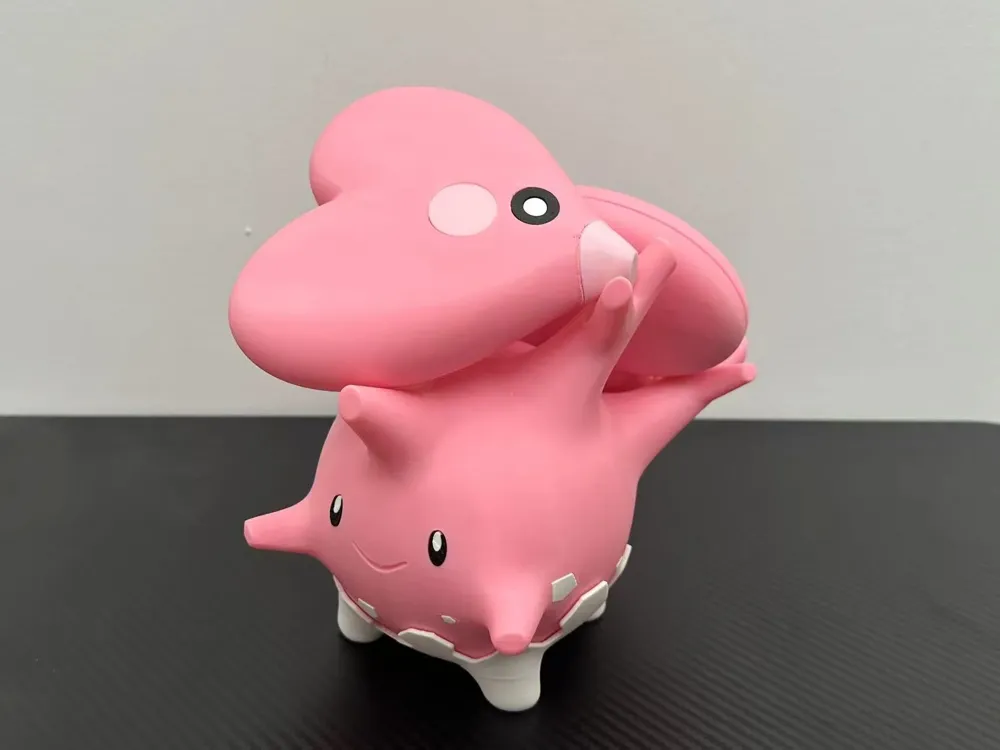

The Corsola I previously made can be used as a stand for Luvdisc, without needing to modify the size, and can hold two Luvdisc

You can download it by visiting my homepage The image on the right is the cover of Corsola

**According to Pokemon Pokedex information, Luvdisc uses Corsola's coral branches as a habitat and particularly likes to sleep among Corsola's branches**

If your Valentine's Day gift is not too big, you can place it inside Corsola, and give Corsola along with the two Luvdisc as a gift!

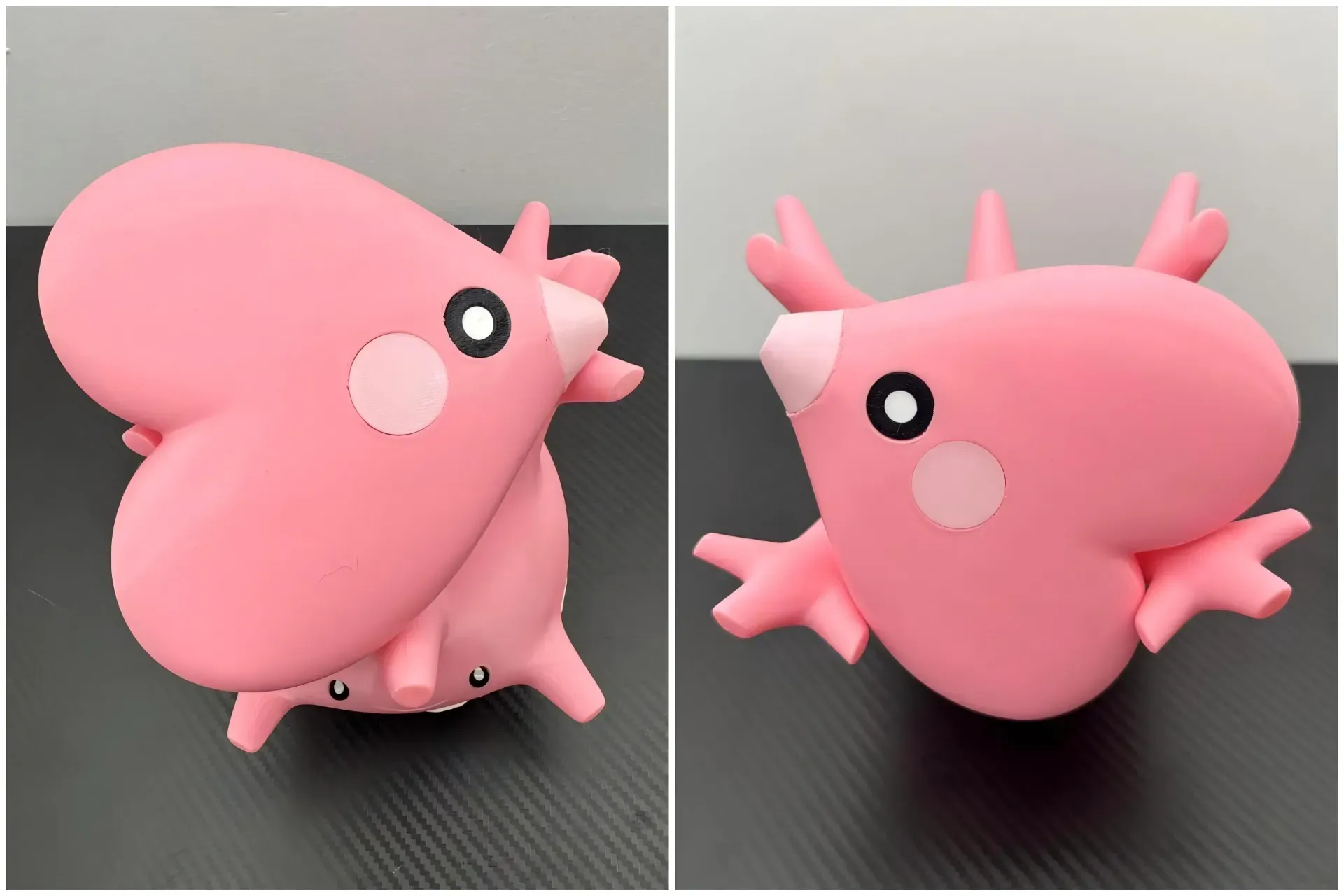

**The two Luvdisc are placed in these two positions shown in the image and are very stable!**

**Finally! Happy Valentine's Day to everyone!**
