Kitchen sink drain three-way (five-way) connector
Print Profile(3)
Description

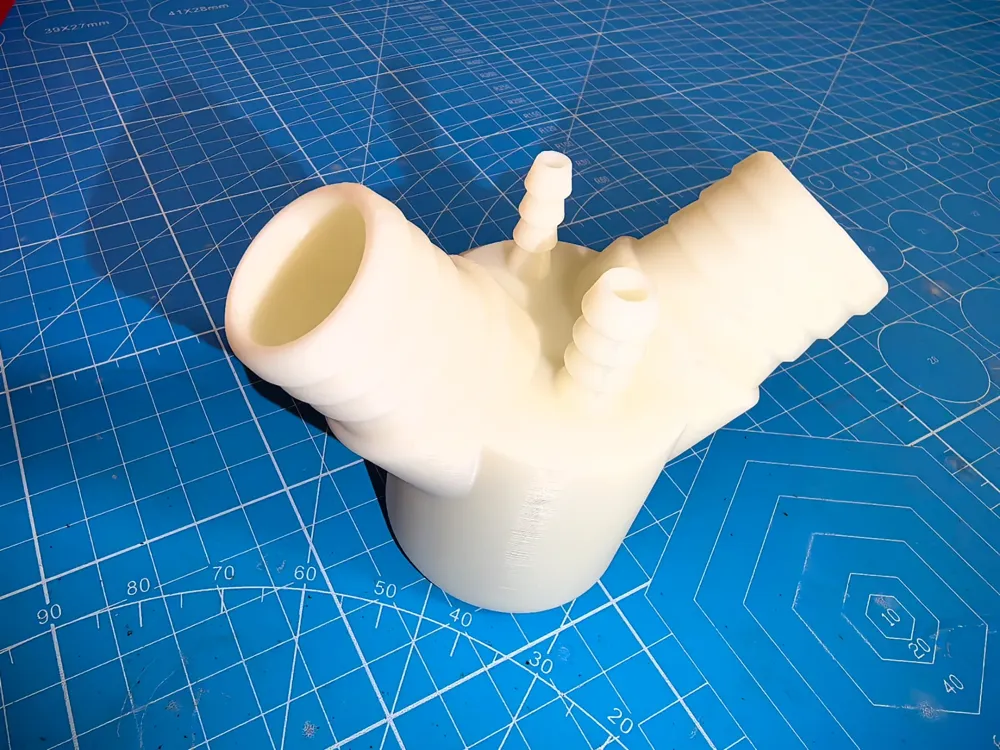

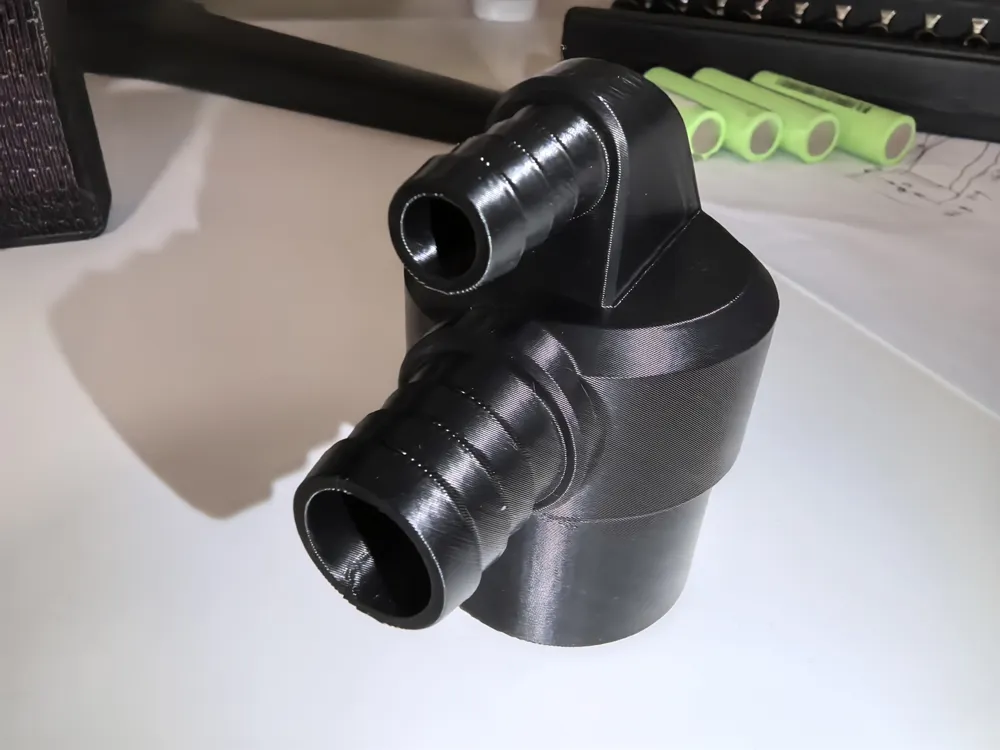

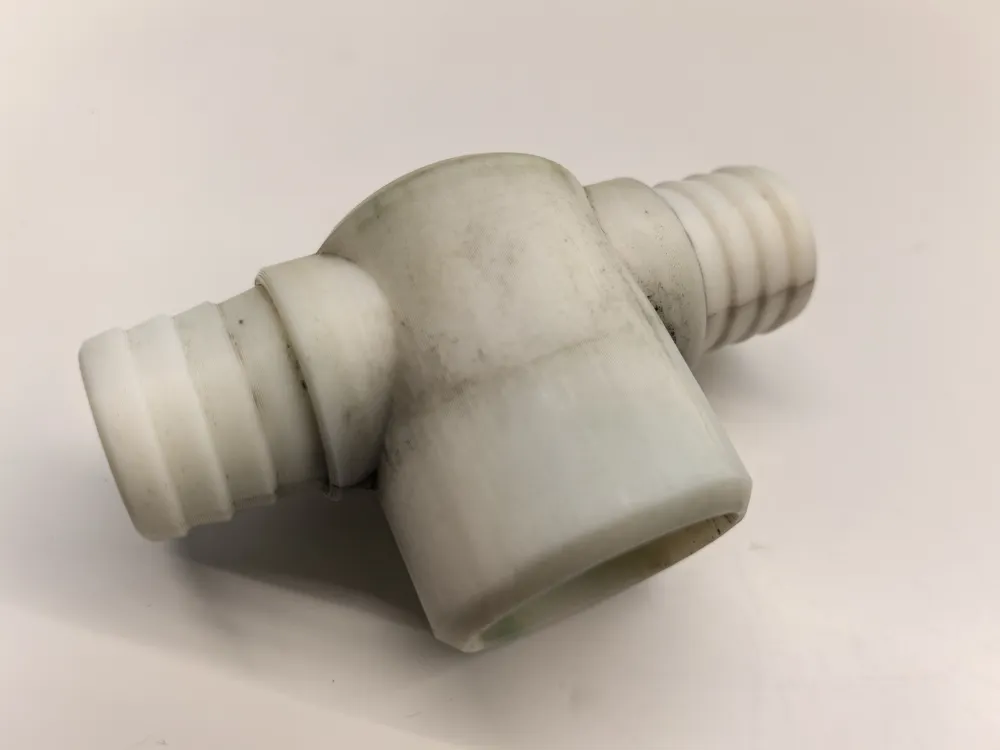

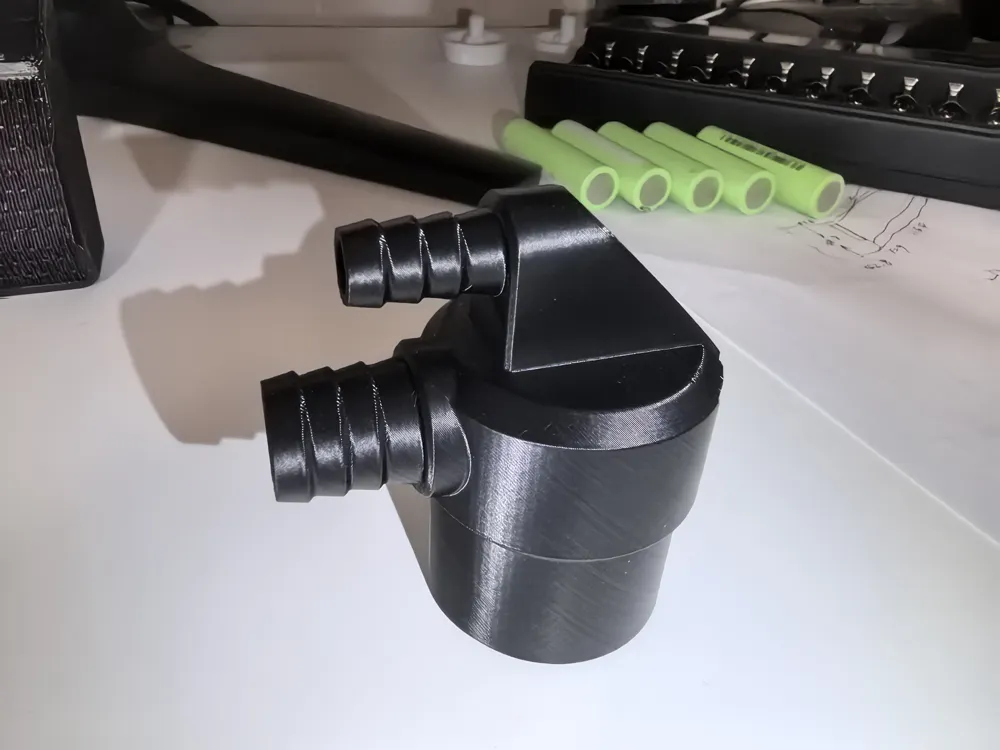

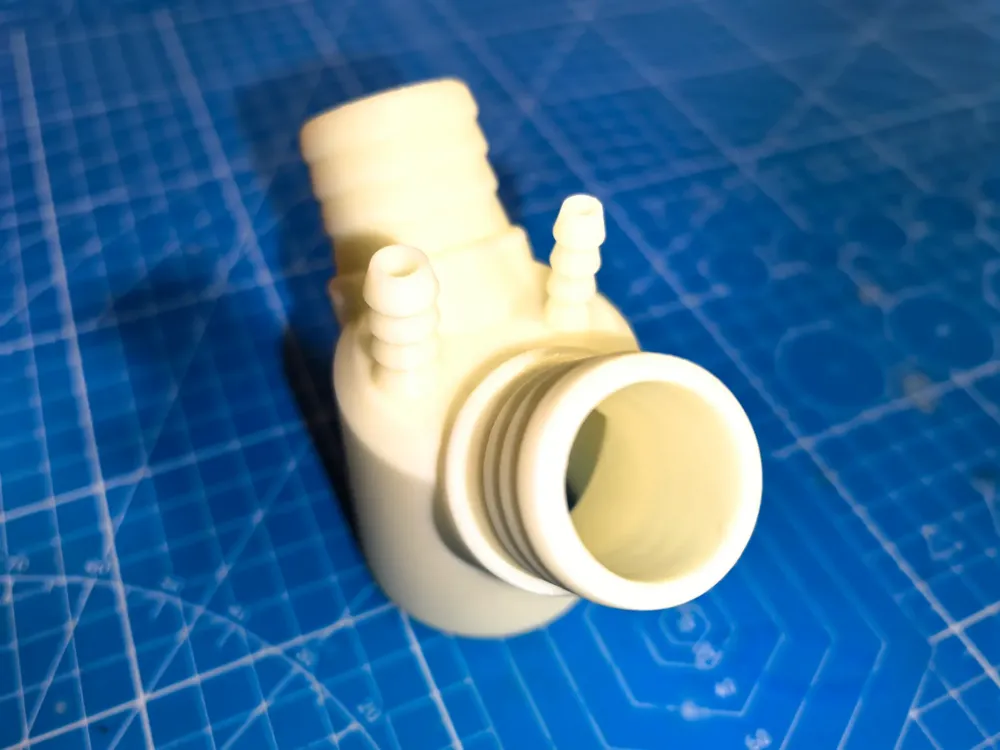

Kitchen sink drain pipe tee connectors, two types were made. One is a straight T-connector for areas with limited height clearance, and the other is an angled tee connector. Both consider the drain connection for a small kitchen water heater's pressure relief valve and can also be used for other drainage. Each type has two versions: one for 50mm PVC pipes, and one that can be directly inserted into a 50mm PVC pipe coupler or elbow. Just print one according to your needs
Print profile three is for washing machine and dryer drain connections

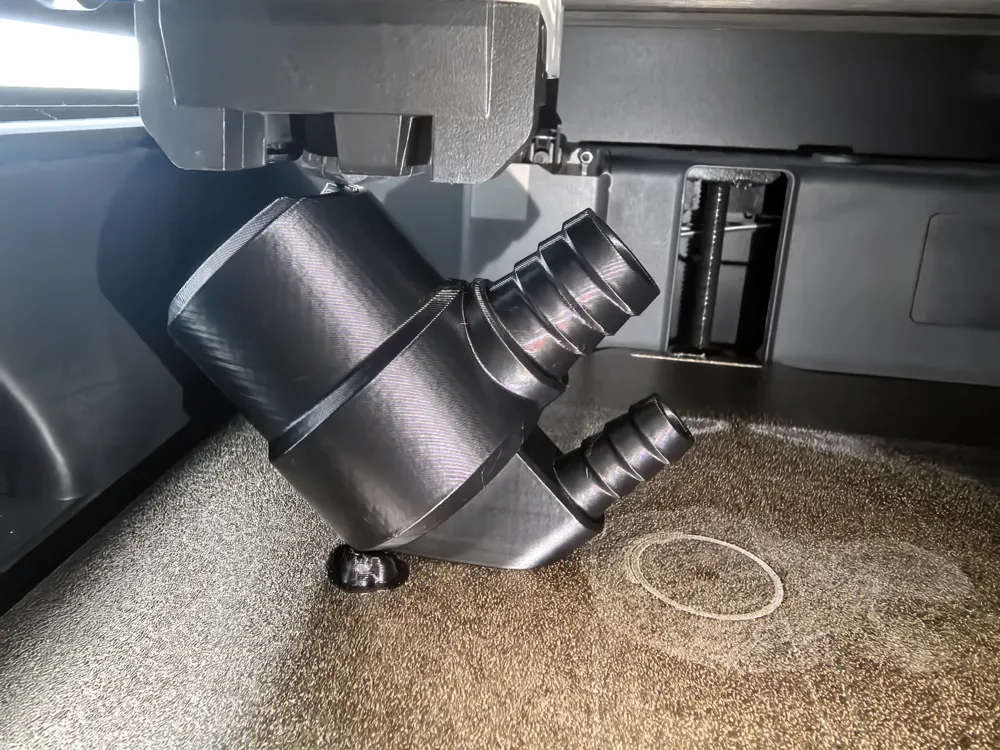

It is best to print with ABS; no need to worry about boiling water. First, it's a maximum of 100 degrees Celsius; second, it flows through instantly; and most importantly, third, it has been used for a month with no issues. Of course, boiling oil has not been tested, which might exceed 200 degrees Celsius, but no one would pour boiling oil directly down the drain, right? The 32mm drain pipe for the vegetable sink wouldn't withstand it either
If you have different requirements for dimensions or connectors, you can leave a message and I can help you model it for you to print yourself
