Graphics Card Heatsink Tesla T10 (PG150)

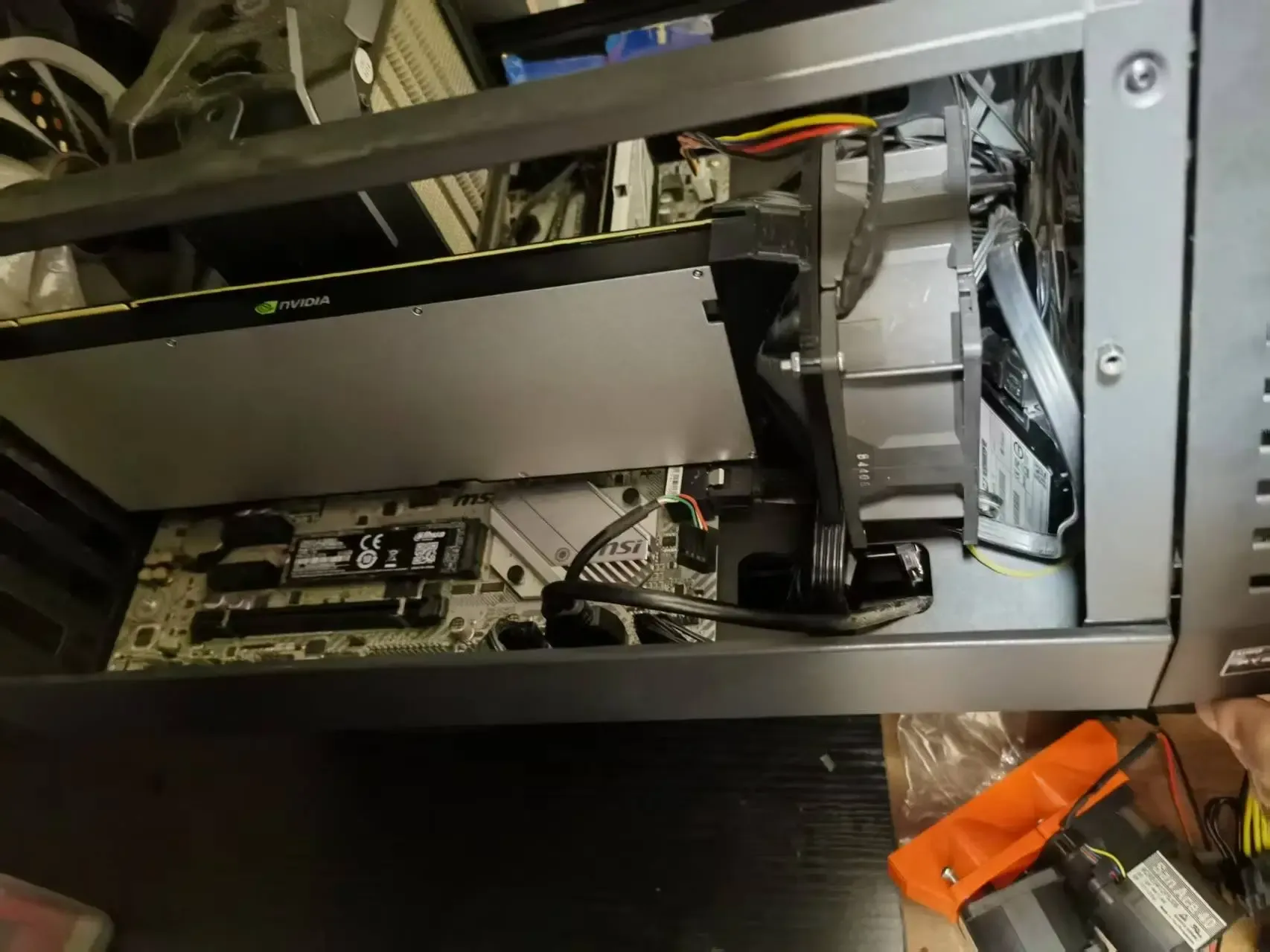

Tesla PG150 (known as T10 on Xianyu) Graphics Card Cooling Modification. The original heatsink, which I examined, is enclosed and unlike the P4's standard cooling; aside from replacing the cooler, side-blowing fan cooling is infeasible, hence this modification project. Included are the card housing components, enabling exploration of other exceptional designs for adaptation.(Note: This was entirely crafted using Bambu Studio; selecting “Open with Bambu Studio” ensures correct negative part display. Downloading the 3MF or STL may result in a solid model.)

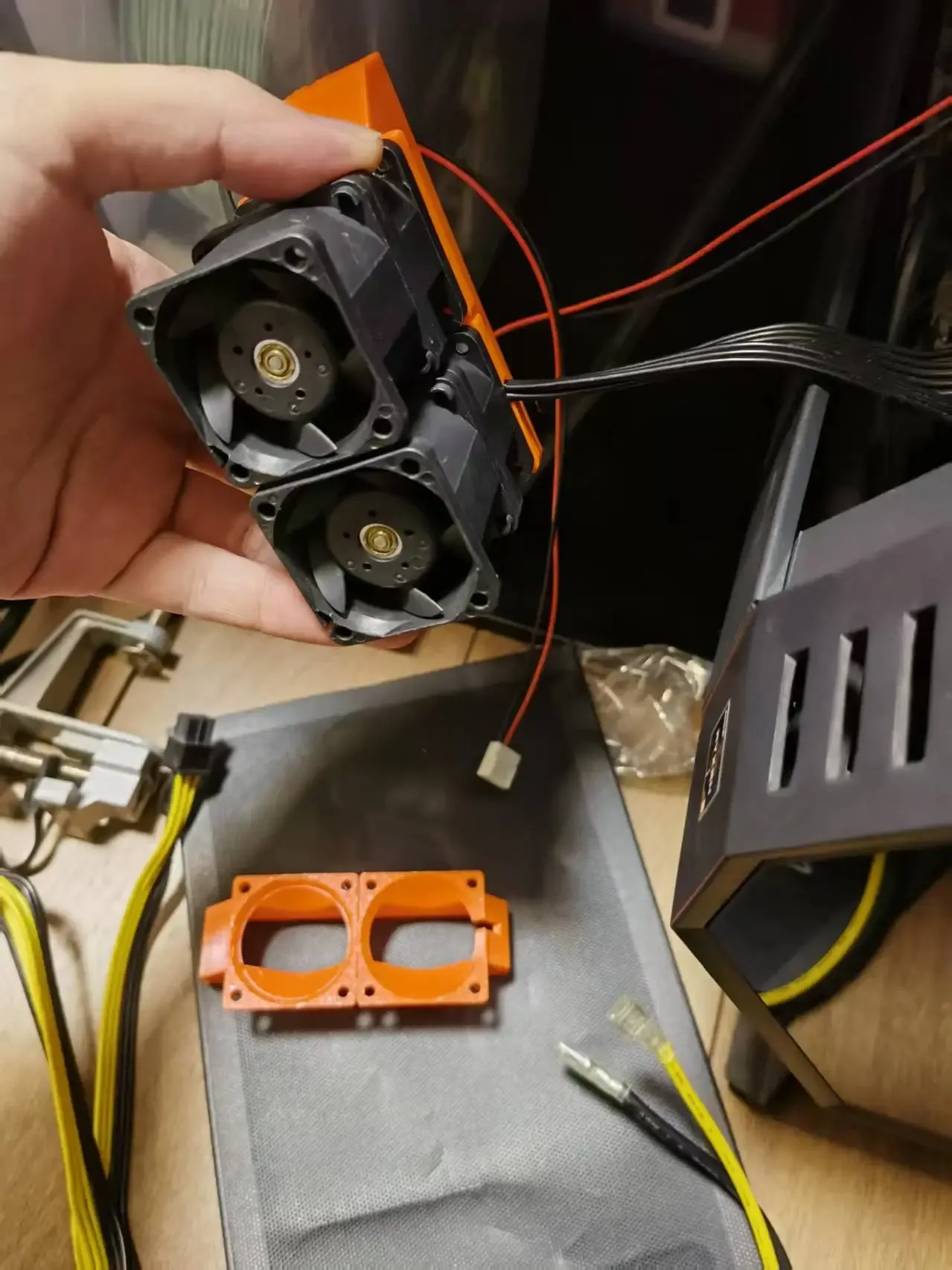

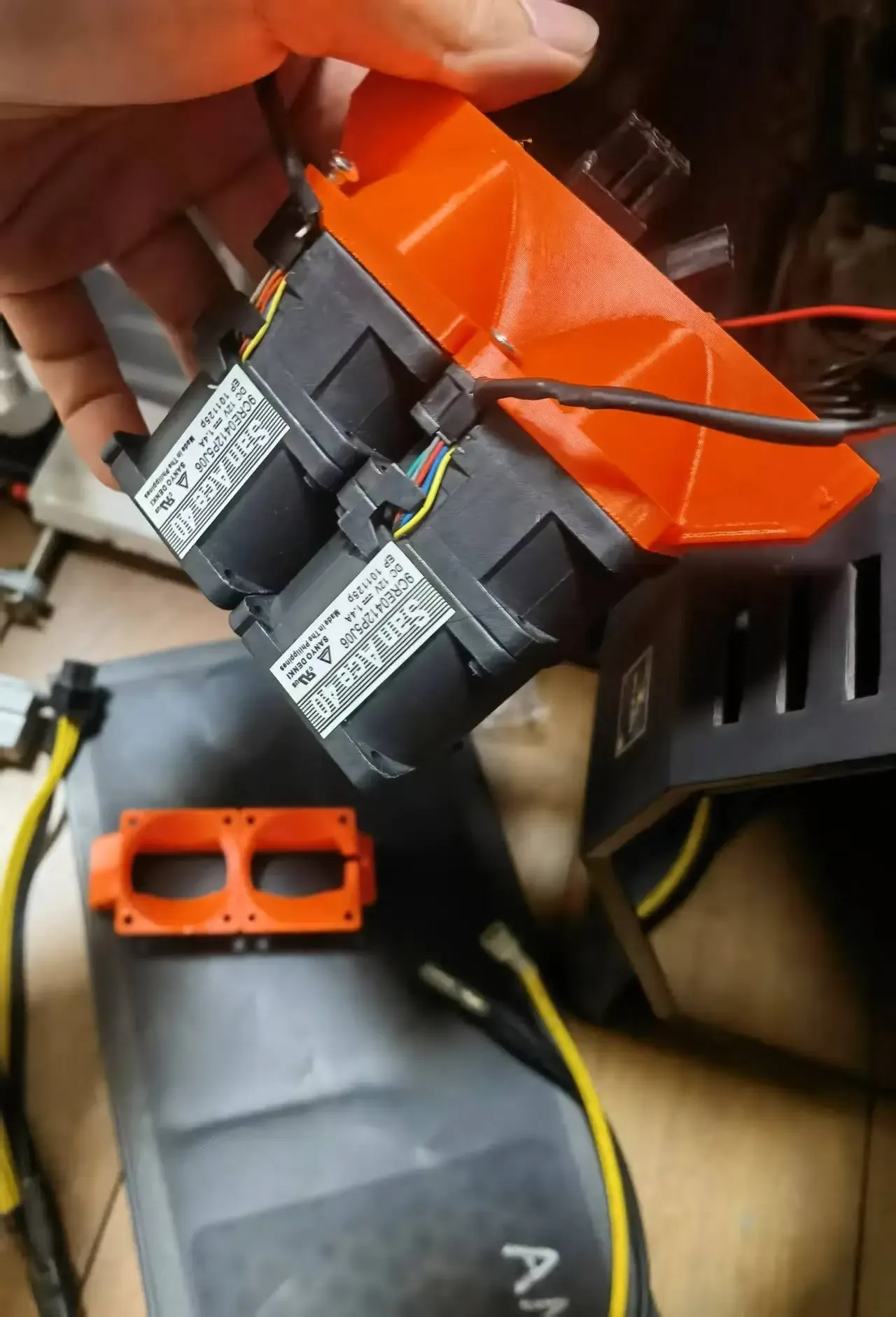

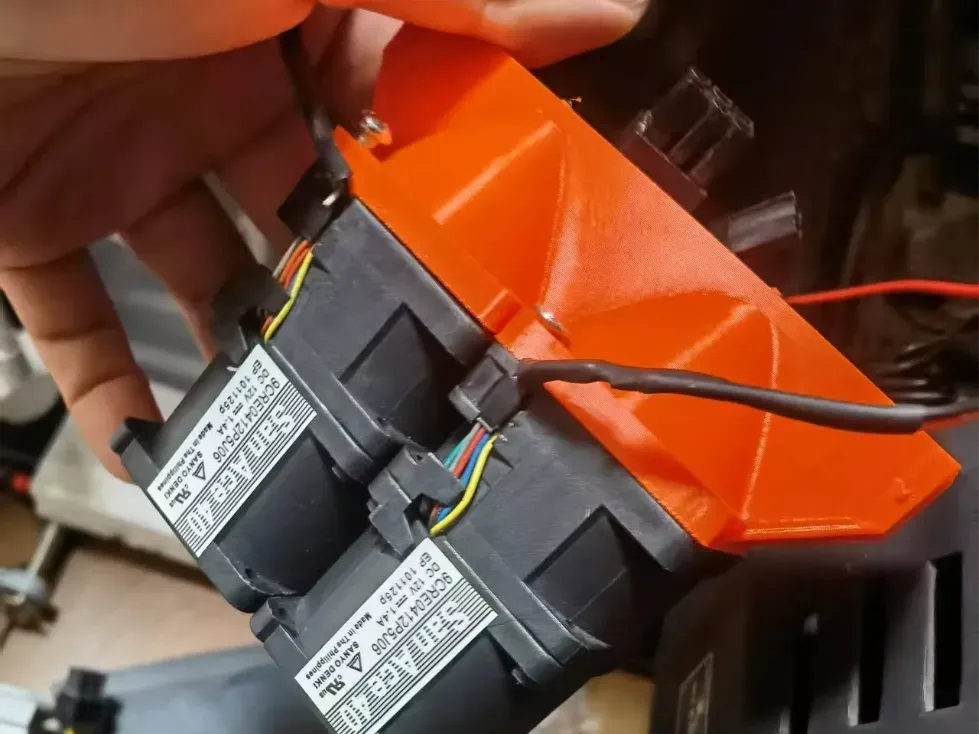

This release encompasses: 1. Dual 4CM fan cooling; robust fans that guarantee adequate pressure (a single 4058 suffices for non-sustained full load), although high-speed operation produces significant noise—akin to a jet engine; I could hear it through two rooms. However, low speeds are insufficient.

2. 9CM fan adapter; this adapter proved ineffective; even a high-volume 9038 fan couldn't adequately manage heat dissipation, likely due to design flaws; it's marginally useful.

3. The graphics card interface section, facilitating further development.
