Description
10-Piece Diamond Painting Garage with Magnetic Insert

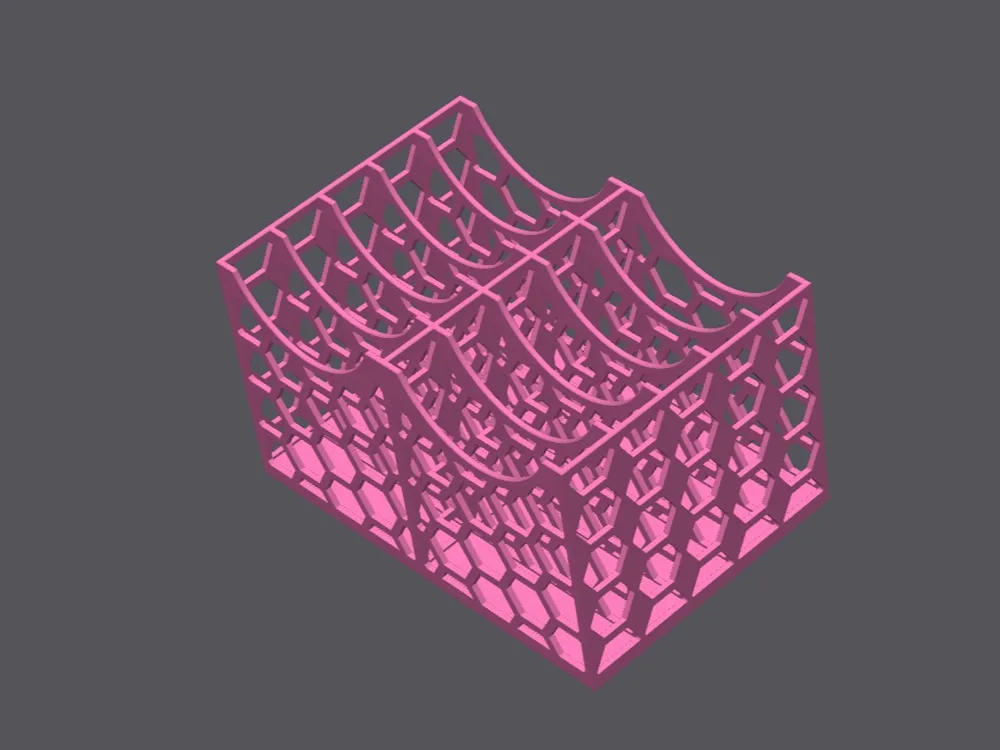

Version 2 - 50% Weight Reduction
Due to excessive weight and, in my opinion, filament waste in the solid material version (Version 1) of the garage, I have created a “Light” version for my garages.
Garage Version 2 boasts approximately 50% weight reduction compared to Version 1, resulting in significant filament savings.
Functionality, dimensions, and magnetic inserts remain identical to Version 1.
Printing Note: I have adjusted the overhang and bridging speeds, setting them slower for optimal bridge/overhang creation.

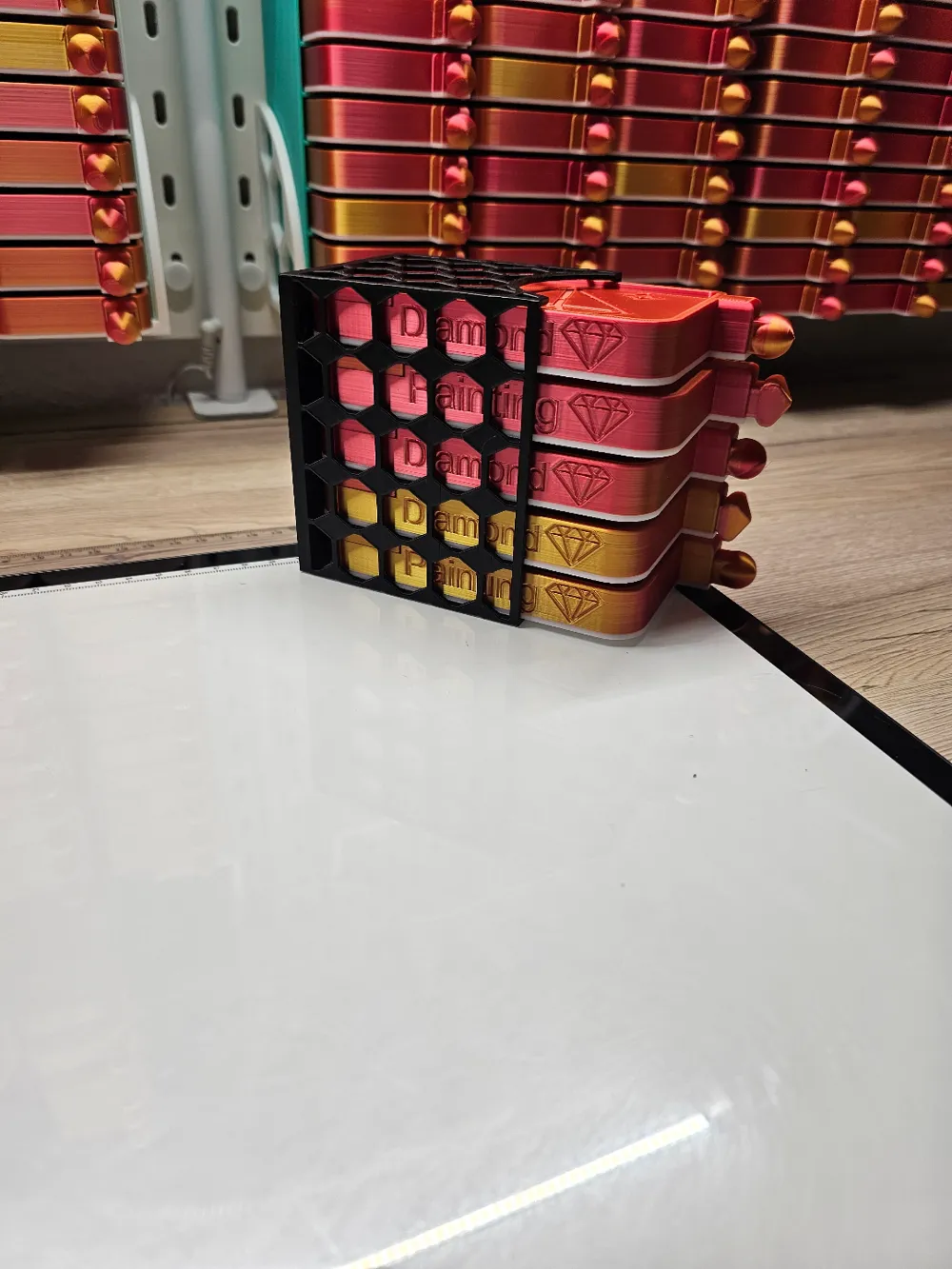

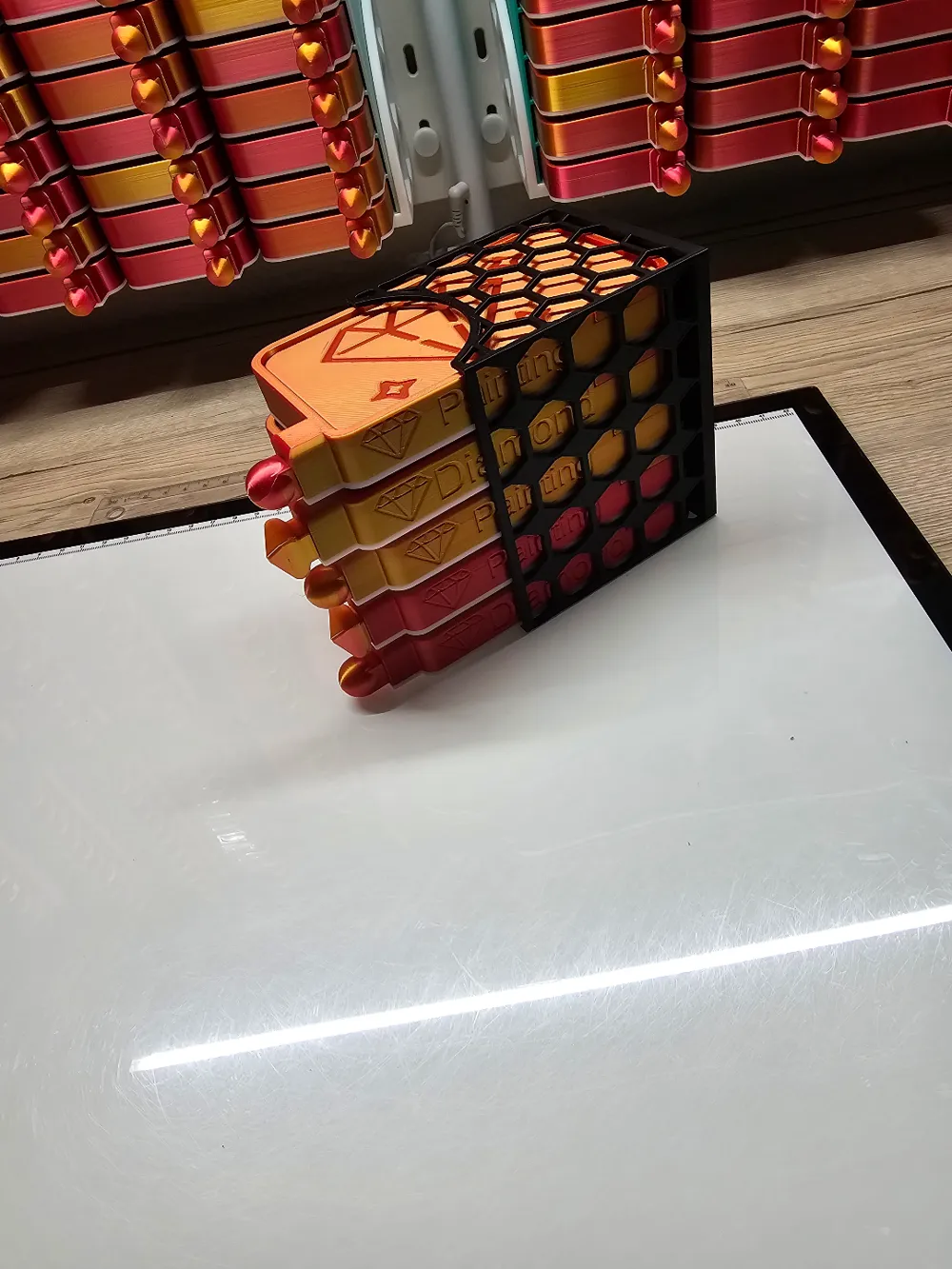

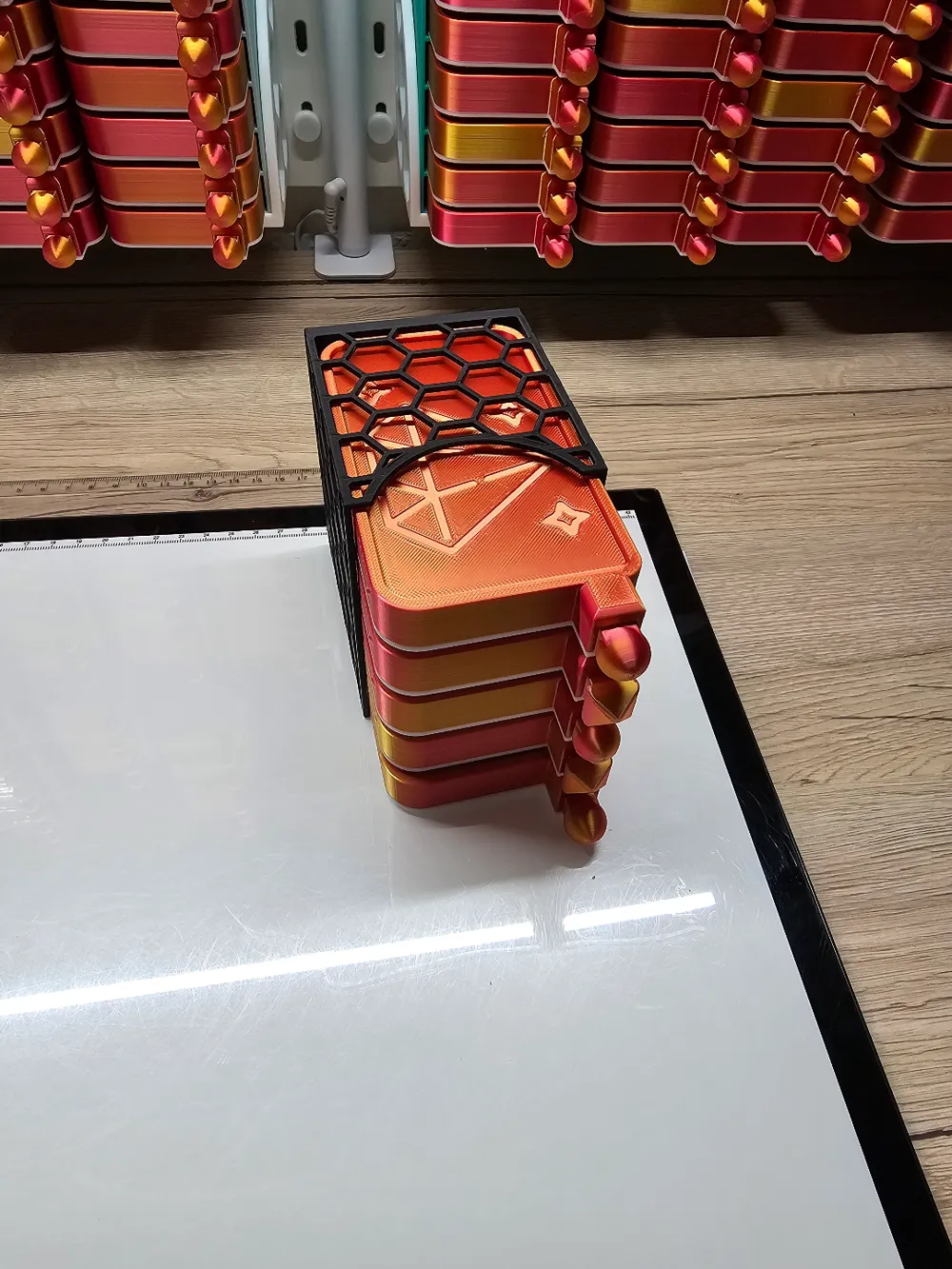

Suitable dimensions for trays fitting the garage:
- Width 70 mm
- Height 17 mm
My diamond painting trays can also be found on my page or directly via this link: https://makerworld.com/de/models/1079761#profileId-1071315
The garage features recesses for magnets with the following specifications:
- Maximum 10 mm diameter (recesses are square with dimensions 10.3 x 10.3 mm)
- Maximum thickness 2 mm (with appropriate tolerance)
- Magnets should be neodymium with at least an “N42” classification for sufficient hold.
I currently use these, for example: https://www.amazon.de/dp/B06X977K8L
A pause should be inserted in the slicer at layer 19 to allow for magnet insertion. In the slicer, the holes appear closed, but the pause is implemented at the beginning of layer 19, with the holes closing only at the end of layer 19.
Feel free to share any suggestions :)
