Edge grinder attachment for Bosch GEX
Print Profile(1)
Description

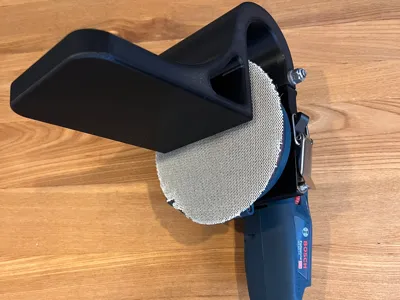

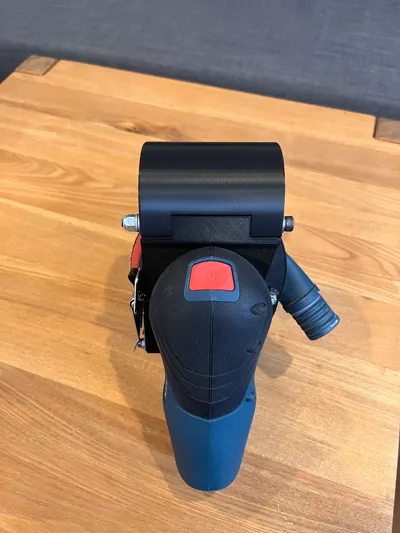

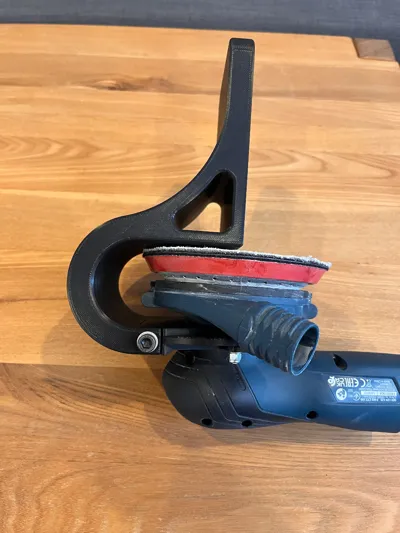

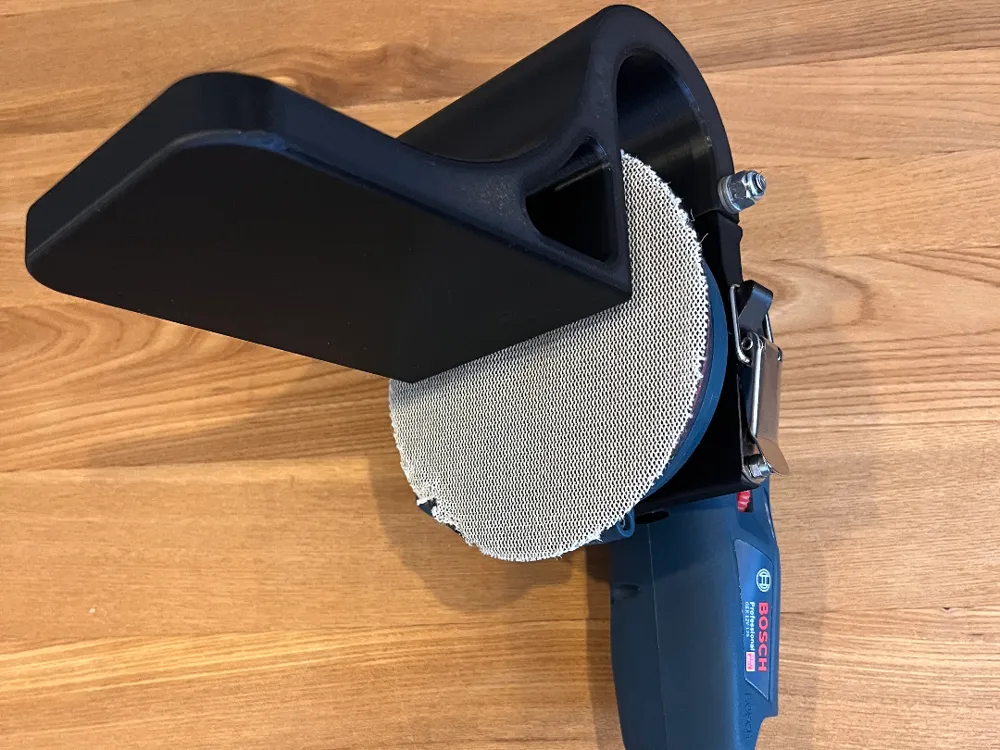

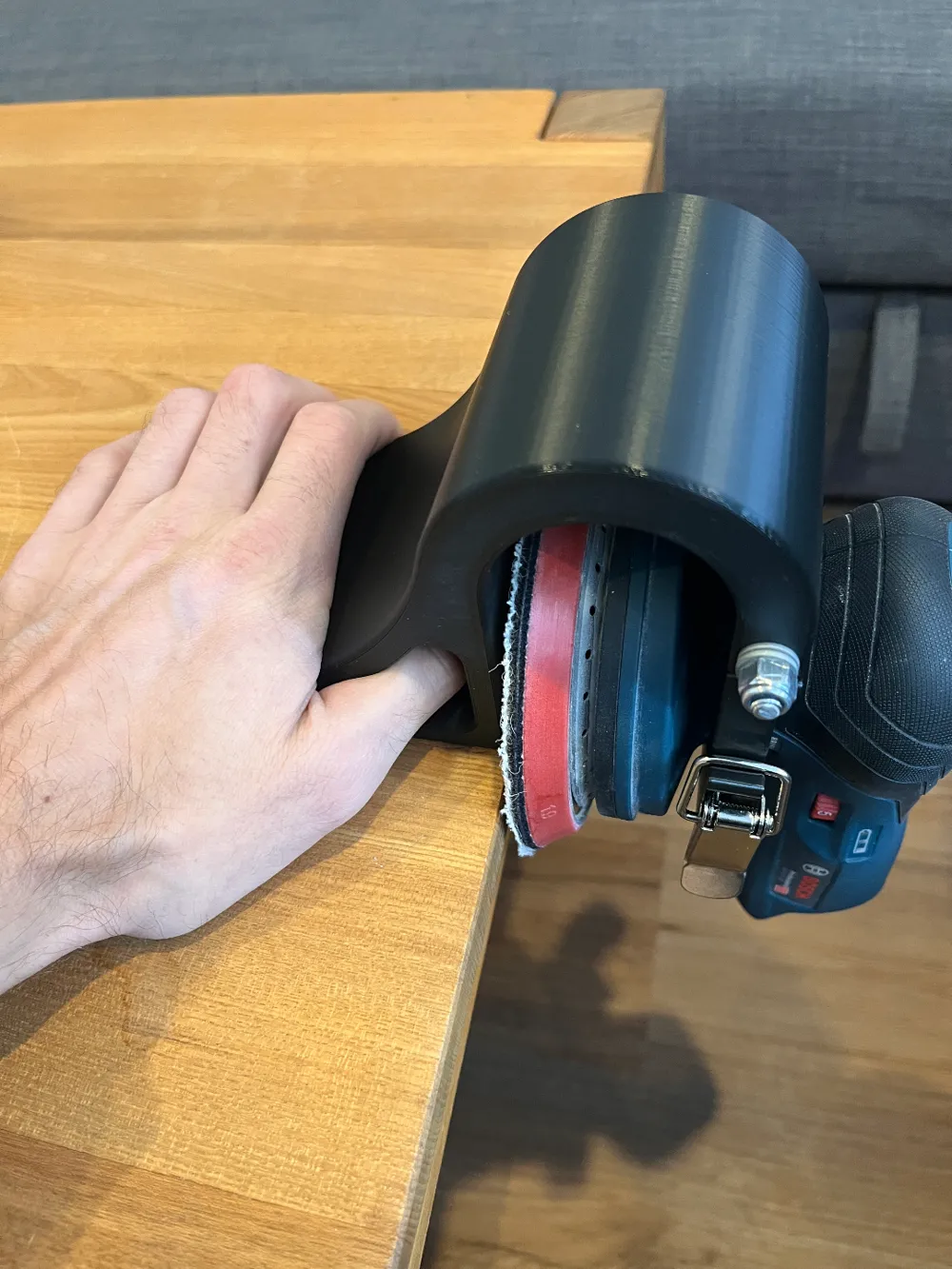

This is an edge grinder attachment for the Bosch GEX eccentric sander. I own the GEX 12V-125 myself.

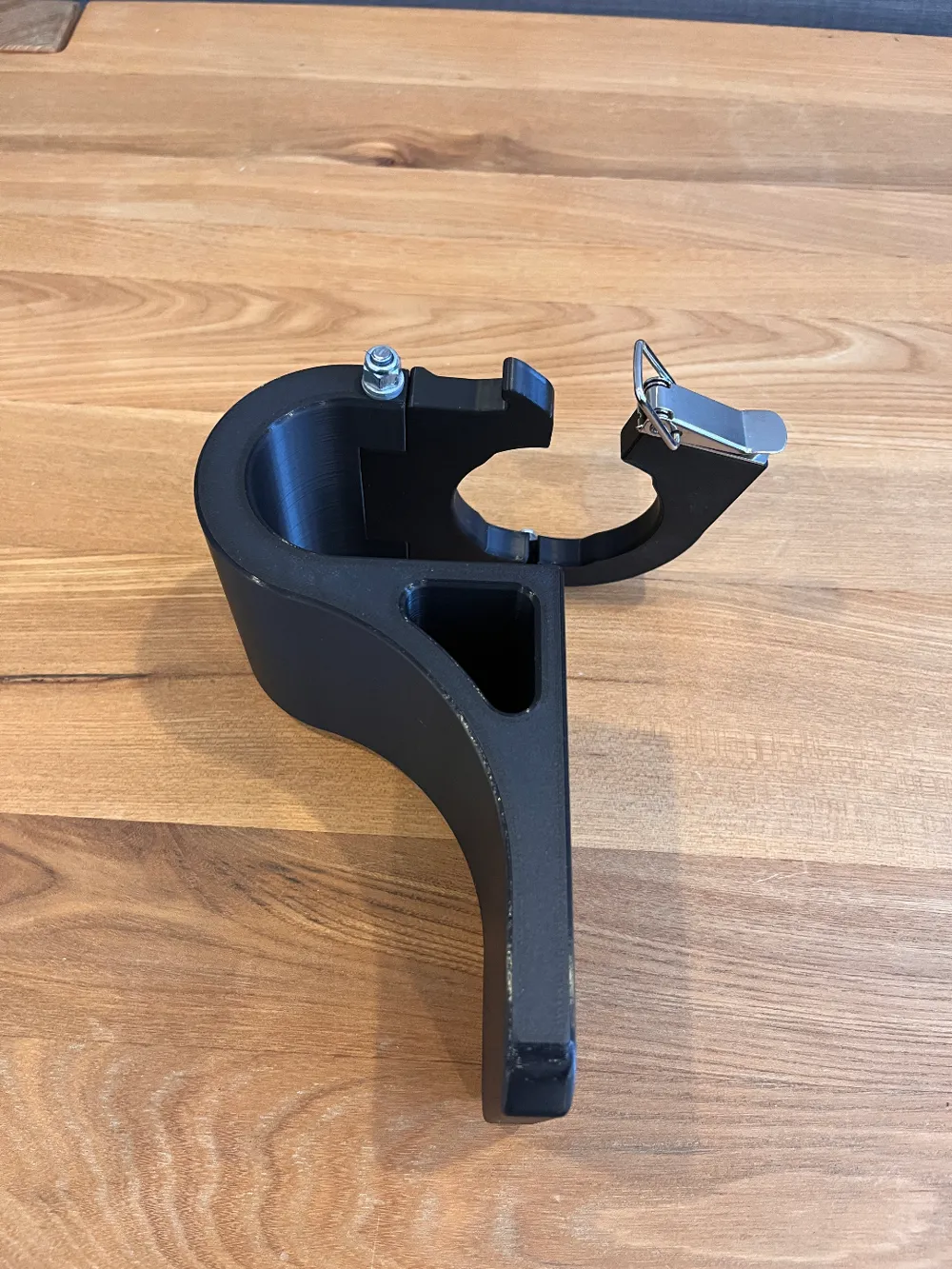

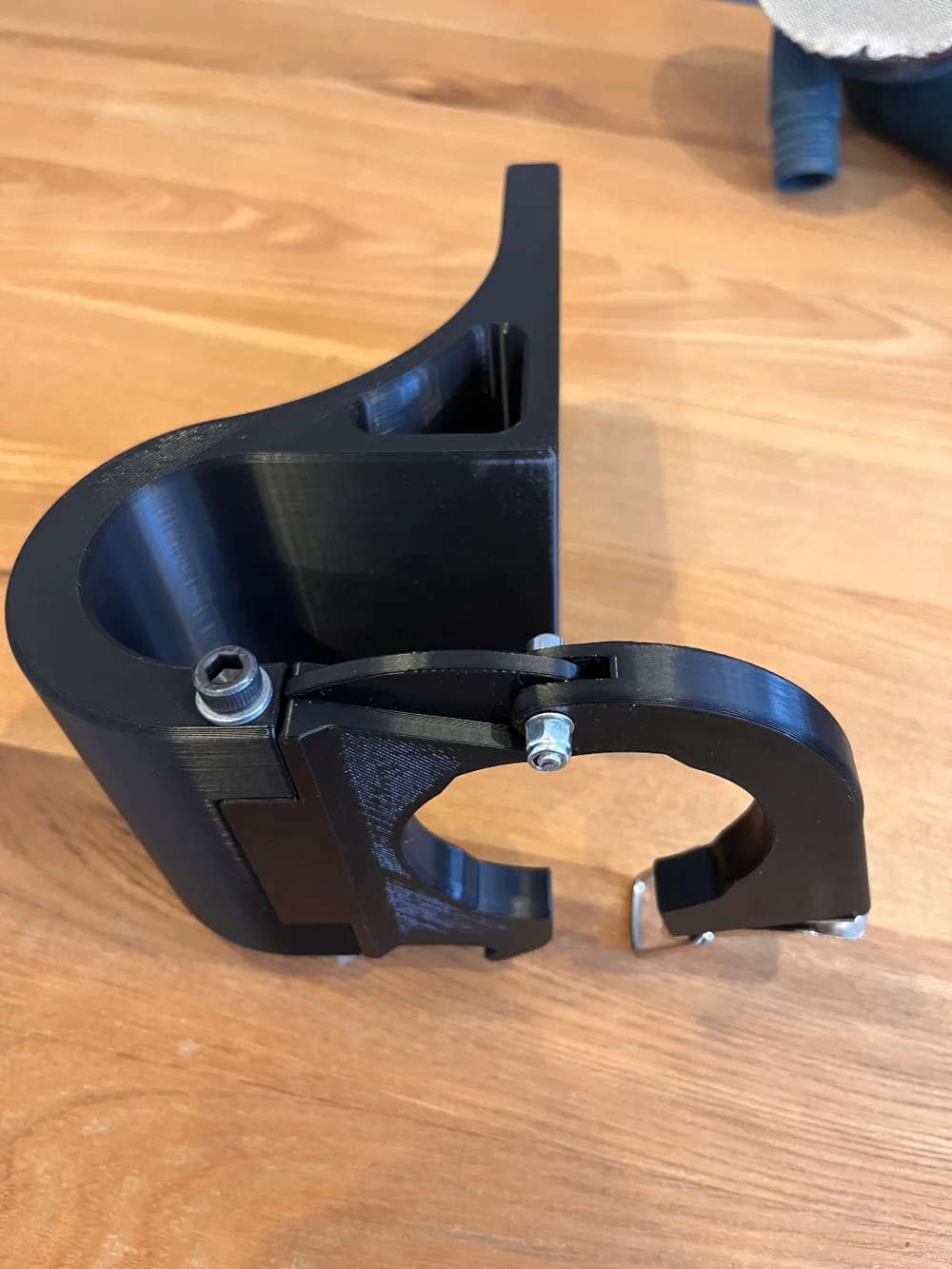

The model consists of 3 parts and is assembled using a spring clip.
The following parts are required:
1x Spring clip
2x M4xL6xD6 embedded nuts
1x M6x100 cap screw
1x M4x20 cap screw
2x M4x6 cap screw
2x M6 washer
2x M4 washer
1x M6 self-locking nut
1x M4 self-locking nut
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
