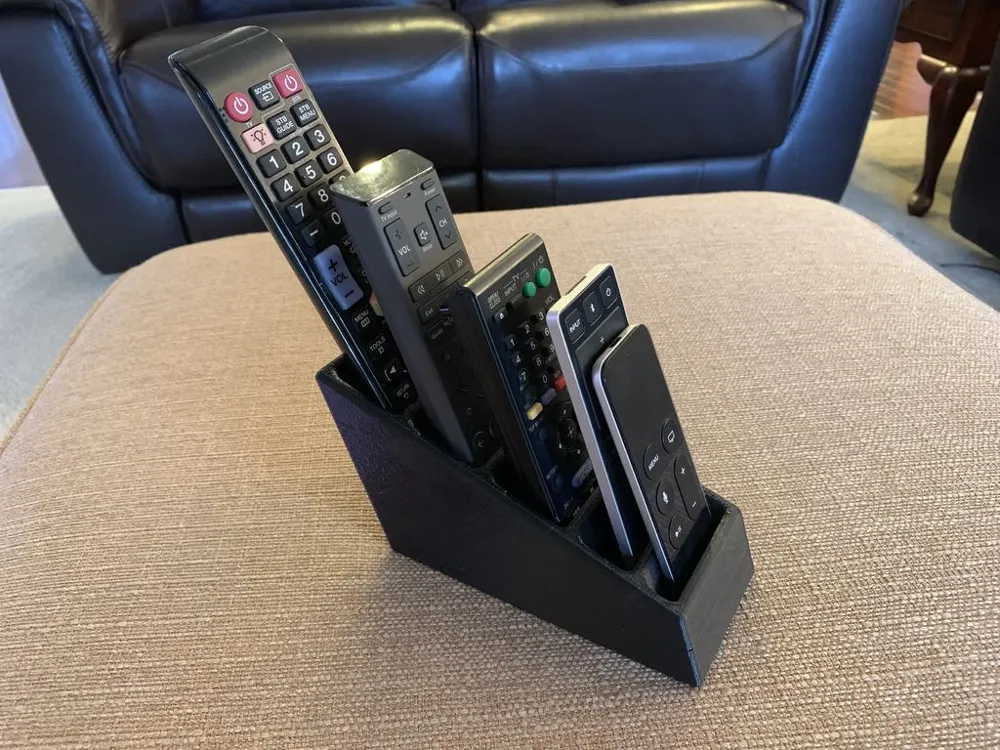

Many home media centers have multiple remotes. It is so easy to lose remotes and is helpful to have a central location for them. Using a basket to hold remotes forces you to dig around for the remote you want. This design holds the remotes at a slight angle making them easy to access in a sleek way.
This design is customizable with OpenSCAD since all remotes come in different sizes.
Customization Instructions
- Open file in OpenSCAD
- Order remotes from shortest to tallest

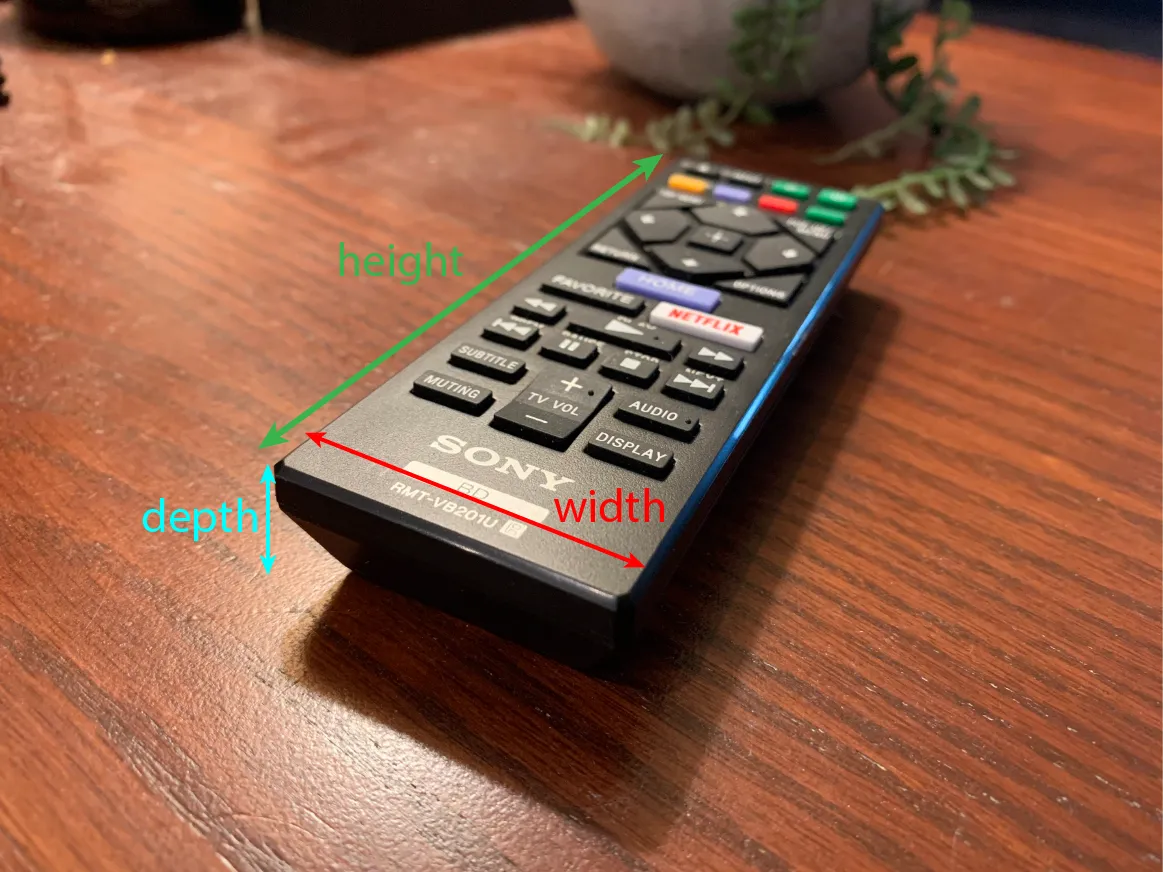

- Measure width and depth of each remote. Add a few millimeters (~3-7mm) of tolerance to each dimension.
- Set height_1 = 25-33% of height of remote 1
- Set height_2 = 25-33% of height of last remote
- Set the width and depth of remote compartments not used to 0
- Press preview, render, and export to .stl.

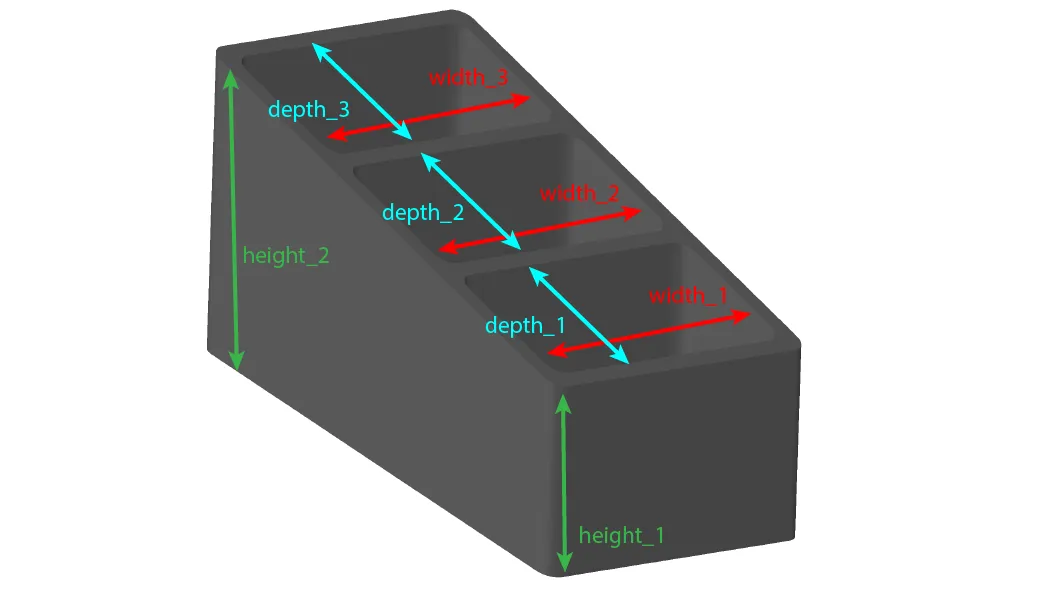

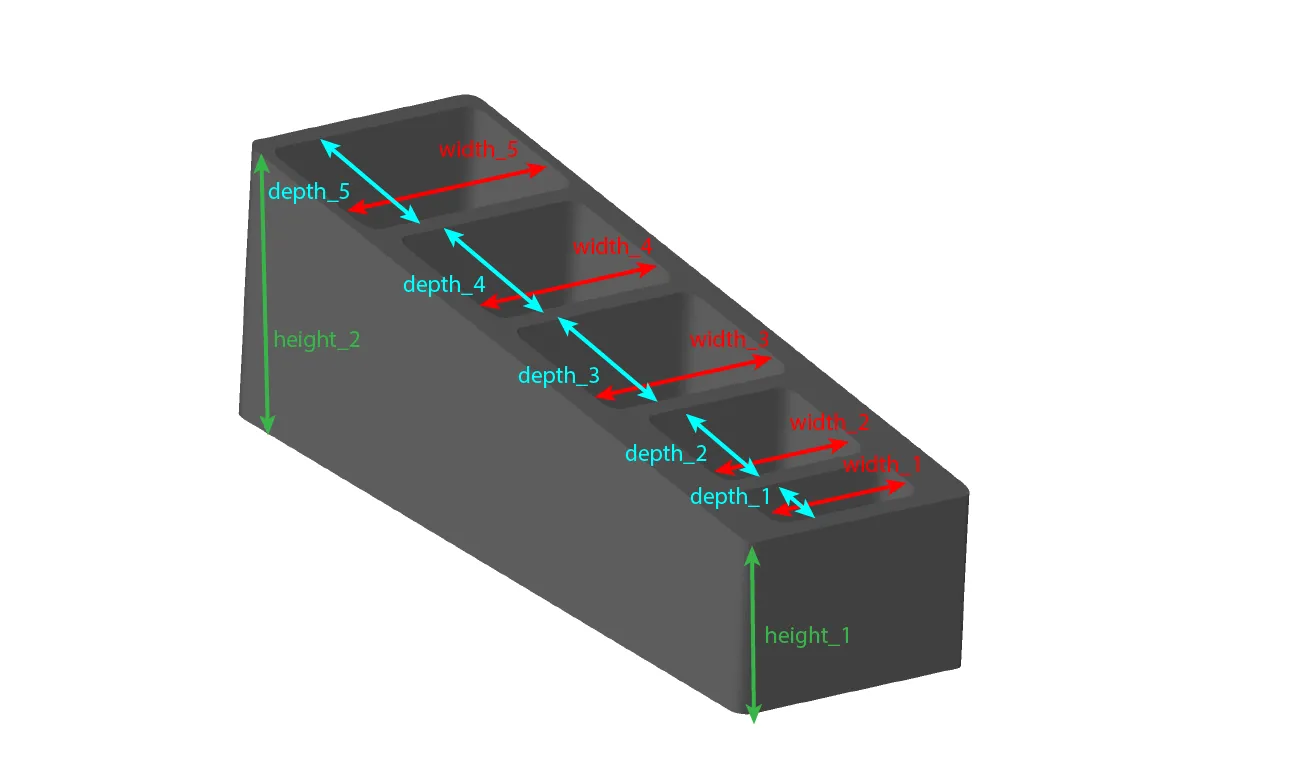

Diagrams
Printing Instructions

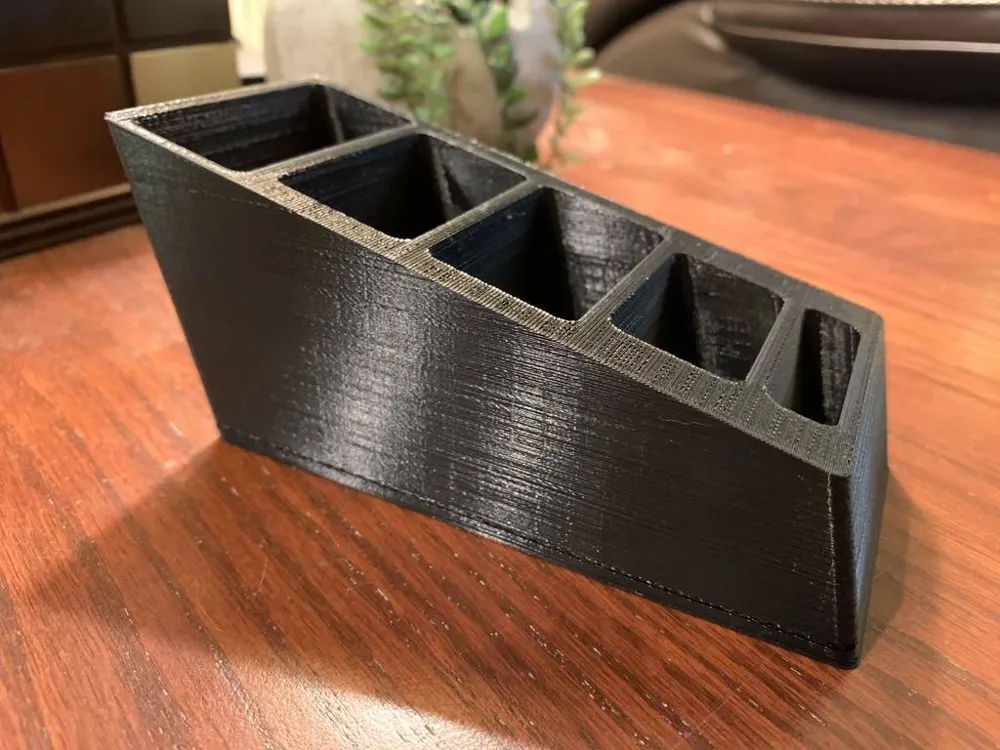

This part should be relatively simple to print on most printers. Orient with bottom face flat on the print bed. Most filament-based printers should be able to provide good quality without support structure.
