(Remix) Colored/more secure Candy jar

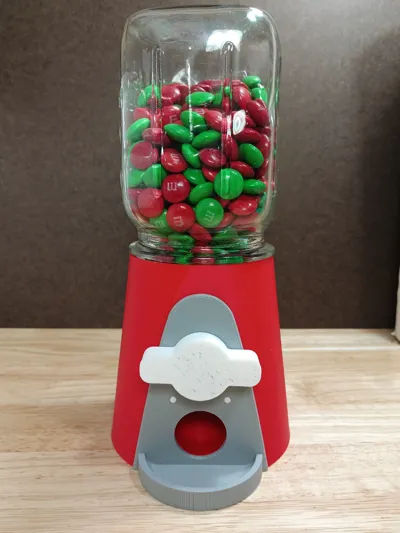

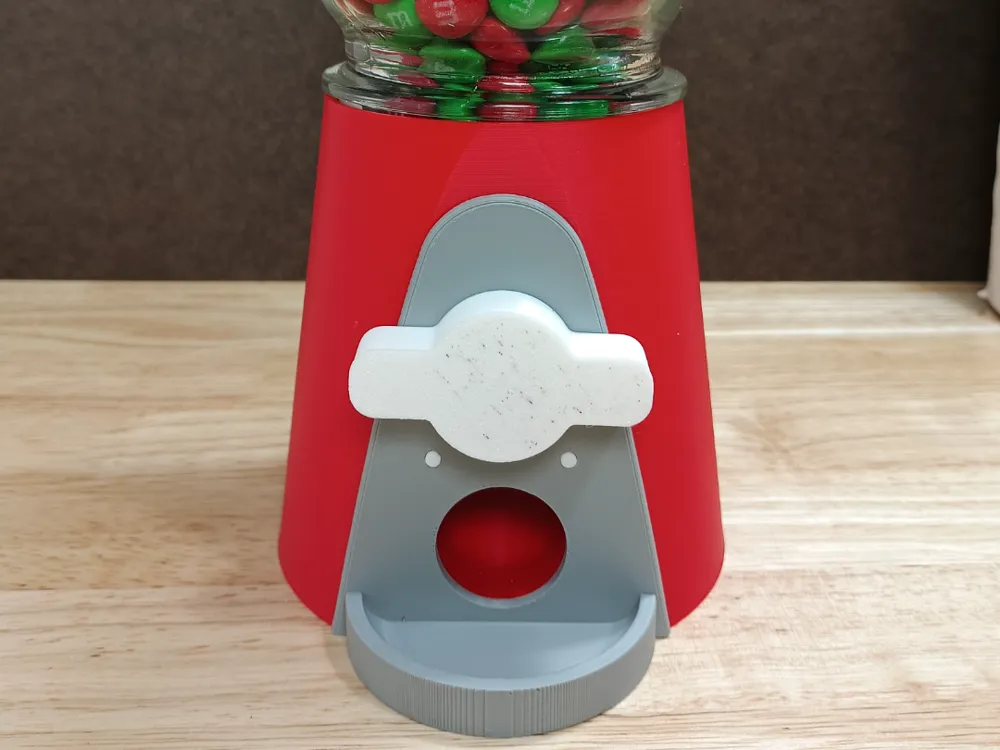

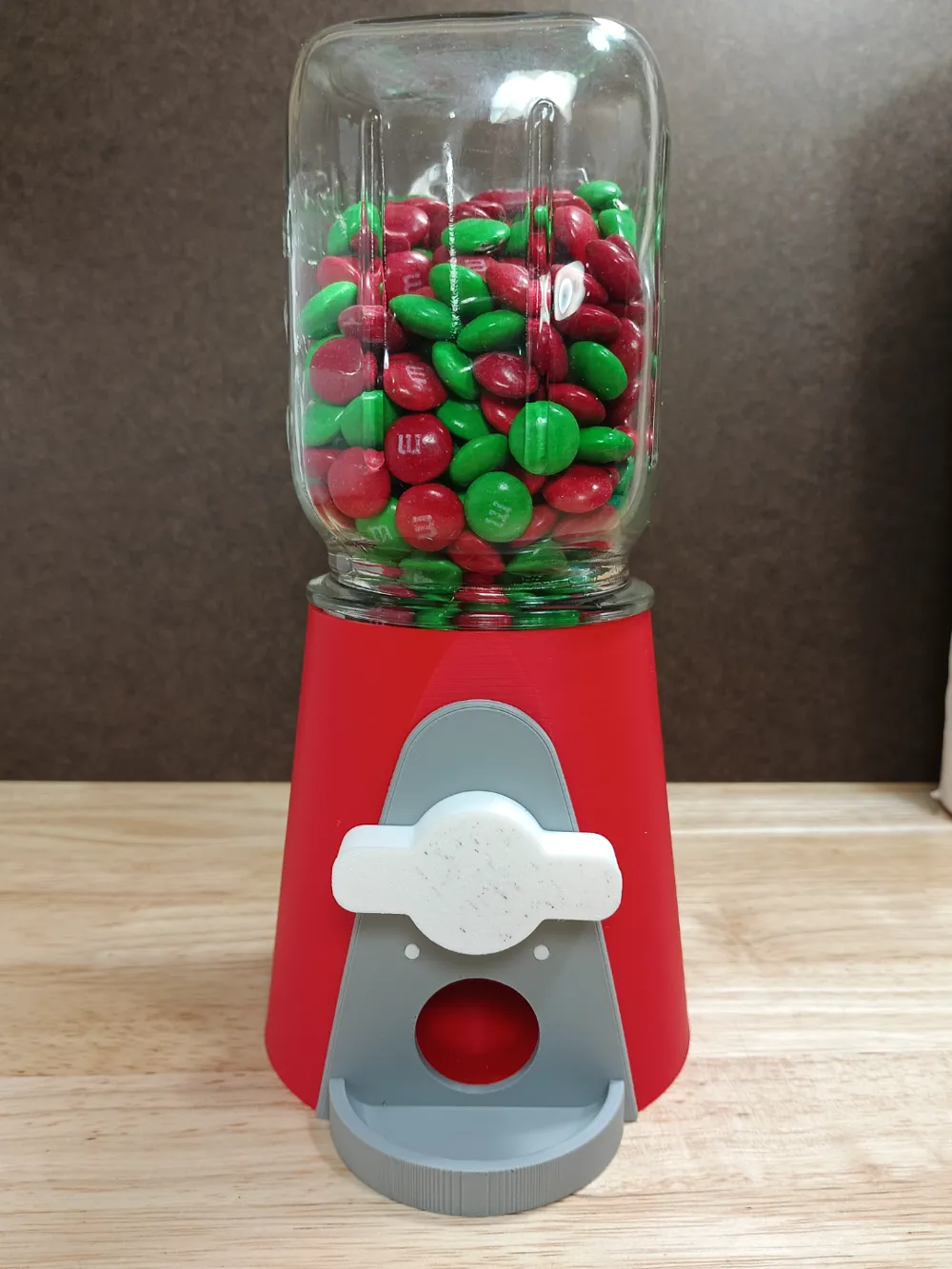

A Colored version of Candy jar!

Put smiles on the littles faces and parents alike, easy and simple to use!

Added color to the candy tray and face, while making ‘tabs’ to be inserted/taped on to provide a secure hold on the jar if needed!

Specs

4 plates

5:47 minute print time (on Bambu A1)

140-19-13 grams usage if colored

173grams total.

easy assembly, time roughly 5 minutes.

2mm layer height.

15% infill.

.15 tolerance on dowls

no supports.

AMS not required (Just makes it easier without changing color spools

Assembly notes

1: put dowls through faceplate                                      (depending on printer quality you might want to slightly trim dowls height)

2: insert faceplate/tray onto base                                 (I recommend using a dab of glue for dowl slots)

3: insert knob into hole                                                                                   (make sure it turns smoothly)

4: insert and push pin into the back of base firmly till you feel a click   (make sure knob wont fall out)

(Optional) 5:

Line jar insert with tape then put tabs on sides and use another layer of tape to keep them in, try one tba first for all jars are not the same size.               (electrical tape tends to be best for this since it's flexible and rubbery)

Now push and slightly rotate jar clockwise, if all goes well the jar should stay in place firmly!

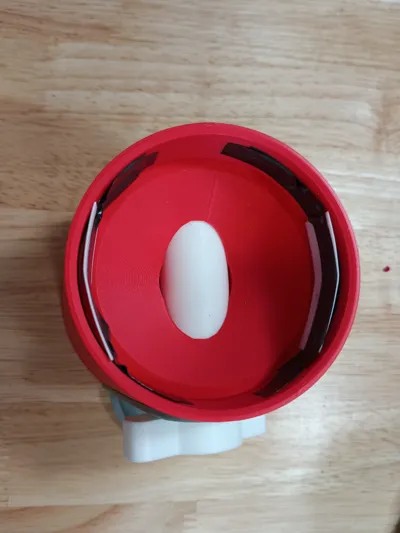

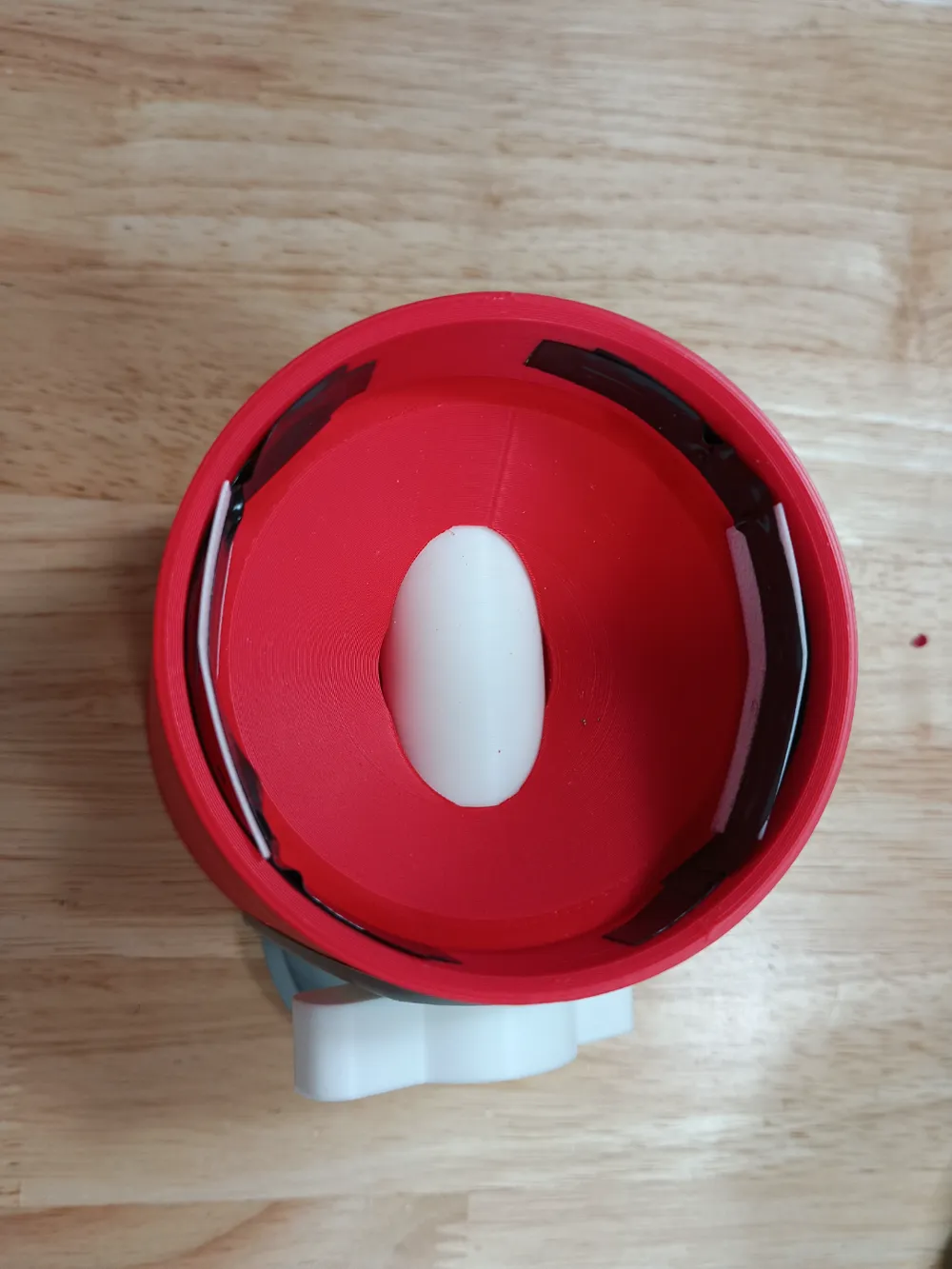

there should be a picture of jar with tabs in just to visualize!
