Philips Hue Dimmer Switch Holder
Print Profile(1)
Bill of Materials
Description

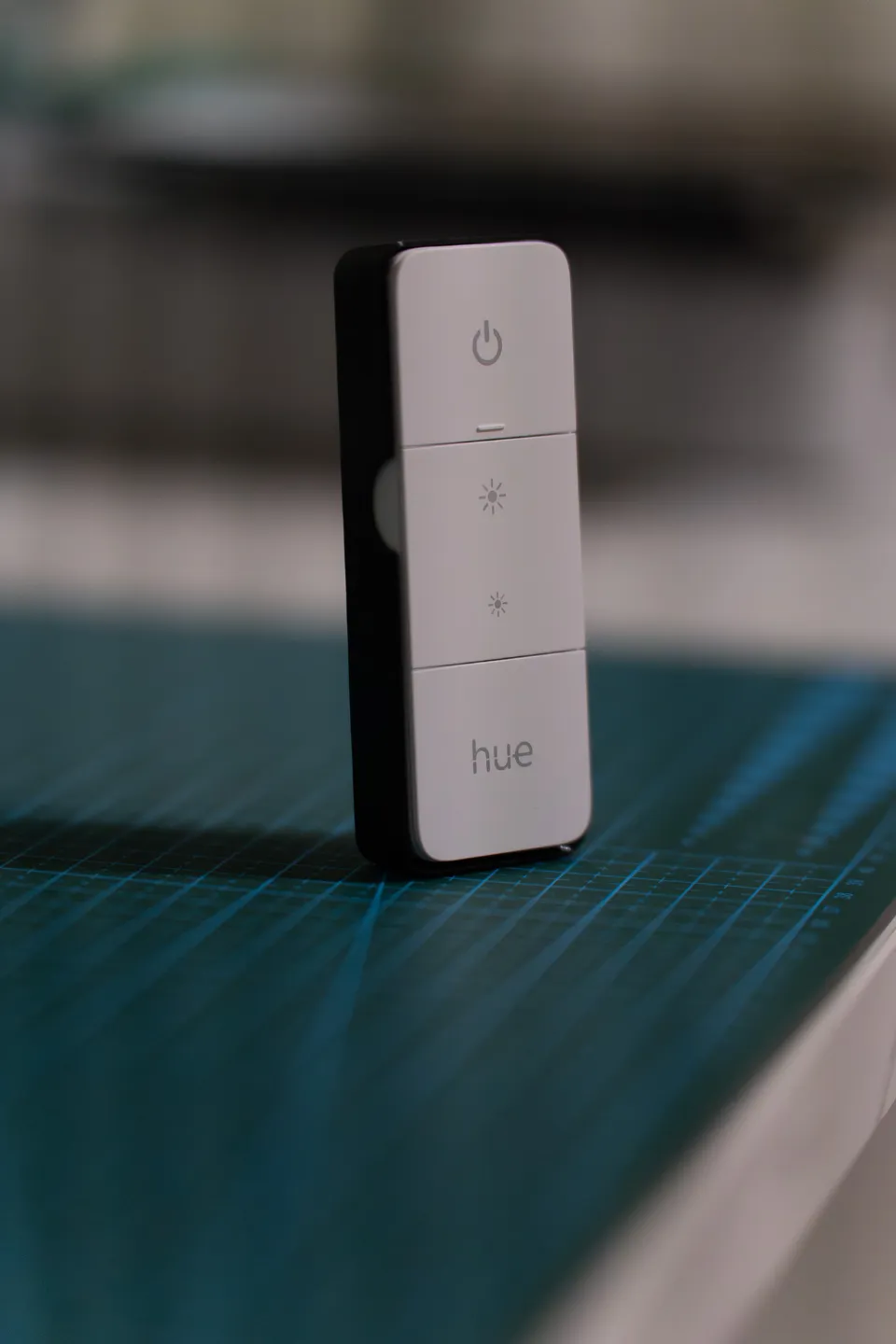

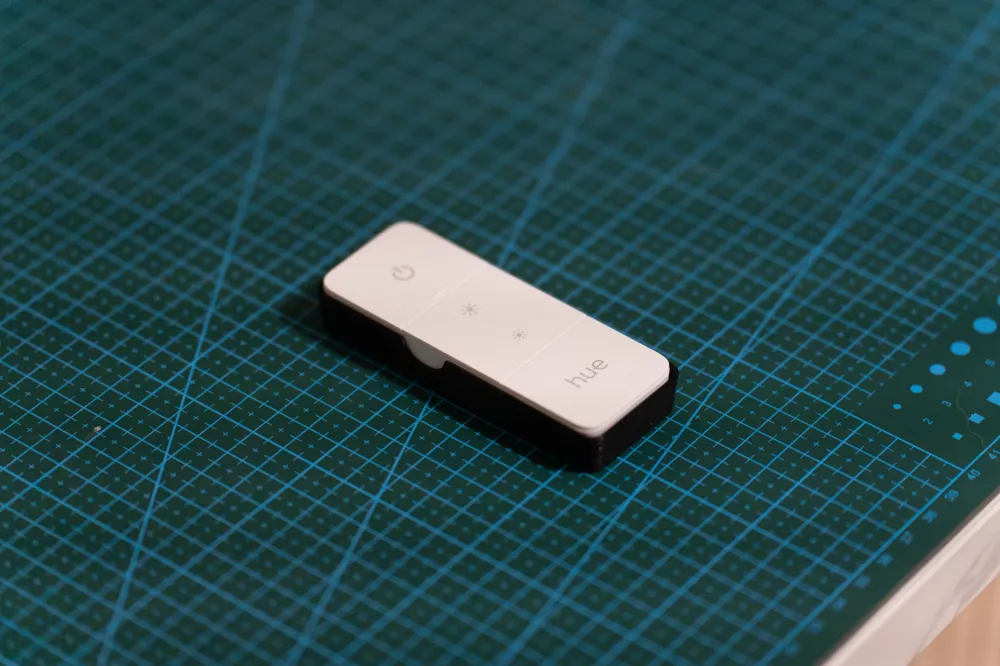

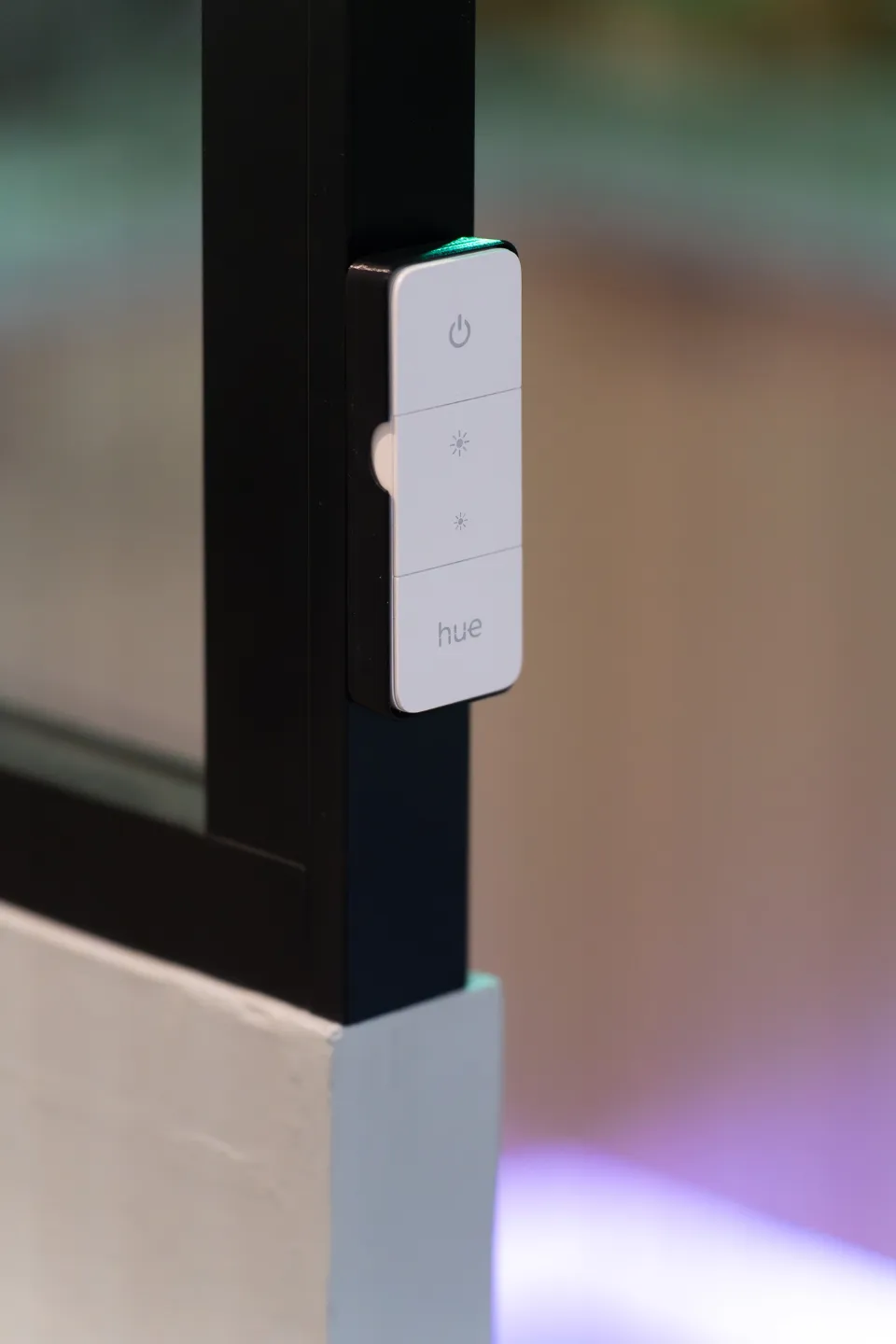

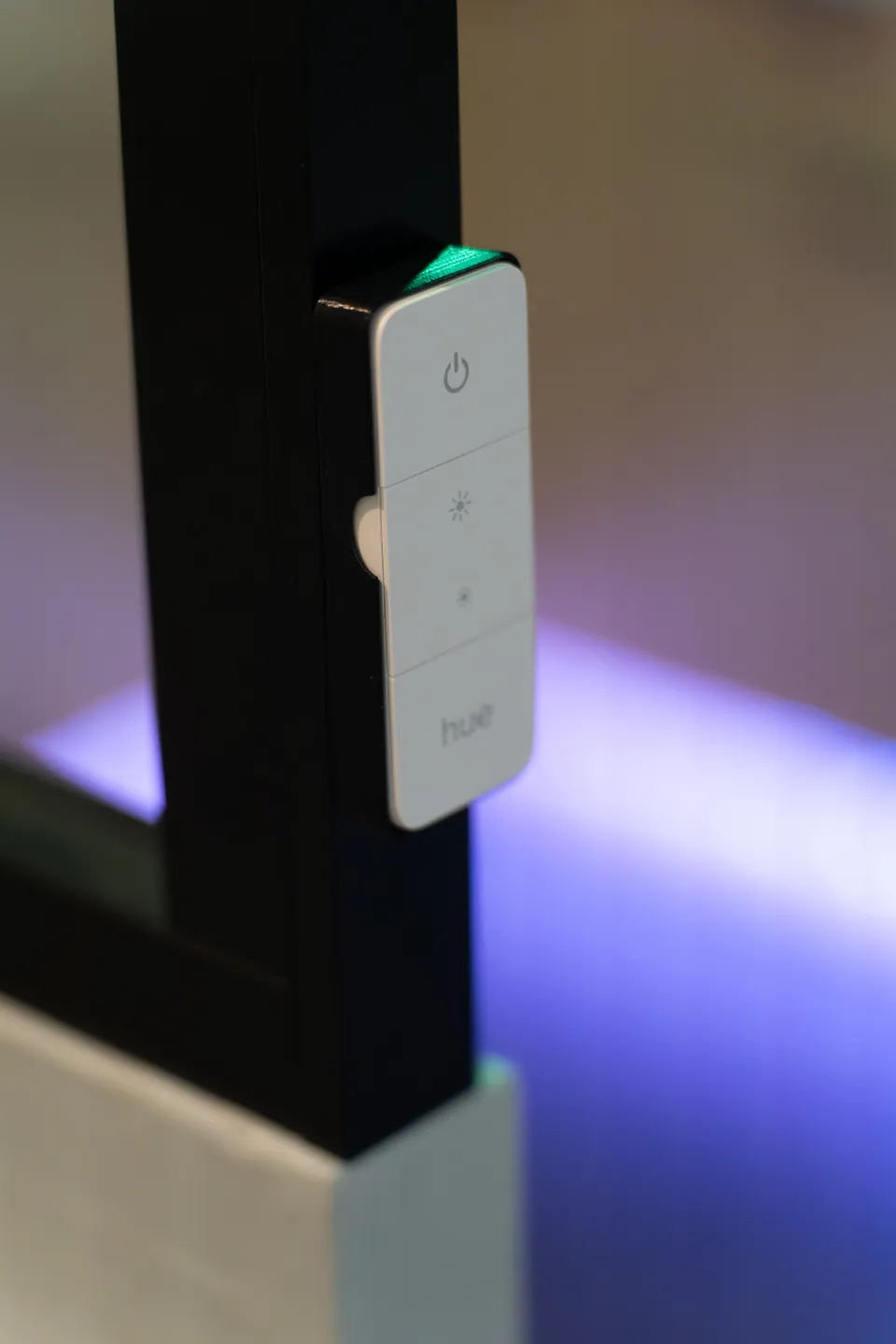

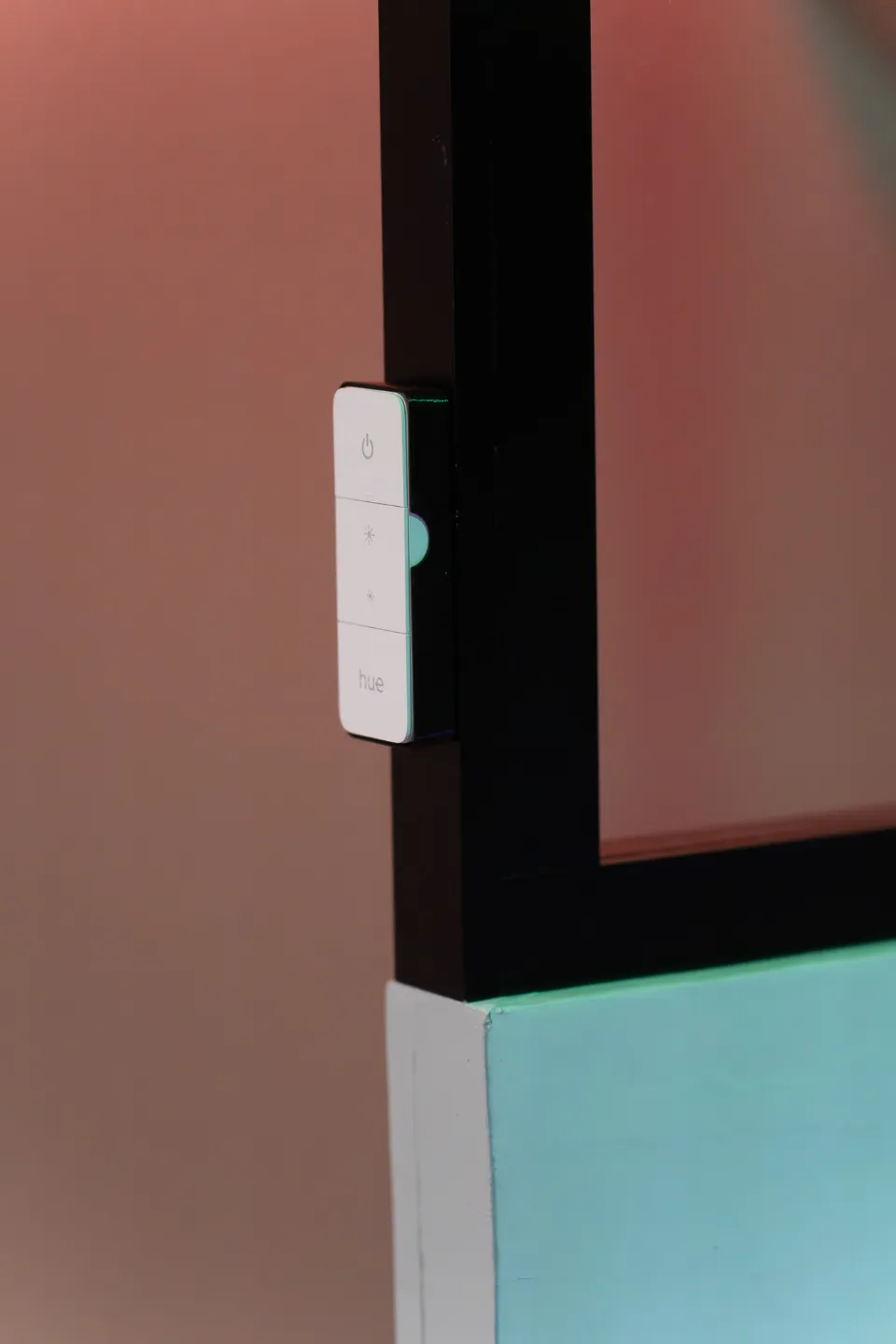

This is a custom holder for the Philips Hue Dimmer Switch, designed to be more compact than the original for better placement in tight spaces.
The print includes a pause to insert 8×2mm magnets, which securely hold the switch in place. Be sure to check the magnet orientation:
- The top magnet should have the north pole facing up.
- The bottom magnet should have the south pole facing up.
The easiest way to determine the correct orientation is to place two magnets behind your switch and see how they align.

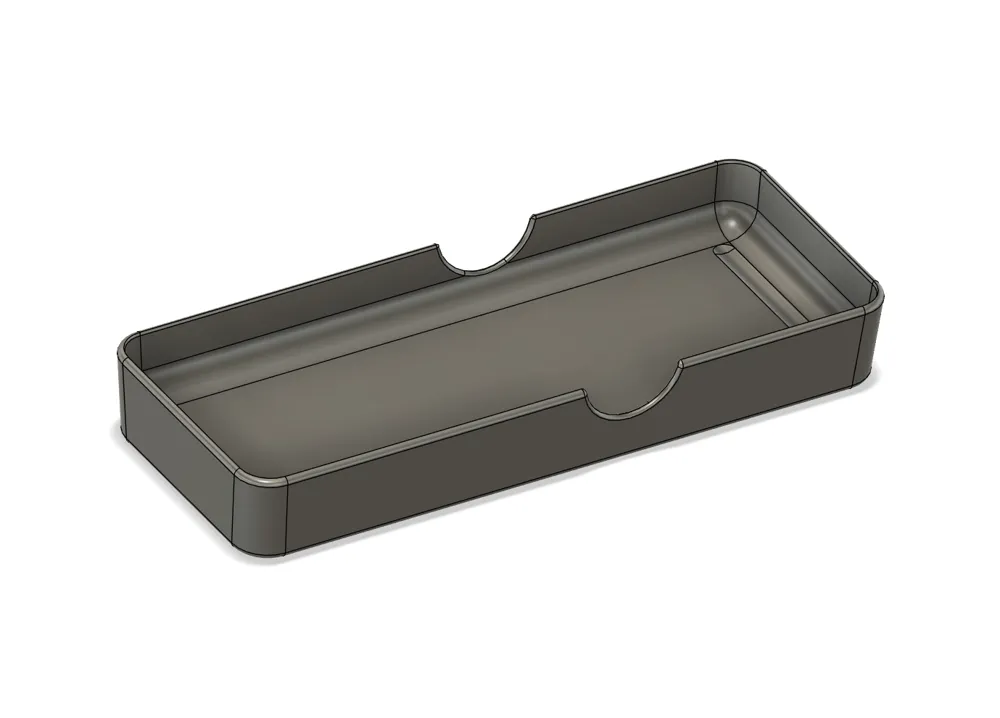

Smaller magnets will also work since they are embedded in the print. If you need to adjust the magnet size, the Fusion 360 (.f3d) file is included—feel free to modify it and share your version, as it may be useful to others!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
